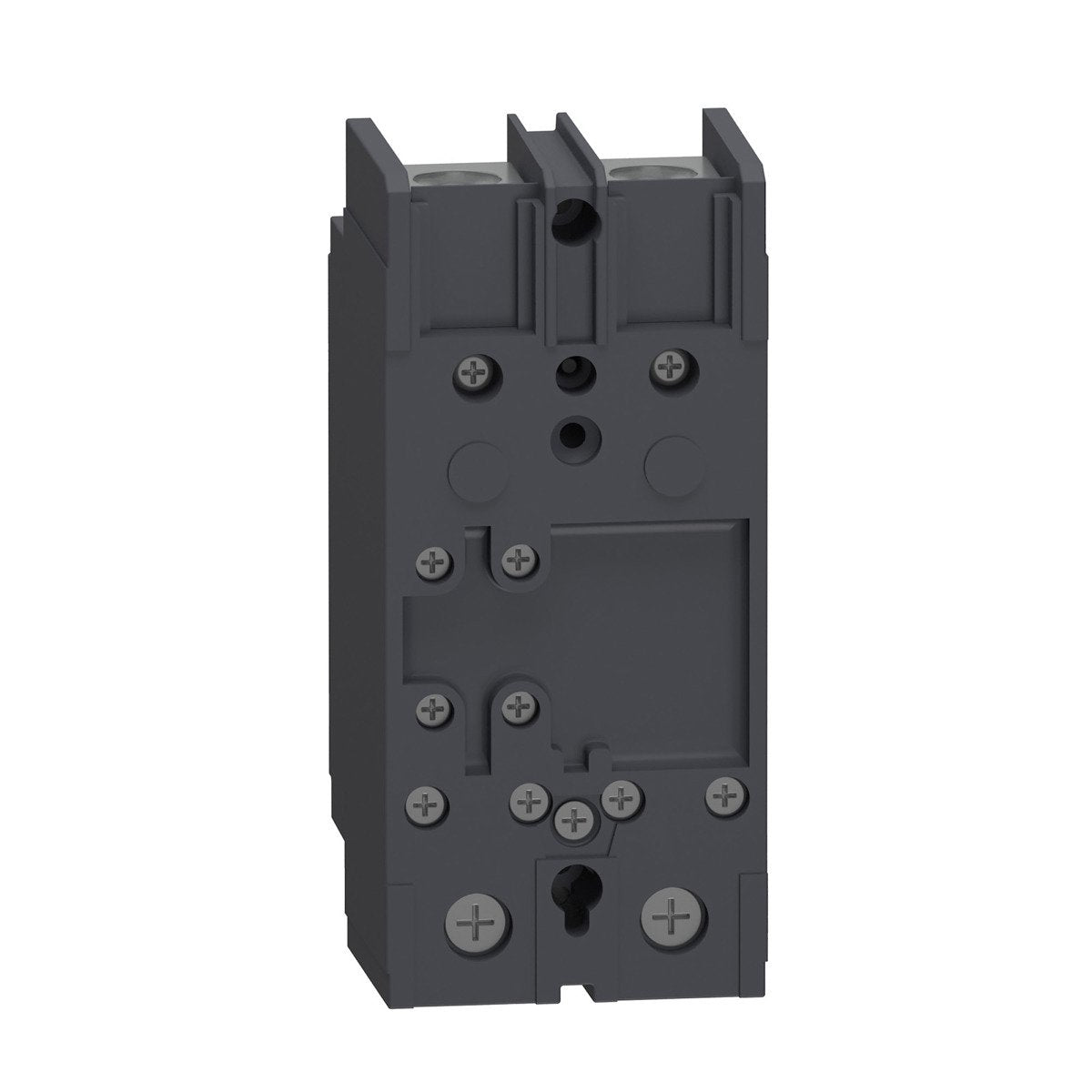

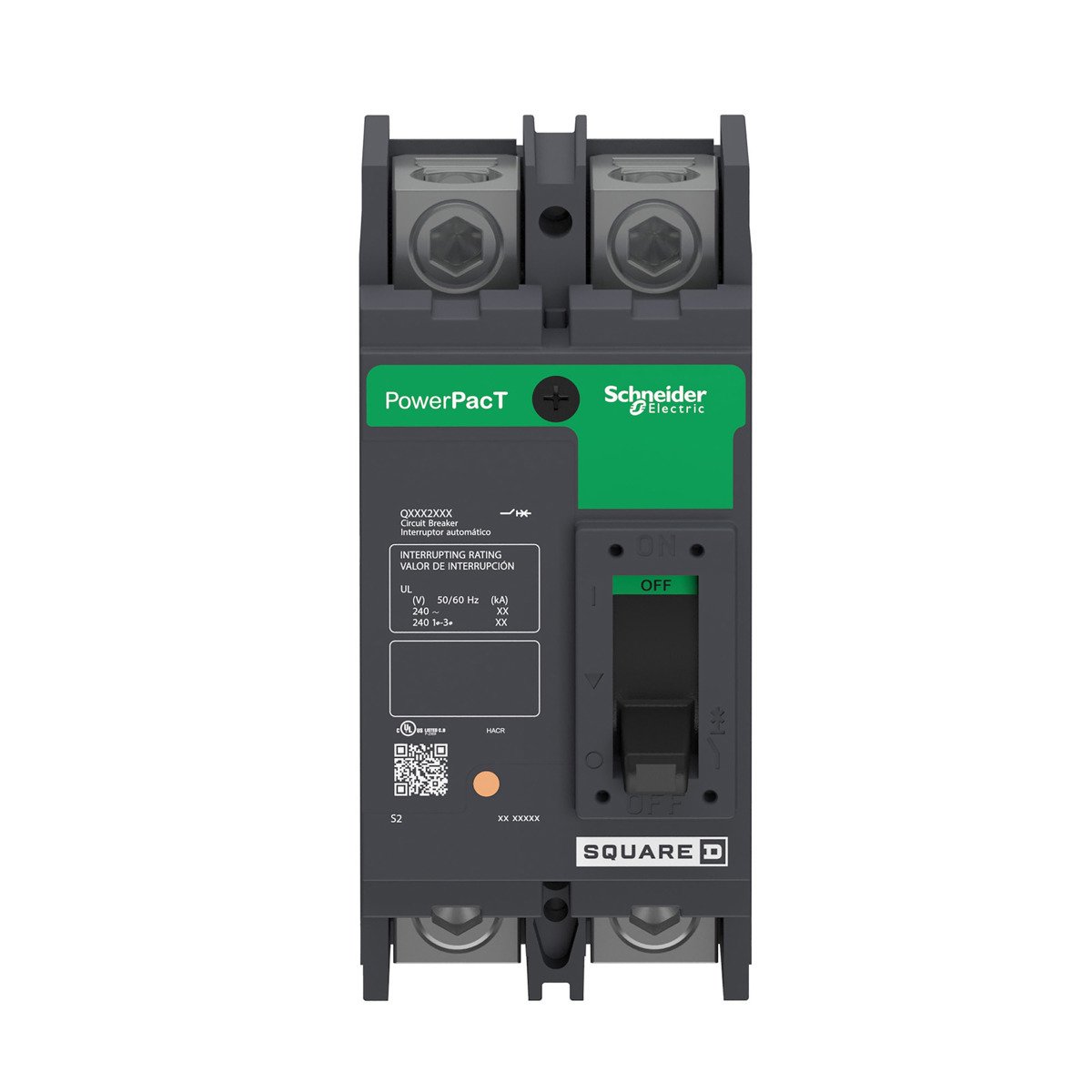

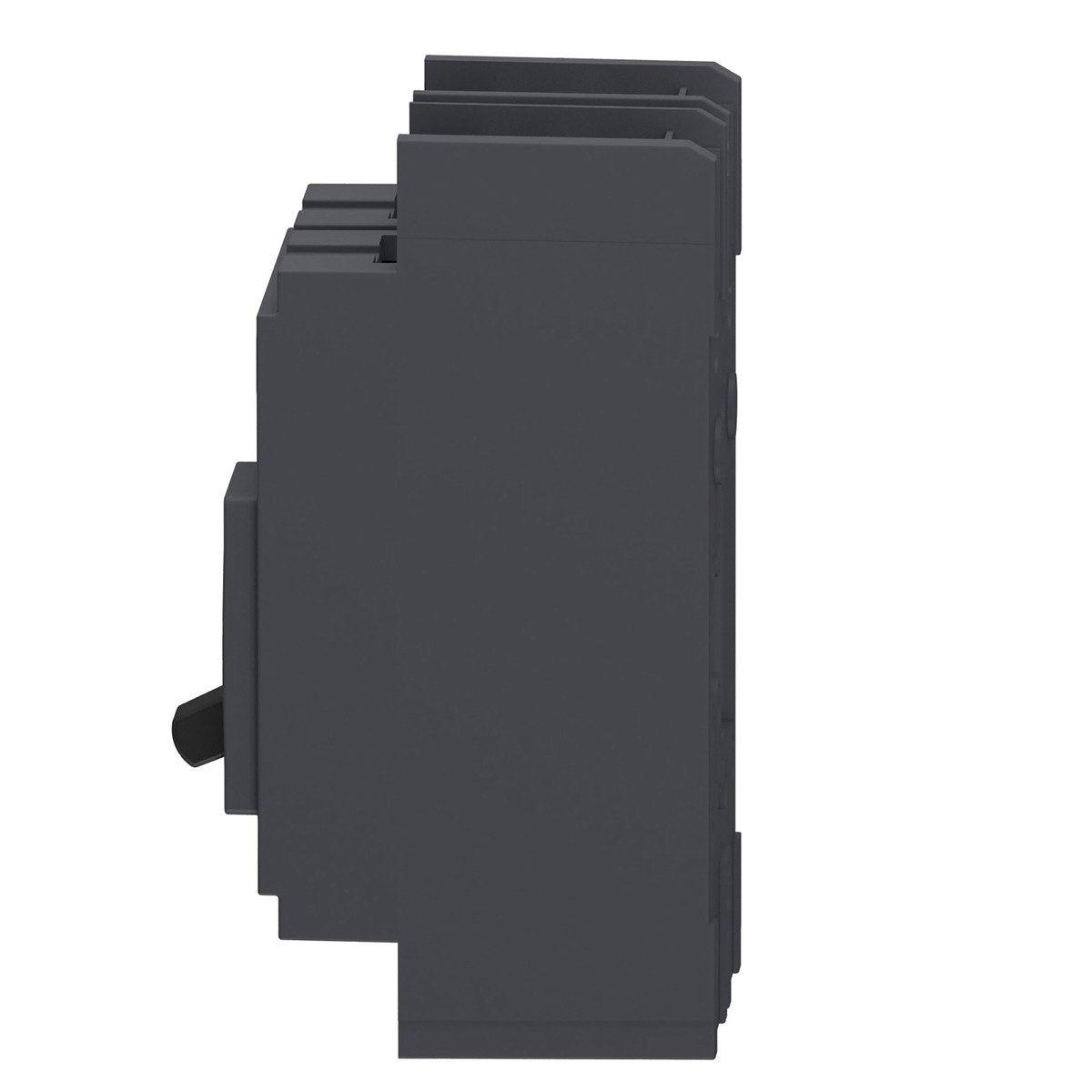

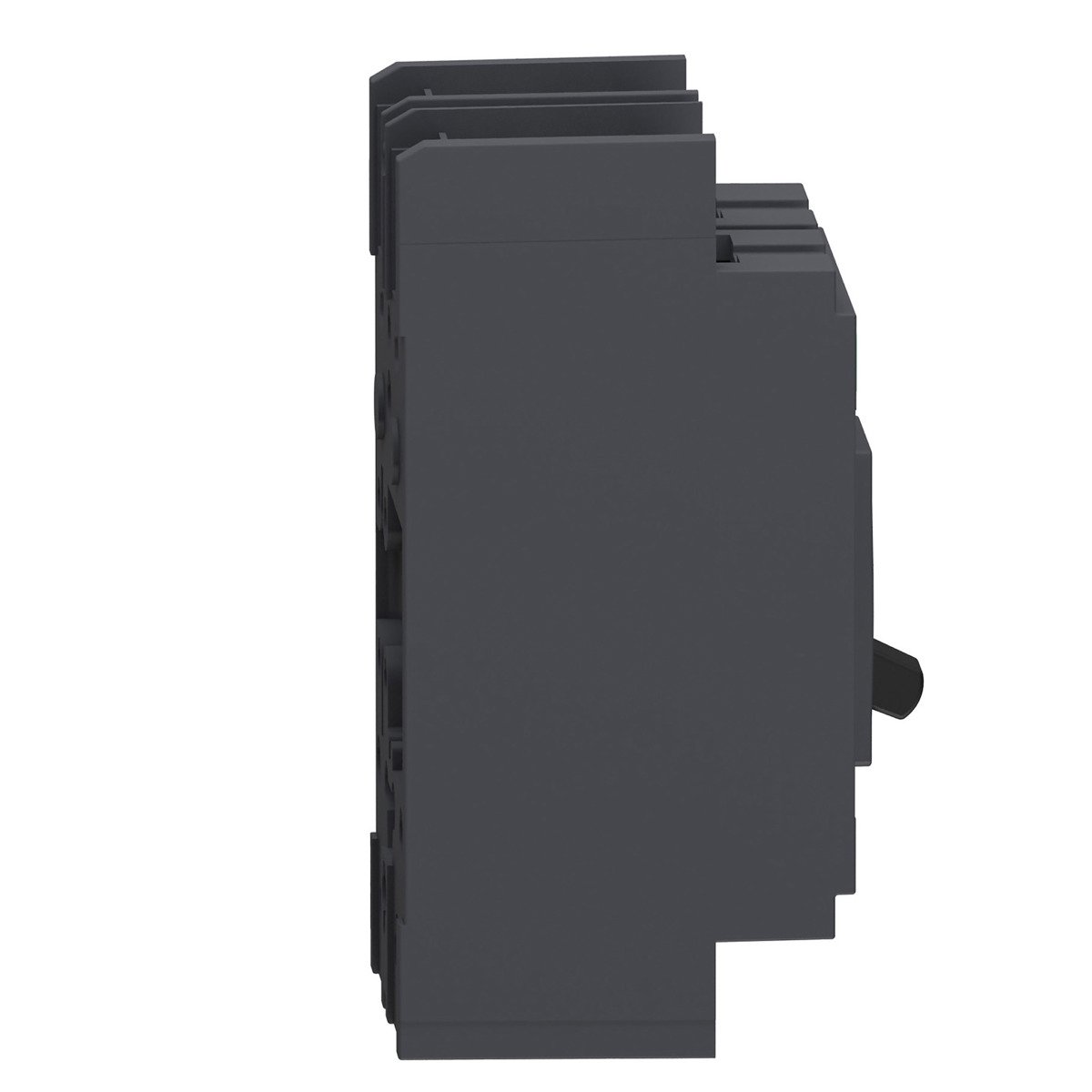

Square D QDP22100TM Molded Case Circuit Breaker 100A 240V 2P

Product Description

The Square D QDP22100TM is a molded case circuit breaker rated for 100 Amps at 240 Volts. This thermal magnetic circuit breaker is designed for overcurrent protection in residential and commercial applications. It features a two-pole configuration that allows it to manage both 120 and 240 Volt circuits efficiently.

• Rated current of 100A
• Breaking capacity of 25kA at 240VAC
• Compliant with UL, CSA, and IEC standards

Product Highlights

This breaker is built for use in metering devices, panelboards, and switchboards. It can be mounted in individual enclosures or bus-mounted configurations. The PowerPact Q-frame series provides reliable protection against circuit overloads.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QDP22100TM
• Voltage: 240 Volt
• Amperage: 100 Amp
• Width: 3 inches
• Height: 6.47 inches
• Depth: 3.93 inches
• Number of Poles: 2 Pole
• Trip Type: Thermal-Magnetic
• Interrupt Rating: 25 kAIC
• Warranty Length: 18 months
• Country of Origin: Mexico
