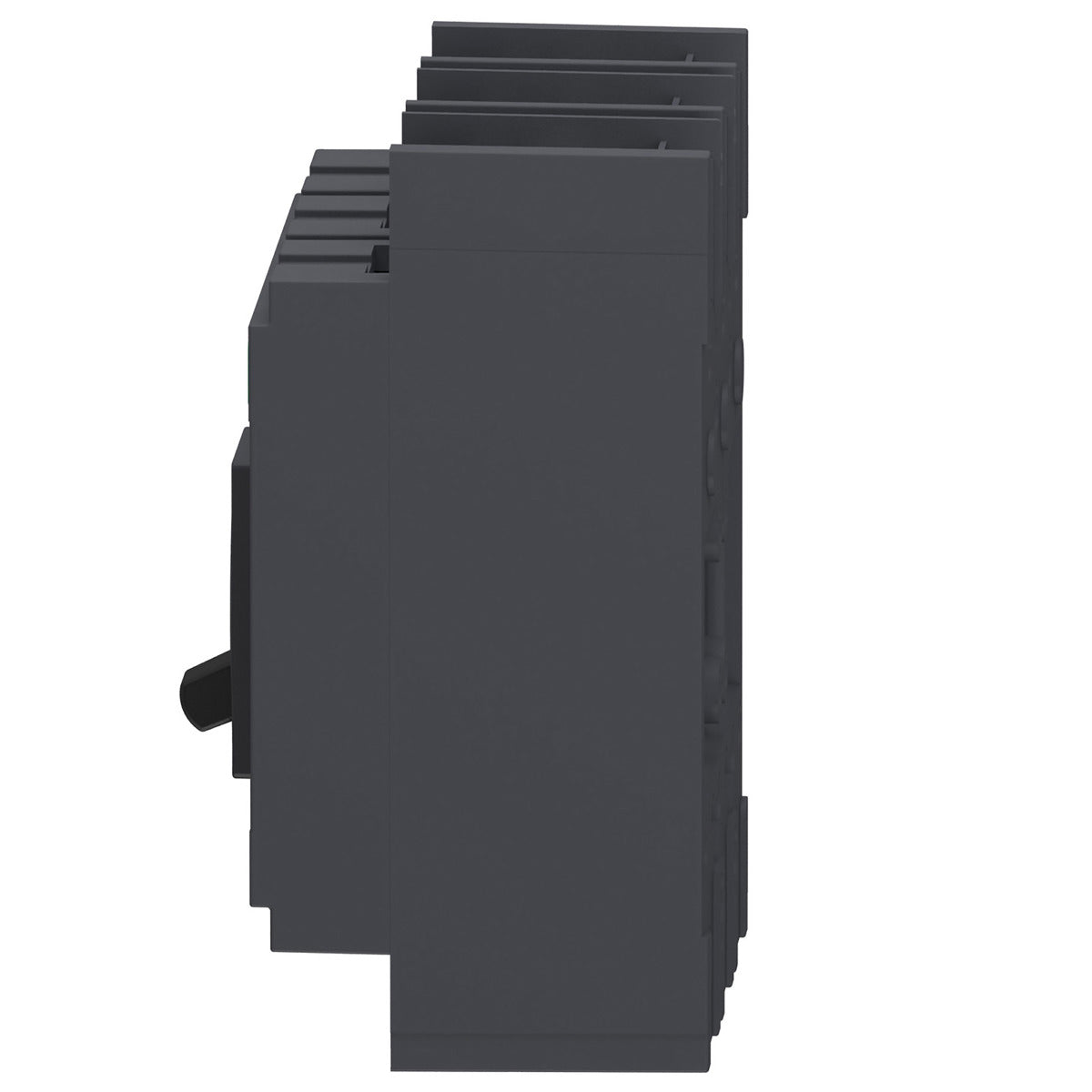

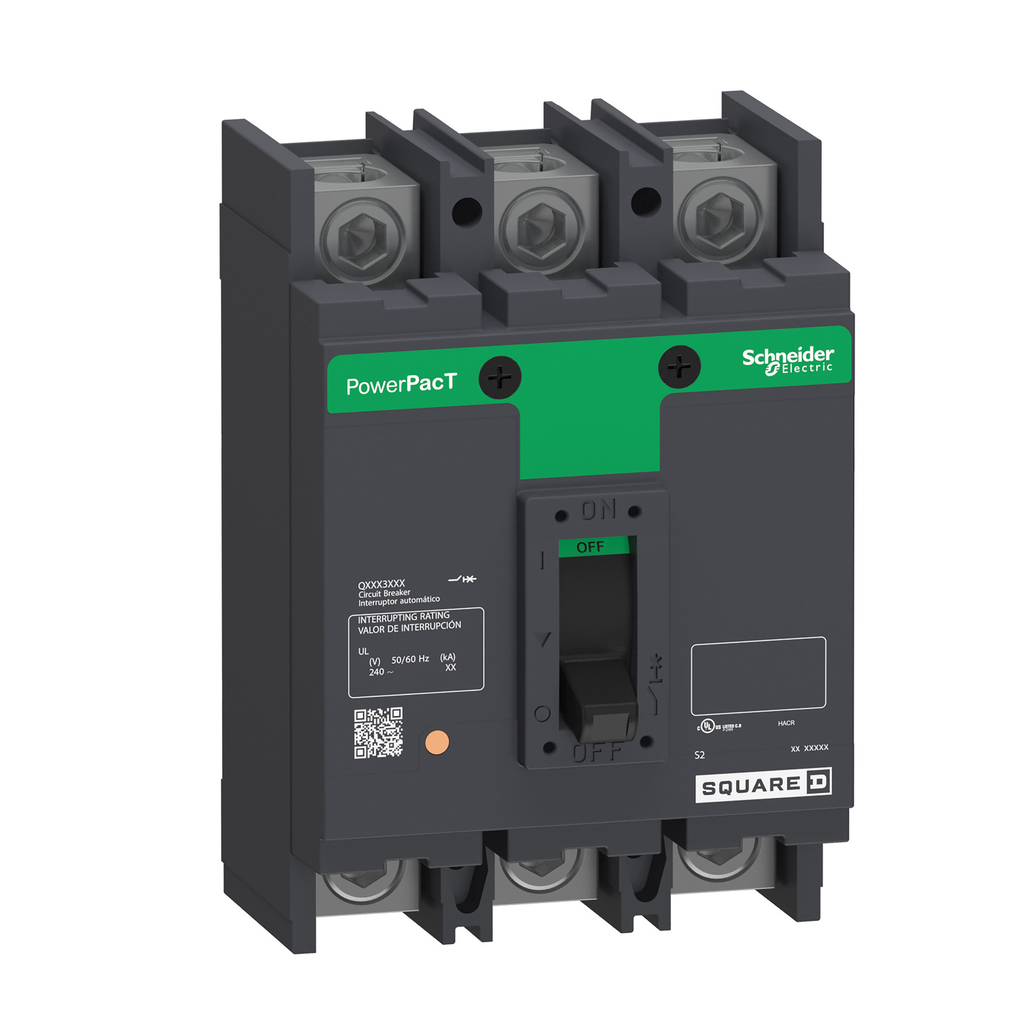

Square D QDL32200 Molded Case Circuit Breaker 200A 240V 3P

Product Description

The Square D QDL32200 Molded Case Circuit Breaker is designed for overcurrent protection in electrical systems rated at two hundred amperes and two hundred forty volts. This three-pole circuit breaker features thermal-magnetic trip technology and is suitable for various mounting configurations. It is ideal for protecting circuits in residential, commercial, and industrial settings.

• Rated current: 200A
• Voltage: 240V
• Breaking capacity: 25kA@240VAC

Product Highlights

Engineered for reliability, this circuit breaker facilitates overload and short circuit protection, enhancing safety in electrical installations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QDL32200
• Frame Type: Q-FRAME
• Number of Poles: 3
• Continuous Current Rating: 80%
• Interruption Rating: 25 kAIC
• Trip Type: Thermal-magnetic
• Trip Points: Hold at 1200A, Trip at 2400A
• Height: 6.47 inches
• Width: 4.5 inches
• Depth: 3.93 inches
• Country of Origin: Mexico
• Operating Temperature Range: -13F to 158F
• Certifications: UL, CSA
• Warranty: 18 months
