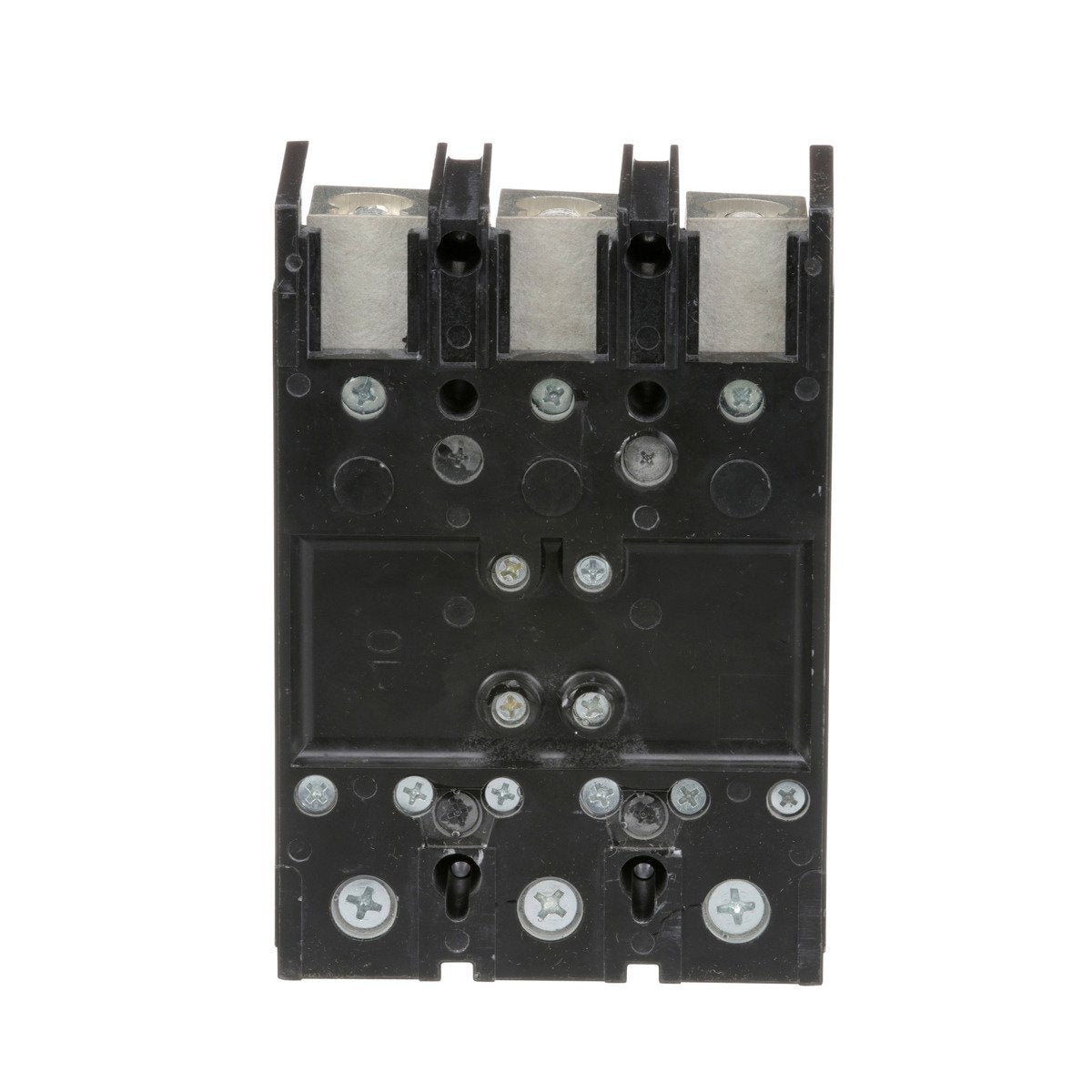

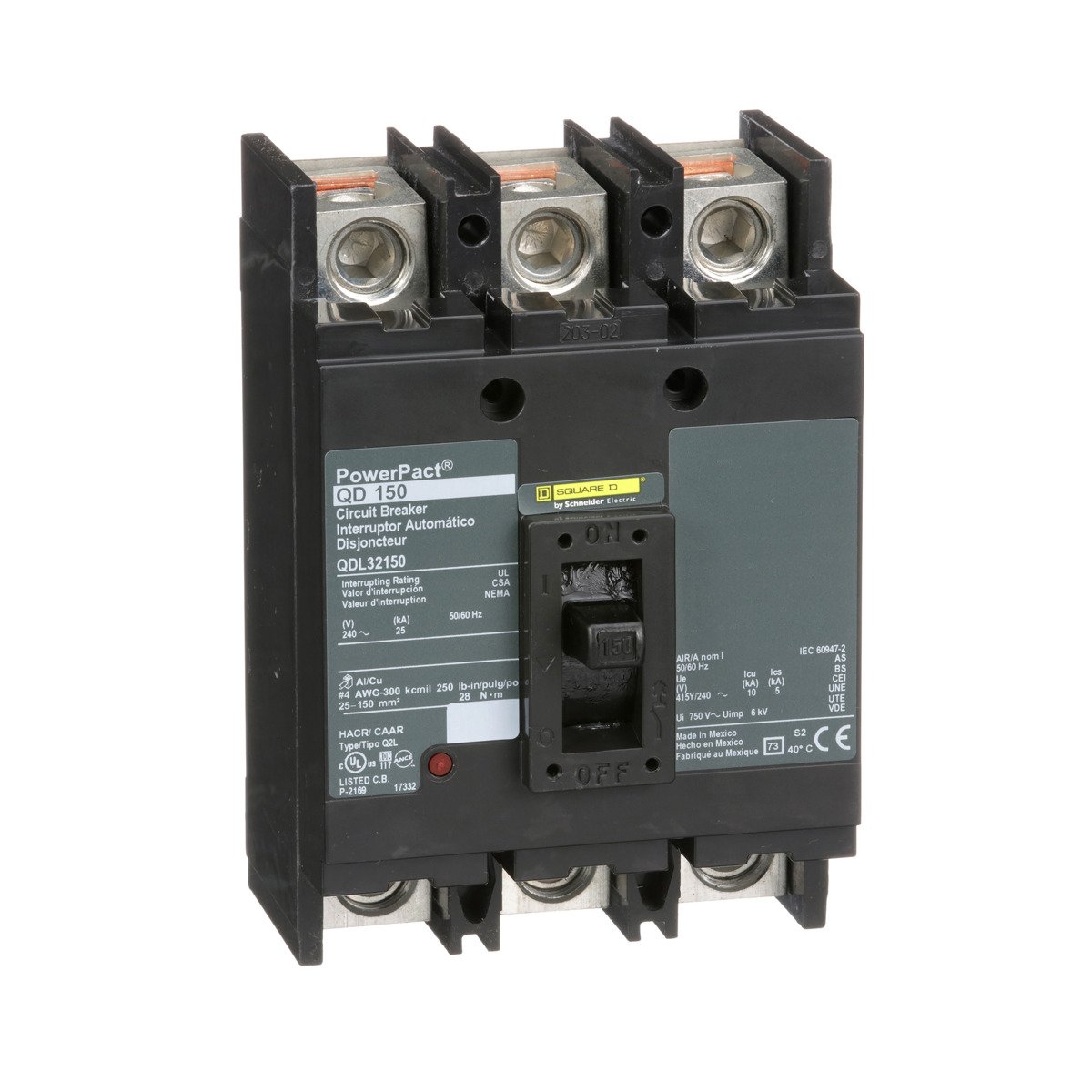

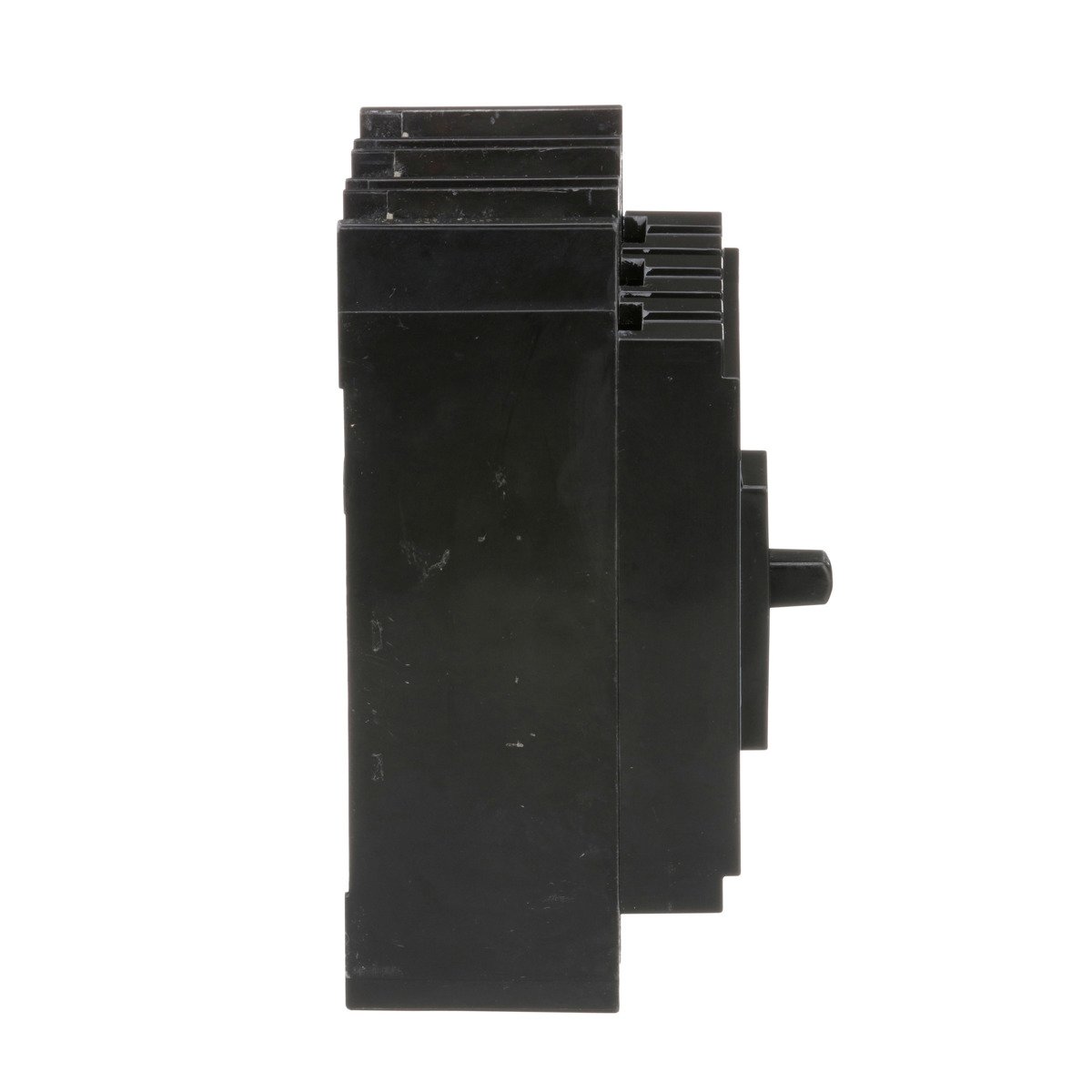

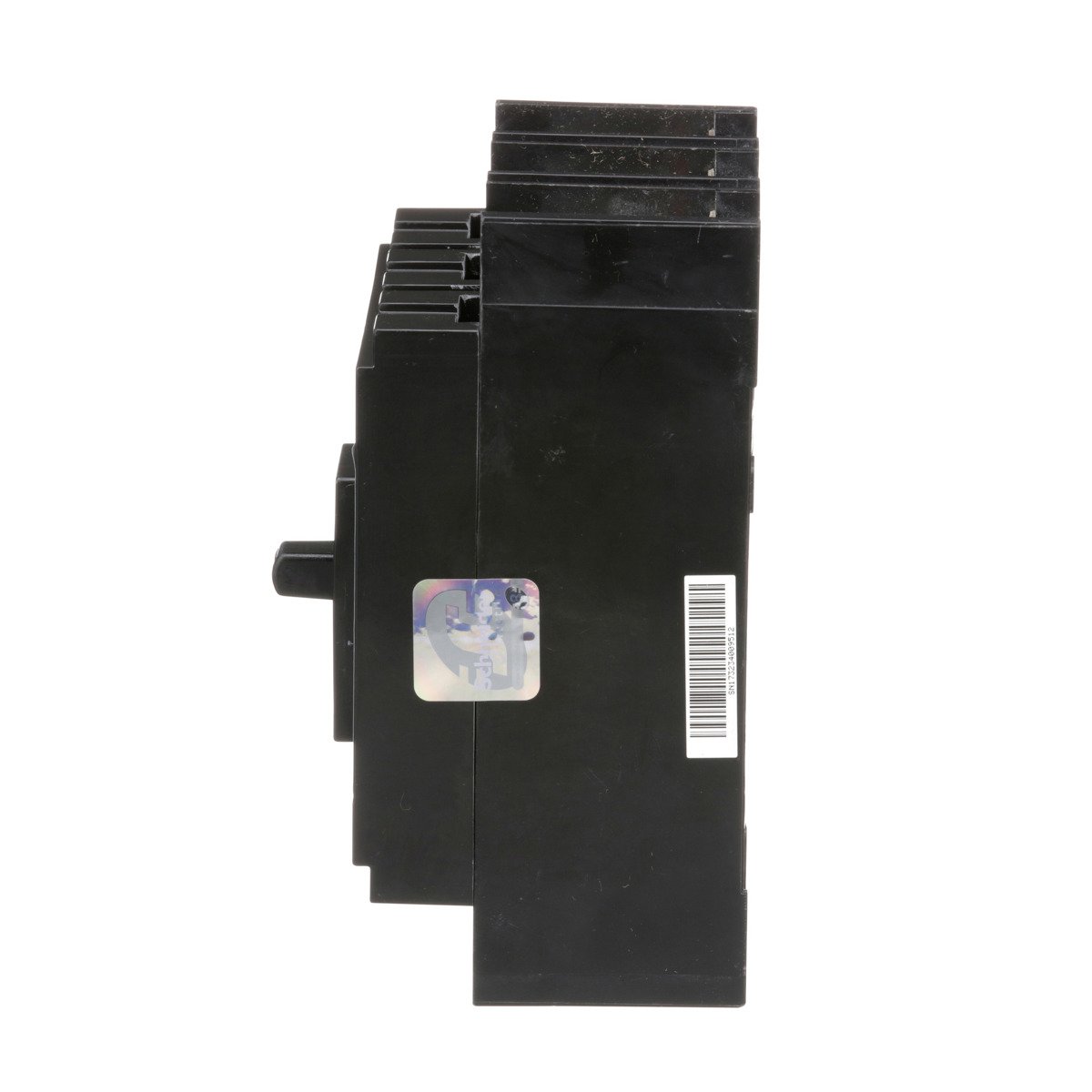

Square D QDL32150 Molded Case Circuit Breaker 150A 240V 3P

Product Description

The Square D QDL32150 is a molded case circuit breaker designed for thermal magnetic protection in electrical systems. With a rated current of 150 amperes and a voltage of 240 VAC, this three-pole breaker is ideal for various applications including overcurrent protection and switching. It is a direct replacement for the Q2 Series device and complies with UL, CSA, and IEC standards.

• Designed for 240VAC operational voltage.
• Interrupting capacity rated at 25kA.
• Equipped with thermal-magnetic trip technology.

Product Highlights

This circuit breaker is suitable for installation in individual enclosures, panelboards, and switchboards, ensuring reliable operation in power distribution systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QDL32150
• Voltage: 240 Volt
• Amperage: 150 Amp
• Number of Poles: 3
• Trip Type: Thermal-magnetic
• Breaking Capacity: 25kA
• Dimensions: 6.47 inches (H) x 4.5 inches (W) x 3.93 inches (D)
• Country of Origin: Mexico
• Warranty Length: 18 months
