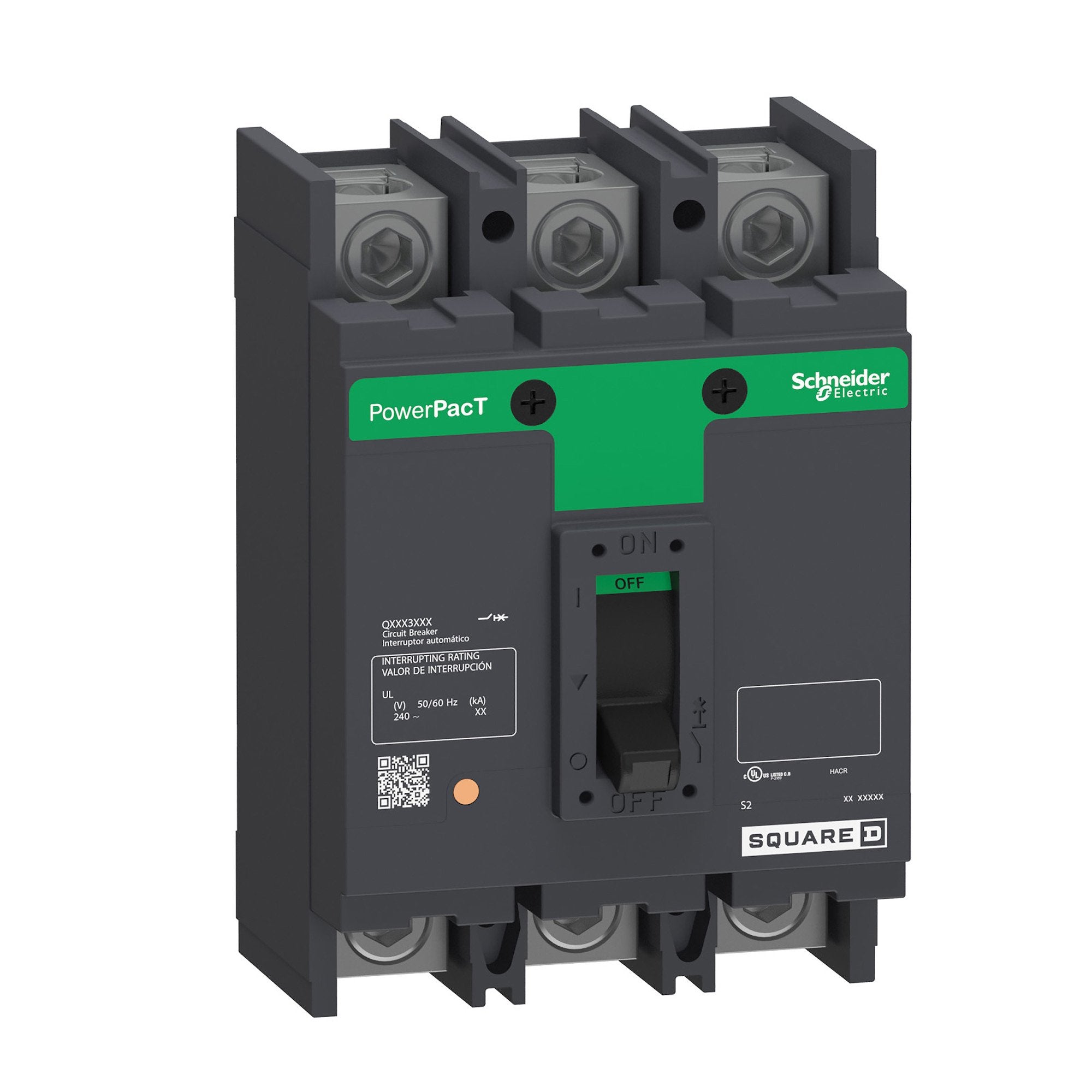

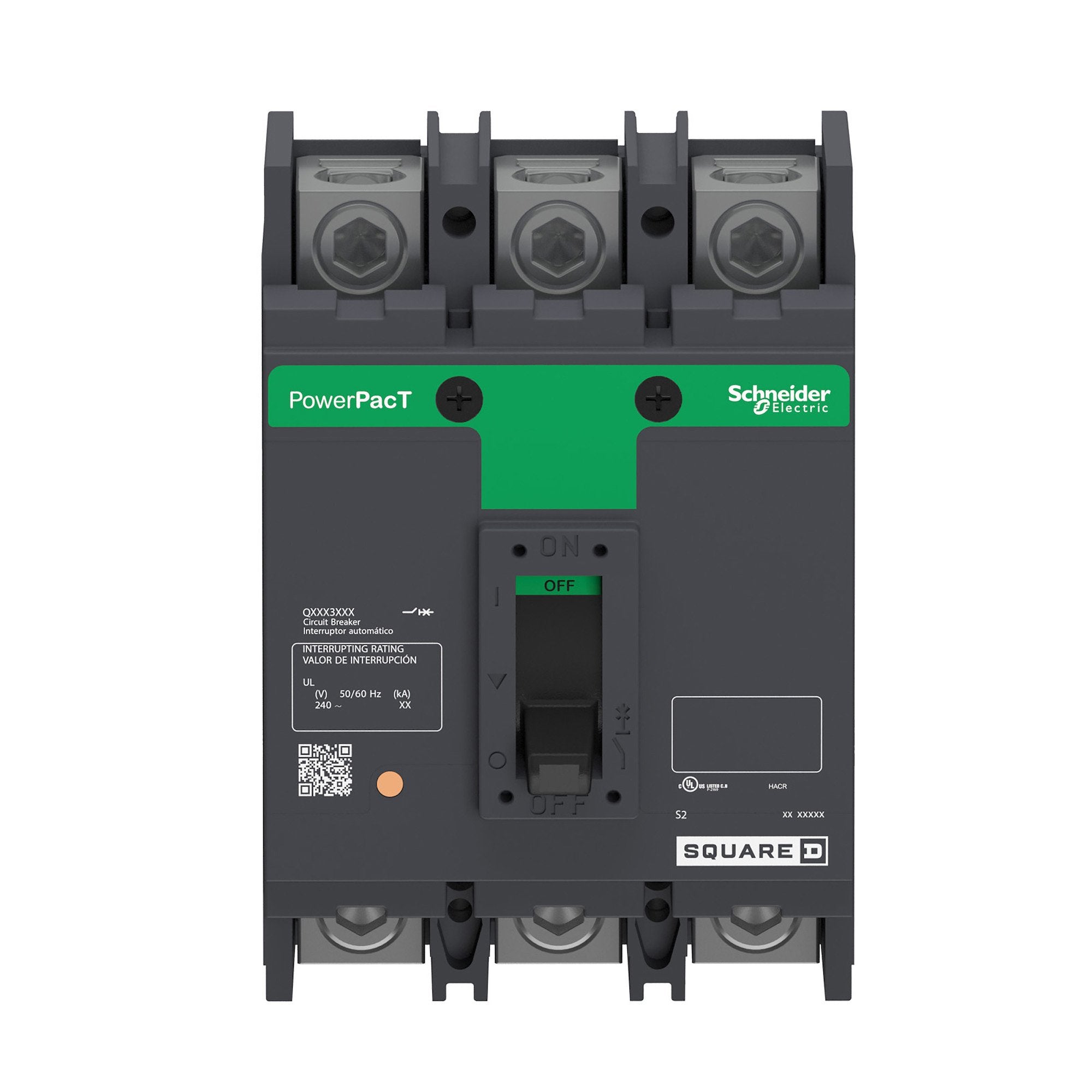

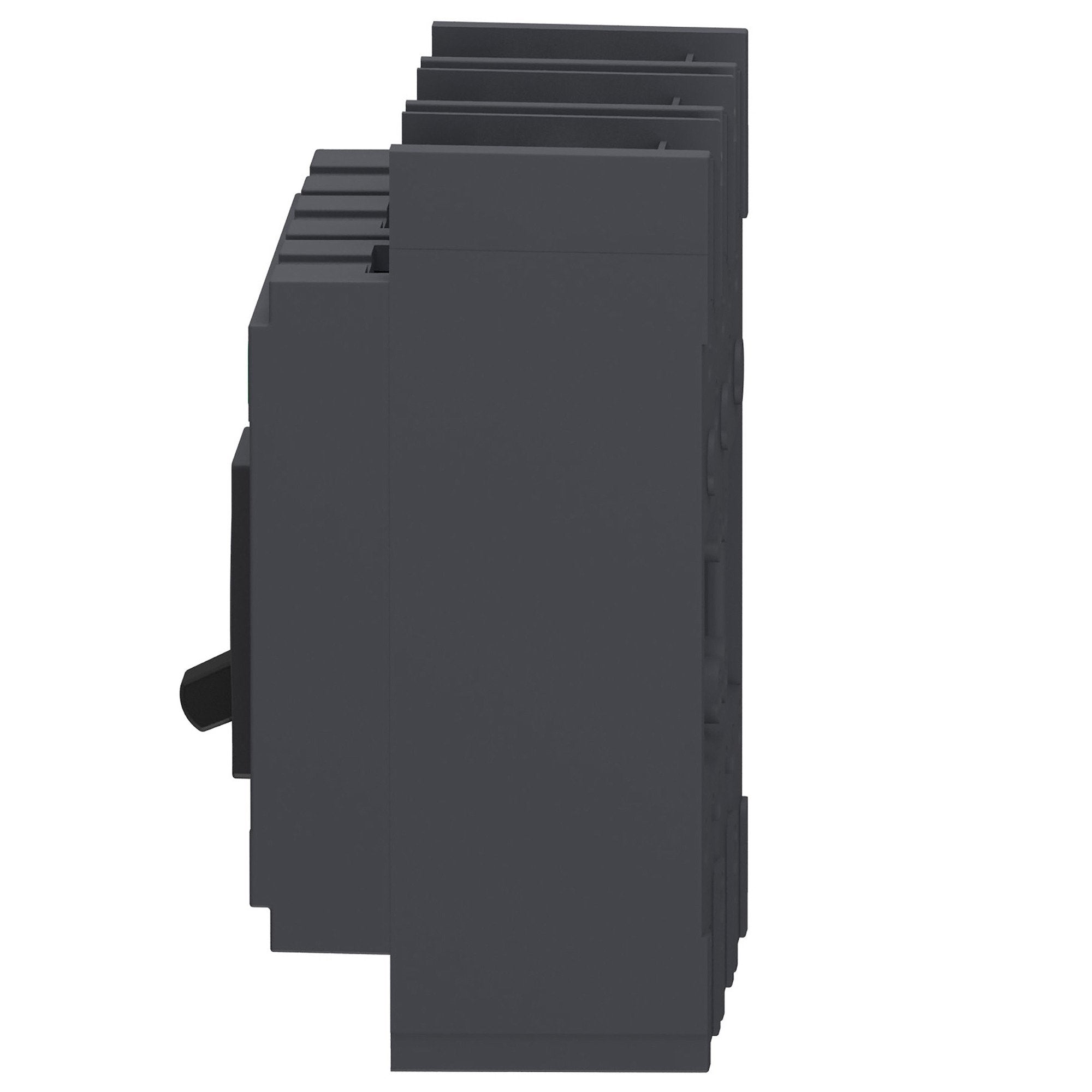

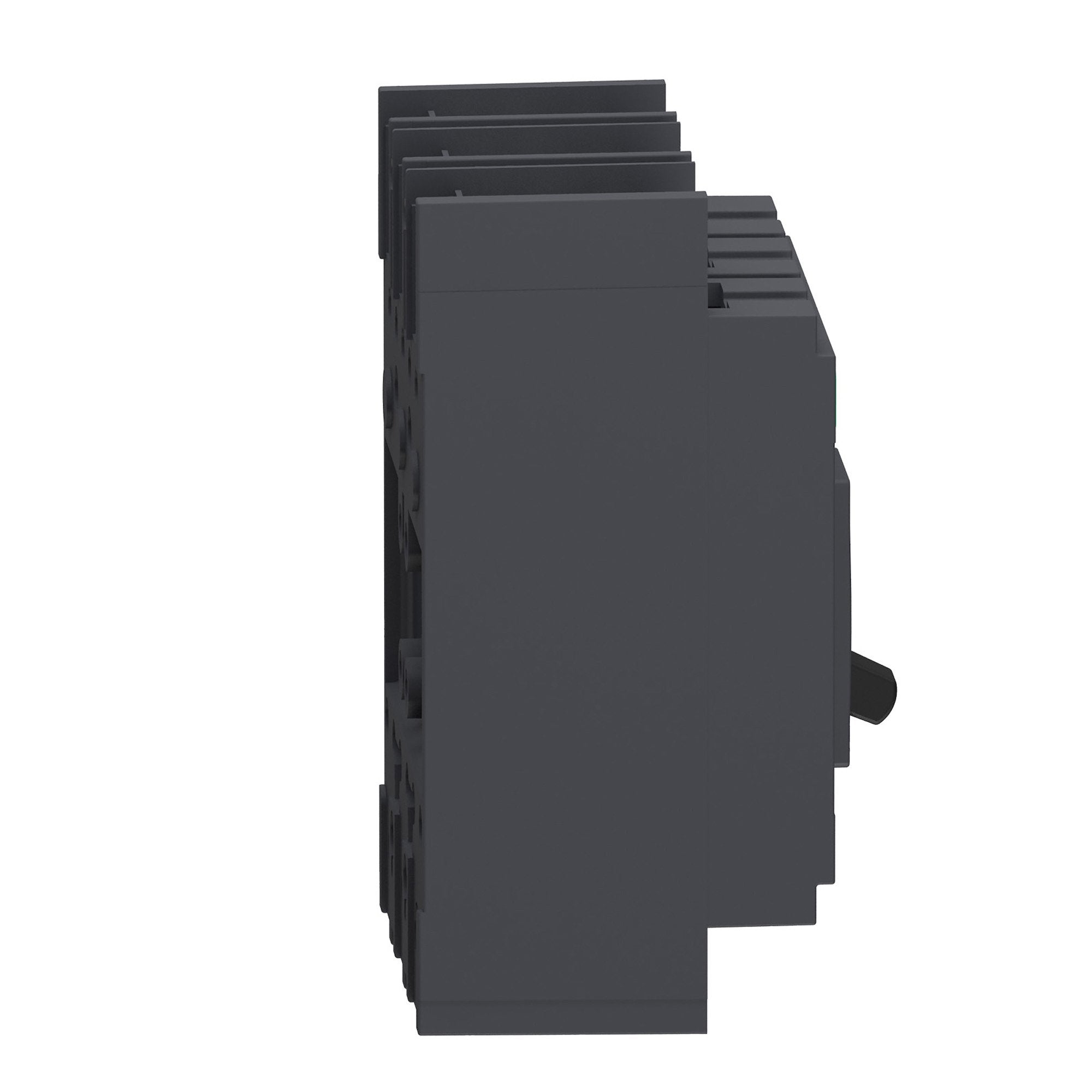

Square D QDL32070 Molded Case Circuit Breaker 70A 240V 3P Thermal Magnetic

Product Description

The Square D QDL32070 is a molded case circuit breaker with a rating of seventy amps and operates at two hundred forty volts. It features thermal magnetic trip technology, suitable for overload and short circuit protection. This three-pole breaker is designed for various applications in power distribution systems.

• Rated at seventy amps with a breaking capacity of twenty-five kiloamperes.
• Thermal-magnetic trip unit for enhanced protection.
• Complies with UL, CSA, and IEC standards.

Product Highlights

This circuit breaker is a direct replacement for Q2 Series devices, providing reliable performance in industrial settings. It can be mounted in panelboards or switchboards and is designed with lugs for both the load and line sides, increasing installation versatility.

Product Information

Standard Information

• Catalog Number: QDL32070
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Circuit breaker
• Voltage: 240 Volt
• Amperage: 70 Amp
• Frame: D
• Height: 6.47 Inch
• Width: 4.5 Inch
• Depth: 3.93 Inch
• Number of Poles: 3 Pole
• Warranty: 18 months
• Country of Origin: United States
• Interrupt Rating: 25 kAIC
