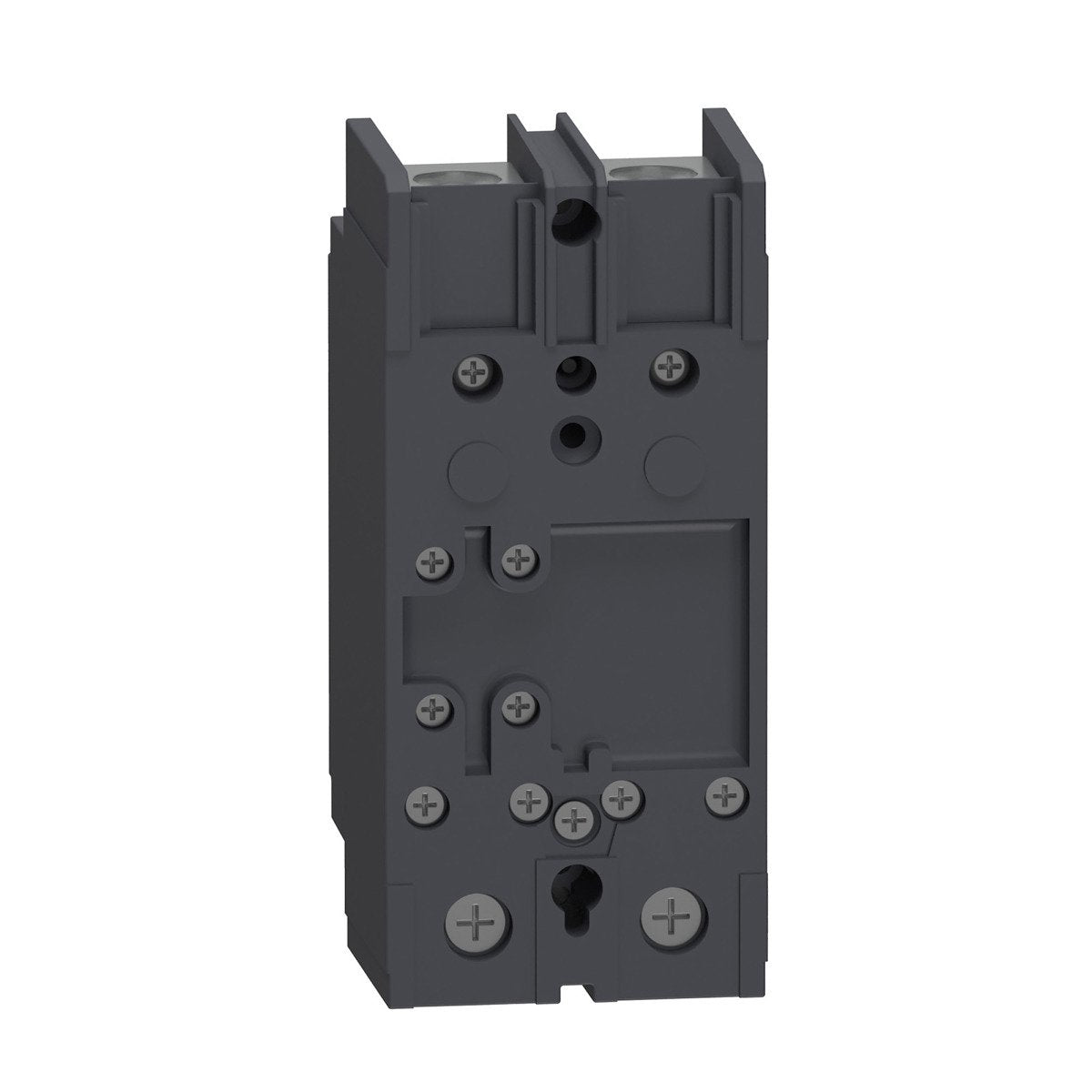

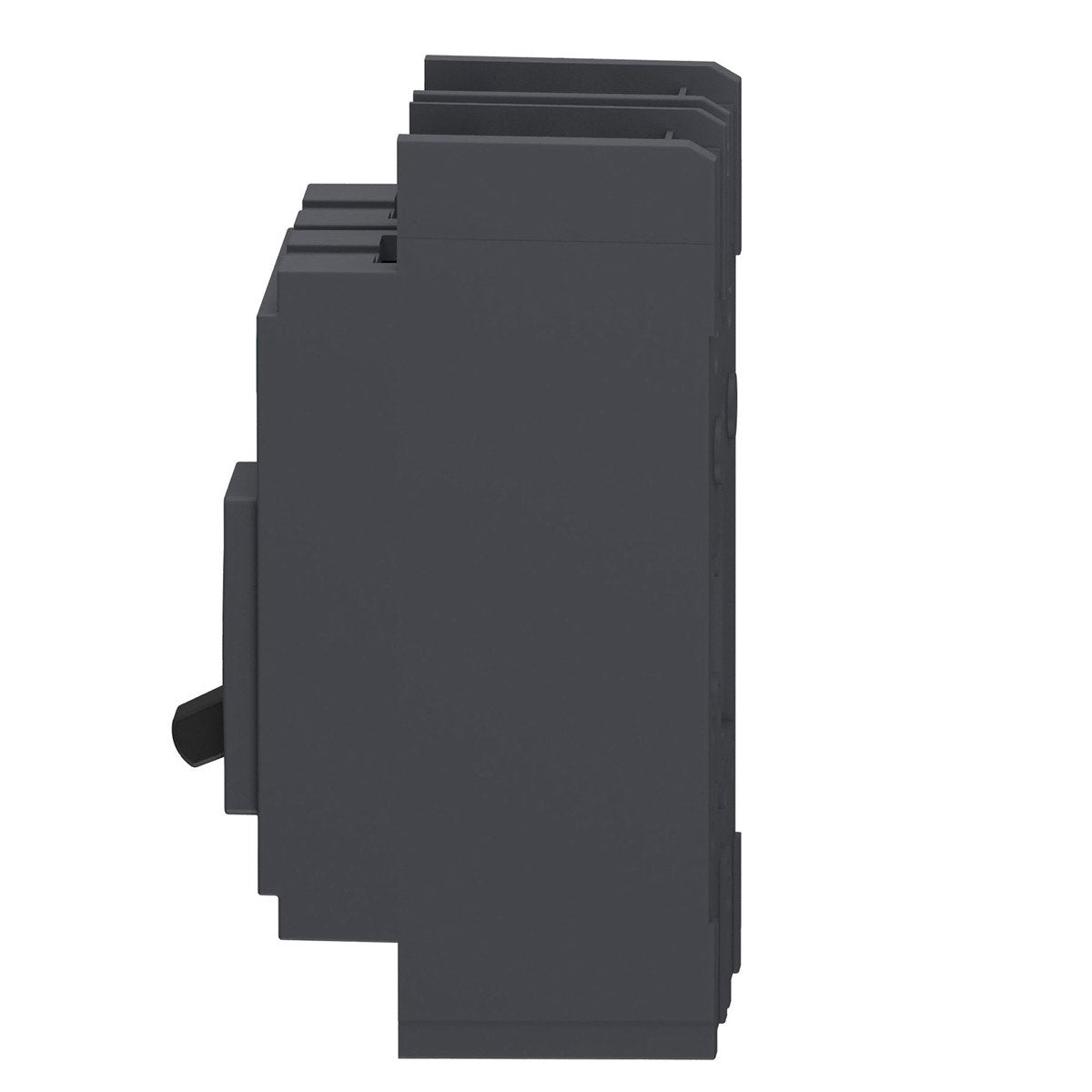

Square D QDL22175 Molded Case Circuit Breaker 175A 240V 2P

Product Description

The Square D QDL22175 Molded Case Circuit Breaker is designed for effective overcurrent protection and is suitable for 240VAC systems. This unit features a thermal-magnetic trip system that provides reliable protection against overloads and short circuits. The product includes two poles with a rated current of one hundred seventy-five Amps.

• Rated for two poles and one hundred seventy-five Amps
• Thermal-magnetic trip mechanism for reliable protection
• Complies with UL, CSA, and IEC standards

Product Highlights

This circuit breaker is ideal for installation in panelboards, switchboards, or as individual units in various applications requiring overcurrent protection.

Product Information

Standard Information

• Catalog Number: QDL22175
• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 240 Volt
• Amperage: 175 Amp
• Number of Poles: 2 Pole
• Interrupt Rating: 25 kAIC
• Trip Type: Thermal-Magnetic
• Trip Point: 2400 A
• Height: 6.47 Inches
• Width: 3.00 Inches
• Depth: 3.93 Inches
• Country of Origin: United States
