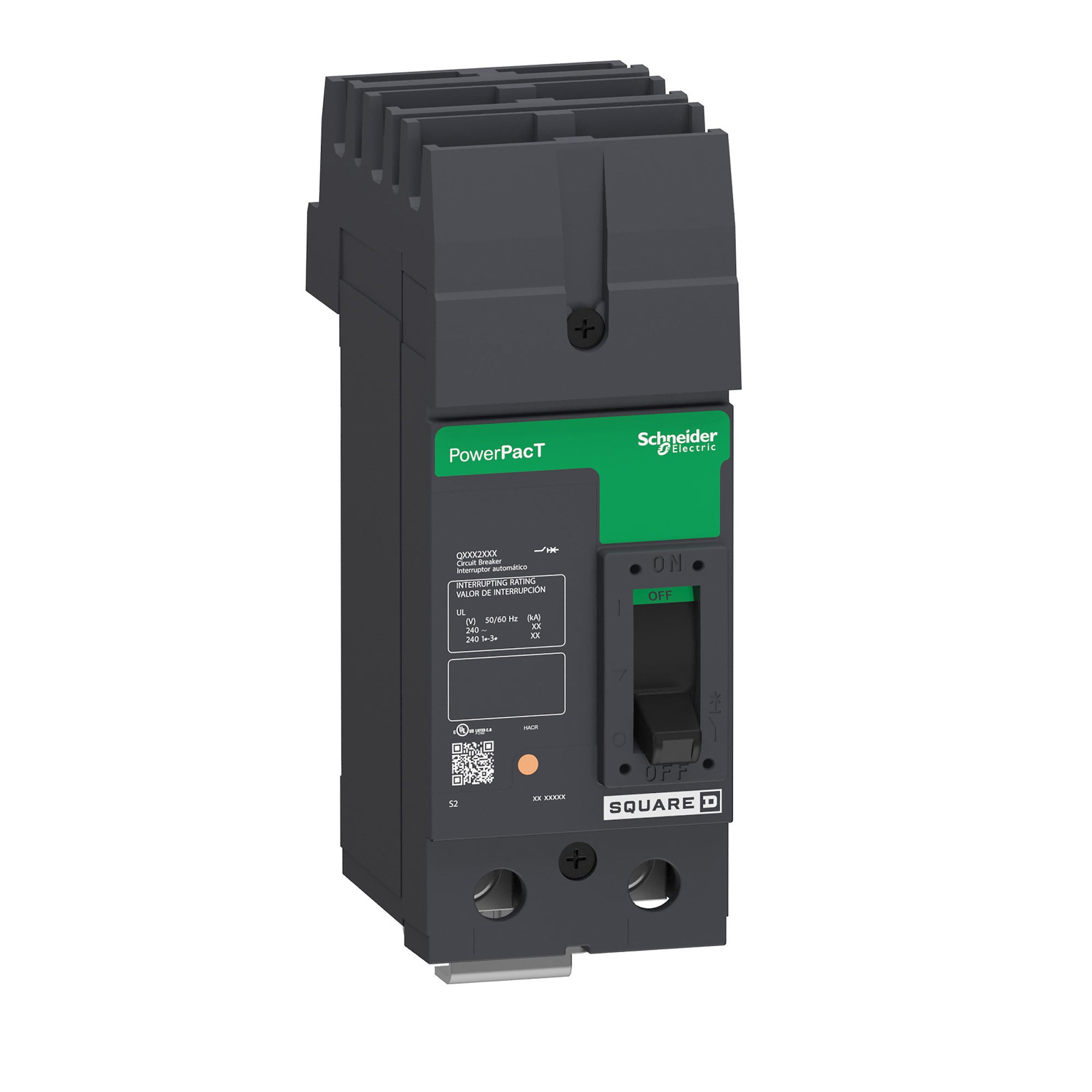

Square D QDA222002 Molded Case Circuit Breaker 200 Amp 240 Volt

Product Description

The Square D QDA222002 Molded Case Circuit Breaker offers robust overcurrent protection and switching on systems with operational voltages up to 240 volts AC. The product, crafted by Schneider Electric, provides reliable thermal magnetic trip protection and stands certified by prominent standards including UL, CSA, and IEC.

• Rated for 240 volts AC with a 200 ampere capacity.
• Features I-Line mounting style convenient for quick installation and secure connections.
• Inclusive of a manual trip function to enhance operational safety.

Product Highlights

This two-pole unit incorporates a firm structure allowing for efficient performance under 208Y/120 volts AC and 240 volts AC, with an interrupting capacity of 25 kA. The breaker is meticulously designed to meet high safety and performance standards, suitable for low voltage power systems.

Technical Specifications

• Brand: Square D
• Type: Molded Case Circuit Breaker
• Frame: Q-Frame
• Width: 3 inches
• Height: 6.47 inches
• Depth: 3.93 inches
• Amperage: 200 Amp
• Voltage Rating: 240 Volt
