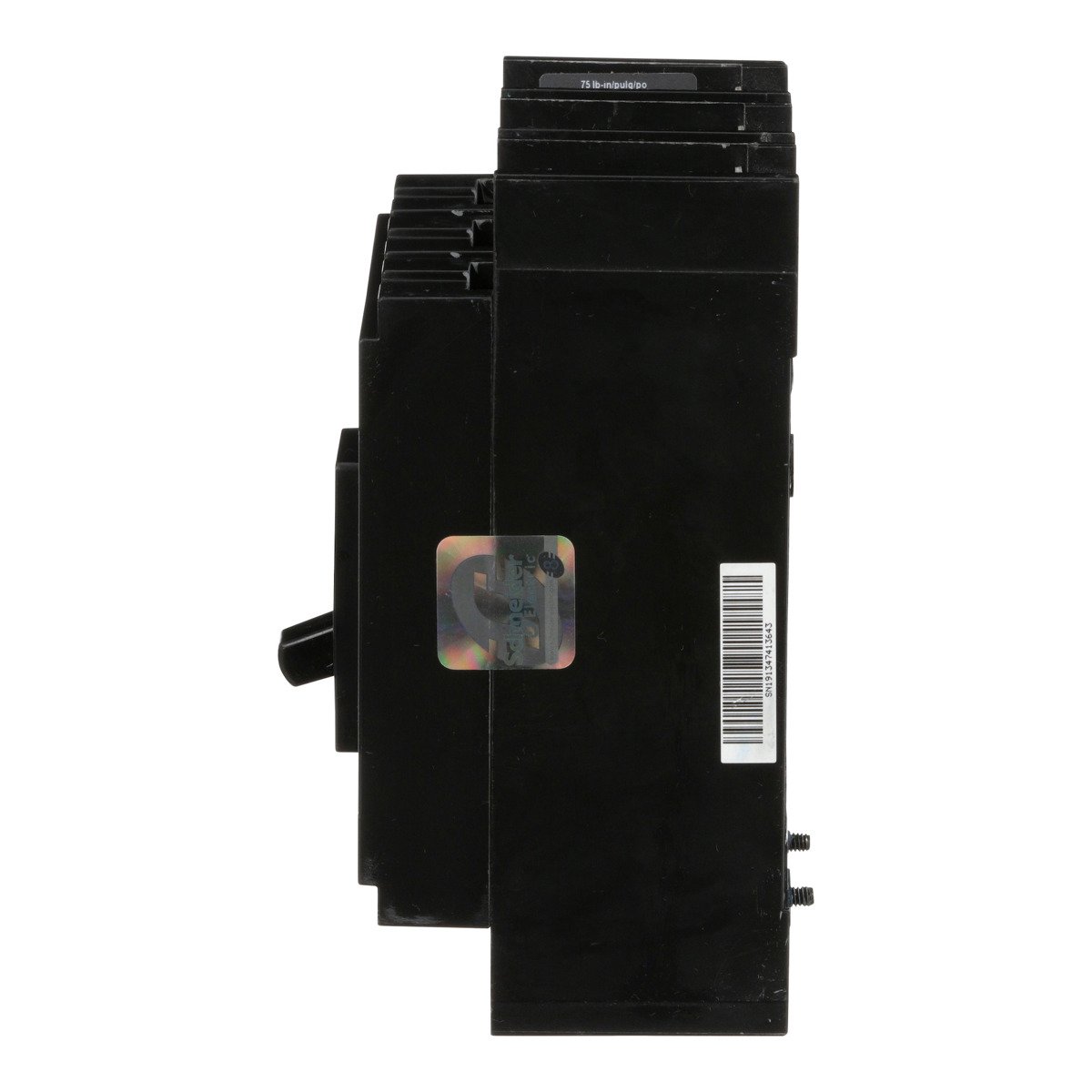

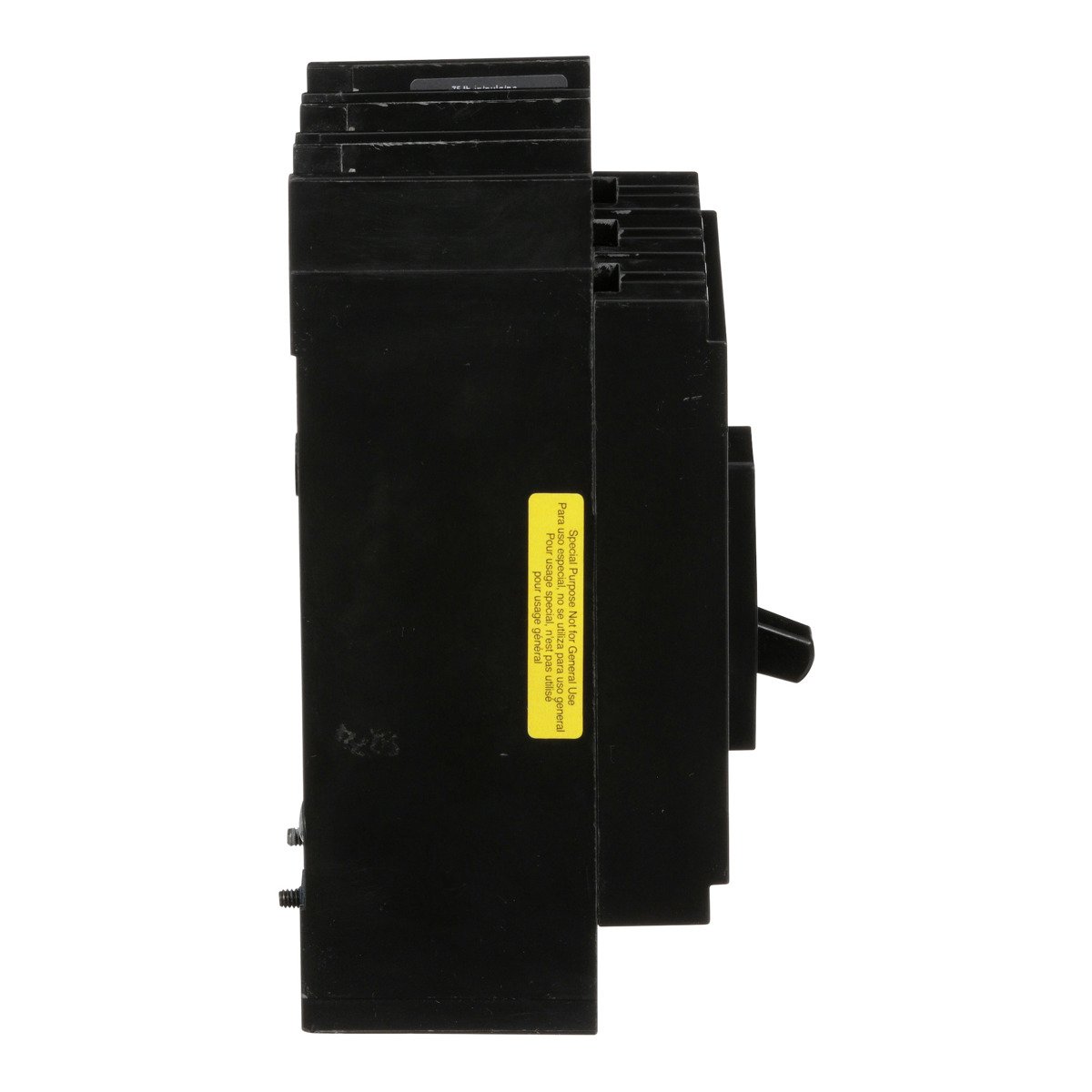

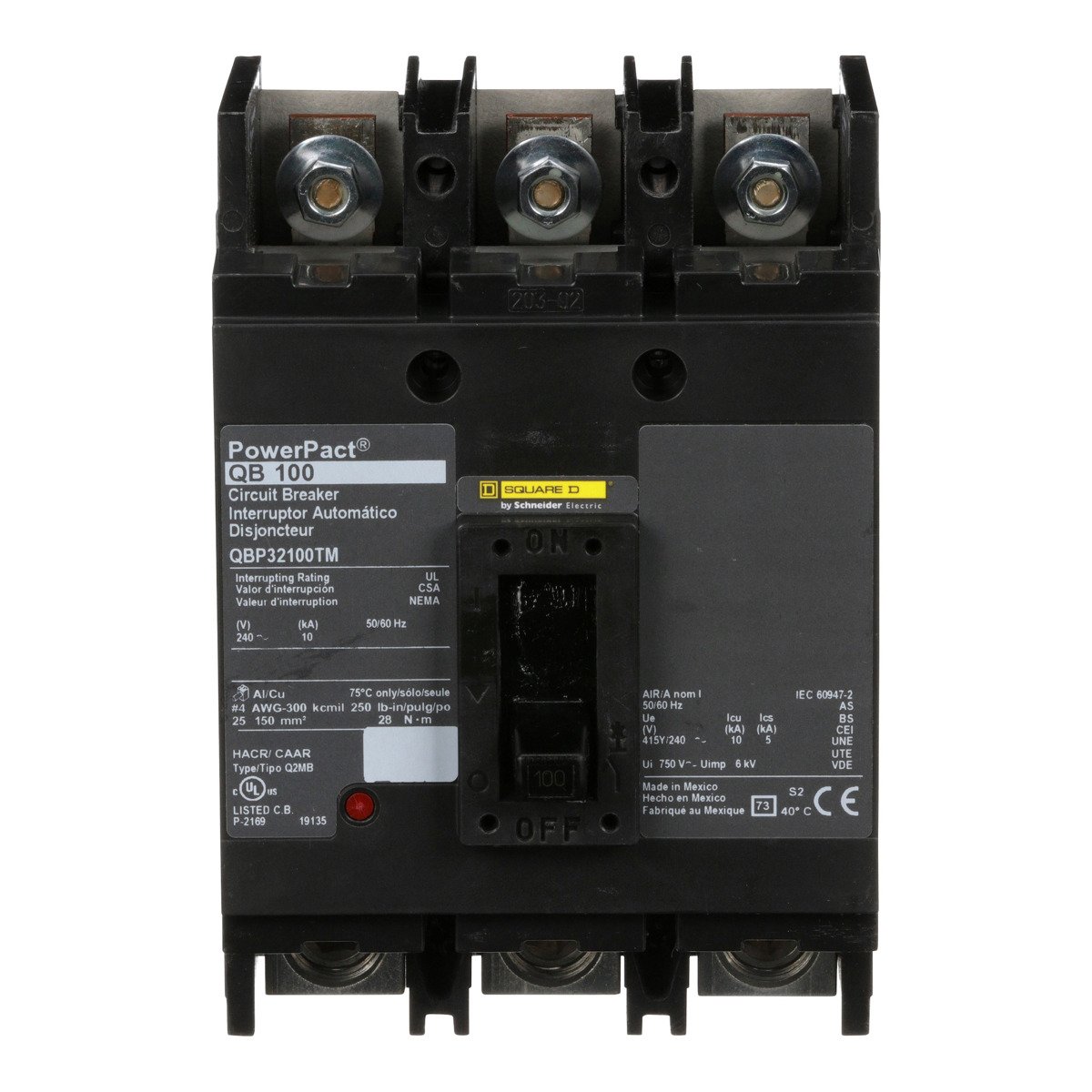

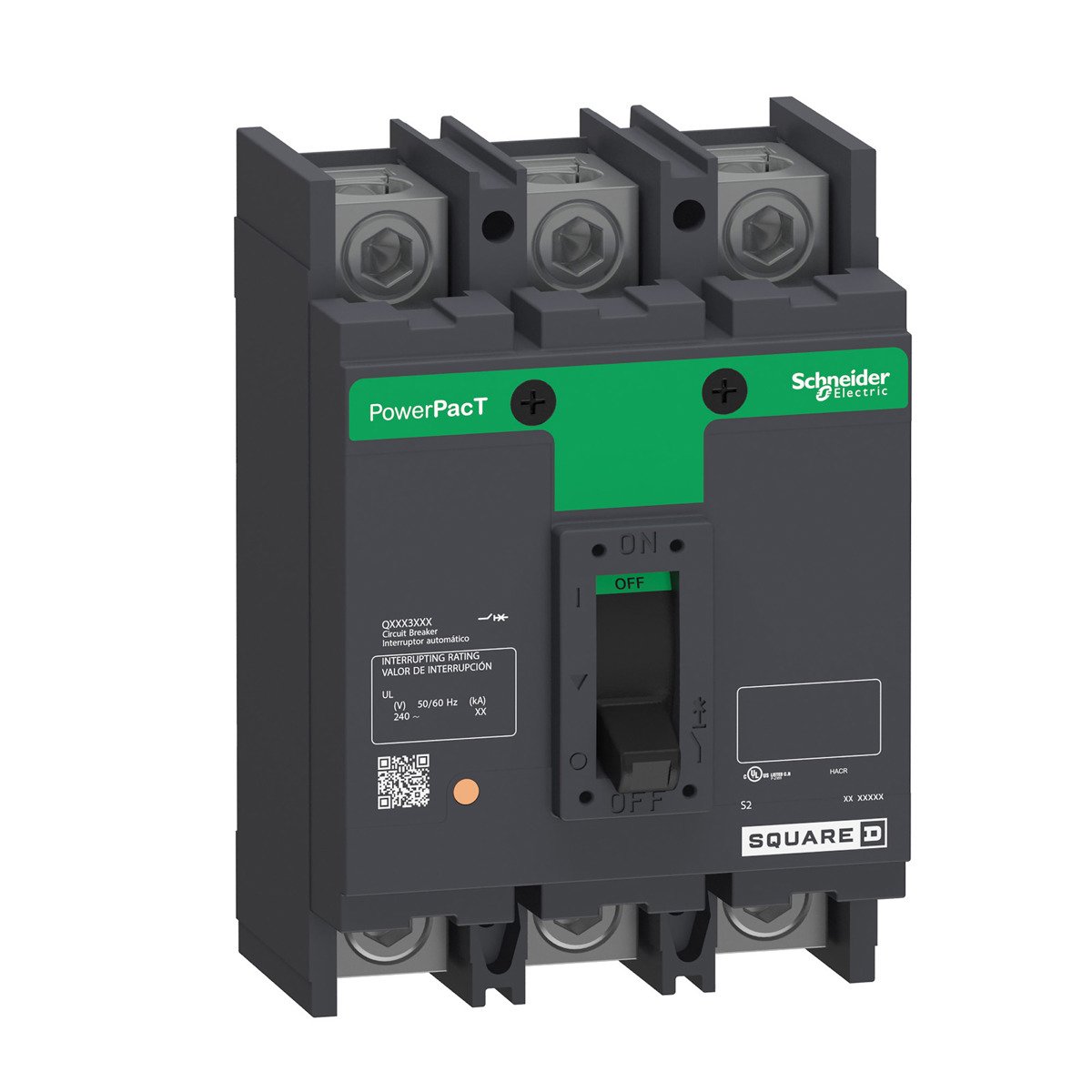

Square D QBP32100TM Molded Case Circuit Breaker 100 Amp 240 Volt

Product Description

The Square D QBP32100TM is a 100 Amp, 240 Volt molded case circuit breaker designed for overcurrent protection. It operates on 240VAC systems and offers thermal-magnetic trip functionality. This device supports both unit mount and I-Line configurations.

• Thermal-magnetic trip protection
• 3-pole design
• Interrupting rating of 10kA

Product Highlights

This circuit breaker features manual tripping capabilities with a built-in push-to-trip button. Its components include terminal nuts on the line side and lugs on the load side, ensuring secure connections.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QBP32100TM
• Voltage: 240 Volt
• Amperage: 100 Amp
• Width: 4.5 Inch
• Height: 6.47 Inch
• Depth: 3.93 Inch
• Number of Poles: 3
• Trip Type: Thermal-magnetic
• Continuous Current Rating: 80%
• Country of Origin: United States
• Certifications: UL, CSA, NOM
• Warranty Length: 18 months
