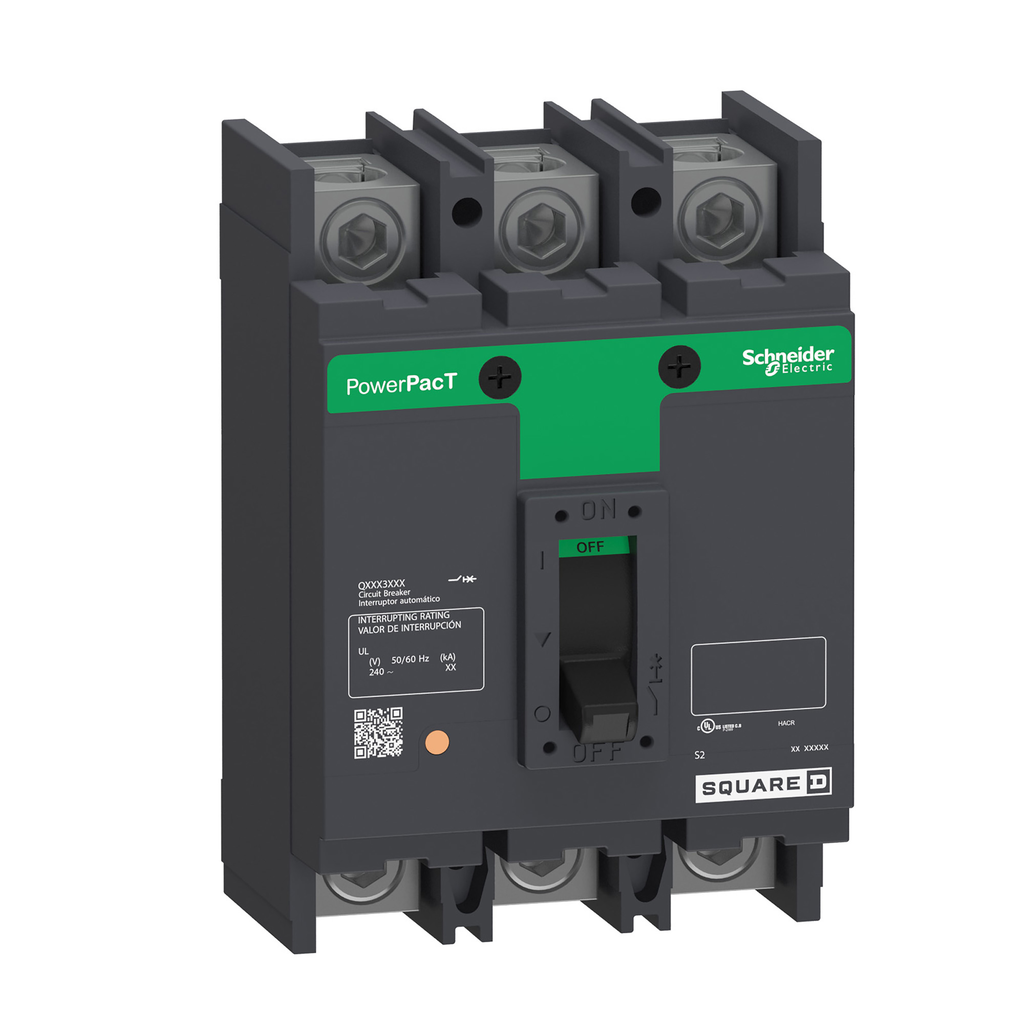

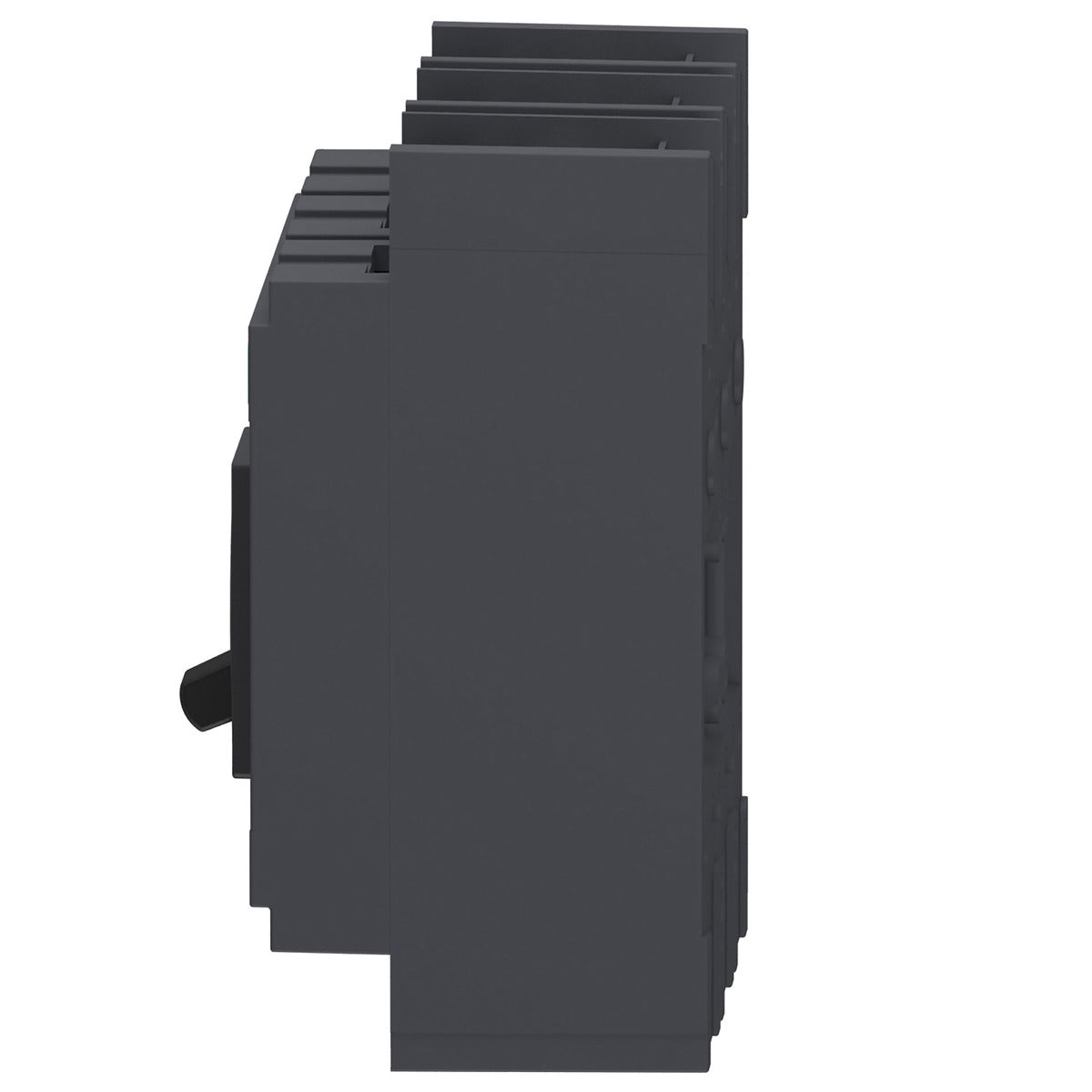

Square D QBL32150 Molded Case Circuit Breaker 150A 240V 3P

Product Description

The Square D QBL32150 is a molded case circuit breaker designed for overcurrent protection in 240 Volt systems. Rated for 150 Amperes with three poles, this circuit breaker meets UL, CSA, and IEC standards. The thermal-magnetic trip unit technology enhances performance, providing reliable protection for electrical circuits.

• Rated current of 150A and breaking capacity of 10kA@240V.
• Equipped with thermal-magnetic trip technology with hold and trip currents of 1200A and 2400A.
• Suitable for unit mount and I-Line constructions.

Product Highlights

This circuit breaker is easy to install in various applications, such as panelboards, switchboards, and metering devices.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QBL32150
• Voltage: 240 Volt
• Amperage: 150 Amp
• Number of Poles: 3 Pole
• Width: 4.5 inches
• Height: 6.47 inches
• Depth: 3.93 inches
• Country of Origin: Mexico
