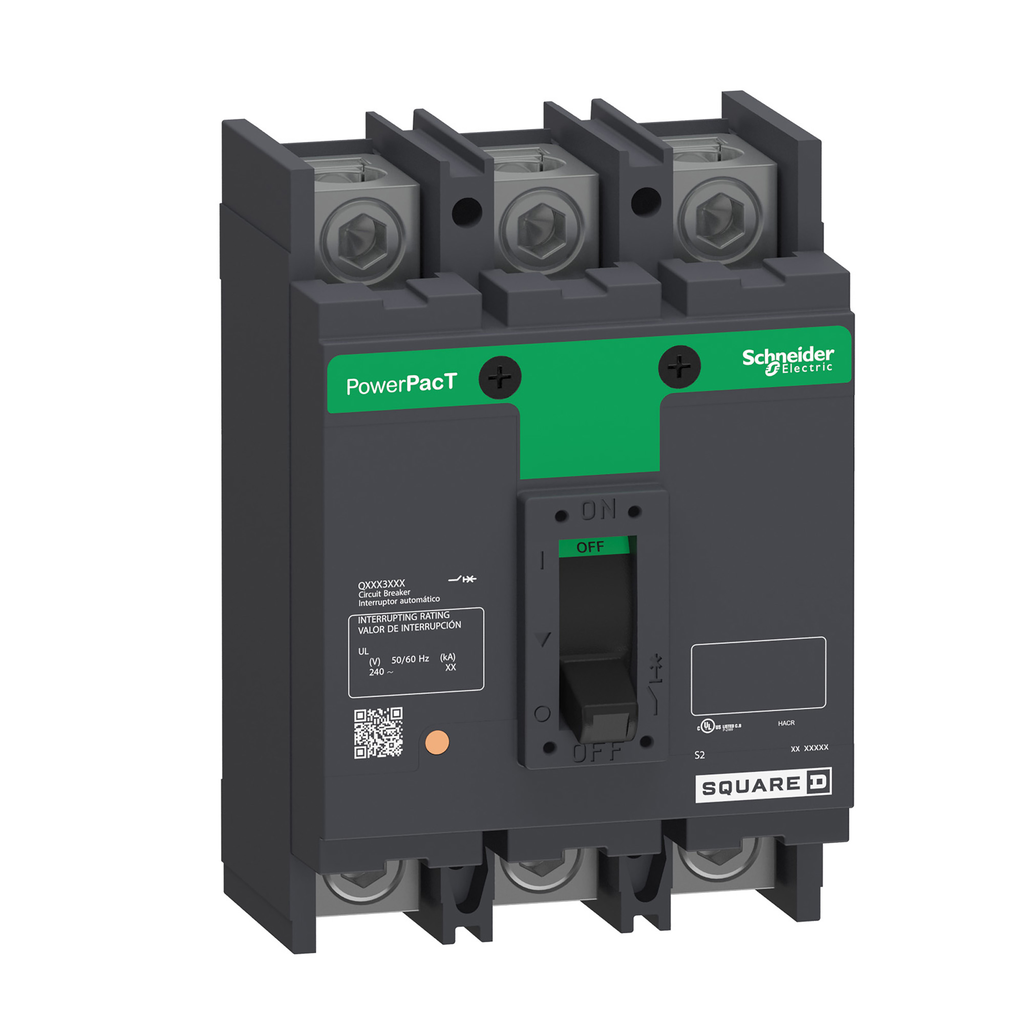

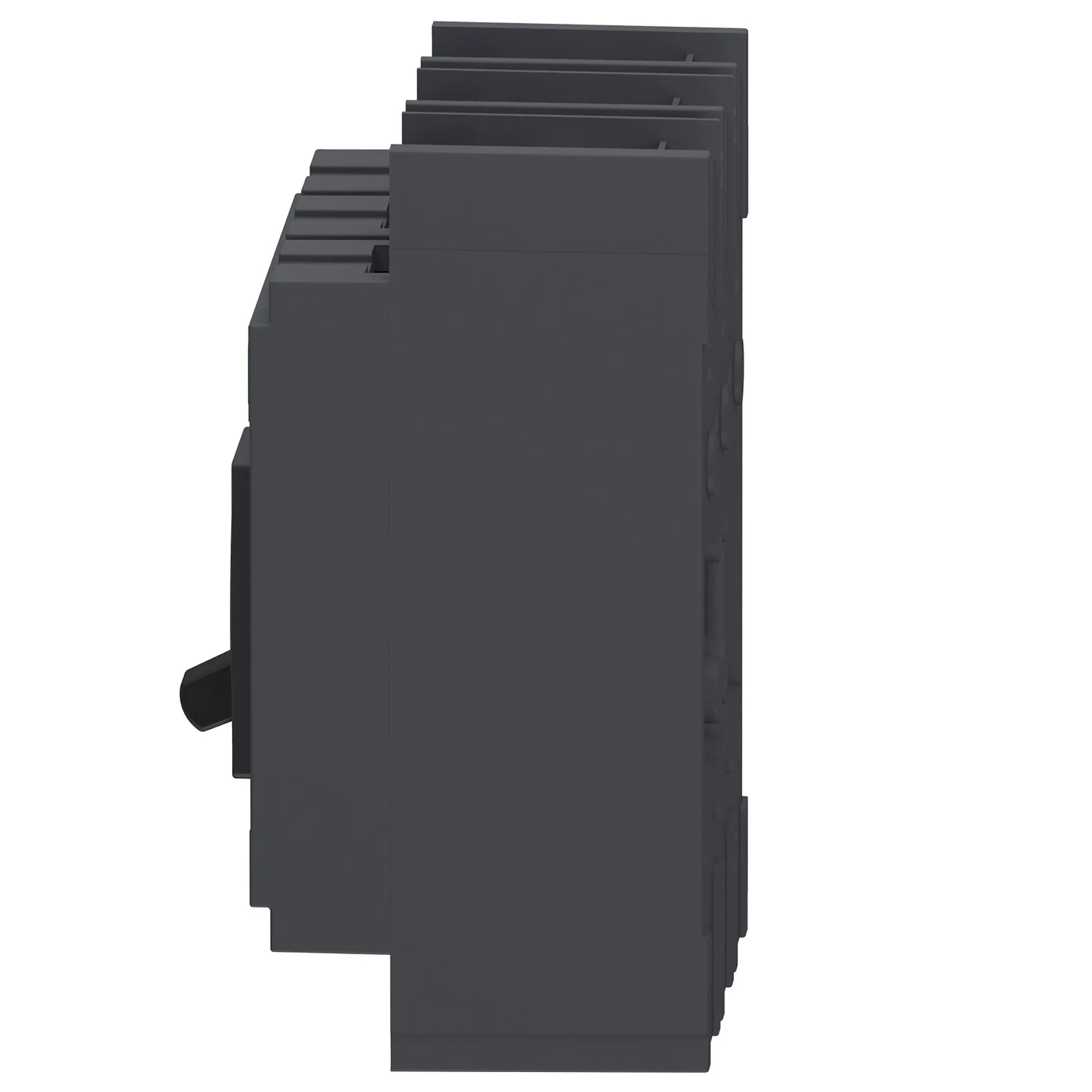

Square D QBL32100 Molded Case Circuit Breaker 100A 240V 3P Thermal Magnetic

Product Description

The Square D QBL32100 is a molded case circuit breaker manufactured by Schneider Electric. This unit is rated for one hundred amps and is designed for 240 volts in a three-pole configuration. This circuit breaker offers thermal magnetic protection suitable for various operational environments.

• Rated for 100 Amps at 240 Volts.
• Three-pole design with thermal-magnetic trip technology.
• UL Listed with an interrupting rating of ten kiloamps.

Product Highlights

The QBL32100 is ideal for applications requiring overcurrent protection in power distribution systems. It is suitable for both unit mounting and bus-mounted applications, providing flexibility in installation.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QBL32100
• Voltage: 240 Volt
• Amperage: 100 Amp
• Number of Poles: 3 Pole
• Trip Type: Thermal-Magnetic
• Interrupt Rating: 10 kAIC
• Dimensions: Height: 6.47 inches, Width: 4.5 inches, Depth: 3.93 inches
• Country of Origin: United States
