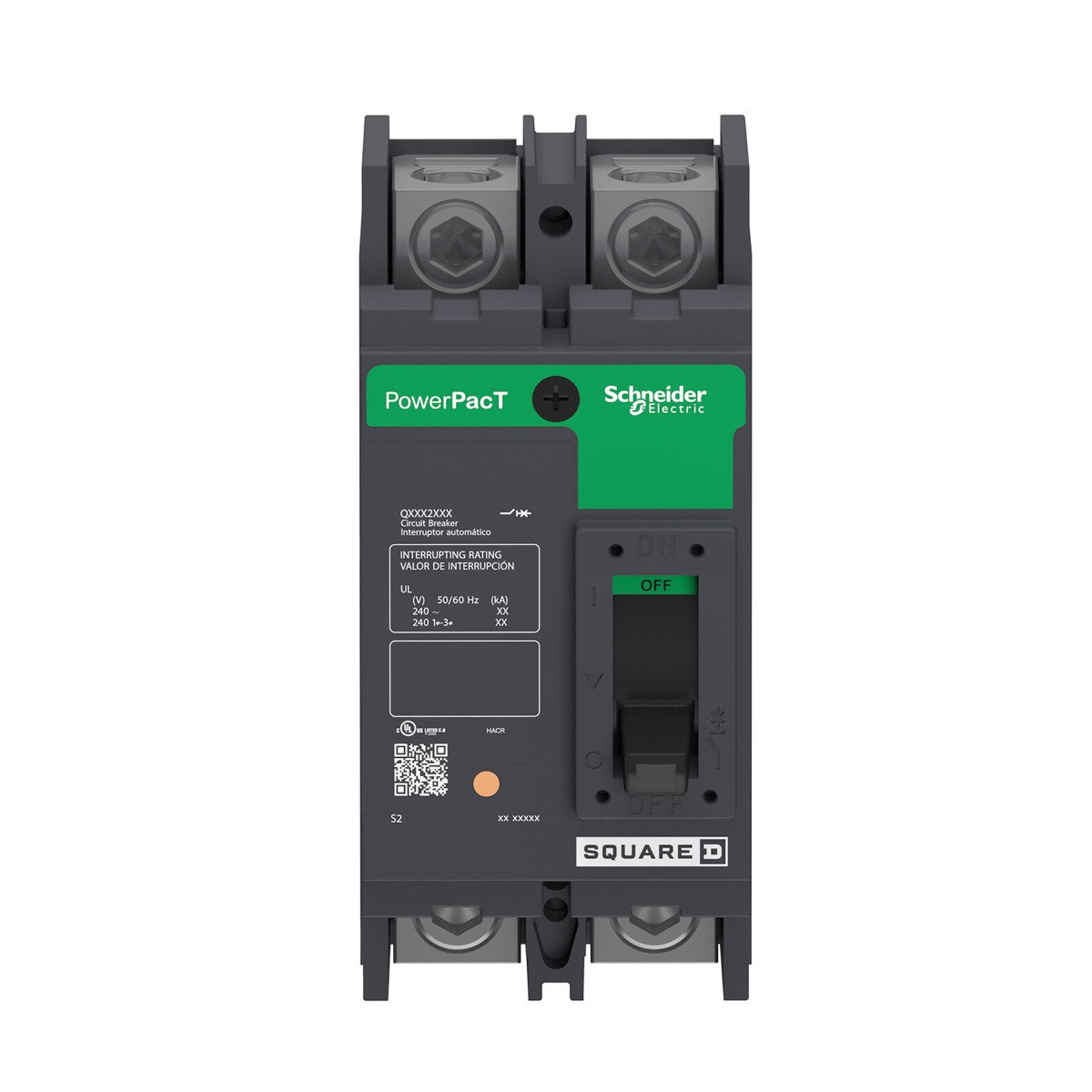

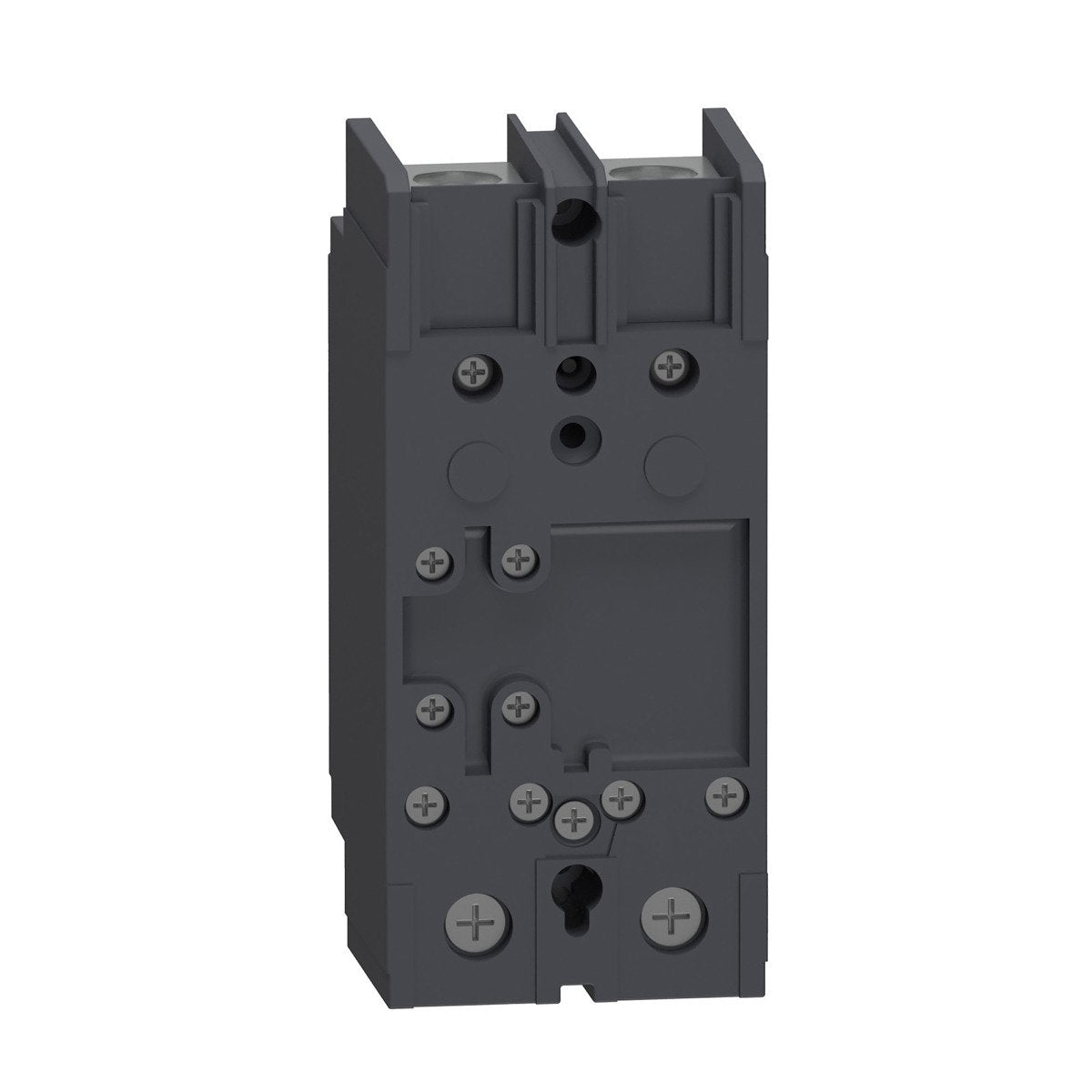

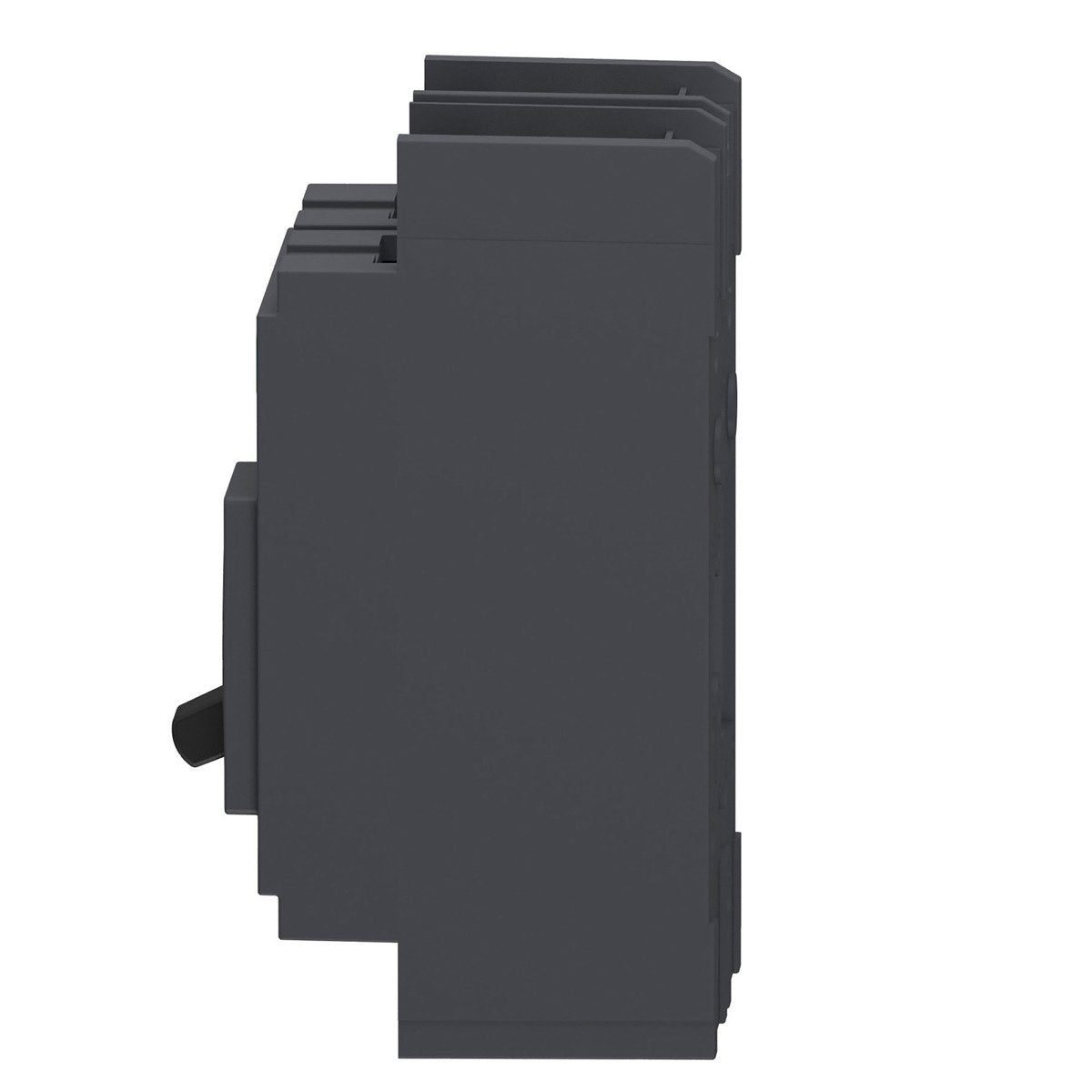

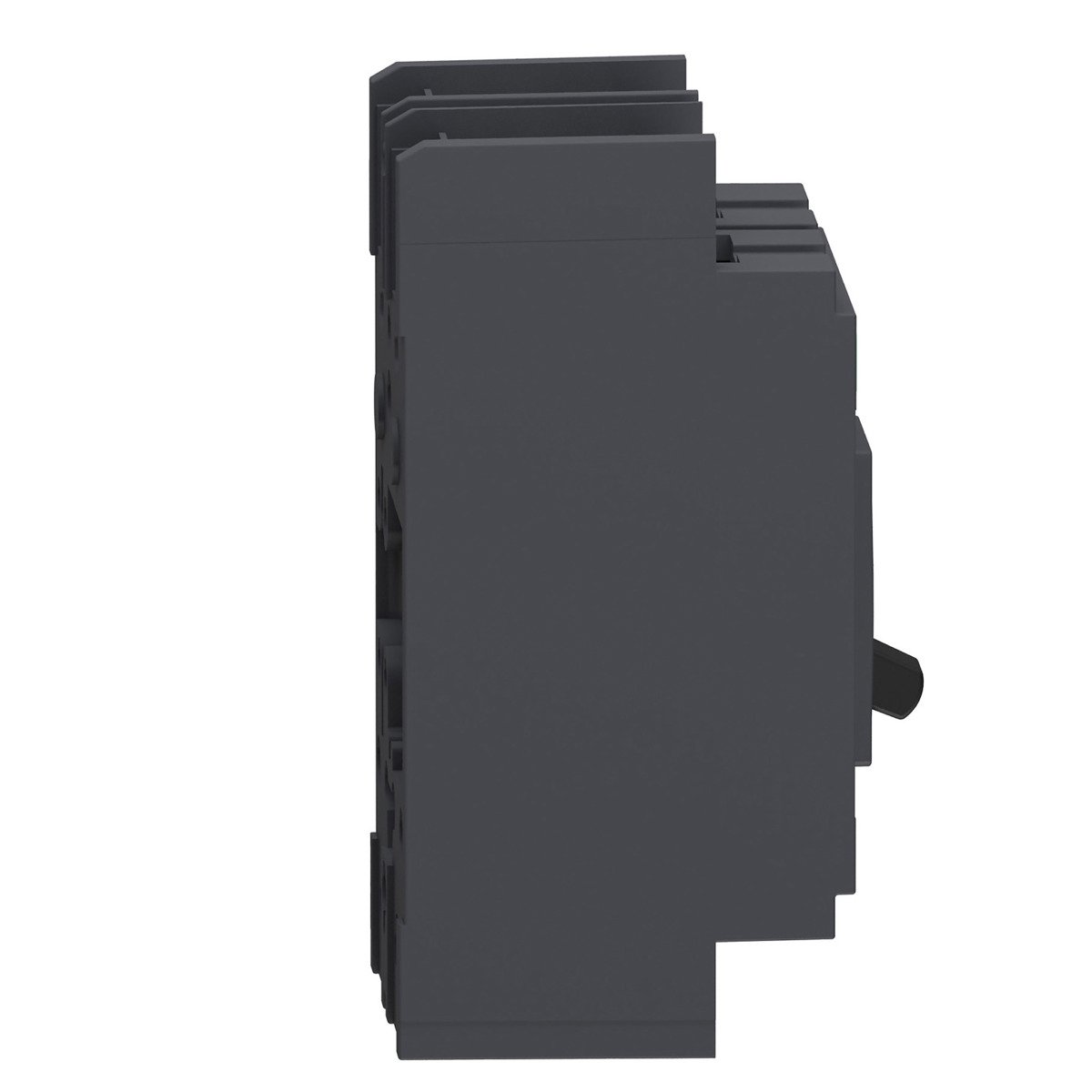

Square D QBL22225 Molded Case Circuit Breaker 225A 240V 2P

Product Description

The Square D QBL22225 is a molded case circuit breaker designed for effective overcurrent protection in residential and commercial applications. This model is rated for two poles and has a maximum current capacity of 225A at 240V. It supports various installations with options for lug or bus connections.

• Thermal magnetic trip technology for reliable circuit protection
• Rated for 240V operational voltage
• Interruption ratings available from 10kA to 100kA

Product Highlights

The QBL22225 breaker is suitable for individual enclosures or switchboards. It offers a breaking capacity of 10kA at 240VAC with a continuous current rating of eighty percent.

Product Information

Standard Information

• Catalog Number: QBL22225
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 240 Volt
• Amperage: 225 Amp
• Number of Poles: 2 Pole
• Width: 3.00 Inch
• Height: 6.47 Inch
• Depth: 3.93 Inch
• Trip Type: Thermal-Magnetic
• Country of Origin: Mexico
