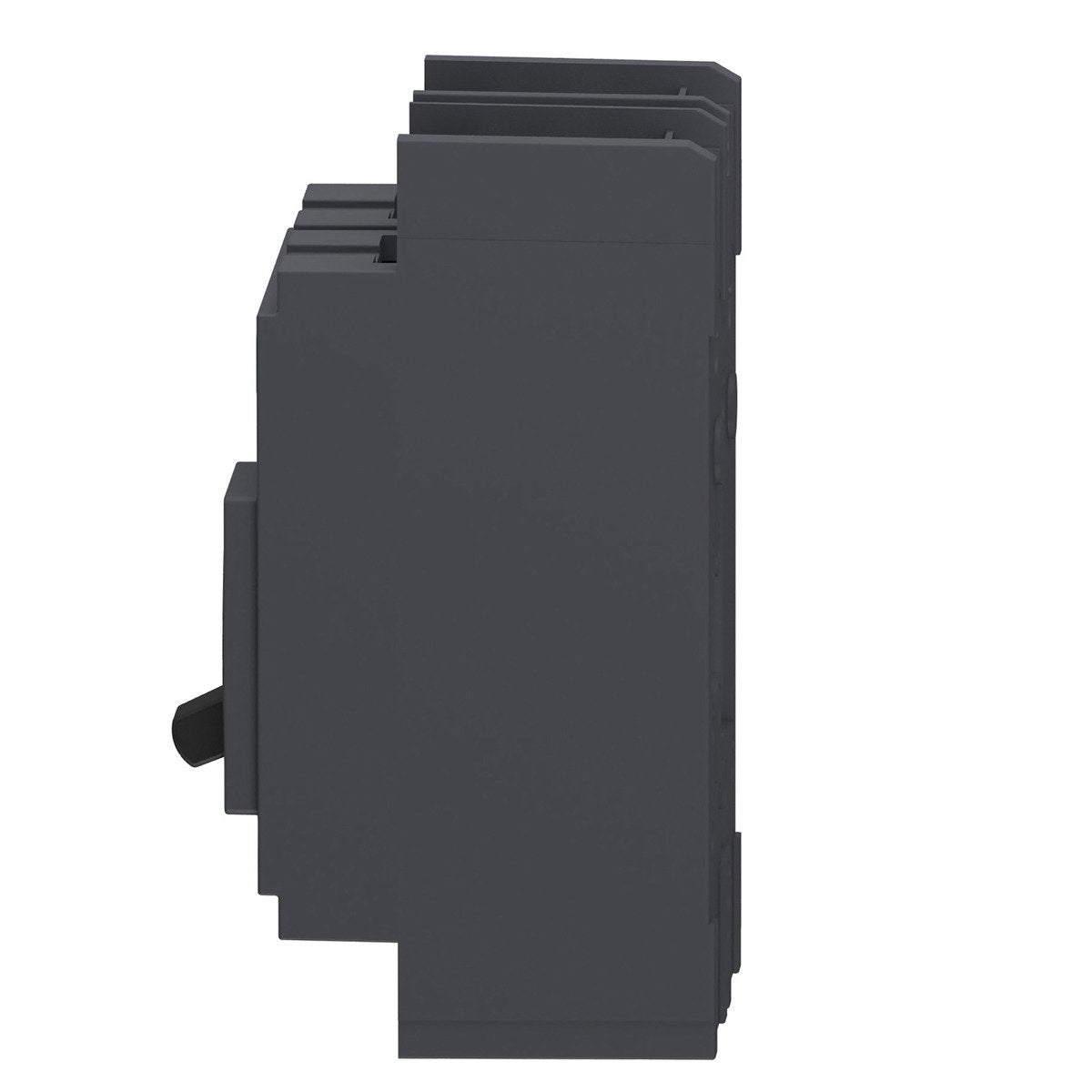

Square D QBL22100 Molded Case Circuit Breaker 100A 240V 2P Thermal Magnetic

Product Description

The Square D QBL22100 Molded Case Circuit Breaker is designed for overcurrent protection in 240 Volt applications. This two-pole circuit breaker has a rated current of one hundred amperes. It features thermal-magnetic trip technology for effective protection against overloads and short circuits.

• Rated for 240 volts with an interrupting capacity of 10 kA.
• Continuous current rating of eighty percent.
• Available for unit mount applications with lugs for both line and load connections.

Product Highlights

This circuit breaker is suitable for applications requiring reliable overload and short circuit protection. It complies with UL, CSA, and IEC standards.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QBL22100
• Voltage: 240 Volt
• Amperage: 100 Amp
• Trip Type: Thermal-Magnetic
• Interrupt Rating: 10 kAIC
• Number of Poles: 2 Pole
• Dimensions: 6.47 inches (H) x 3.00 inches (W) x 3.93 inches (D)
• Country of Origin: Mexico
