Square D QBA32200 200 Amp 240 Volt Molded Case Circuit Breaker

Product Description

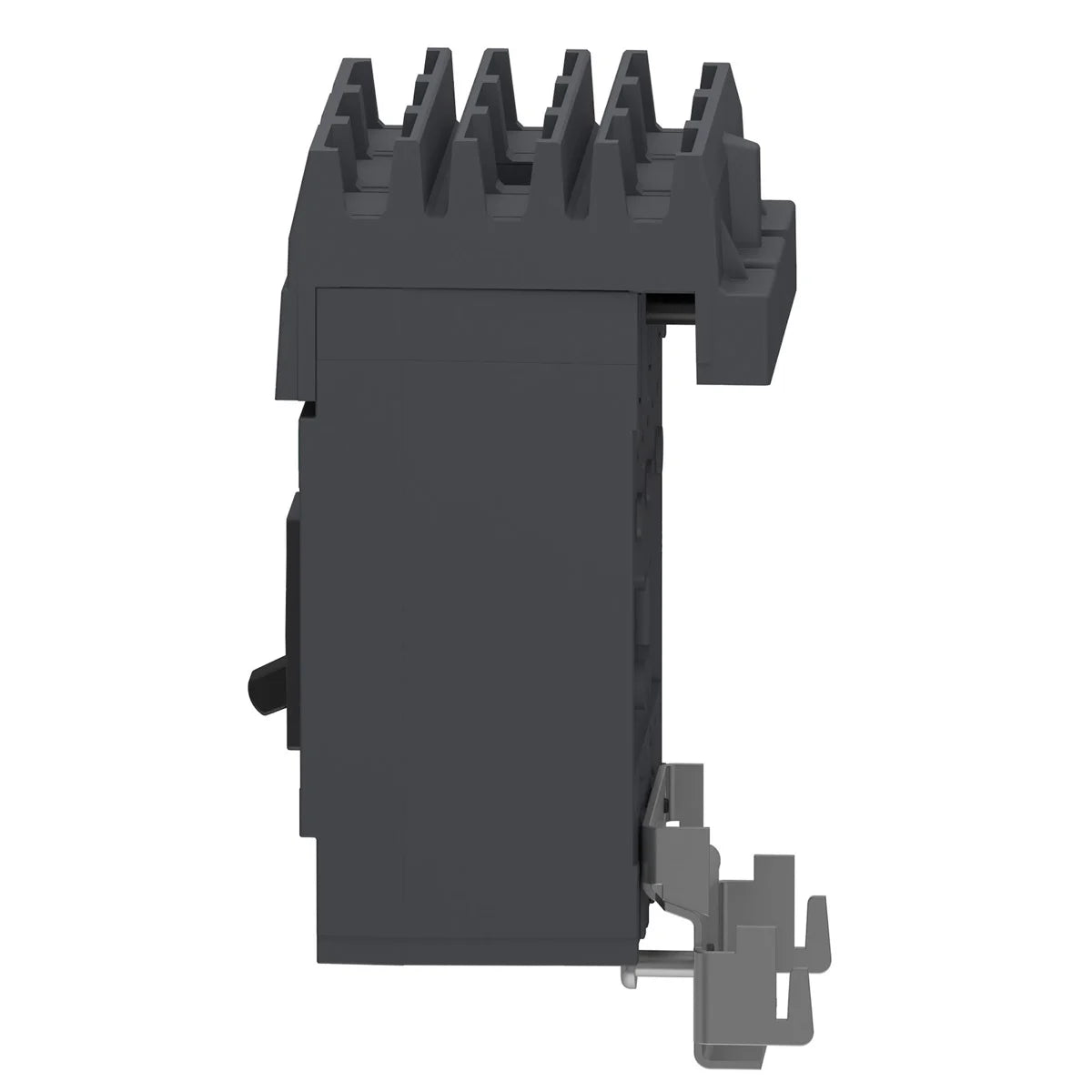

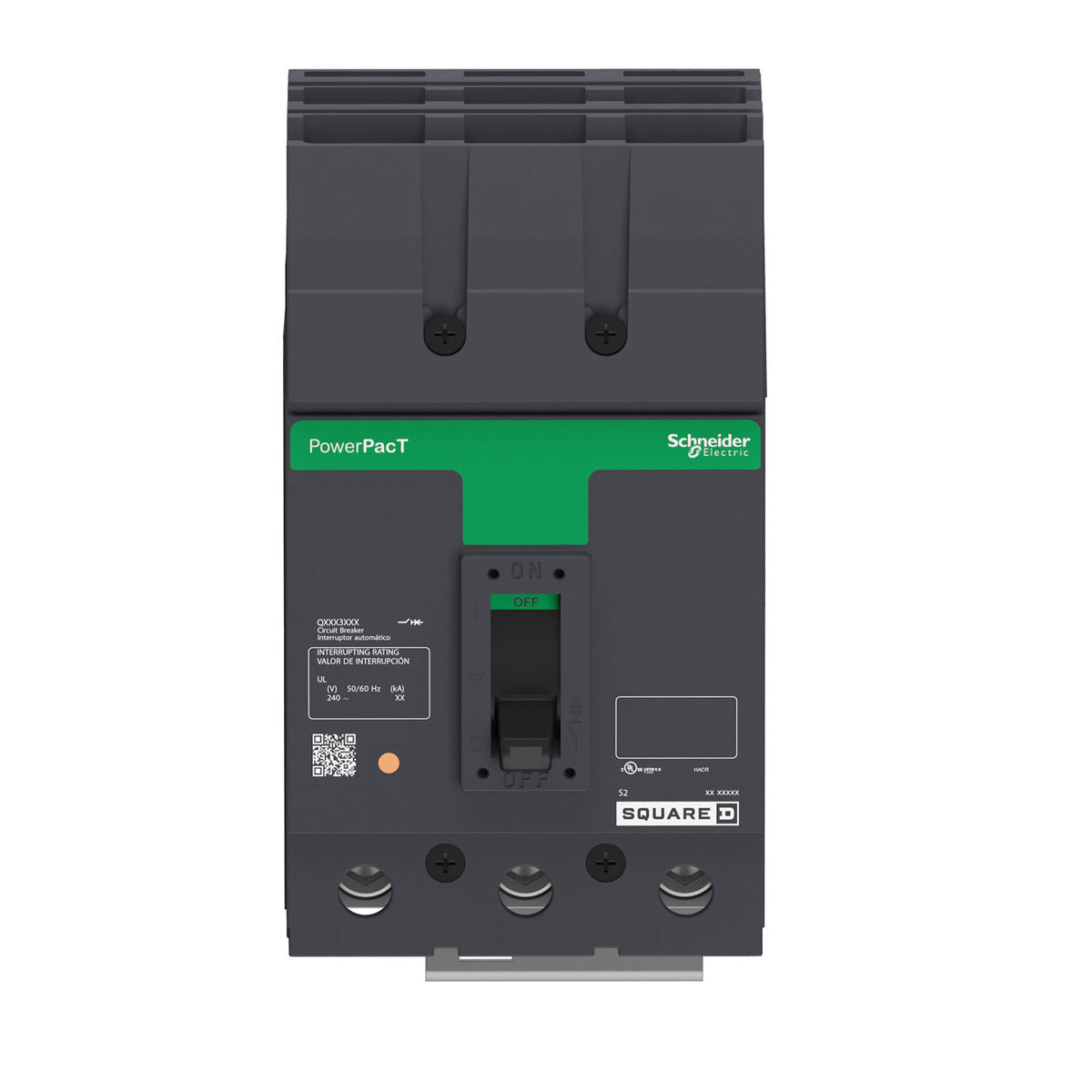

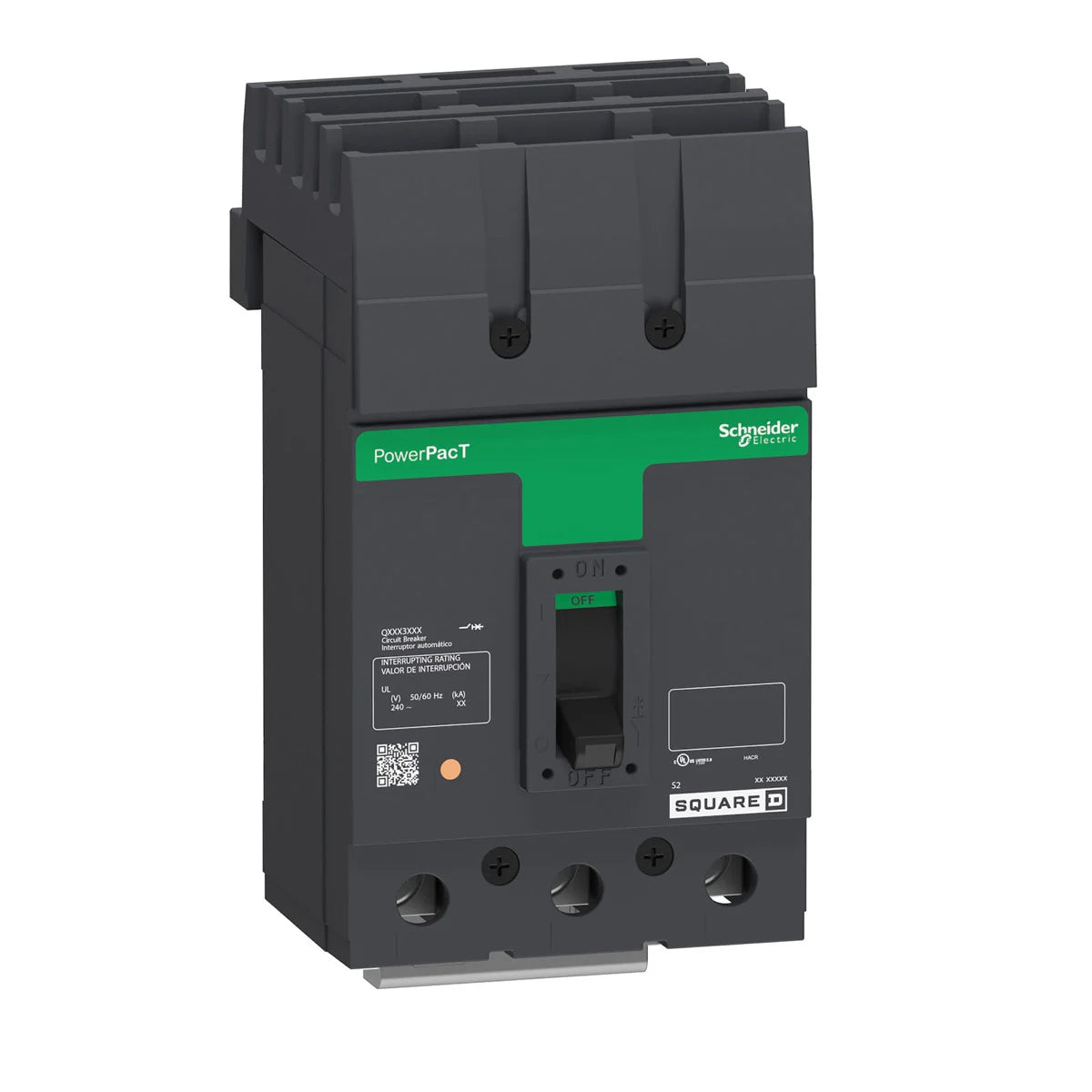

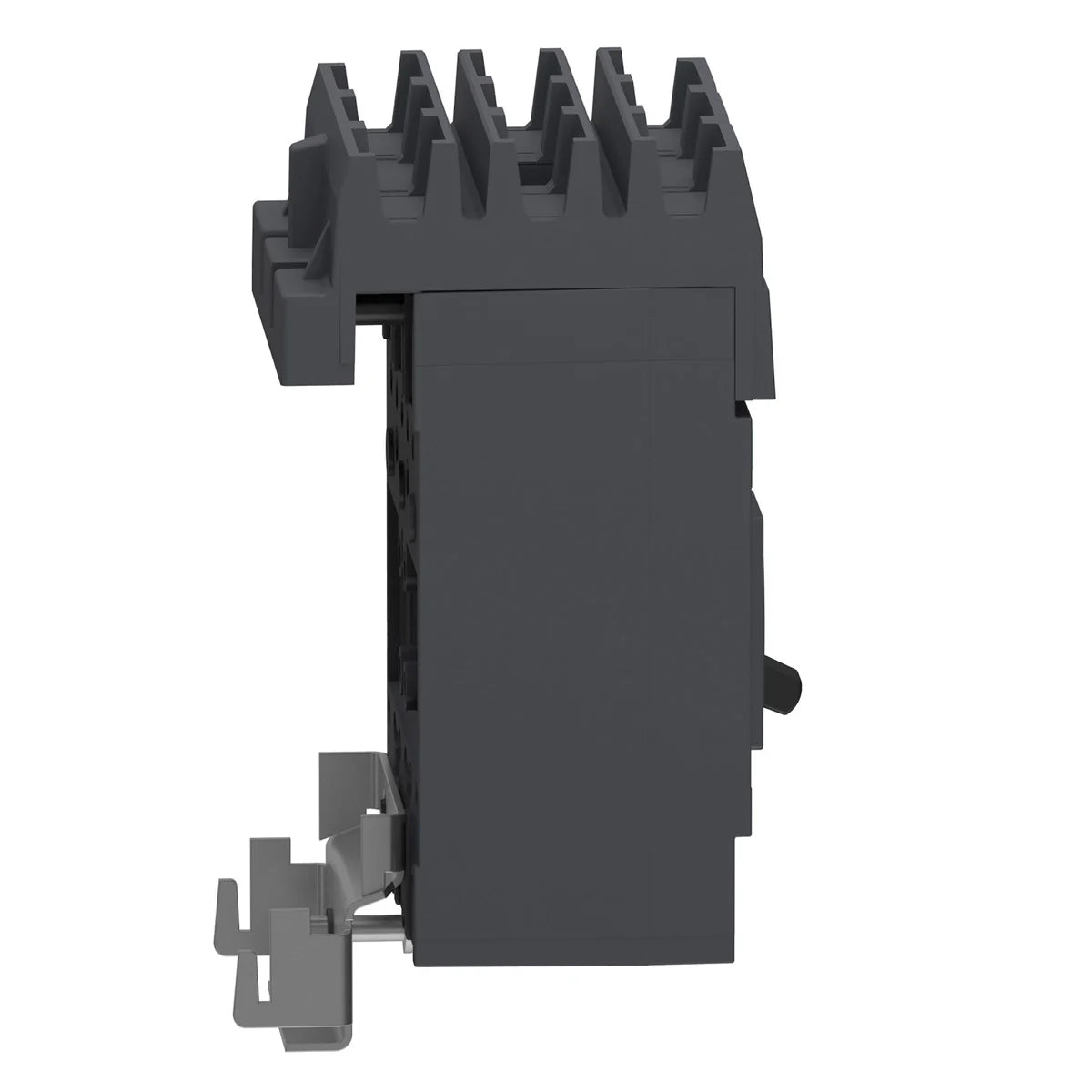

Square D QBA32200 is a molded case circuit breaker used for overcurrent protection on 240VAC systems. This breaker operates at a voltage of 240VAC and features thermal magnetic trip protection. It is designed with both two and three-pole unit mount options. The circuit breaker includes a push-to-trip button for manual tripping and has I-Line terminations on the line side with mechanical lugs on the load side.

• Rated for a continuous current of 200 Amps
• Interrupting rating of 10kA at 208Y/120VAC and 240VAC
• Complies with UL, CSA, and NOM standards

Product Highlights

Ideal for providing overload and short circuit protection in various applications.

Product Information

Standard Information

• Catalog Number: QBA32200
• Brand: Square D
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Warranty Length: 18 months

Technical Specifications

• Voltage: 240 Volt
• Amperage: 200 Amp
• Frame Type: Q-FRAME
• Number of Poles: 3 Pole
• Height: 6.47 Inch
• Width: 4.5 Inch
• Depth: 3.93 Inch
• Operating Temperature: -13F to 158F (-25C to +70C)
• Trip Type: Thermal-Magnetic
• Interrupt Rating: 10 kAIC
