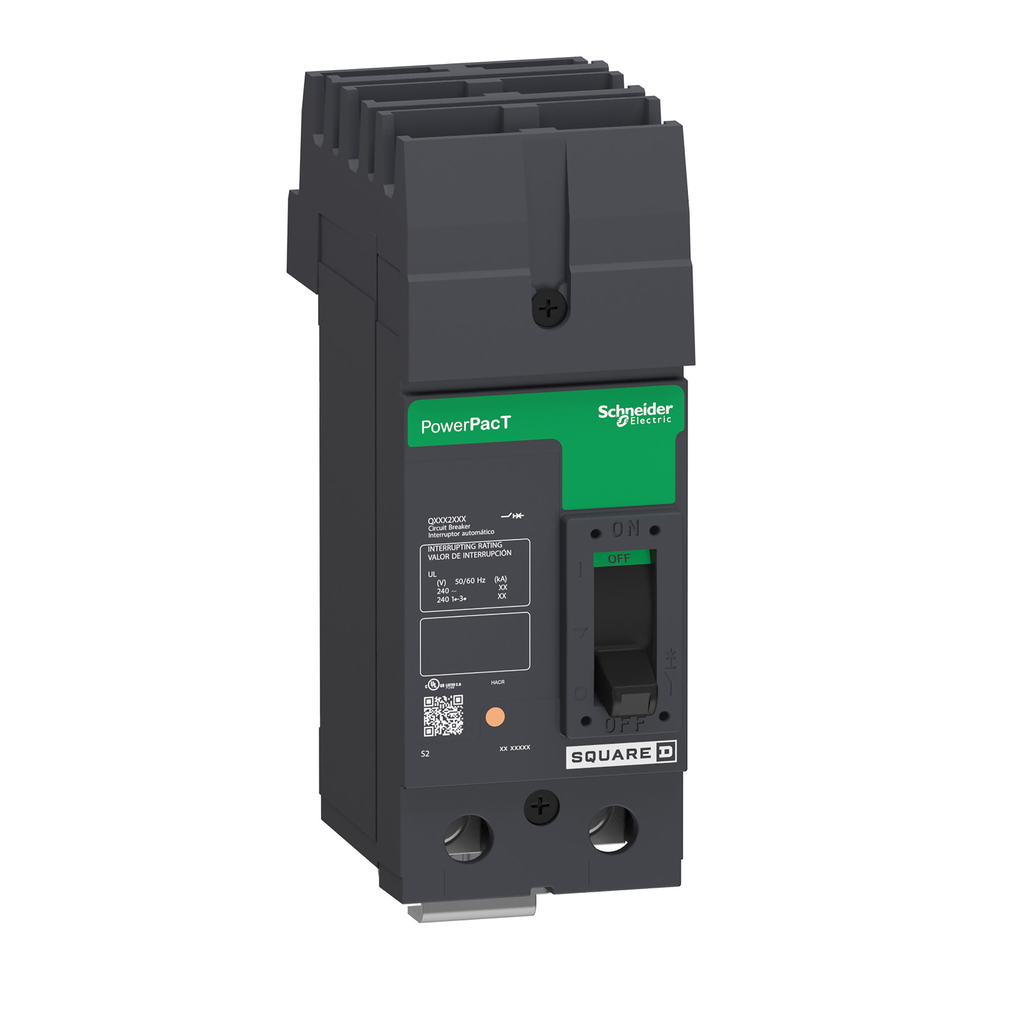

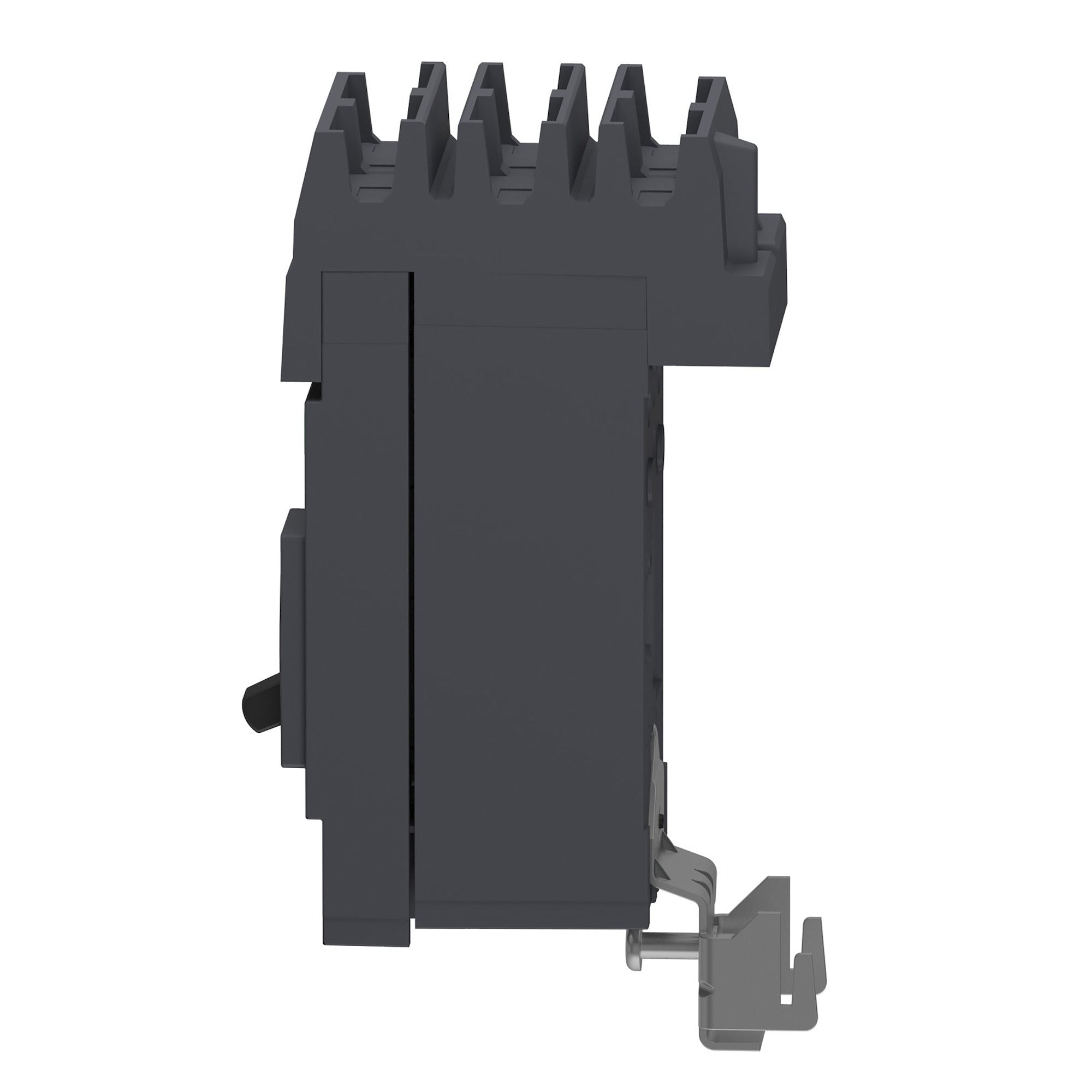

Square D QBA222002 Molded Case Circuit Breaker 200 Amp 240 Volt

Product Description

The Square D QBA222002 is a molded case circuit breaker used for overcurrent protection in 240 volt AC systems. This unit provides thermal-magnetic trip protection and is designed for a continuous current rating of 200 Amps. The breaker is suitable for use in residential, commercial, and industrial settings. It has I-Line terminations on the line side and features mechanical lugs on the load side.

• 200 Amp continuous current rating
• Rated for 240 Volt operational voltage
• Interruption rating of 10 kA at 208Y/120VAC and 240VAC

Product Highlights

This circuit breaker complies with UL, CSA, and NOM standards and is certified per IEC requirements. It includes an integral push-to-trip button to manually reset the device.

Product Information

Standard Information

• Catalog Number: QBA222002
• Brand: Square D

Technical Specifications

• Voltage: 240 Volt
• Amperage: 200 Amp
• Width: 3.0 Inch
• Height: 6.47 Inch
• Depth: 3.93 Inch
• Frame: Q-Frame
• Country of Origin: Mexico
• Warranty Length: 18 months
