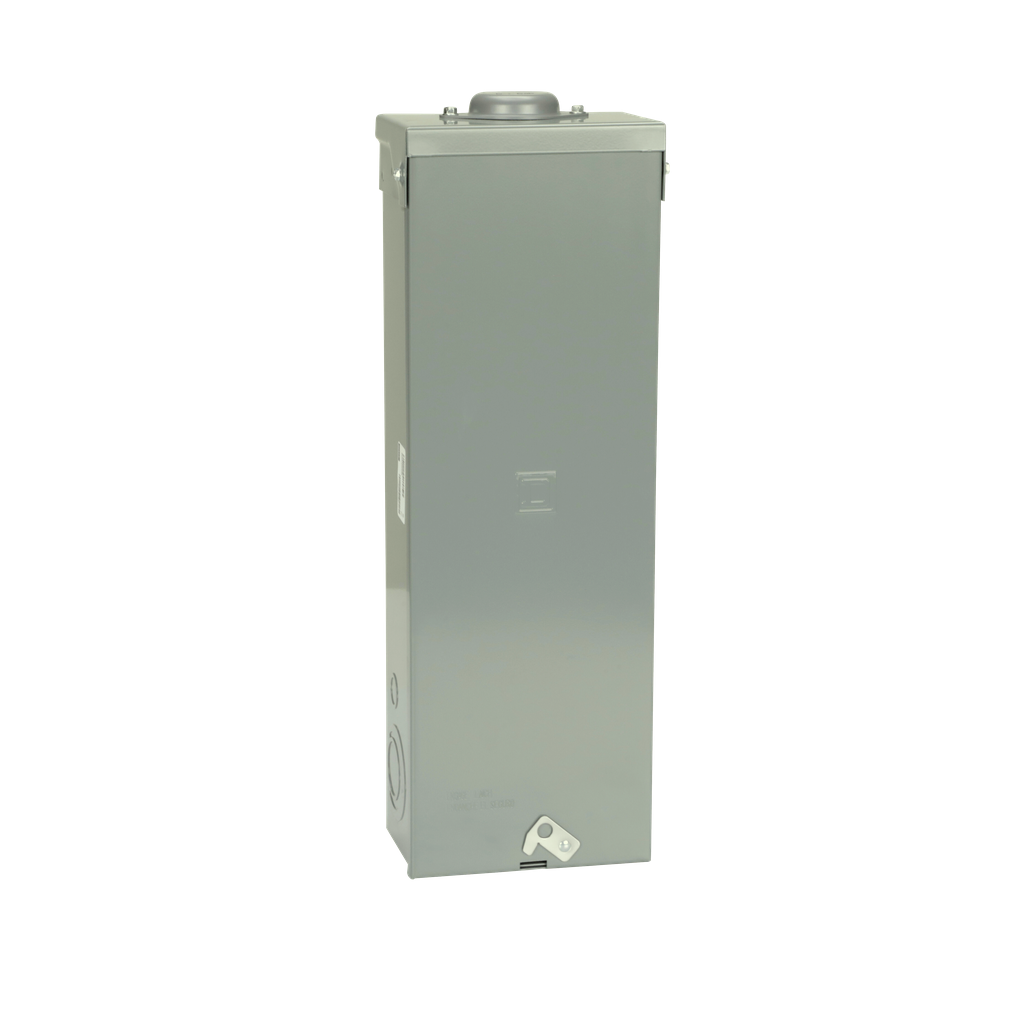

Square D Q22200NRB Circuit Breaker Enclosure 200A 240V NEMA-3R

Product Description

The Square D Q22200NRB Circuit Breaker Enclosure is designed to house circuit breakers effectively. It operates at a voltage of two hundred forty volts and supports a maximum current of two hundred amps. This enclosure is compliant with NEMA-3R standards, making it suitable for outdoor use. It accommodates both two-pole and three-pole circuit breakers.

• Rated for 240V AC with a maximum of 200A
• Designed for NEMA-3R applications
• Manufactured by Schneider Electric under the Square D brand

Product Highlights

This enclosure is built to provide safety and reliability for residential and commercial applications. It is ideal for air conditioning systems and other electrical installations.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: Q22200NRB
• Current Rating: 200 Amps
• Voltage Rating: 240 Volts
• Enclosure Type: Steel
• Dimensions: 594 mm (H) x 194 mm (W) x 121 mm (D)
• Country of Origin: United States
• Warranty: 18 months
• Certification: UL listed
