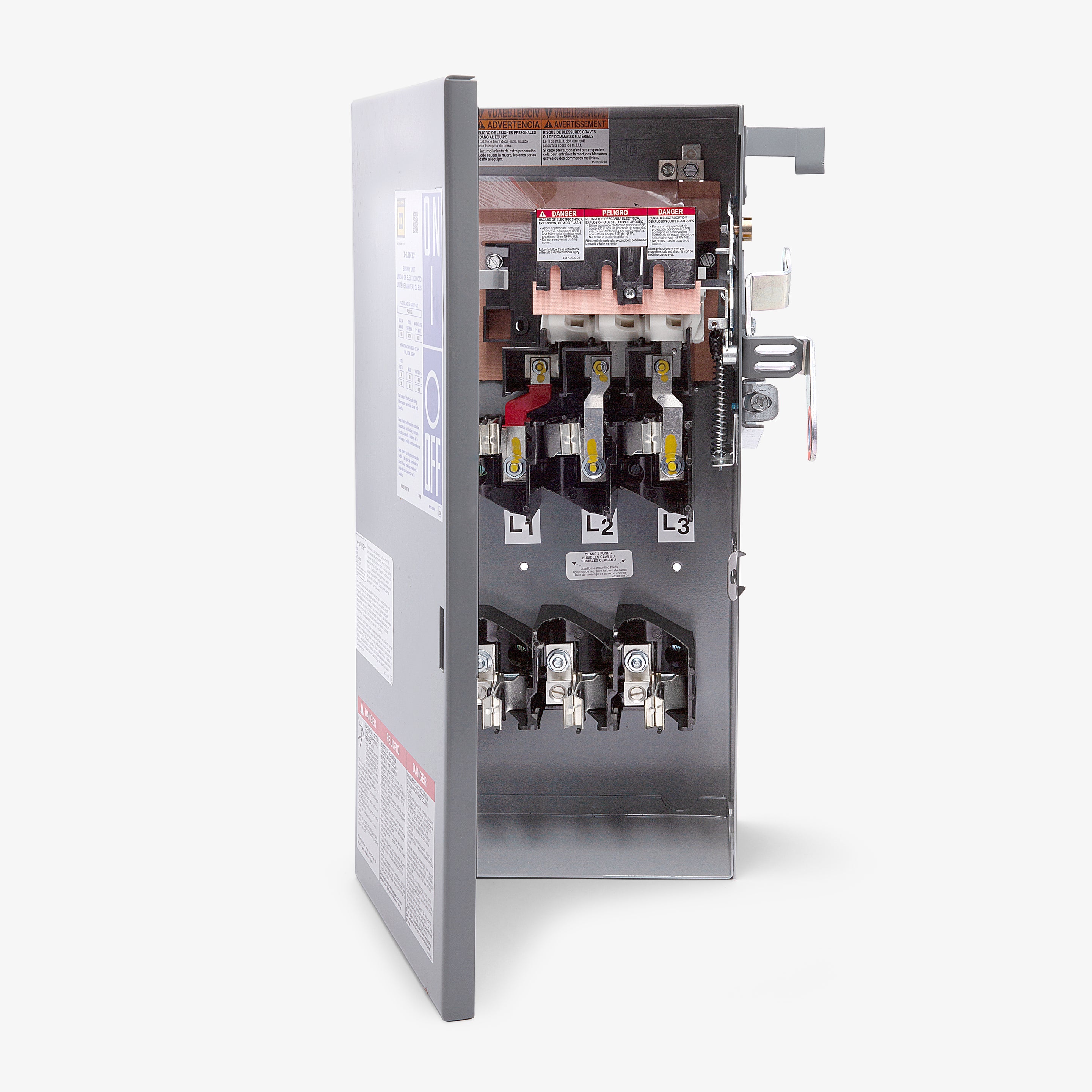

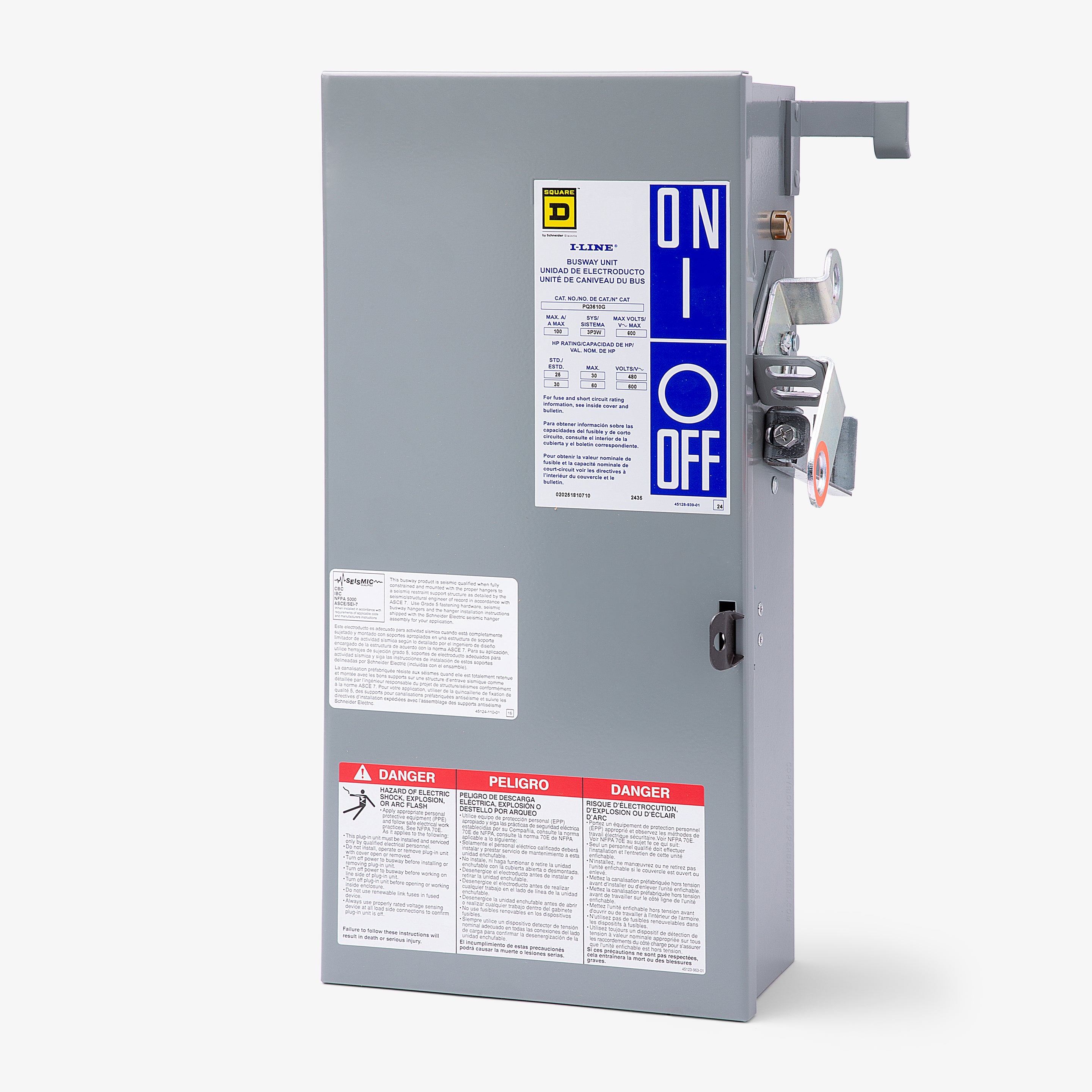

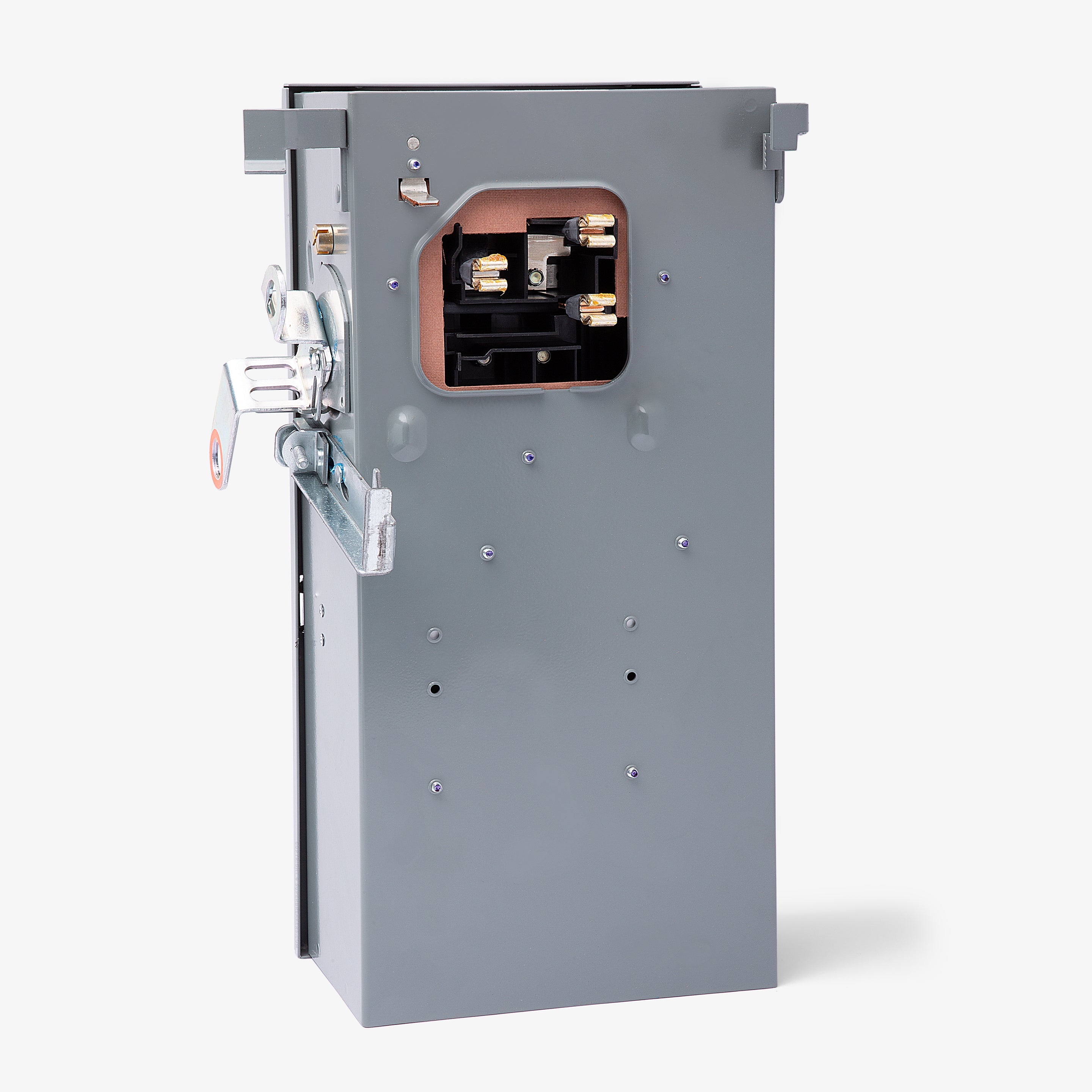

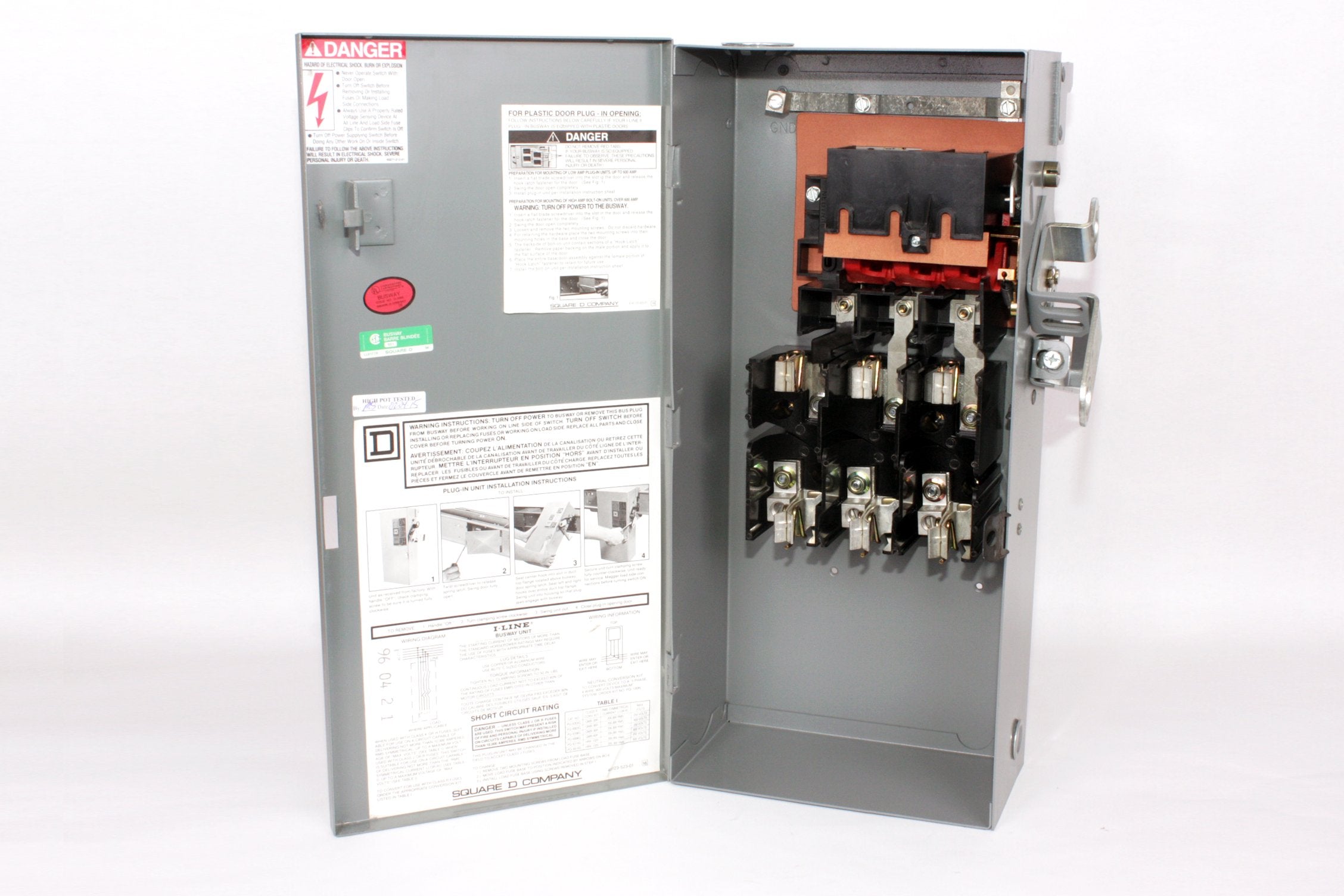

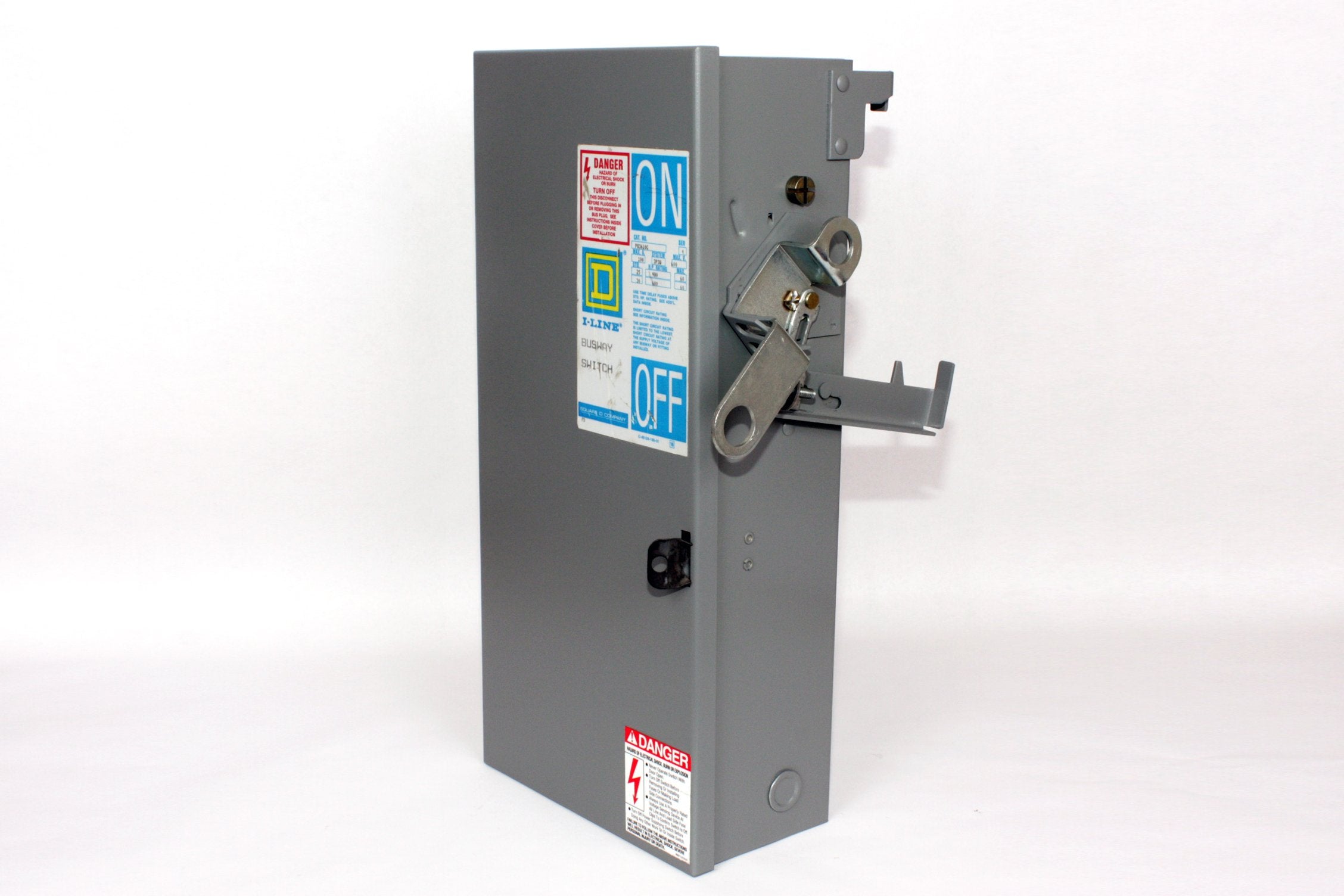

Product Description
The Square D PQ3610G is a fusible plug-in unit designed for I-Line busway systems. This unit supports system voltages up to 600VAC and is rated for 100A. It is a 3-pole unit that accommodates H, K, J, or R fuses. The I-Line busway system is UL listed and CSA certified.
- Fusible plug-in unit
- 100A, 600VAC max, 3 pole, and 3 fuse + G
- Uses H, K, J or R fuses
Product Highlights
The PQ3610G fusible plug-in unit is for use with Square D I-Line and I-Line II busway systems.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: PQ3610G
-
Country of Origin: Mexico
Technical Specifications
-
Type: BUSWAY FUSIBLE PLUG-IN UNIT
-
Brand: Square D
-
Voltage: 600 Volt
-
Fuse Type: H,J Or R,K
-
Sub Brand: I-LINE II
-
Certifications: CSA,UL
-
Number of Poles: 3 Pole
-
Catalog Number: PQ3610G
-
Manufacturer: Schneider Electric
-
Country of Origin: Mexico
-
Special Features: Fusible disconnect
-
Item Type: Plug-in unit
-
Interrupting Rating: 200 Kiloampere
-
Power Rating: 30 HP at 600 VAC 3-Phase (Standard), 60 HP at 600 VAC 3-Phase (Maximum)
-
Circuit Configuration: 3-Phase 3-Wire
-
Ground Type: Integral
-
Neutral Type: No
-
Enclosure Material: Aluminum
-
Approval: UL 857, CSA C22.2
-
Used On: I-Line II Busway
-
Current Rating: 100 Ampere
-
Rated Operational Voltage: 600 V AC
-
Disconnector Device Type: fusible disconnect
-
Busbar Description: ground
-
Rated Operational Current: 100 A
-
Electrical Connection: plug-in
-
Pvc Free: Yes
-
Amps [Specifications]: 100 A
-
Item [Specifications]: Busway Plug In Unit
-
Depth [Specifications]: 4 21/32 in
-
Width [Specifications]: 19 in
-
Height [Specifications]: 8 7/8 in
-
Fusible [Specifications]: Yes
-
Voltage [Specifications]: 600V AC
-
Fuse Type [Specifications]: H
-
Standards [Specifications]: CSA Certified, UL Listed
-
Fuse Class [Specifications]: H, K, R
-
Phase/Wire [Specifications]: 3 Phase, 3 Wire with Ground
-
Fixing Mode [Specifications]: plug-in
-
Breaker Type [Specifications]: PQ
-
For Use With [Specifications]: Square D I-Line and I-Line II Busway
-
Number of Poles [Specifications]: 3
-
Enclosure Rating [Specifications]: NEMA 1
-
Fusible/Nonfusible [Specifications]: Fusible
-
Product Certifications [Specifications]: CSA || UL
-
Product Or Component Type [Specifications]: section
-
[Ie] Rated Operational Current [Specifications]: 100 A
-
[Ue] Rated Operational Voltage [Specifications]: 600 V AC
-
Country of Origin (subject to change) [Specifications]: Mexico
-
Series: PQ
-
Phase: 3
-
Mpn: PQ3610G
-
Upc: 78590126392
-
Gtin: 785901263920
-
Max. Volts: 600
-
Max. Amps: 100
-
Wire: 3-wire
-
bus duct style: plug-in
-
Fuse/Breaker: fuses
-
Ground Tab: gnd yes
-
Application: Busway Applications
-
Range Of Product: I-Line
