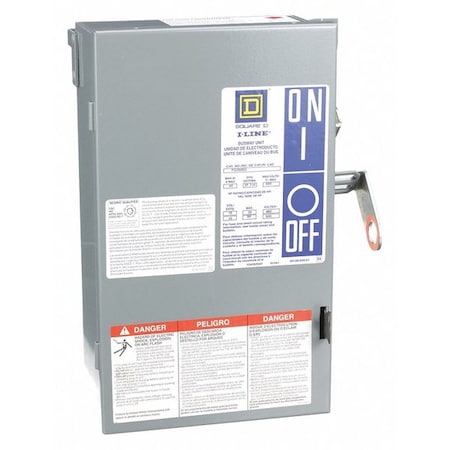

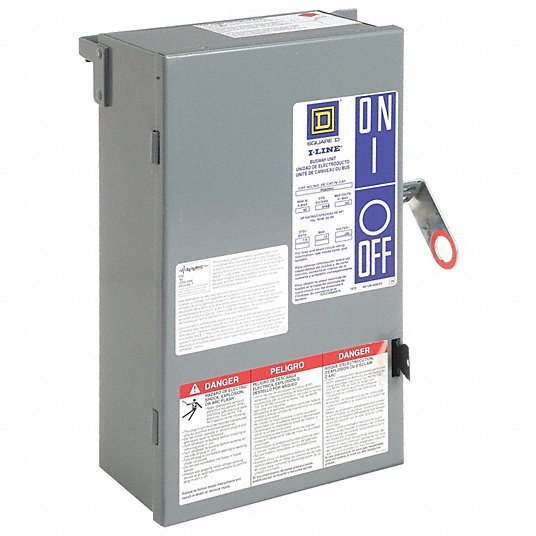

Square D PQ3606G 60 Amp 3-Pole Fusible Plug-In Unit

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: PQ3606G
Availability: Out Of Stock
$1,872.03
$1,872.03
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Square D PQ3606G is a plug-in fusible unit rated at 60 A with a maximum voltage of 600 V. Designed for electrical distribution in commercial and industrial applications, it plugs into a 3-pole busway and uses a class H fuse. It is both UL and CSA certified. The I-Line electrical busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings.

  • Maximum flexibility
  • Low maintenance
  • Fusible disconnect

Product Highlights

The Square D PQ3606G fusible plug-in unit provides a reliable solution for distributing low power with ease of installation and electrical efficiency.

Product Information

Standard Information

  • Brand: SQUARE D
  • Manufacturer Part Number: PQ3606G
  • Country of Origin: Mexico
Technical Specifications
Brand
Square D
Voltage
600V AC
Fuse Type
H,J Or R,K
Sub Brand
I-LINE II
Product UPC
78590126391
12-Digit UPC
785901263913
Certifications
CSA,UL
Number of Poles
3 Pole
Catalog Number
PQ3606G
Manufacturer
Schneider Electric
Country of Origin
Mexico
Made in USA
No
Special Features
Fusible disconnect
GTIN
00785901263913
Item Type
Plug-in unit
Current Rating
60 Ampere
Interrupting Rating
200 Kiloampere
Power Rating
15 HP at 600 VAC 3-Phase (Standard), 50 HP at 600 VAC 3-Phase (Maximum)
Circuit Configuration
3-Phase 4-Wire
Ground Type
Integral
Neutral Type
No
Enclosure Material
Aluminum
Approval
UL 857, CSA C22.2
Used On
I-Line II Busway
Amperage
60A
Poles
3-Pole
Rated Operational Voltage
600 V AC
Range Of Product
I-Line
Product Or Component Type
plug-in unit
Disconnector Device Type
fusible disconnect
Busbar Description
ground
Rated Operational Current
60 A
Electrical Connection
plug-in
Rohs Exemption Information
Yes
Packaging Made With Recycled Cardboard
No
Mercury Free
Yes
Environmental Disclosure
ENVPEP1407016EN
Packaging Without Single Use Plastic
No
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
California Proposition 65
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile
ENVEOLI1407016EN
Take-Back
No
Pvc Free
Yes
Eu Rohs Directive
Compliant with Exemptions
Amps
60 A
Phase/Wire
3 Phase, 3 Wire with Ground
Enclosure Rating
NEMA 1
For Use With
SE Square D I-Line and I-Line II Busway
Fusible
Yes
Fuse Class
H; K; R
Breaker Type
PQ
Height
8-7/8 in
Width
15 in
Depth
4-21/32 in
Standards
CSA Certified; UL Listed
Manufacturer Part Number
PQ3606G
UNSPSC
39121206
