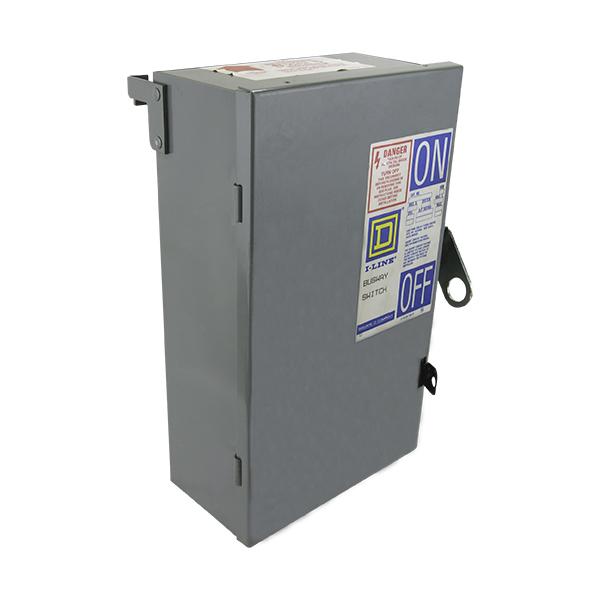

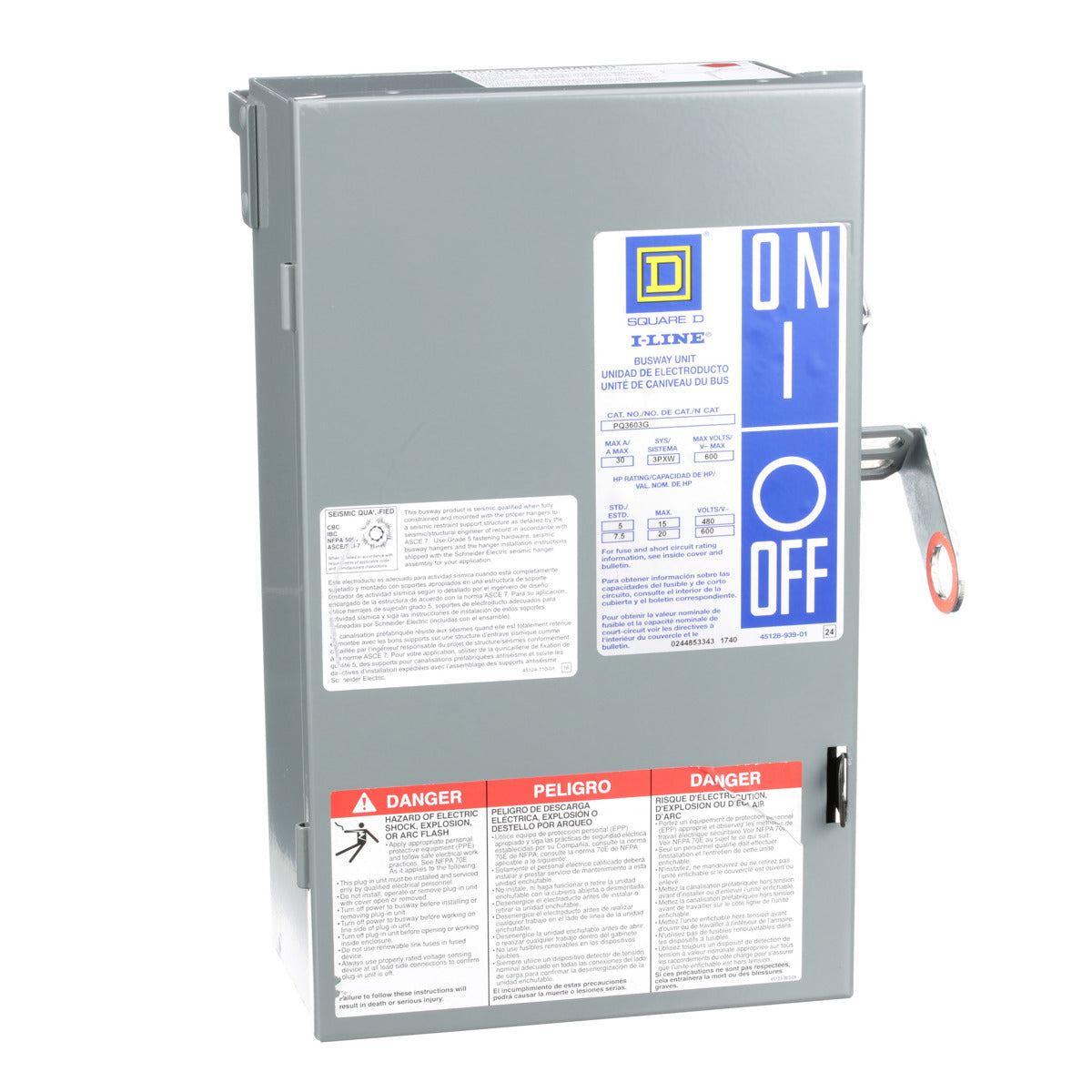

Square D PQ3603G 600 VAC 30 Amp 3-Pole Fusible Plug-In Unit

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: PQ3603G
Availability: Out Of Stock
$1,743.25
$1,743.25
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Square D PQ3603G is a plug-in fusible unit designed for I-Line busway systems, providing electrical distribution in commercial and industrial applications. Rated at 30 A with a maximum voltage of 600 V, this unit plugs into a 3-pole busway and uses a Class H fuse. It is suitable for use with I-Line aluminum and copper busway systems.

  • Plug-in fusible unit
  • Rated at 30 A
  • Maximum voltage of 600 V

Product Highlights

This Square D fusible plug-in unit is UL and CSA certified, ensuring quality and safety in power distribution.

Product Information

Standard Information

  • Brand: SQUARE D
  • Manufacturer Part Number: PQ3603G
  • Country of Origin: Mexico
Technical Specifications
Brand
Square D
Voltage
600
Fuse Type
H,J Or R,K
Sub Brand
I-LINE II
Certifications
CSA,UL
Number of Poles
3 Pole
Catalog Number
PQ3603G
Manufacturer
Schneider Electric
Country of Origin
Mexico
Special Features
Fusible disconnect
UPC
785901263906
GTIN
00785901263906
Item Type
Plug-in unit
Depth [Specifications]
4 21/32 in
Width [Specifications]
15 in
Height [Specifications]
8 7/8 in
Fusible [Specifications]
Yes
Fuse Class [Specifications]
H
Standards [Specifications]
CSA Certified, UL Listed
Phase/Wire [Specifications]
3 Phase, 3 Wire with Ground
Fixing Mode [Specifications]
plug-in
Breaker Type [Specifications]
PQ
For Use With [Specifications]
Square D I-Line and I-Line II Busway
Enclosure Rating [Specifications]
NEMA 1
Busbar Description [Specifications]
ground
Fusible/Nonfusible [Specifications]
Fusible
Product Certifications [Specifications]
UL || CSA
Product Or Component Type [Specifications]
section
[Ie] Rated Operational Current [Specifications]
30 A
[Ue] Rated Operational Voltage [Specifications]
600 V AC
Voltage Rating
600 VAC
Current Rating
30 Ampere
Interrupting Rating
200 Kiloampere
Power Rating
7.5 HP at 600 VAC 3-Phase (Standard), 20 HP at 600 VAC 3-Phase (Maximum)
Circuit Configuration
3-Phase 4-Wire
Ground Type
Integral
Neutral Type
No
Enclosure Material
Aluminum
Approval
UL 857, CSA C22.2
Used On
I-Line II Busway
Series
PQ
Amperage
30A
Phase
3
Mpn
PQ3603G
Wire
3
Ground
Yes
bus duct style
plug-in
Fuse/Breaker
fuses
