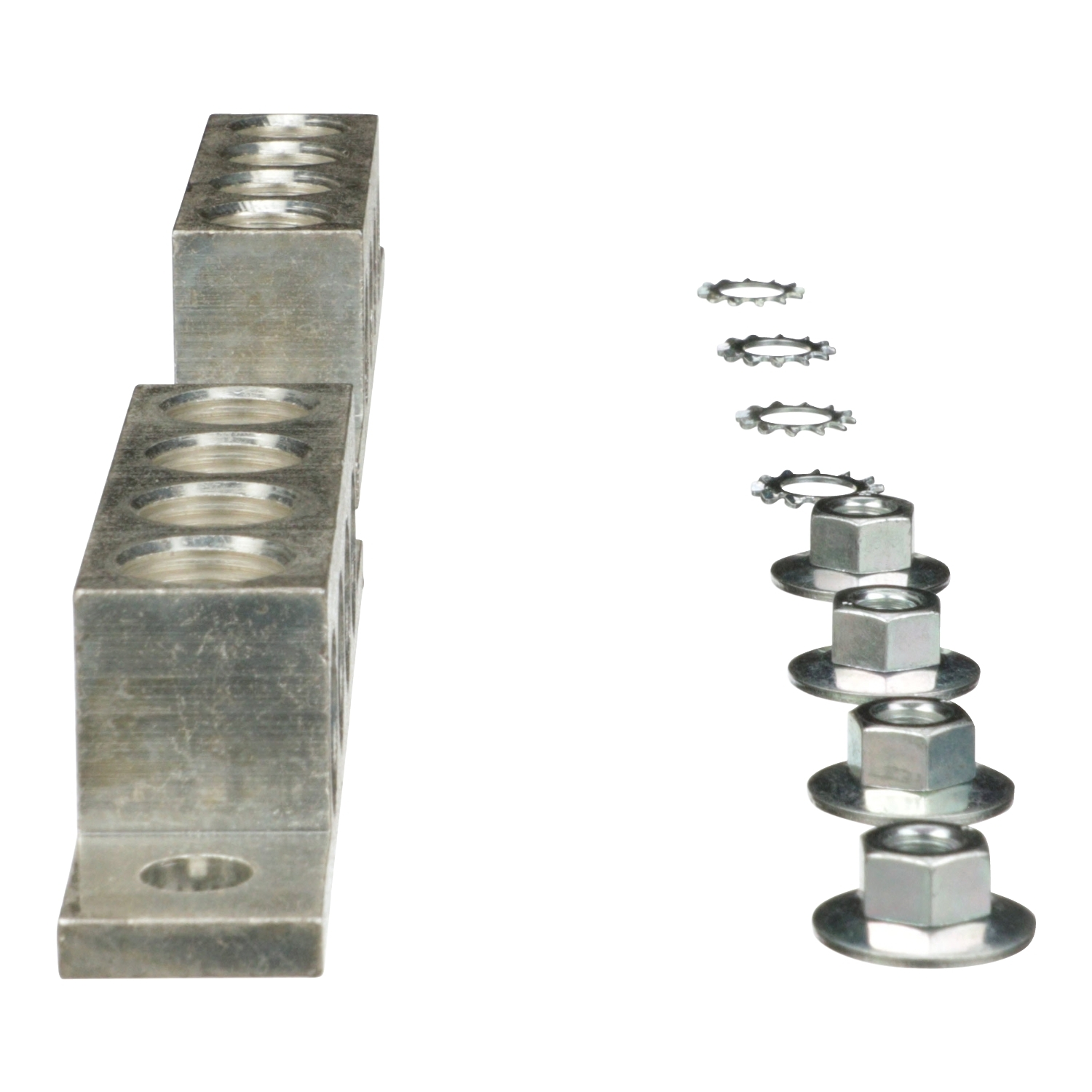

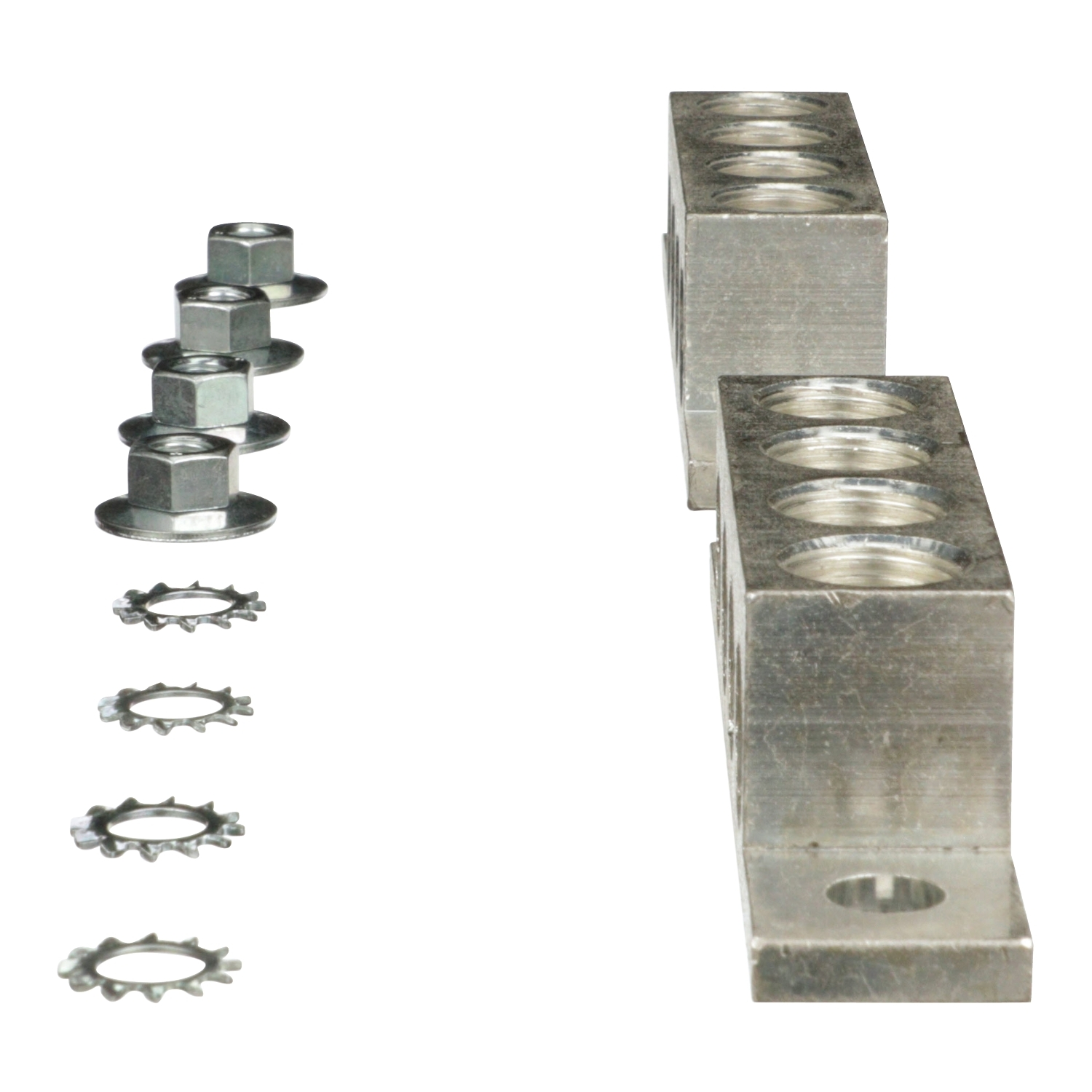

Square D PKOGTA7 240/600 Volt 800 Amp 350 MCM Copper/Aluminum Heavy Duty Safety Switch Equipment Grounding Kit

Product Description

The Square D PKOGTA7 is a heavy-duty safety switch equipment grounding kit designed for tough and reliable performance. This Square D grounding bar is rated for 800A and features 4 terminals, each accepting 4 AWG to 350kcmil conductors. It is UL listed and suitable for heavy-duty applications. It is designed for 240/600 volt applications.

• Heavy duty design
• Quick-make, quick-break operating mechanism
• Dual cover interlock

Product Highlights

The Square D PKOGTA7 grounding kit ensures reliable grounding for heavy-duty safety switch applications, featuring robust construction and UL listing.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: PKOGTA7
• Country of Origin: Mexico

Technical Specifications

• Type: Safety switch grounding bar
• Brand: Square D
• Amperage: 800 Amp
• Sub Brand: SQUARE D
• Cable Size: 350 KCMIL COPPER OR ALUMINIUM
• Product UPC: 78590199840
• 12-Digit UPC: 785901998402
• Applications: Heavy duty
• Country of Origin: Mexico
• Line Rated Current: 800 A
• Voltage: 240/600 Volt
• Tightening Torque: 275-275 lbf.in (AWG 4 to 350 kcmil)
• Product Or Component Type: safety switch grounding bar
• Switch Voltage Rating: 240/600 V
• Switch Current Rating: 800 Ampere (Heavy Duty)
• Wire Size: (4) 350 KCMIL (Aluminum/Copper)
• Used On: E Series Heavy Duty Safety Switch
• Suitable For Use With: E4 Series 800 A Safety Switch
• Conductor Material: Copper/Aluminum
