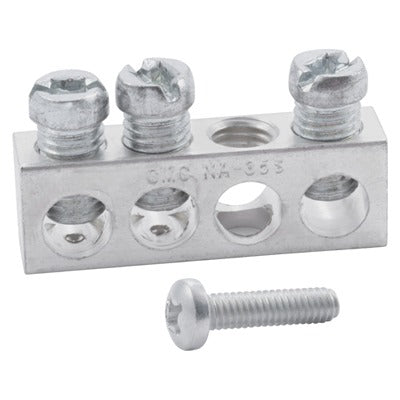

Square D PK3GTA1CP Ground Bar Kit Safety Switches Load Centers

Product Description

The Square D by Schneider Electric PK3GTA1CP is a ground bar kit designed for use with specific safety switches and main lug load centers. It provides a dedicated grounding point required for proper equipment bonding and grounding in electrical distribution systems. This kit is necessary when the associated enclosure or panel is used as a service entrance, ensuring the installation meets code requirements for grounding electrode conductor termination. Licensed electricians install this component as part of a compliant service entrance or feeder assembly.

This ground bar kit is compatible with 30-amp and 60-amp safety switches, as well as 30-amp and 40-amp 2-space main lug load centers. It is required when any of these enclosures are configured for service entrance use. Typical applications include residential and light commercial electrical service installations where a dedicated grounding bus is not factory-installed in the enclosure.

Key Features

• Required for service entrance configurations on compatible enclosures
• Fits 30-amp and 60-amp safety switches
• Compatible with 30-amp and 40-amp 2-space main lug load centers
• Sold as a single kit, one unit per package
• Lightweight at 0.05 pounds for easy handling during installation

Compatibility

Designed for use with 30-amp and 60-amp safety switches and 30-amp and 40-amp 2-space main lug load centers when configured as service entrance equipment.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the service before beginning any work inside the enclosure. Follow the enclosure manufacturer instructions for bar mounting location and grounding conductor termination. Do not energize the service entrance until all grounding connections are verified and torqued per the enclosure documentation.
