Product Description

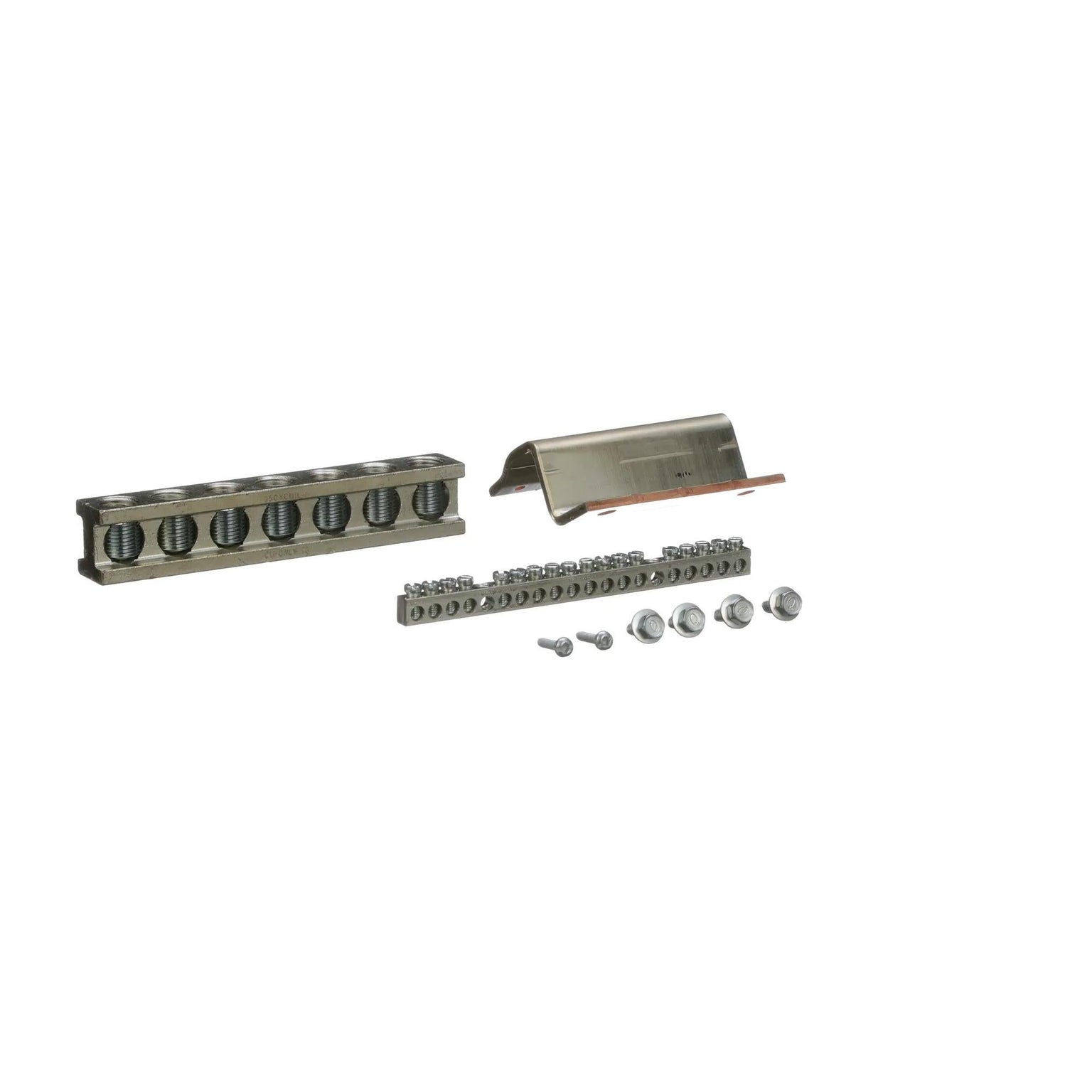

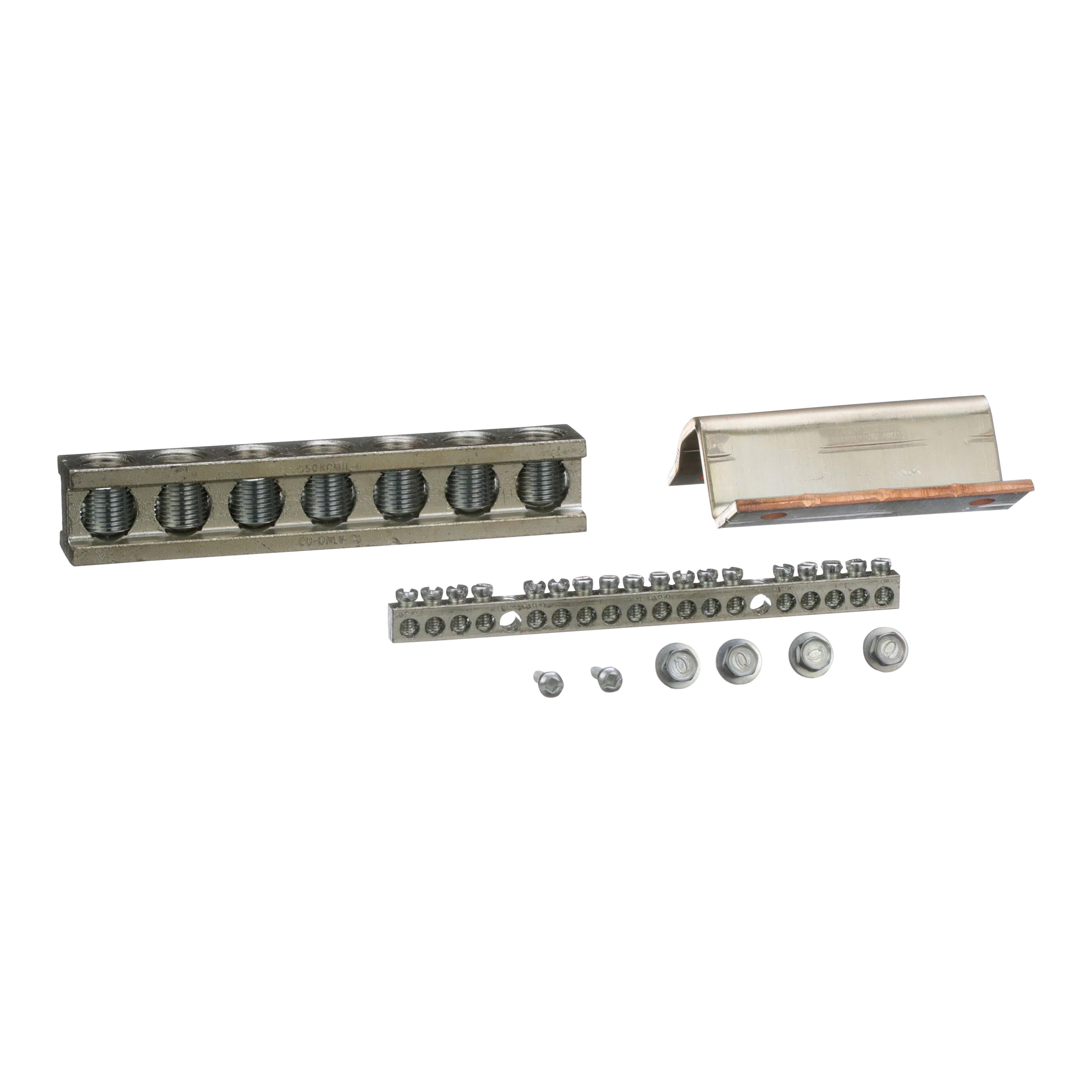

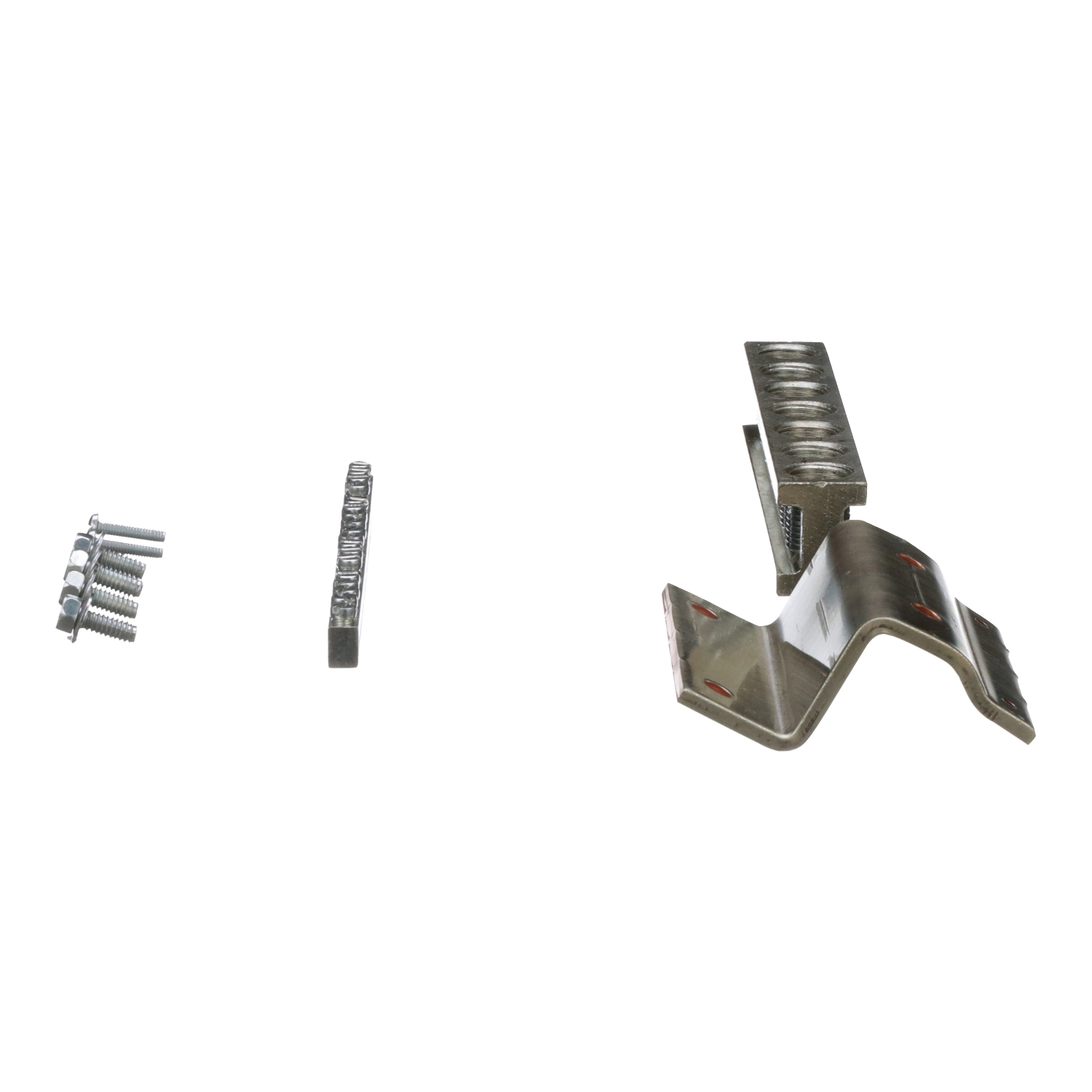

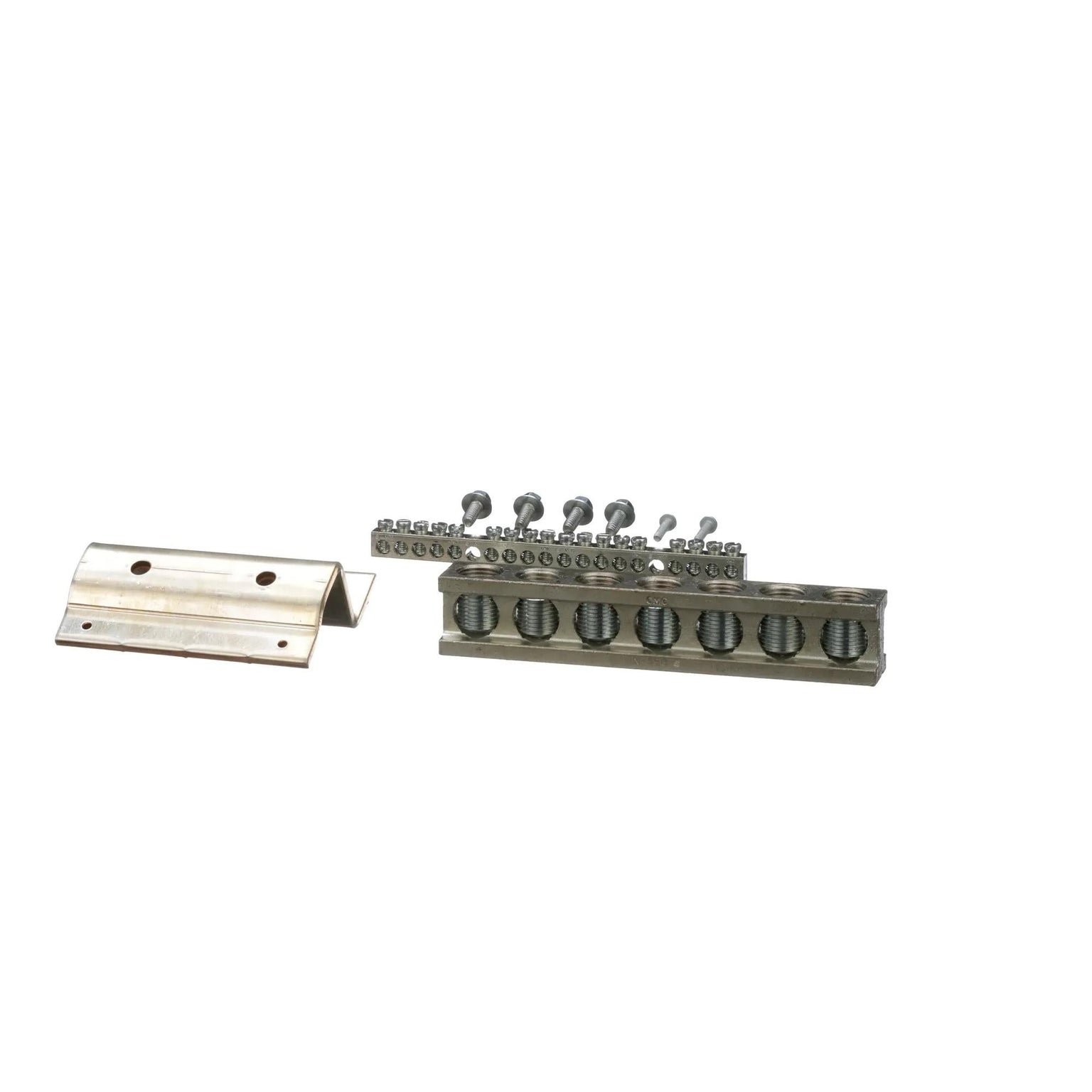

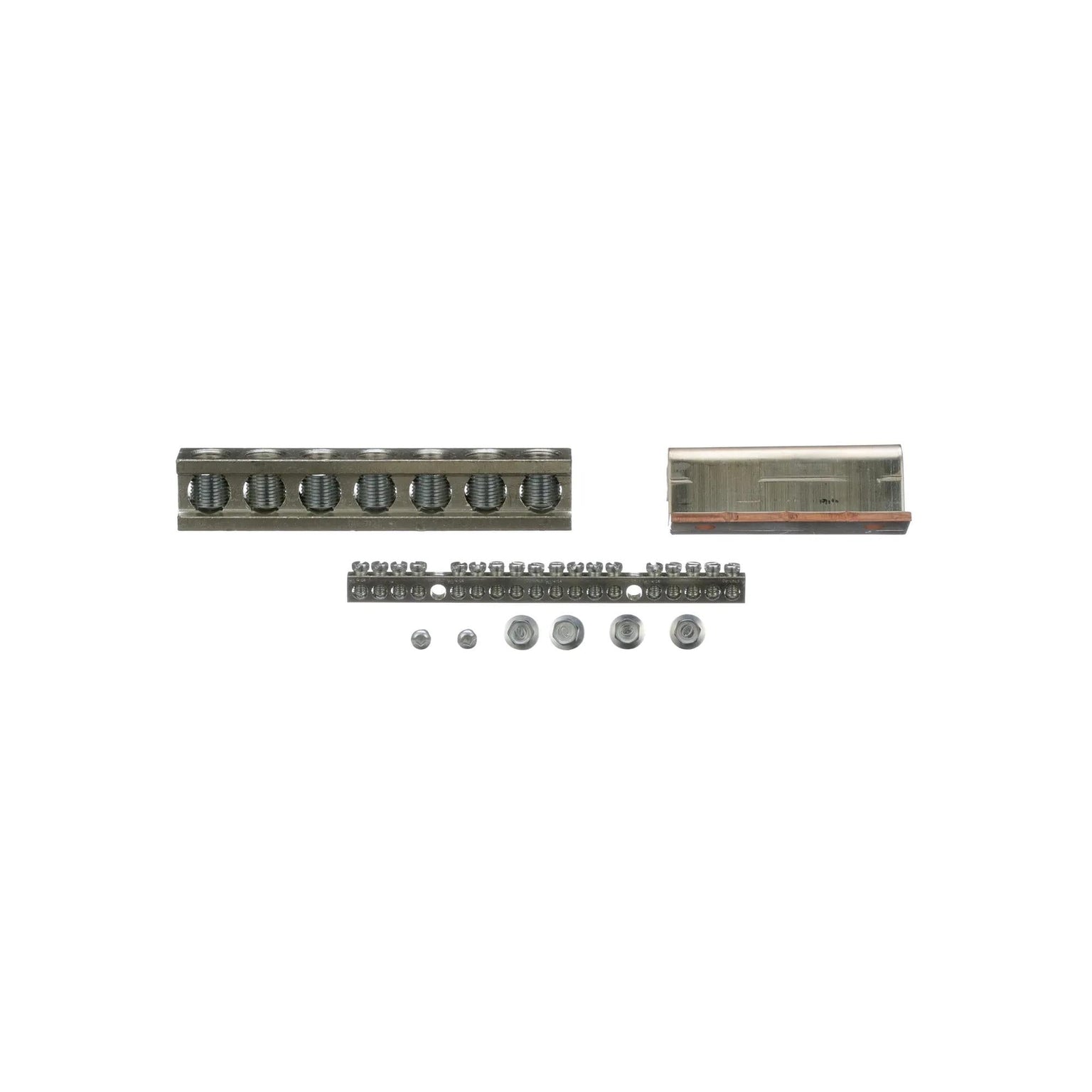

The Square D PK32DGTACU panelboard ground bar kit is designed for use with AC or DC systems. It is suitable for use as service entrance equipment such as all main circuit breaker panelboards. This I-Line circuit breaker panelboard is designed, manufactured, and tested to comply with UL, CSA, NFPA, NEMA & W-P standards.
- Suitable for use as service entrance equipment
- Complies to CSA & UL standards
- Designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards
Product Highlights
The Square D PK32DGTACU ground bar kit is for I-Line circuit breaker panelboards and complies with UL and CSA standards.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: PK32DGTACU
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: PK32DGTACU
-
Type: Grounding kit
-
Brand: Square D
-
Sub Brand: I-LINE
-
Cable Size: AWG 12...AWG 4 COPPER-AWG 4...250 KCMIL COPPER
-
Applications: PANELBOARD COMPONENT
-
Material: Aluminum/Copper
-
Size: 6.69 in
-
Length: 170 mm
-
Operating Temperature: PER UL
-
Manufacturer: Schneider Electric
-
Country of Origin: United States
-
Made in USA: Yes
-
Panelboard Type: Review
-
UPC: 785901087038
-
GTIN: 00785901087038
-
Used On: HCM/HCP/HCR-U I-Line Panelboard
-
Number Of Terminals (BAR A): 18
-
Number Of Terminals (BAR B): 27
-
Range Of Product: I-Line
-
Product Or Component Type: grounding kit
-
Awg Gauge: AWG 12...AWG 4 copper || AWG 6...350 kcmil copper
-
Rohs Exemption Information: Yes
-
Packaging Made With Recycled Cardboard: Yes
-
Packaging Without Single Use Plastic: No
-
California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
-
Circularity Profile: N/A
-
Take-Back: No
-
Pvc Free: Yes
-
Eu Rohs Directive: Compliant with Exemptions
-
Standards: UL, CSA
-
Suitable For Use With: I-Line™ HCM, HCP, HCR-U Series Panelboard
-
Specifications: 4 AWG to 250 kcmil, 12 to 4 AWG Al/Cu, Panel Mount
-
UNSPSC: 39121112
-
Item Length: 6-3/4 in
-
Number of Ports: 25
-
Termination Type: Compression
-
Connector Style: 7-Ports
-
Number of Pins: 18
-
Contact Material: Copper & Aluminum
-
Number of Poles: 1
-
Compatible Wire Gauge (AWG): 350kcmil
-
Compatible Mounting Type: Panel
