Square D PK23GTA Load Center Equipment Ground Bar Assembly

Product Description

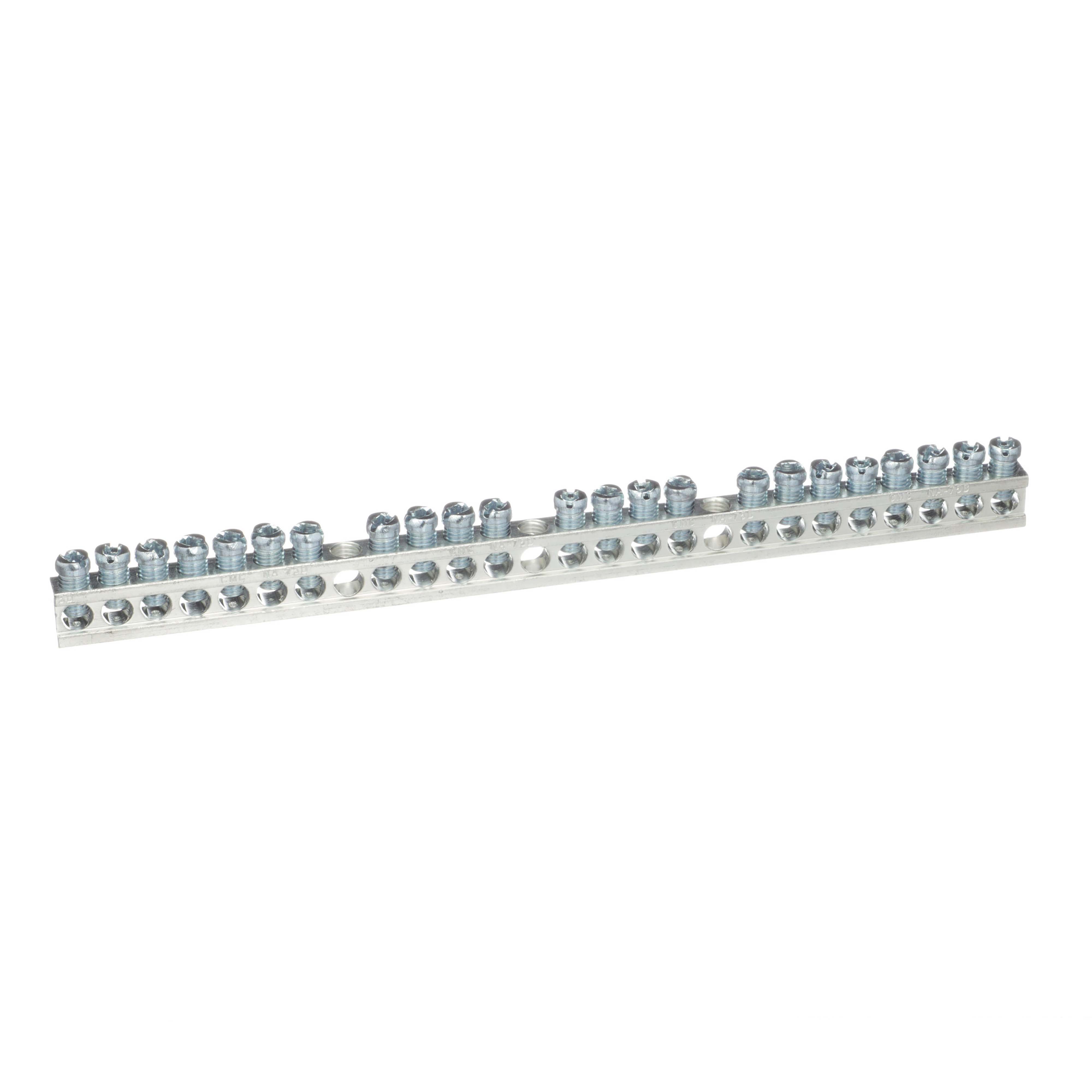

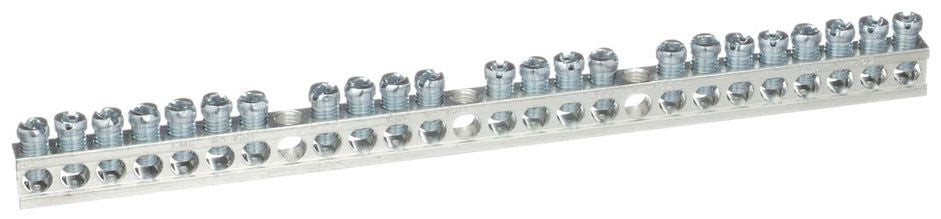

Square D PK23GTA is a Load Center Equipment Ground Bar Assembly designed for use with QO circuit breakers and load centers. This assembly provides a reliable grounding solution for electrical distribution systems.

• Constructed with durable copper and aluminum conductor materials.
• Features 23 terminals, supporting wire sizes from 14 to 4 AWG for copper and 12 to 4 AWG for aluminum.
• RoHS compliant with direct mounting and includes two screws for secure installation.

Product Highlights

The PK23GTA Ground Bar Assembly meets the needs of residential, commercial, and industrial electrical systems, ensuring safety and performance.

Product Information

Standard Information

• Manufacturer: Square D Co.
• UPC: 78590102643

Technical Specifications

• Length: 8.11 inches
• Conductor Material: Copper/Aluminum
• Terminal Size: 23-Terminal (1) 14 to 4 AWG (Copper), (1) 12 to 4 AWG (Aluminum)
• Used On: QO Circuit Breaker and Loadcenter
• Compliance: RoHS Compliant
• Mounting Type: Direct Mount
• Number of Screws: 2
• Catalog Description: Load Center Accessory, QO/Homeline, Ground Bar Kit, 23 Terminals
