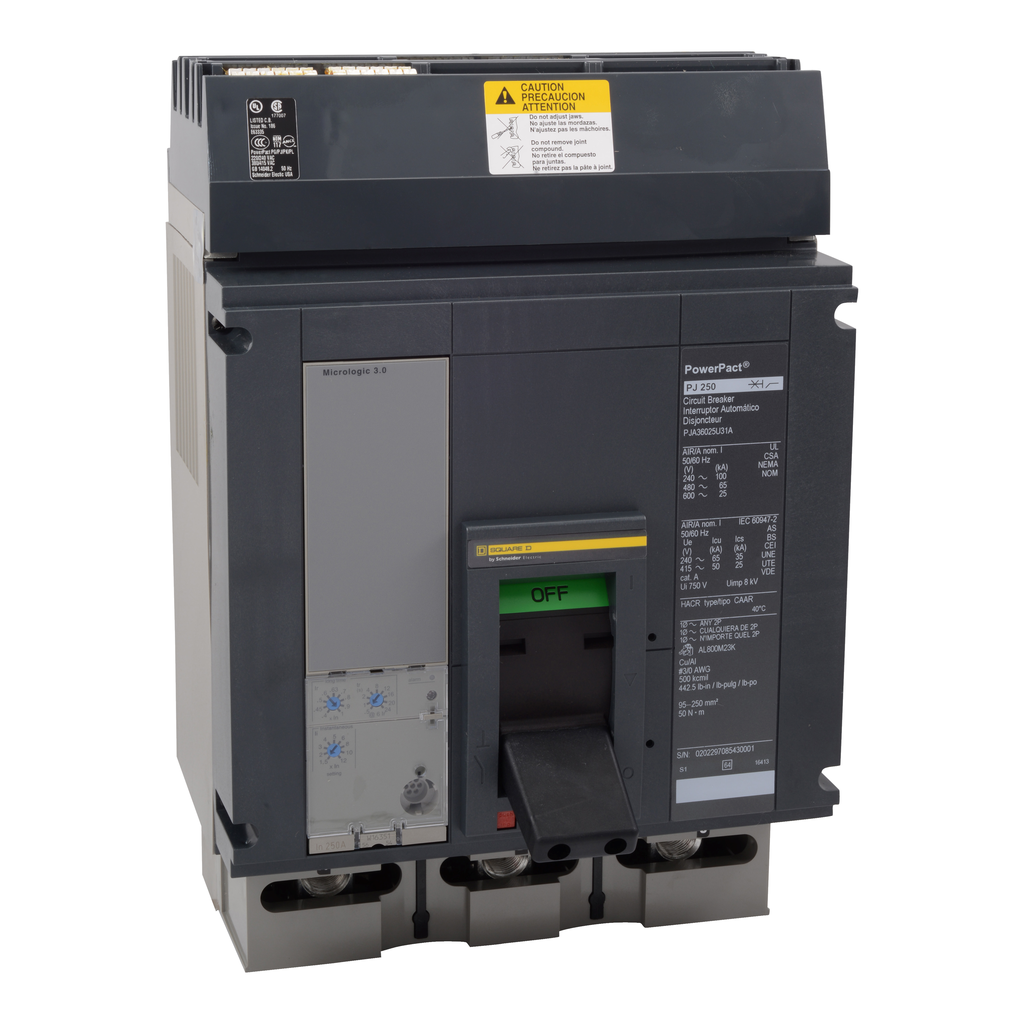

Square D PJA36080U31A Circuit Breaker, PowerPacT P, 800A, 3 Pole, 600VAC, 25kA, I-Line, Micrologic 3.0

Product Description

Square D PJA36080U31A Circuit Breaker protects electrical systems from overloads and short circuits. It includes a Micrologic trip unit with an LI function. The design allows for easy field interchangeability. This unit features I-Line terminations and mechanical lugs, suitable for a variety of setups including three-phase connections. Its interrupting rating reaches 25kA at 600VAC.

• Continuous current rating at 80% with ABC phase connection.
• Integrated push-to-trip button for manual operation.
• UL, CSA, NOM, and IEC certified.

Product Highlights

Designed to provide reliable protection, this circuit breaker is an essential component for safe and efficient power distribution.

Product Information

Standard Information

• Catalog Number: PJA36080U31A
• Manufacturer: Schneider Electric

Technical Specifications

• Frame Type: P-FRAME
• Current Rating: 800 Amp
• Voltage: 600 Volt
• Number of Poles: 3 Pole
• Interrupt Rating: 25kA
• Width: 8.27 inches
• Height: 12.86 inches
• Depth: 8.05 inches
