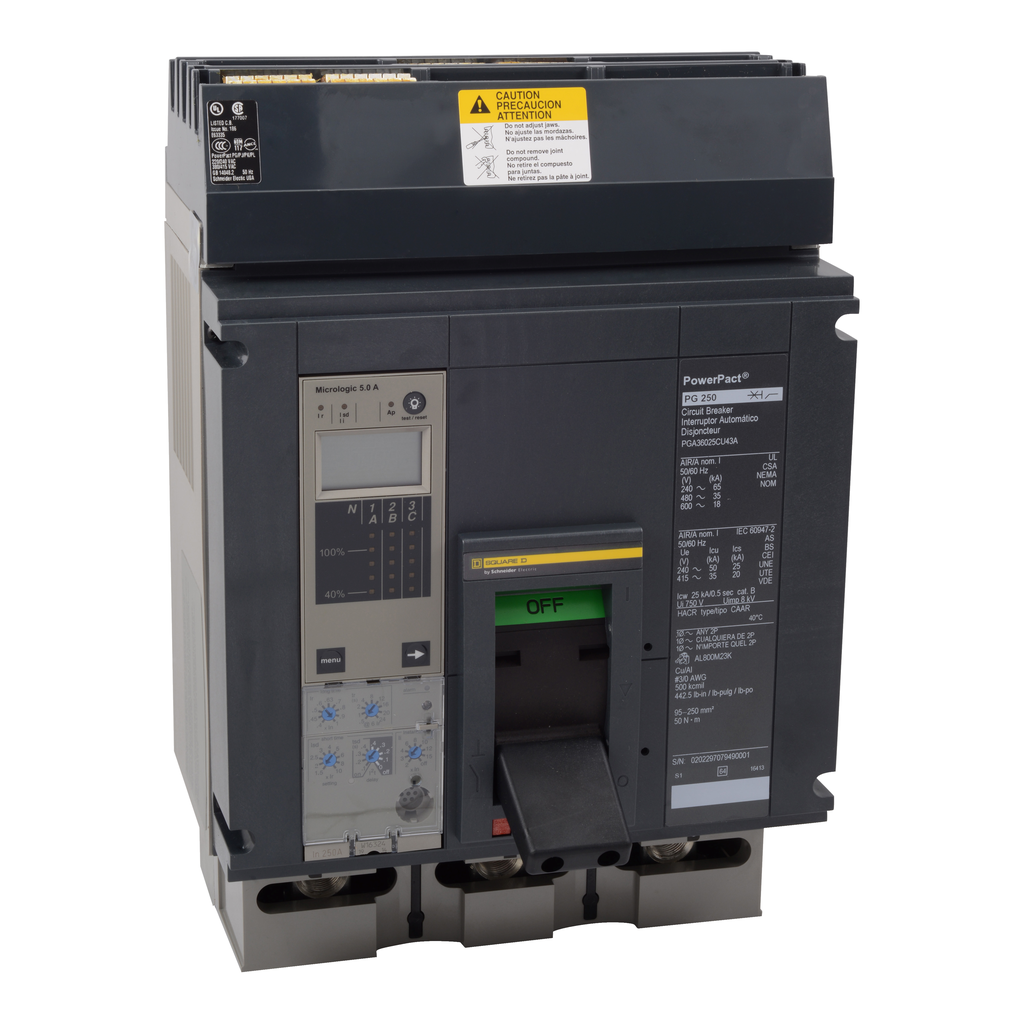

Square D PJA36060CU43A 600 Volt Molded Case Circuit Breaker

Product Description

The Square D PJA36060CU43A is a 600 Volt molded case circuit breaker designed for reliable protection of electrical systems against overloads and short circuits. This unit is part of the PowerPacT P-Frame series, which features a Micrologic electronic trip unit for precise performance. The circuit breaker can be mounted in various configurations, including I-Line, contributing to its versatility in different electrical setups.

• Micrologic Interchangeable Ammeter with a 5.0A trip unit
• Interrupting rating of 25kA at 600VAC
• Continuous current rating of 100% with ABC phase connection

Product Highlights

This circuit breaker complies with UL, CSA, NOM, and IEC standards, ensuring safe operation in various applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: PJA36060CU43A
• Current: 600 Amp
• Voltage: 600 Volt
• Frame: P-Frame
• Number of Poles: 3 Pole
• Depth: 8.05 inches
• Width: 8.27 inches
• Height: 12.86 inches
• Net Weight: 32 lb
• Warranty: 18 months
