Square D PDC3JD20 Circuit Breaker Power Distribution Connector 150 - 250 Amp

Product Description

Square D PDC3JD20 is a power distribution connector designed for circuit breakers in the range of one hundred fifty to two hundred fifty amps. This connector allows for multiple load wire connections while maintaining a compact setup. The PDC3JD20 accommodates connections using one to three secondary disconnecting blocks, with each block handling nine wires. It is compatible with various thermal-magnetic and electronic trip molded case circuit breakers, making it suitable for both commercial and industrial applications.

• Designed for use with Square D circuit breakers.
• Supports wire sizes up to fourteen AWG.
• Ideal for UL 508 and UL 1995/CSA C22.2 No. 236 applications.

Product Highlights

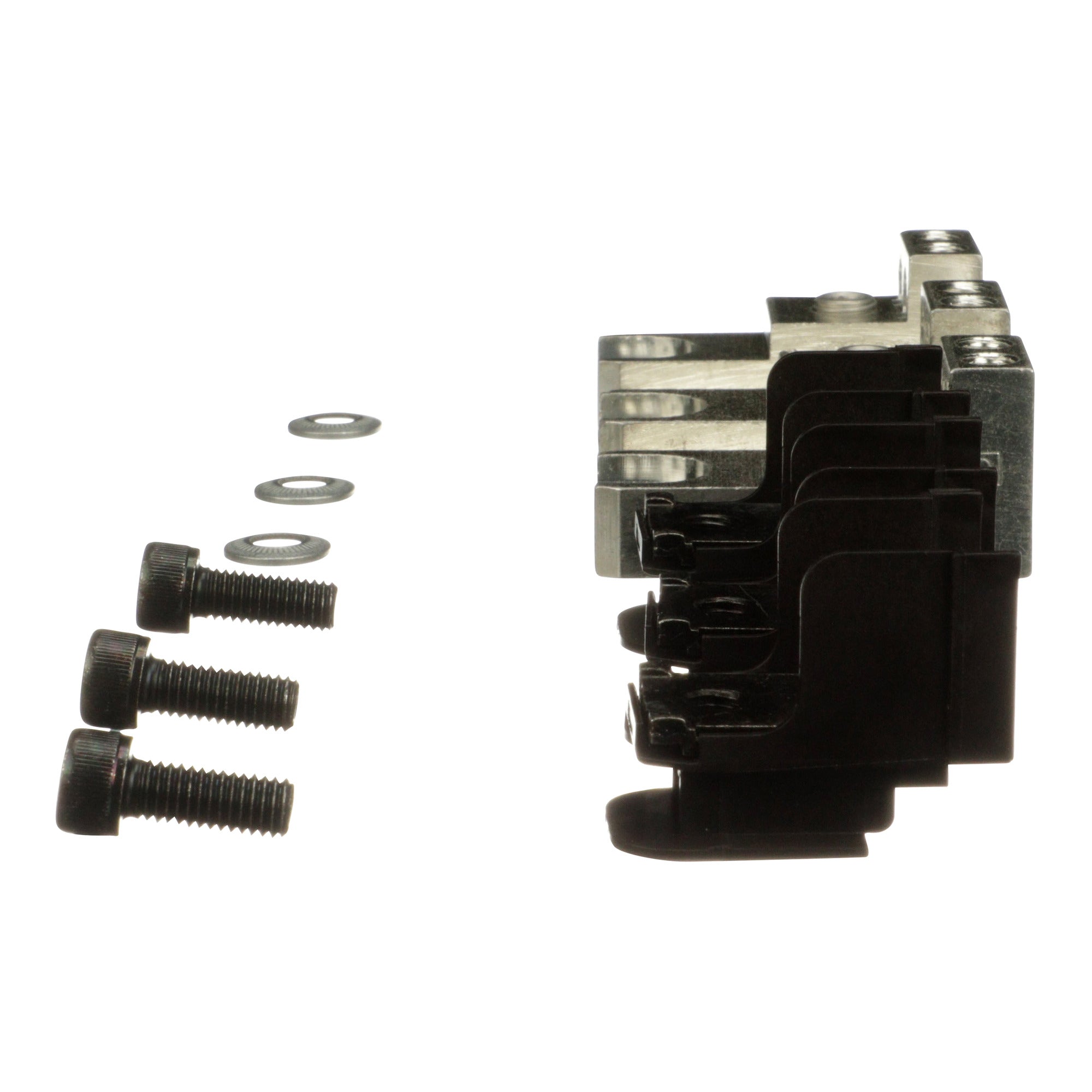

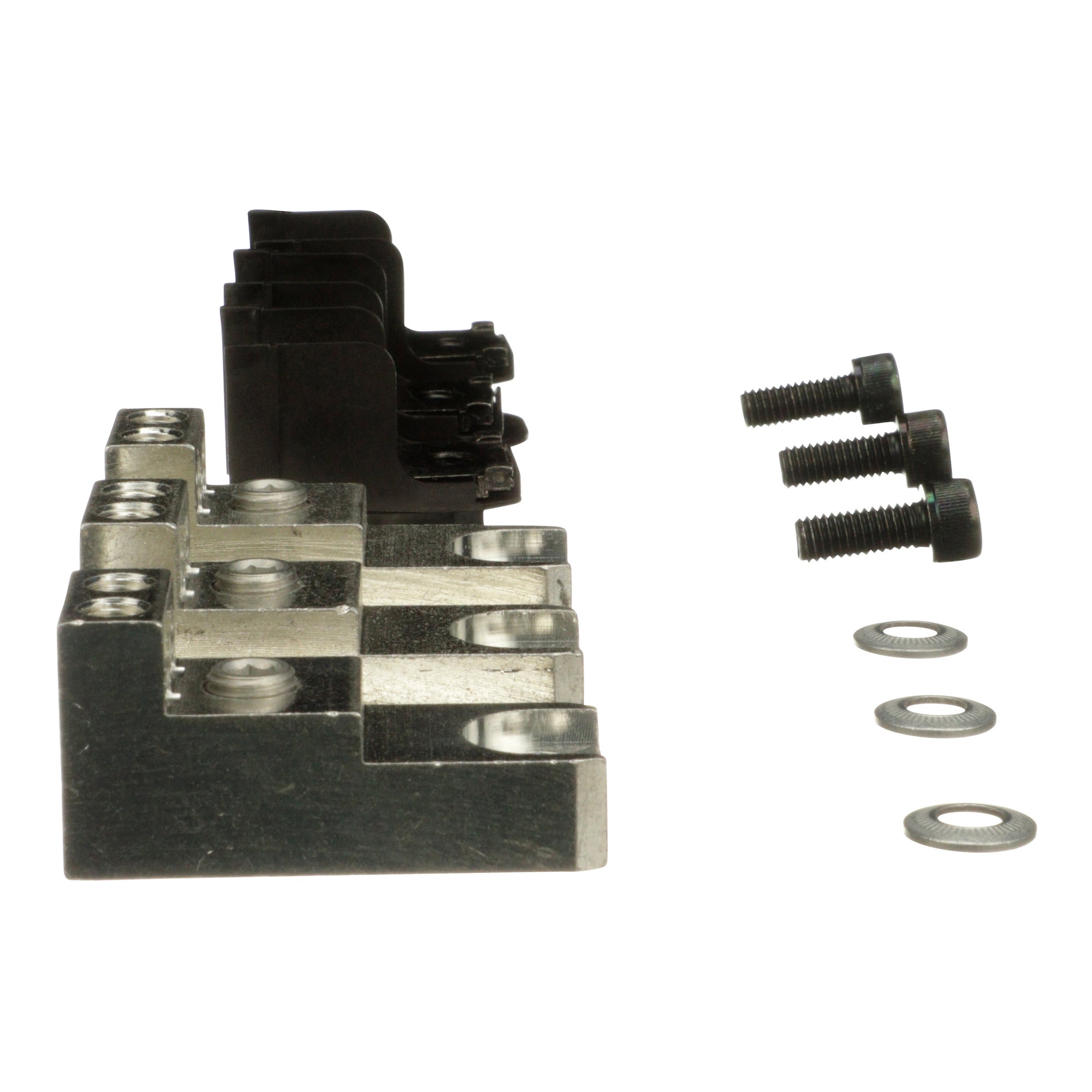

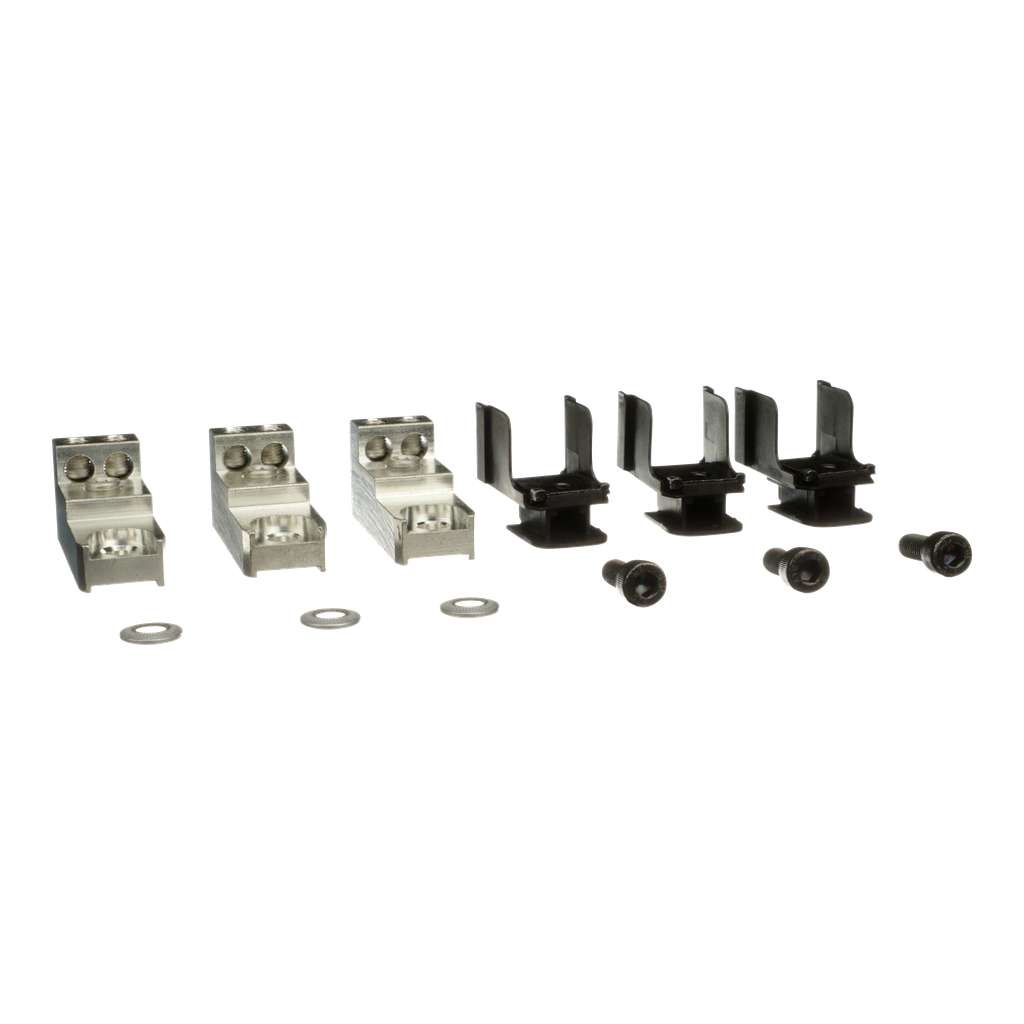

This product is ideal for optimizing energy costs and improving system availability in industrial settings. It features a field-installable kit that includes tin-plated aluminum lugs and necessary mounting hardware.

Product Information

Standard Information

• Part Number: PDC3JD20
• Brand: Square D

Technical Specifications

• Amperage: Two hundred fifty amperes
• Country of Origin: United States
• Certifications: CSA, UL
• Warranty Length: Eighteen months
• GTIN: 00785901570950
• UPC: 785901570950
