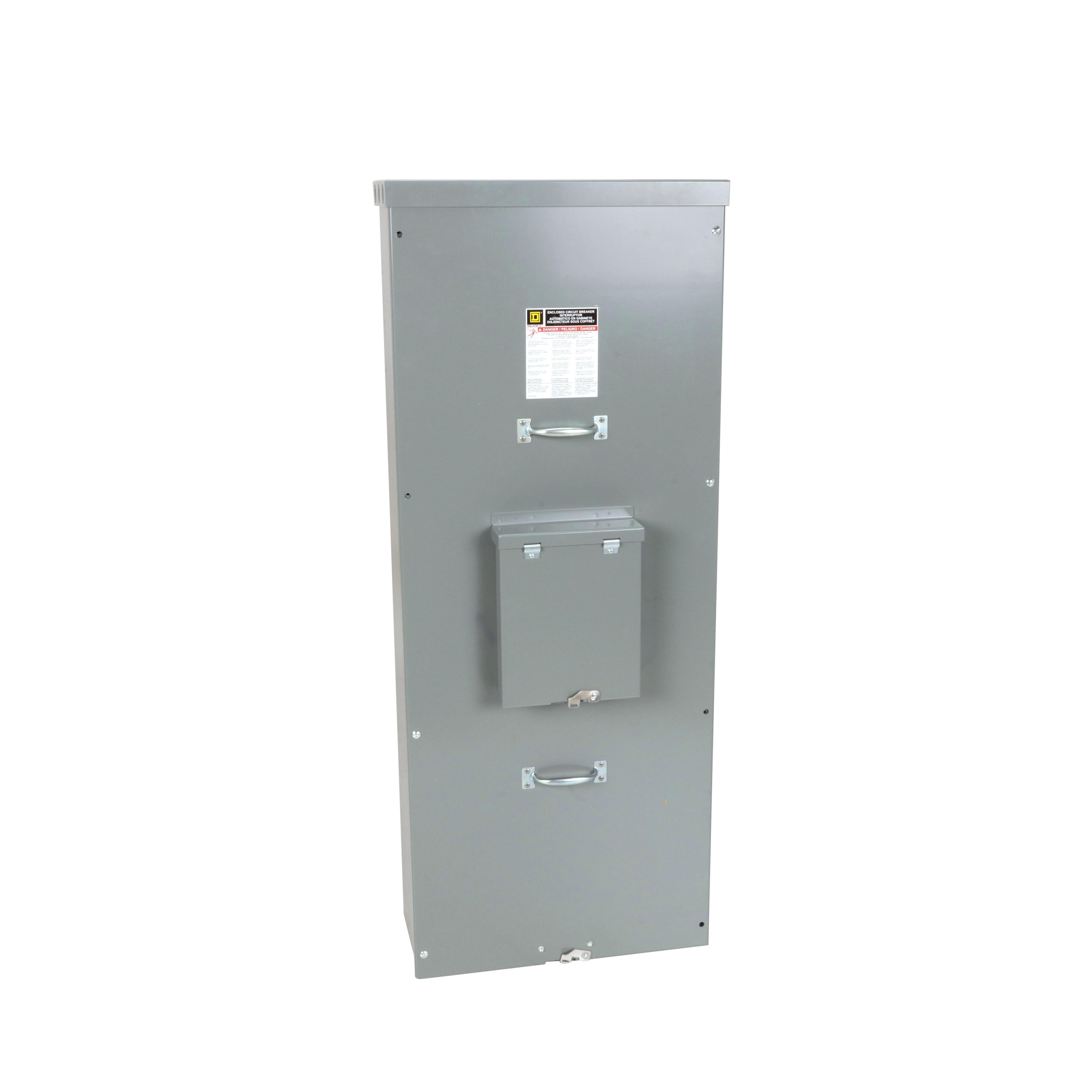

Square D P1200R NEMA 3R Circuit Breaker Enclosure 600-1200 A

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: P1200R
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$3,788.02
$3,788.02
LTL Delivery

This product weighs 117 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Square D P1200R is a circuit breaker enclosure for PowerPacT P, featuring a NEMA 3R rating. It accepts either 2 pole or 3 pole circuit breakers with a rated current of 600A to 1200A. Constructed of steel, its dimensions are 1323.98 mm (H) x 533.4 mm (W) x 247.65 mm (D). Compliant with UL and CSA standards.

  • Circuit breaker enclosure for PowerPacT P
  • NEMA 3R rating of protection
  • Accepts either 2 pole or 3 pole circuit breakers

Product Highlights

NEMA 3R rated steel enclosure compatible with PowerPacT P circuit breakers, supporting 2 or 3 pole configurations and 600-1200A.

Product Information

Standard Information

  • Brand: SQUARE D
  • Manufacturer Part Number: P1200R
  • Country of Origin: United States

Technical Specifications

  • Catalog Number: P1200R
  • Brand: Square D
  • Manufacturer: Schneider Electric
  • Type: PGL-PJL-PKL-PLL
  • Depth: 9-3/4 in
  • Width: 56.3880 in
  • Height: 33.5280 in
  • Current: 1200 Amp
  • Amperage: 1200 Amp
  • Enclosure Material: Steel
  • Sub Brand: SQUARE D
  • Trip Range: 600...1200 A
  • Applications: CIRCUIT BREAKER P 3P-CIRCUIT BREAKER P 2P
  • Certifications: CSA,UL
  • Number of Poles: 3P,2 Pole
  • Line Rated Current: 600-1200 A
  • Circuit Breaker Type: PGL,PJL,PKL,PLL
  • Application: Circuit breaker P 3P;circuit breaker P 2P
  • Enclosure: Steel
  • Enclosure Rating: NEMA 3R
  • Accepts: 2 pole or 3 pole circuit breakers
  • Rated Current: 600A to 1200A
  • Material: Steel
  • Standards: UL and CSA
  • Poles Description: 3P || 2P
  • Product Destination: circuit breaker P 3P || circuit breaker P 2P
  • Product Certifications: UL || CSA
  • PVC Free: Yes
  • Halogen Content Performance: Halogen free plastic parts product
  • Electrical Ratings: 600 to 1200 A
  • Frame: P
  • Mounting Type: Surface
  • Series: A01
  • Part Number #: P1200R
  • UNSPSC: 39121616
  • NEMA Rating: 3R
  • Frame Type: P Frame
  • Pole: 2/3 Pole
  • Mounting: Surface
  • Alternate Catalog Number: P1200R
  • Amperage Rating: 600...1200 A
  • ARRA Compliant: N
  • Buy American Compliant: N
  • EU RoHS Indicator: Y
  • Standard: NEMA 3R,UL-CSA
  • Substitute Product Catalog Number: PGL36080CU31A
