Product Description

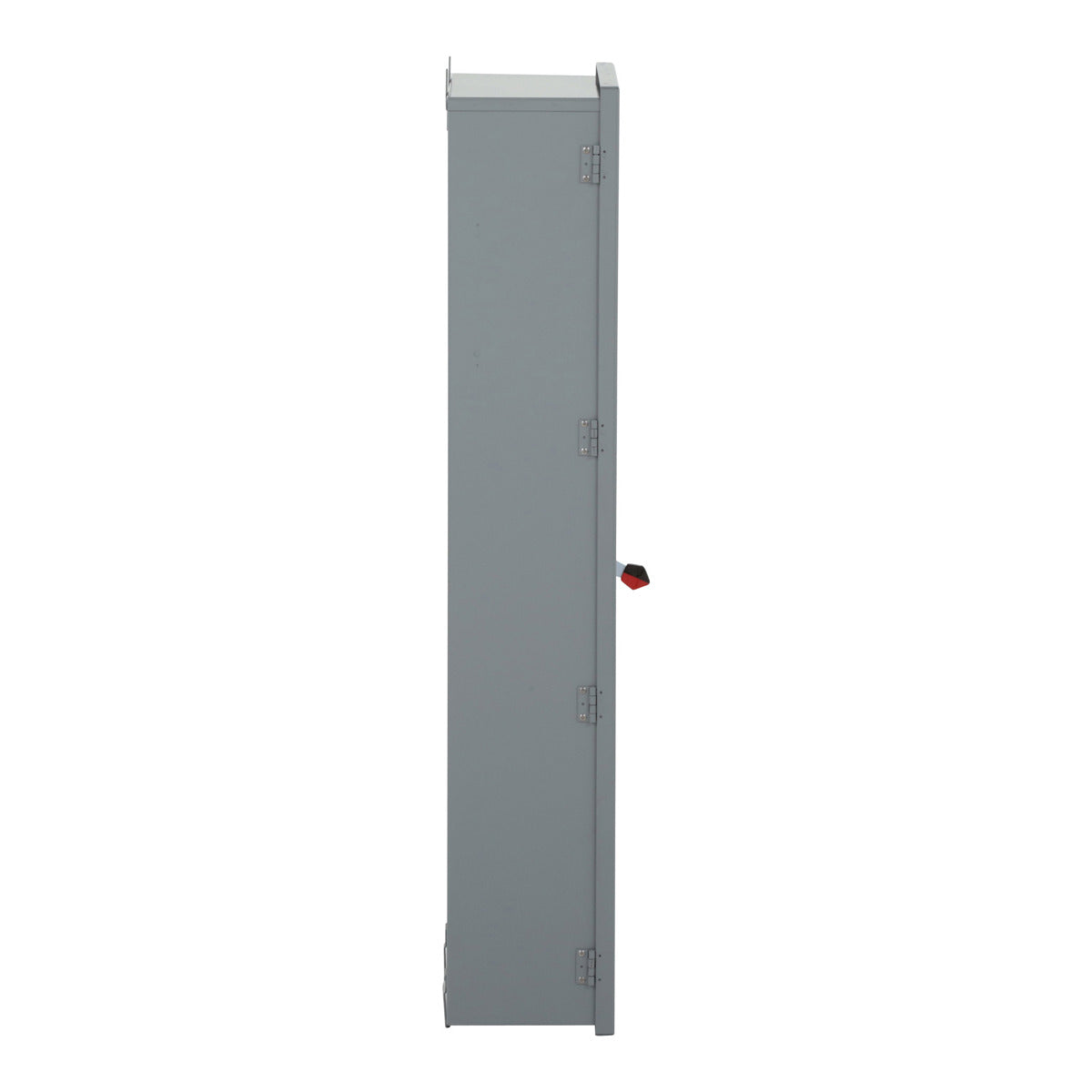

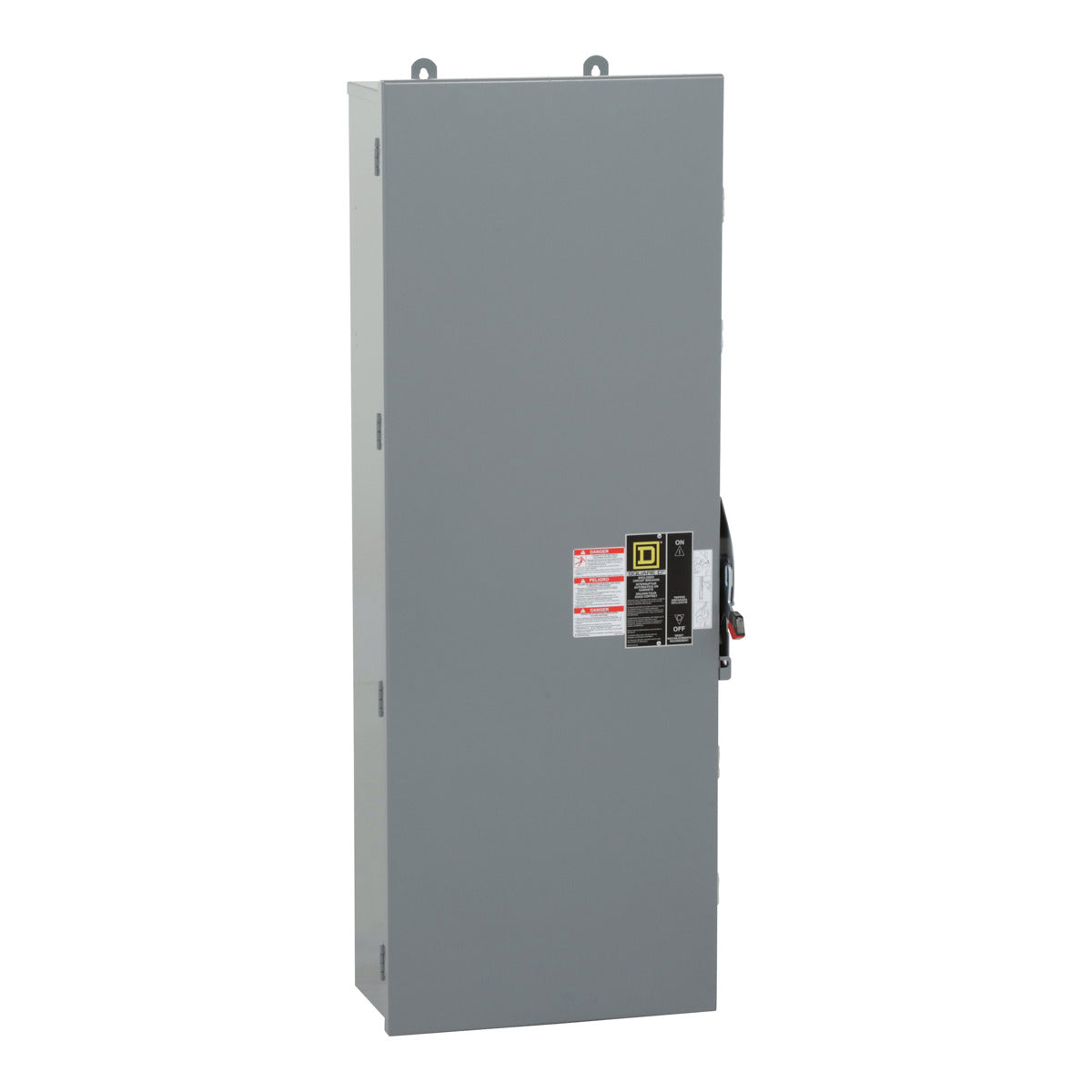

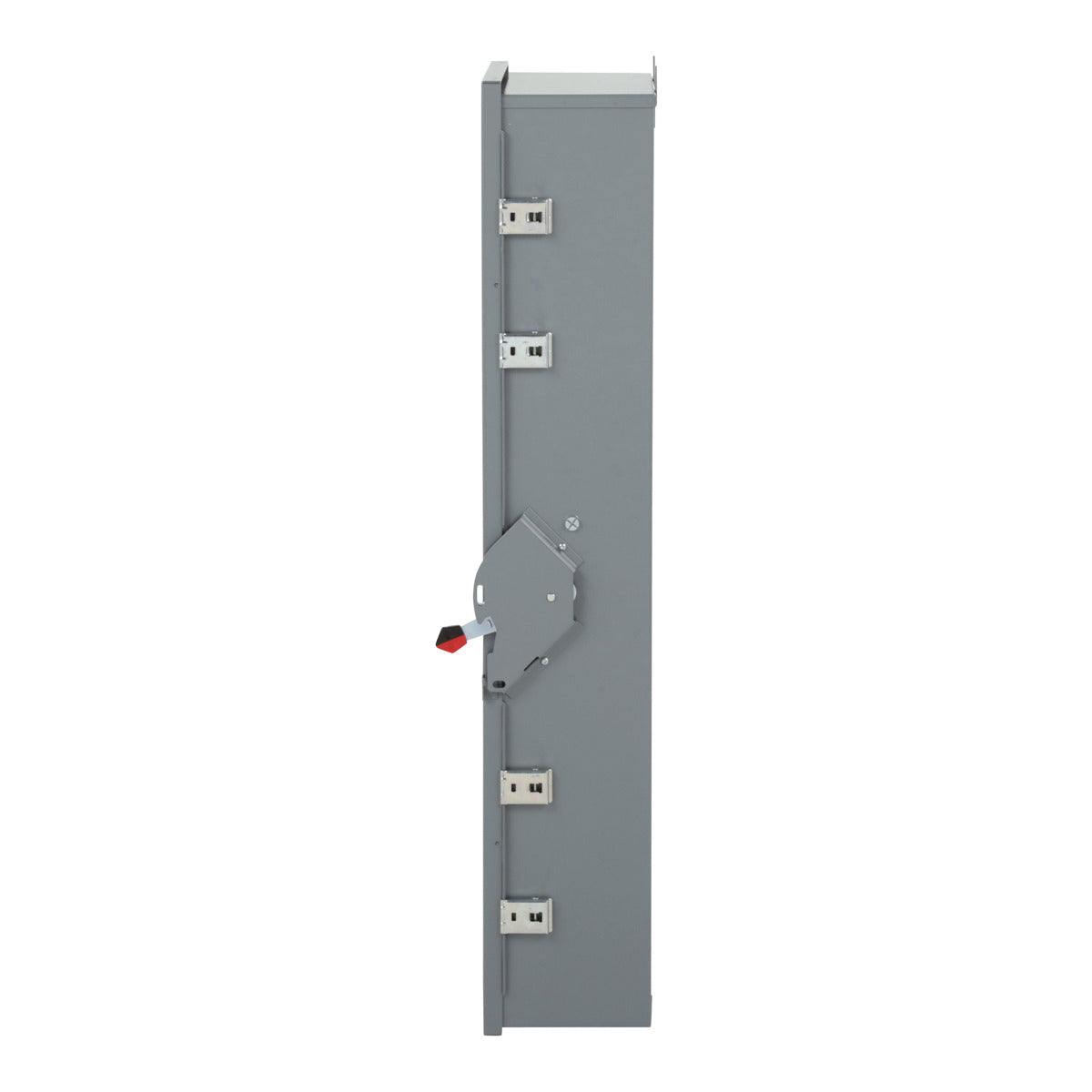

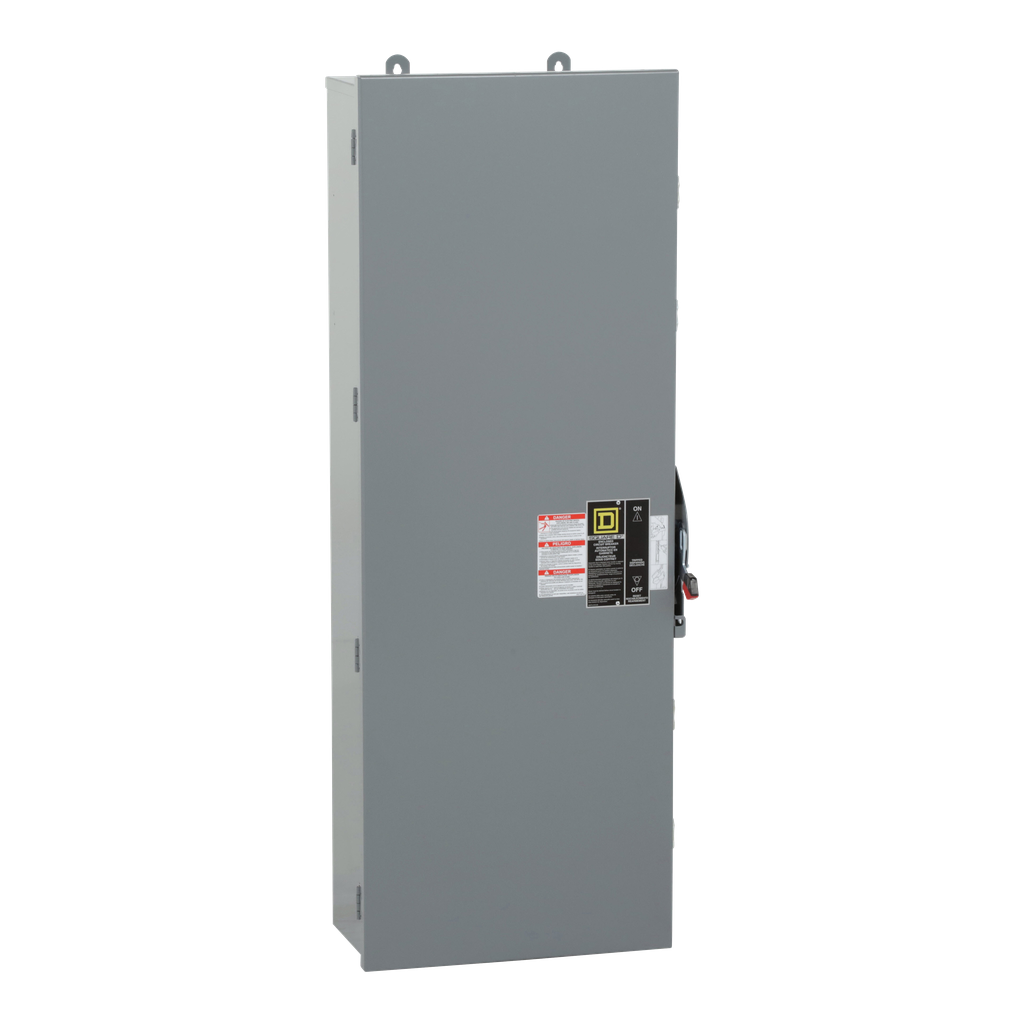

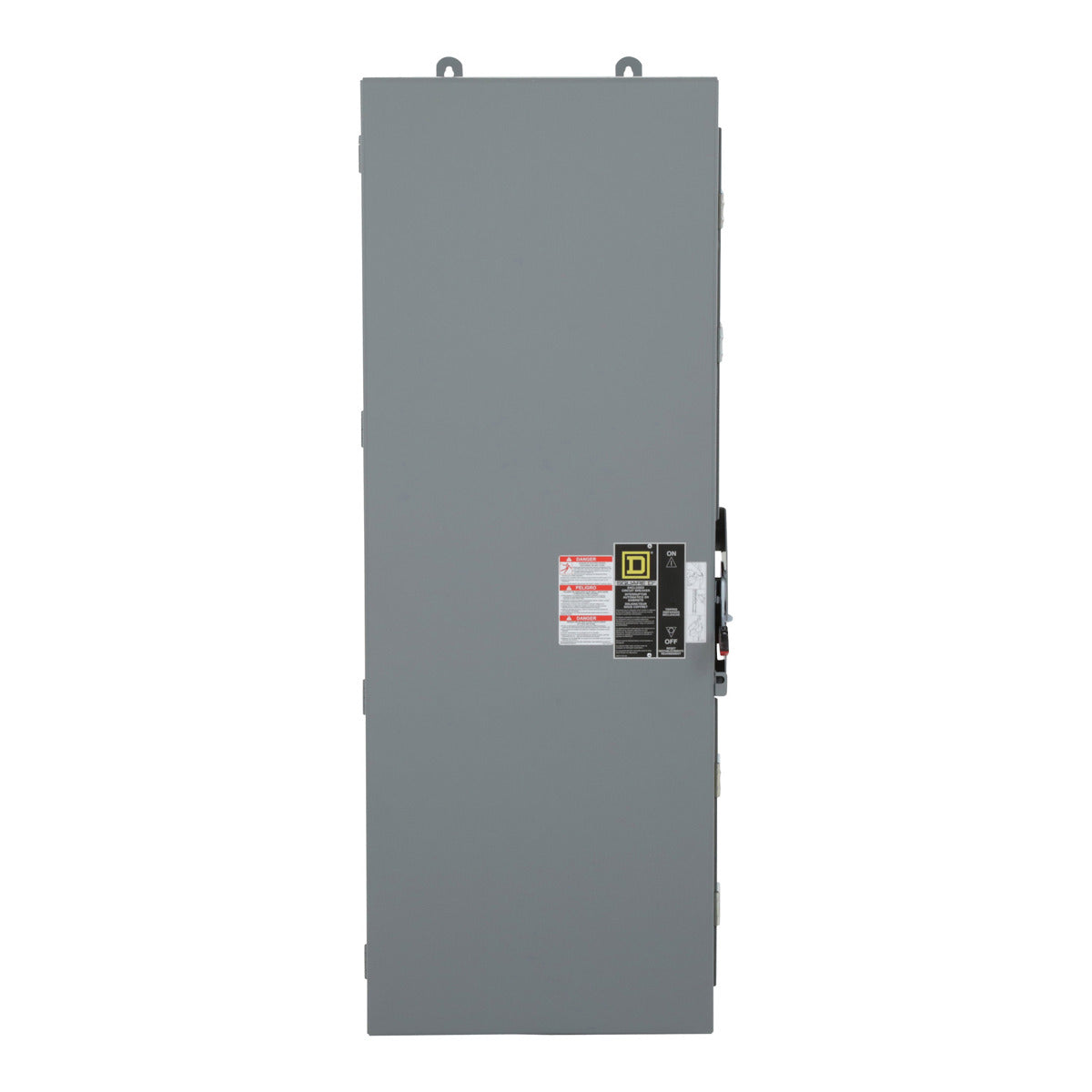

The Square D P1200AWK is a circuit breaker enclosure designed for both industrial and residential applications. This enclosure meets NEMA 12 and 3R standards and has been engineered to provide safety and reliability in challenging environments. It is equipped with a dead front housing, which minimizes the risk of accidental contact with energized components. This enclosure is compatible with Power Pact P circuit breakers and molded case switches, and accommodates up to three poles rated from two hundred fifty to twelve hundred amps.
- Meets UL 50 and NEC 100 standards for safety compliance.
- Dimensions: Height of fifty-three inches, Width of twenty-3/4 inches, and Depth of nine-1/2 inches.
- Suitable for service entrance applications with pre-installed neutral assembly.
Product Highlights
This enclosure protects circuit breakers and allows for safe operation without removing the cover. It complies with OSHA lockout/tagout requirements and provides necessary physical protection for working environments.
Product Information
Standard Information
-
Catalog Number: P1200AWK
-
Brand: Square D
Technical Specifications
-
Enclosure Material: Steel
-
Rated Current: 1200 Amp
-
Number of Poles: 2 Pole and 3 Pole
-
Country of Origin: Mexico
-
Warranty: 18 months
-
Weight: 47.49 kg
-
Dimensions: 53 inches (H) x 20-3/4 inches (W) x 9-1/2 inches (D)
