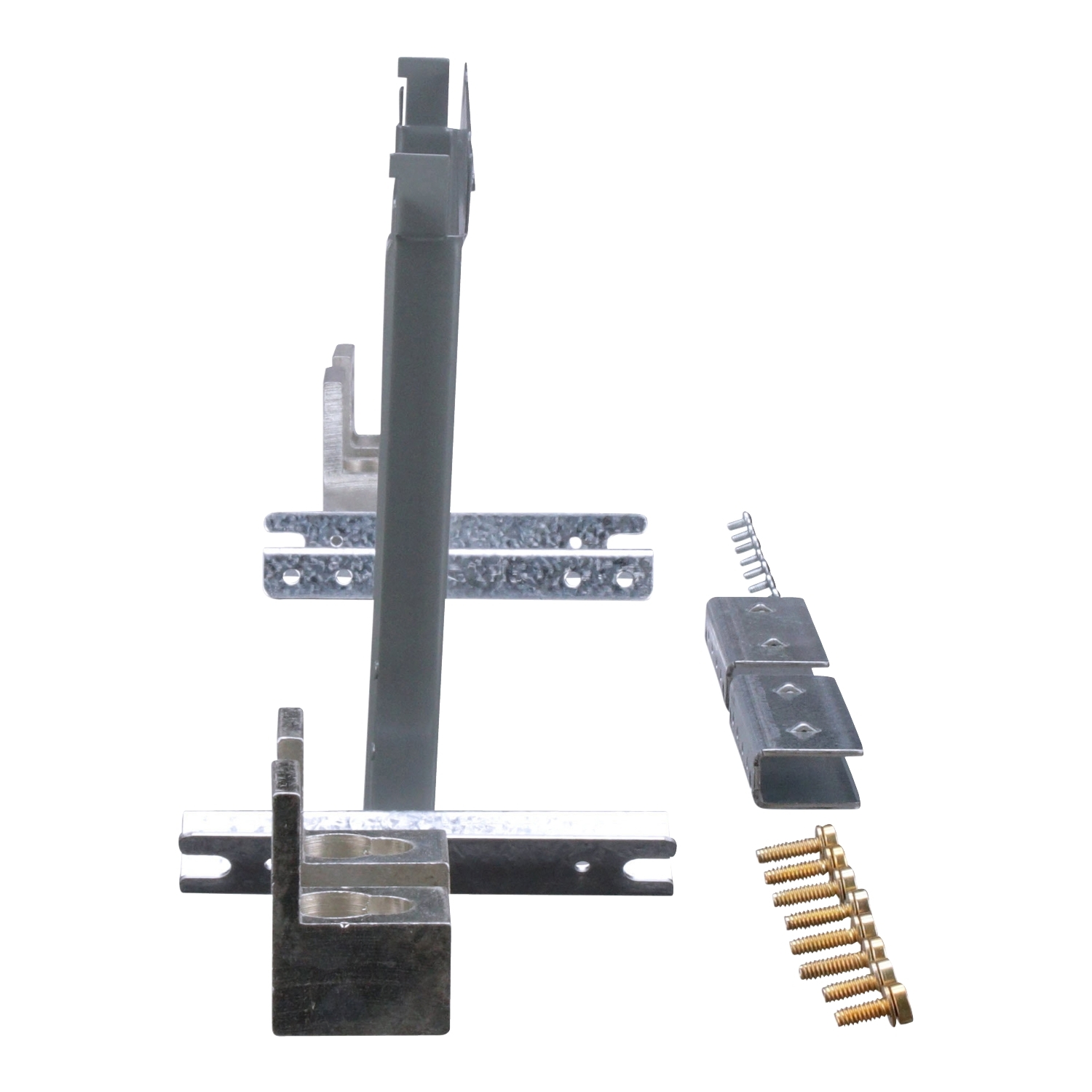

Square D NQFTL4H 400 Amp Panelboard Feed-Through Lug Kit

Product Description

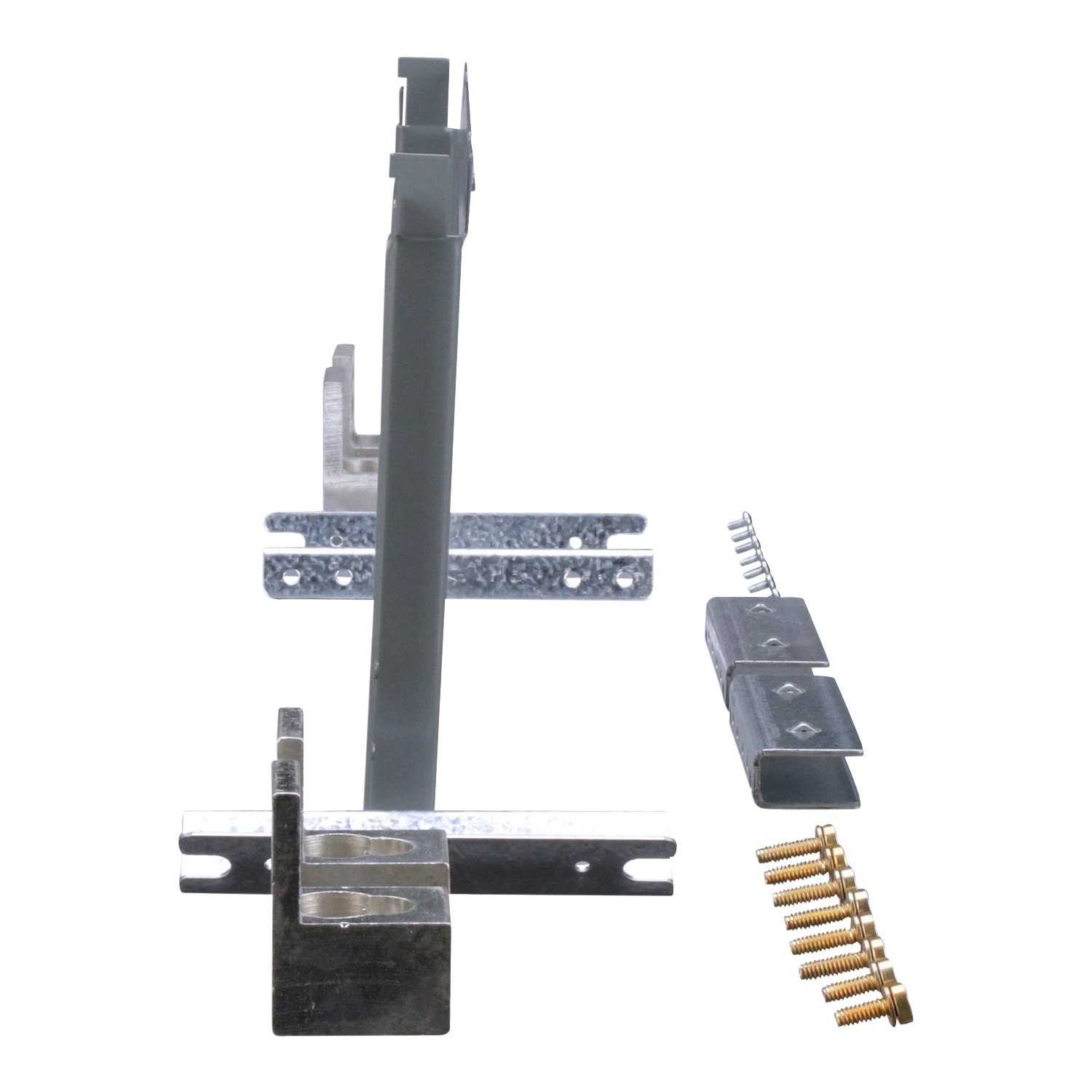

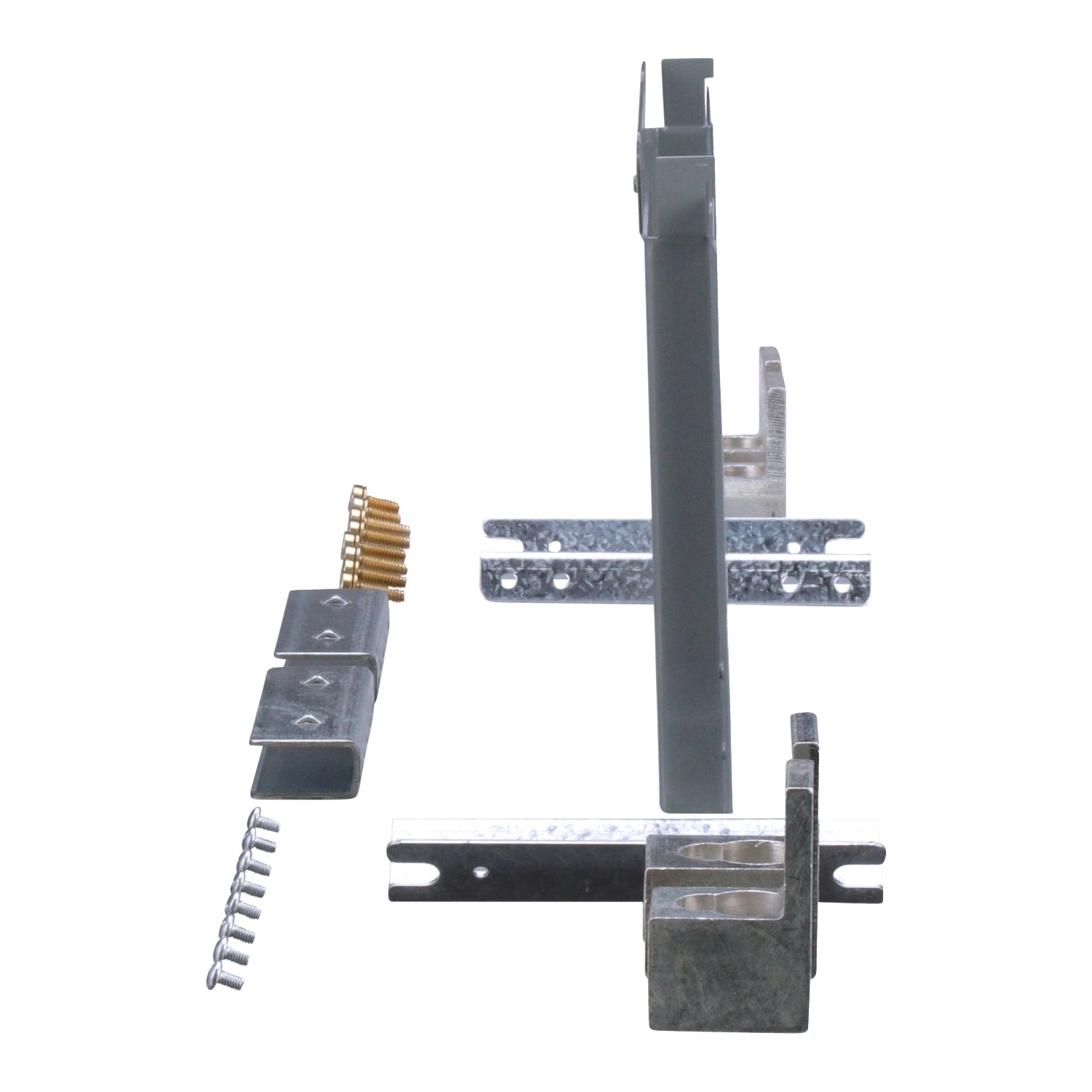

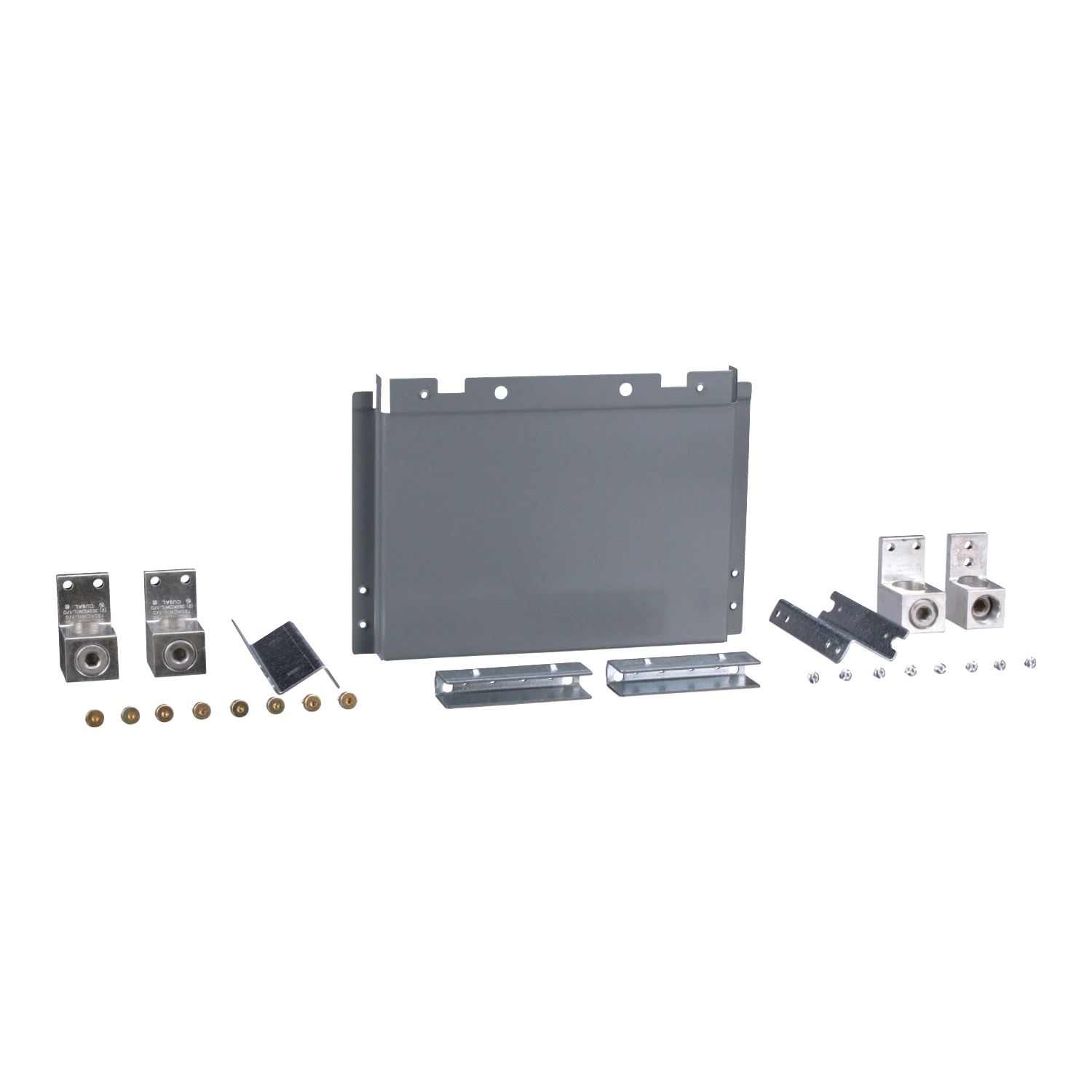

The Square D NQFTL4H is a feedthrough lug kit and an accessory for Schneider Electric NQ 240VAC lighting and appliance panelboards, enhancing power routing flexibility. It allows easy connection from a panelboard to another downstream load center. The kit includes neutral and feedthrough lugs, lug barriers, a cover extension, rail extensions and splices, and tapping screws. It is rated for 400A and compatible with 54, 72, and 84 circuit panelboards and is CULus compliant.

• Accessory for Schneider Electric NQ 240VAC lighting and appliance panelboards
• Allows greater power routing flexibility
• Provides the option of easily connecting power from a panelboard to another downstream load center

Product Highlights

The Square D NQFTL4H feed-through lug kit provides a 400A rated feedthrough option for connecting power to downstream load centers and is compatible with 54, 72, and 84 circuit panelboards.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: NQFTL4H
• Country of Origin: United States

Technical Specifications

• Type: Lug kit
• Brand: Square D
• Current: 400 Amp
• Amperage: 400 Amp
• Certifications: CULus
• Number of Circuits: 54,72,84
• Line Rated Current: 400-400 A
• Manufacturer: Schneider Electric
• Catalog Number: NQFTL4H
• Country of Origin: United States
• Made in USA: Yes
• Panelboard Type: Main Lug Kit
• UPC: 785901483861
• GTIN: 00785901483861
• Material: Aluminum
• Current Rating: 400 Ampere
• Wire Size: (1) 1/0 AWG to 750 KCMIL/(2) 1/0 AWG to 350 KCMIL (Aluminum/Copper)
• Used On: NQ High Circuit Count Interior Panelboard
• Product Or Component Type: lug kit
• Provided Equipment: connector 3
• Tightening Torque: 6.8-7.3 N.m (AWG 1/0...750 kcmil)
• Series: NQ
• Sub-Brand: Square D
• Suitable For Use With: NQ Series Panelboard
• Product Certifications: cULus
• Electrical Ratings: 400 A
