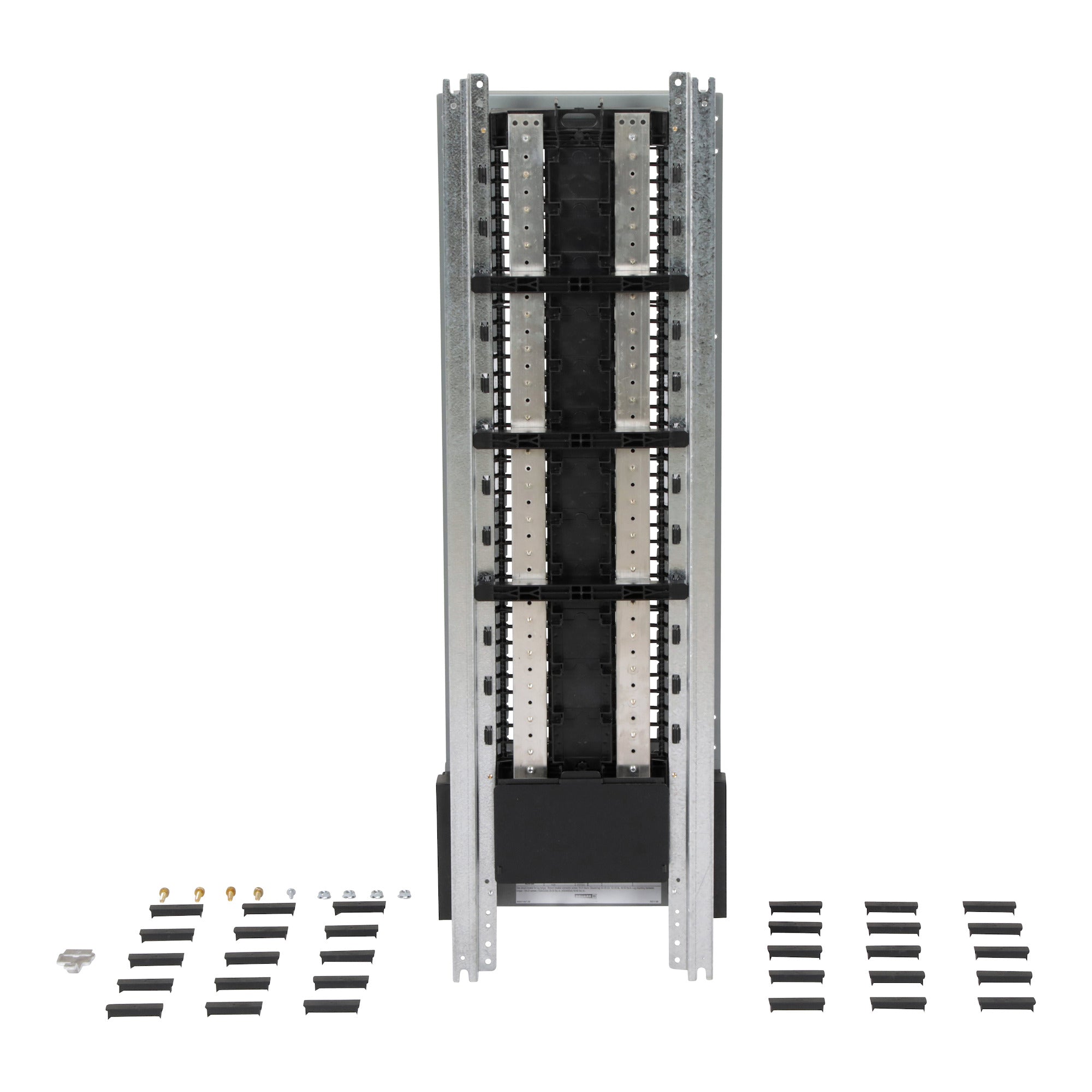

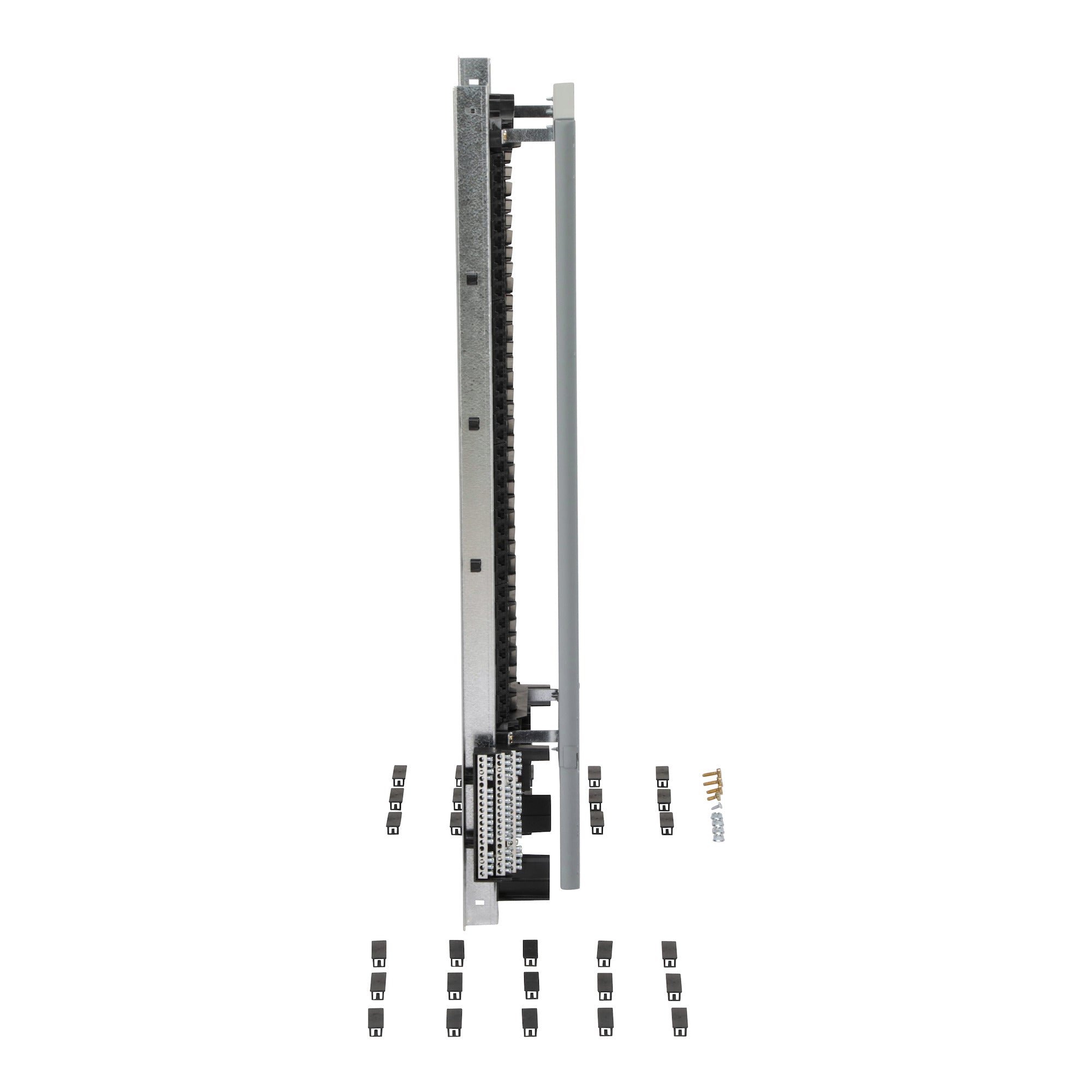

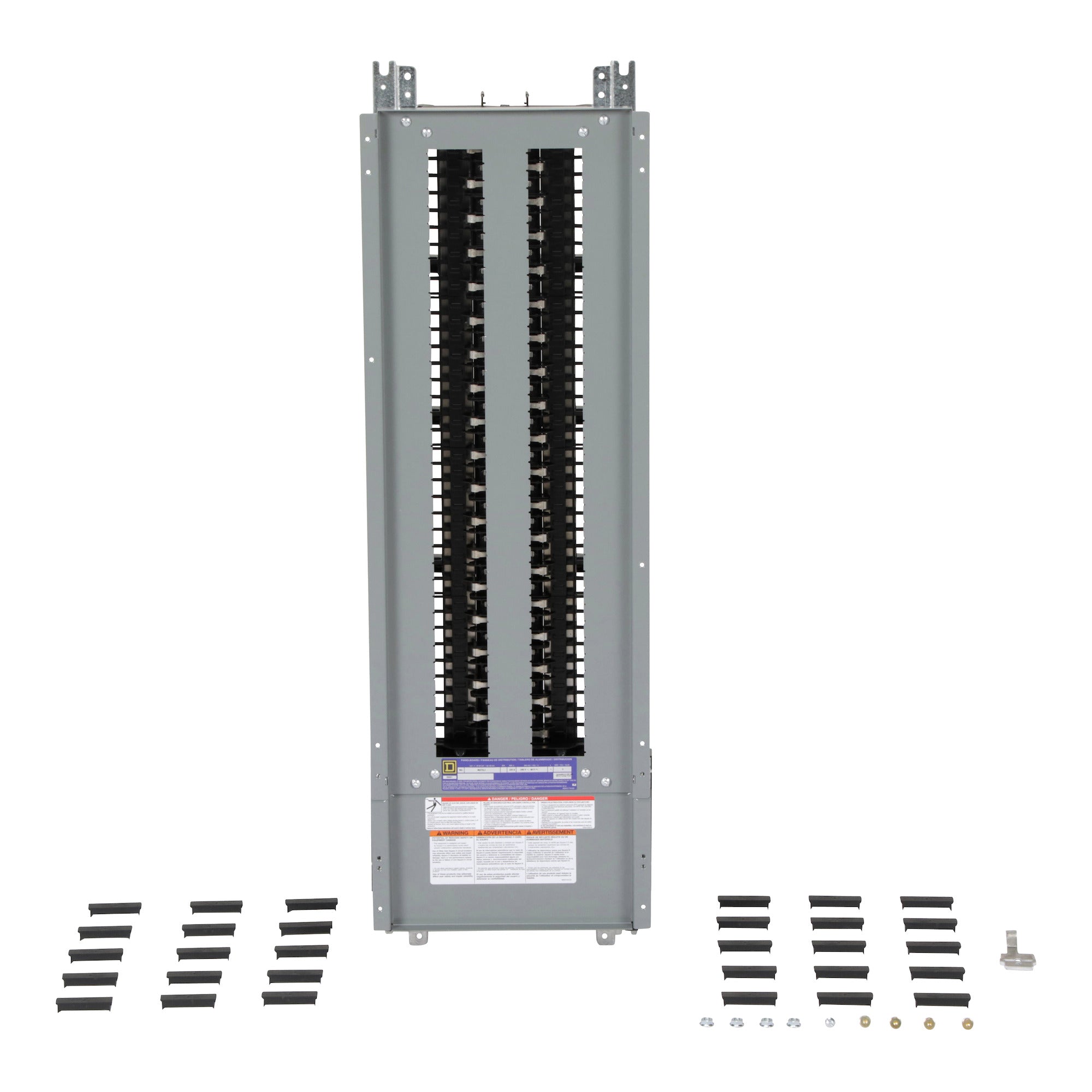

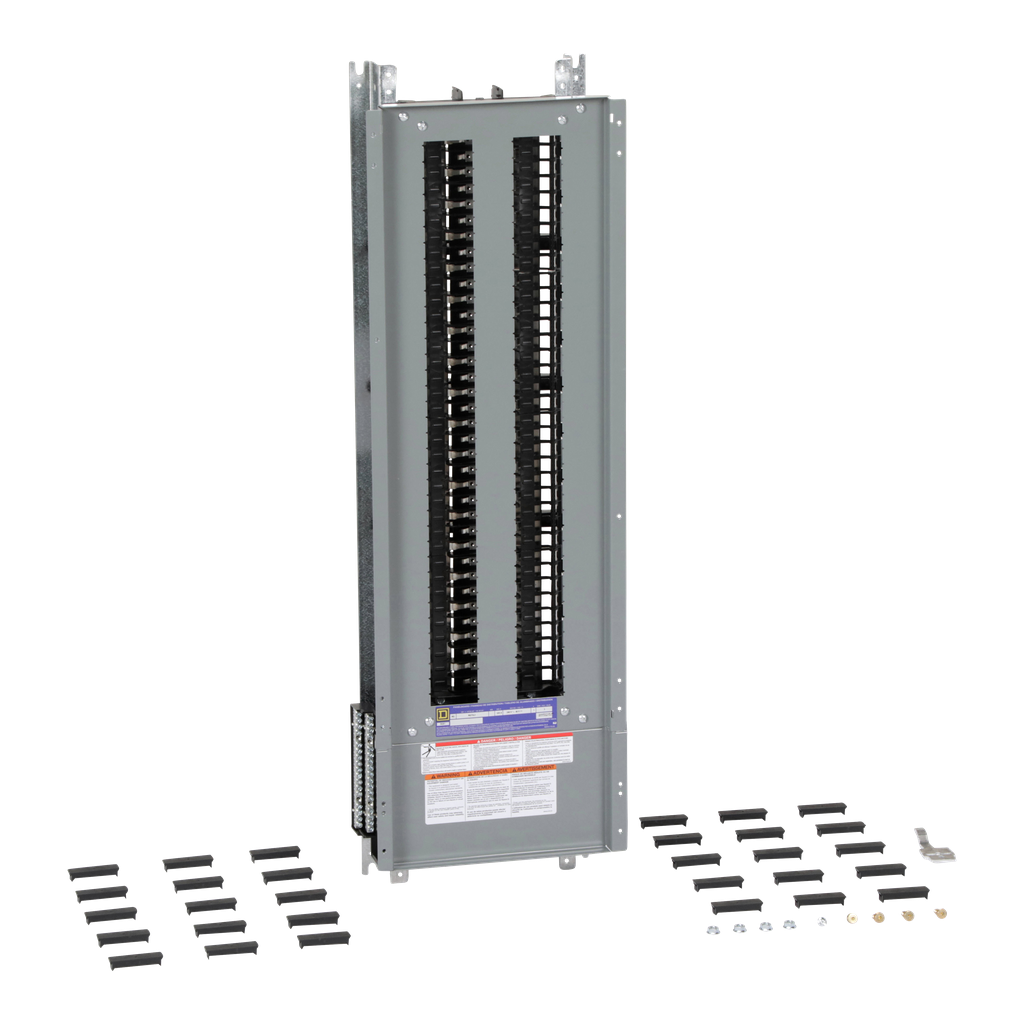

Square D NQ72L2C 240 VAC 48 VDC 225 Amp 1-Phase 3-Wire Panelboard Interior

Product Description

The Square D NQ72L2C is a reliable panelboard interior designed for various commercial and industrial applications. This unit can handle voltages up to 240 VAC and 48 VDC, and is rated for 225 Amps in a single phase. Its main lug configuration allows for easy installation and setup. The interior supports up to 72 circuits and features a copper bus bar for optimal conductivity.

• Rated for 240 VAC and 48 VDC
• 225 Amp capacity with a main lug design
• Compatible with QOB, QOBVH, and QHB branch circuit breakers

Product Highlights

This panelboard interior provides 200% rated neutrals for non-linear loads and is convertible from main lug to main breaker. Factory options include lighting contactors and surge protection devices.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: NQ72L2C
• Voltage: 240 Volt
• Amperage: 225 Amp
• Material: Copper
• Country of Origin: Mexico
• Phase: 1
• Number of Circuits: 72
• Height: 39 inches
• Width: 10.44 inches
