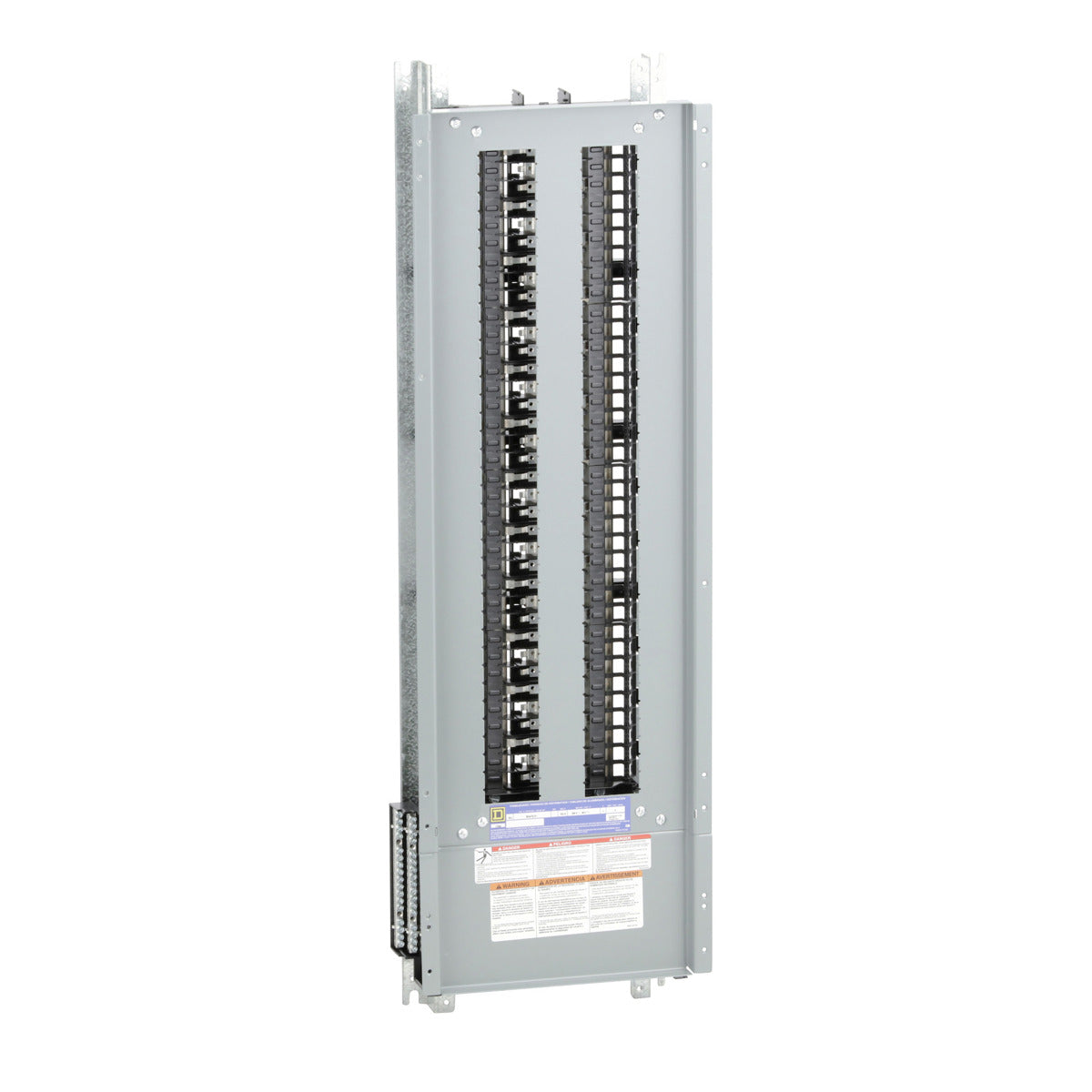

Square D NQ472L2C Interior Power Panelboard 240 VAC 48 VDC 225 Amp 3-Phase 72-Circuit

Product Description

The Square D NQ472L2C is a power panelboard interior that operates at 240 VAC and 48 VDC with a current rating of 225 Amps. This three-phase panelboard is designed for 4-wire systems and can accommodate up to 72 circuits. It features a copper bus bar and is compatible with QOB, QOBVH, and QHB branch circuit breakers.

• Convertibles from main lug to main breaker.
• Interrupt current rating of 65 kA.
• UL listed and CSA certified.

Product Highlights

This panelboard interior is ideal for commercial and industrial applications, including stadiums and office buildings. It allows field conversion to top or bottom feed and supports various factory-installed options, enhancing its versatility.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric
• Catalog Number: NQ472L2C

Technical Specifications

• Voltage Rating: 240 Volt
• Amperage Rating: 225 Amp
• Number of Phases: 3 Phase
• Material: Copper
• Height: 39 inches
• Width: 10.44 inches
• Country of Origin: Mexico
• Warranty: 18 months
