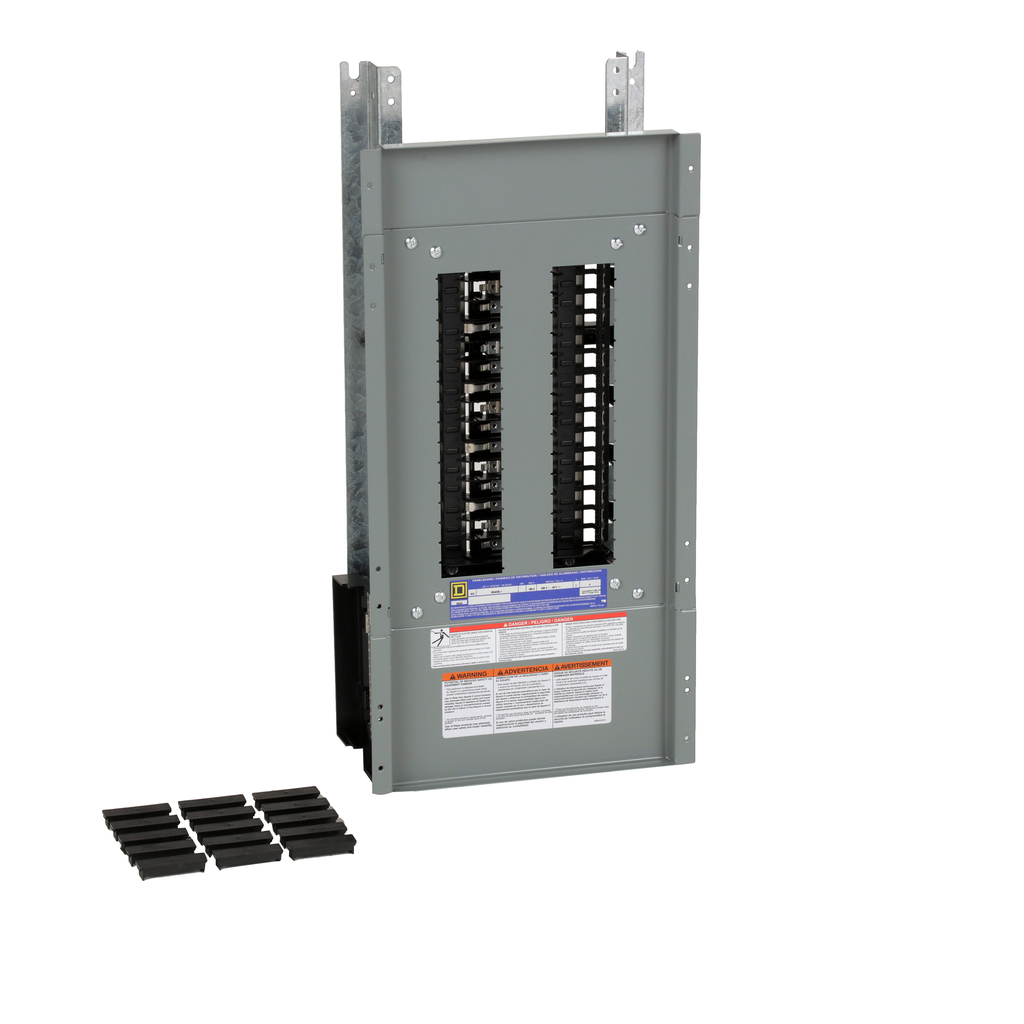

Square D NQ430L1 Panelboard Interior 100 Amp 3-Phase 4-Wire NQ430L1

Product Description

The Square D NQ430L1 is a panelboard interior designed for robust performance in commercial and industrial settings. This product has a maximum voltage of two hundred forty volts AC and forty-eight volts DC. The main lug rated at one hundred amps supports three-phase power and has space for thirty circuits. The interior is engineered to accept QOB, QOBVH, and QHB branch circuit breakers, making it a versatile choice.

• Rated for maximum voltage of 240 Volts AC and 48 Volts DC
• Features a main lug rated at 100 Amps
• Supports up to 30 circuits with aluminum bus bar construction

Product Highlights

This panelboard interior supports versatile installation configurations and is ideal for a multitude of applications including commercial buildings, industrial facilities, data centers, and stadiums.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: NQ430L1
• Voltage Rating: 240 Volts AC, 48 Volts DC
• Amperage: 100 Amps
• Phase: 3
• Wire Configuration: 4-wire
• Number of Circuits: 30
• Bus Material: Aluminum
• UL Listed: Yes
• CSA Certified: Yes
• Dimensions: 27 inches tall, 10.44 inches wide
• Country of Origin: Mexico
• Warranty: 18 months
