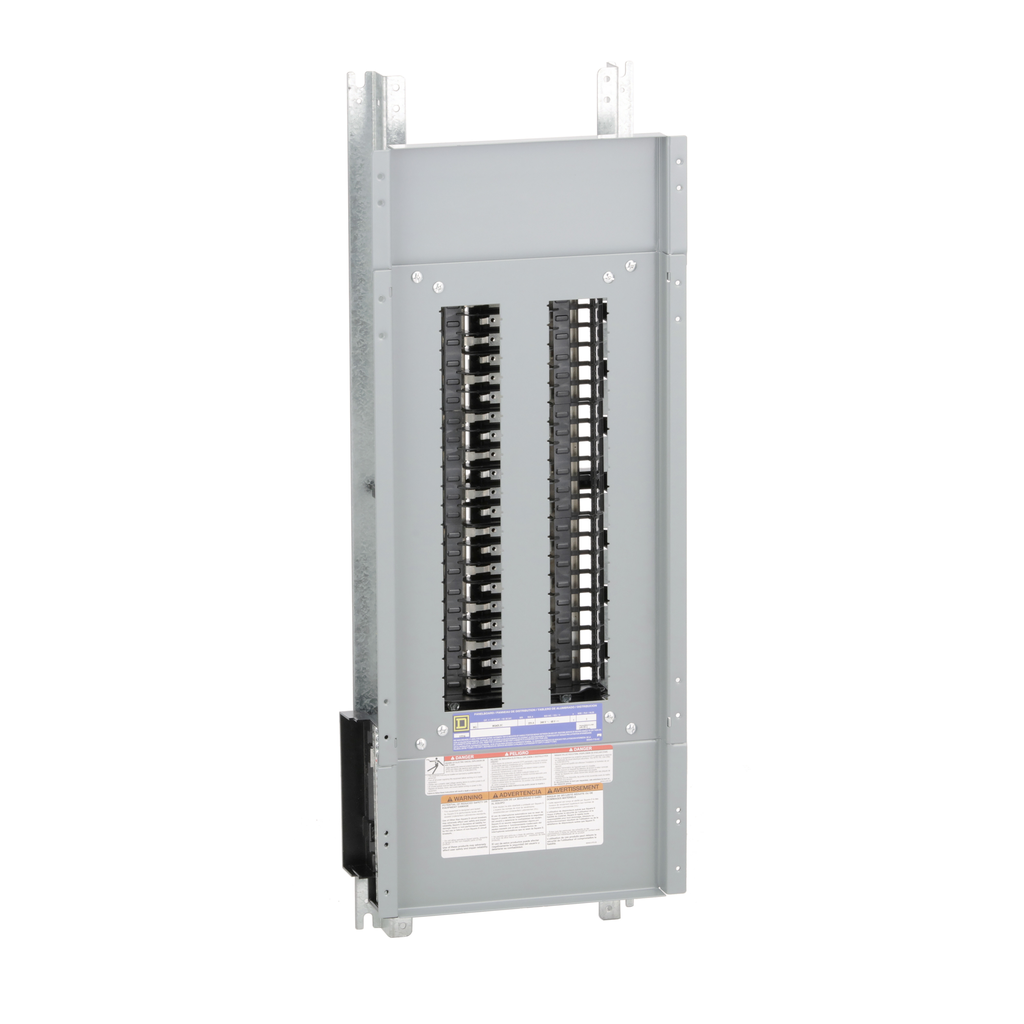

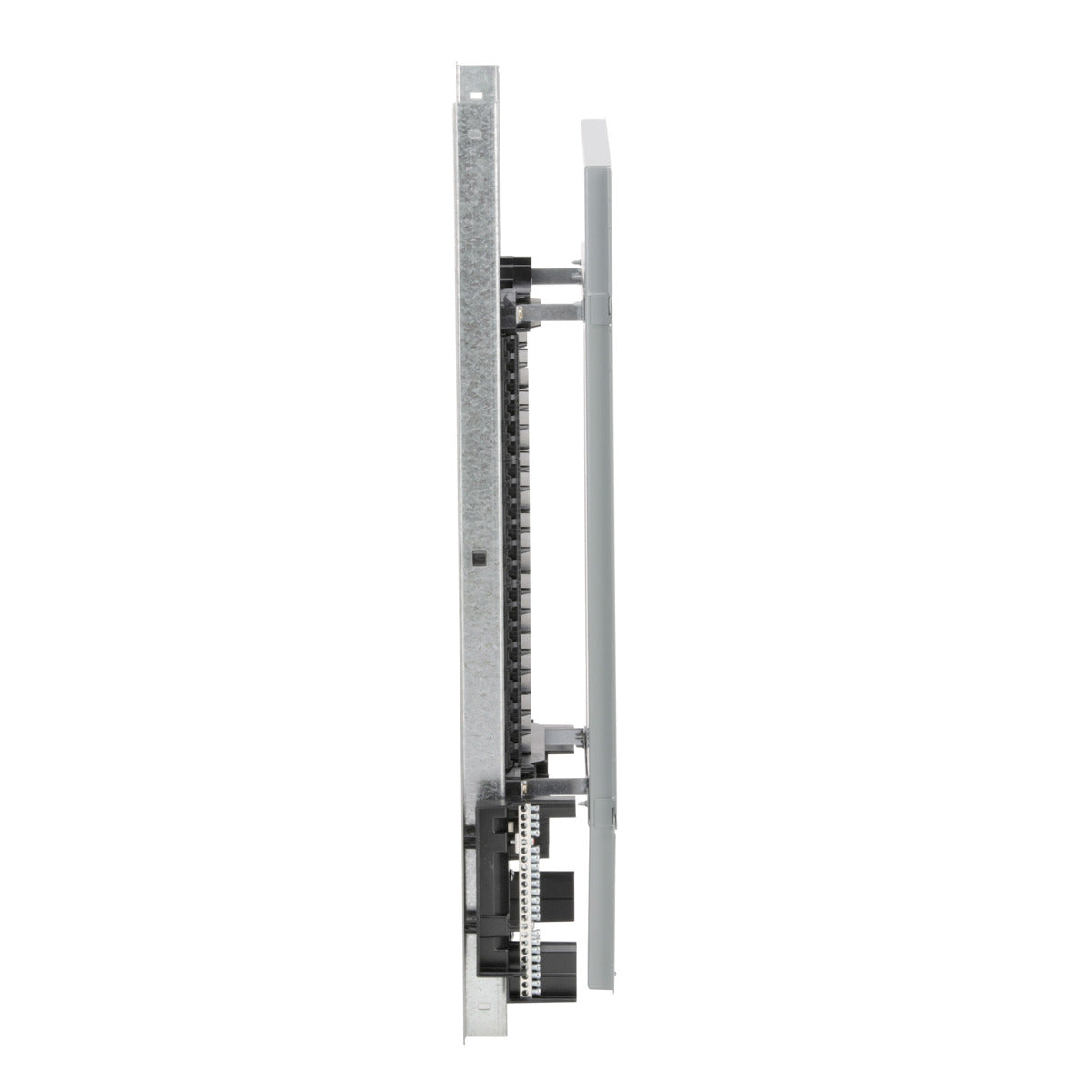

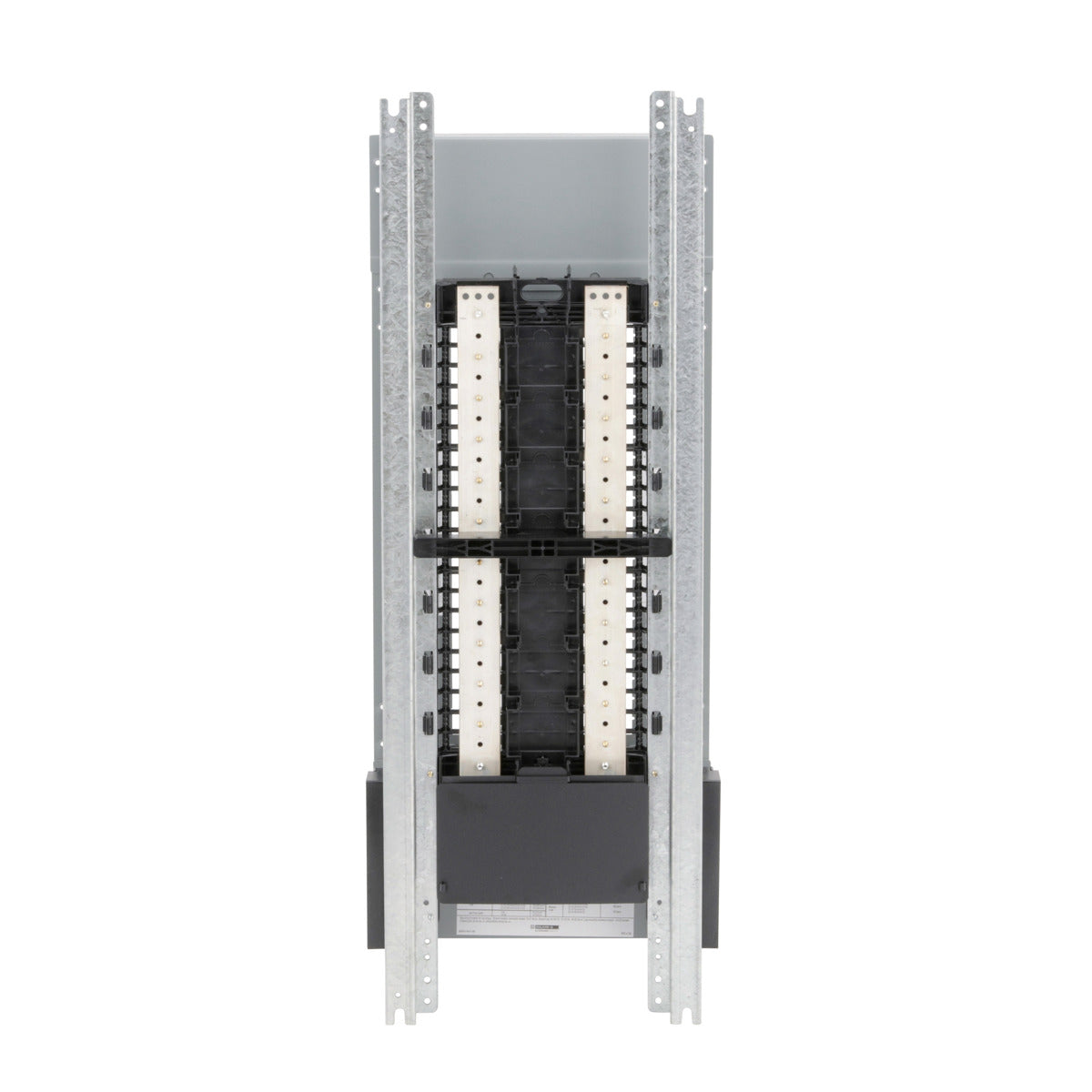

Square D NQ42L2C 240VAC 48VDC 225A 1-Phase 3-Wire 42-Circuit Panelboard Interior, Main Lugs, Copper Bus

Product Description

This Square D NQ42L2C panelboard interior is designed for 240VAC and 48VDC applications. It supports 225 amps and accommodates one phase in a three-wire setup. This product includes 42 available circuit spaces and features copper bus connections for enhanced conductivity.

• Voltage ratings of two hundred forty volts AC and forty-eight volts DC
• Supports a maximum current of two hundred twenty-five amps
• Configured for one phase and includes forty-two circuit spaces

Product Highlights

This interior panelboard is suitable for various commercial and residential power distribution needs. It reliably manages electrical loads while ensuring safety and compliance with standard codes.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: NQ42L2C
• Amperage: 225 Amp
• Voltage: 240 Volt AC / 48 Volt DC
• Material: Copper
• Number of Phases: 1 Phase
• Number of Spaces: 42
• Height: 33 inches
• Width: 10.44 inches
• Warranty: 18 Months
• Country of Origin: United States
