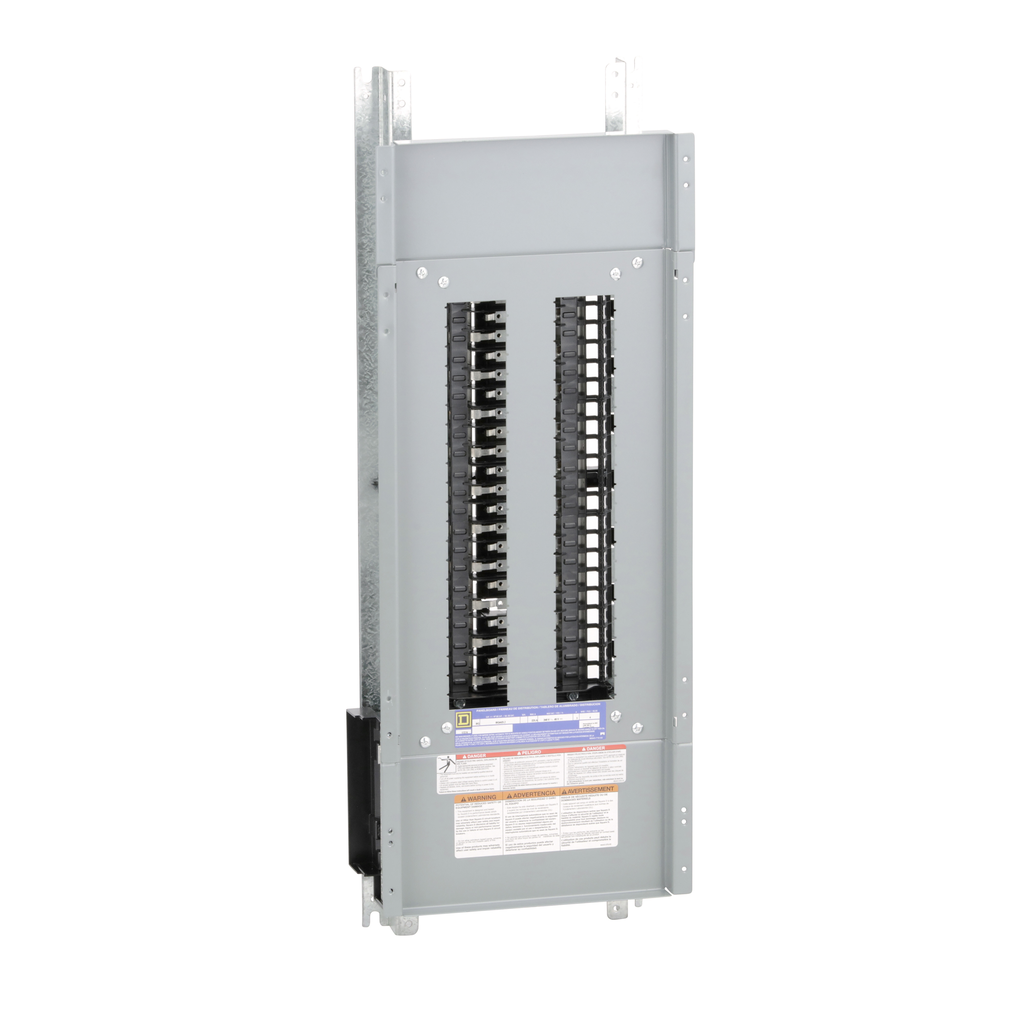

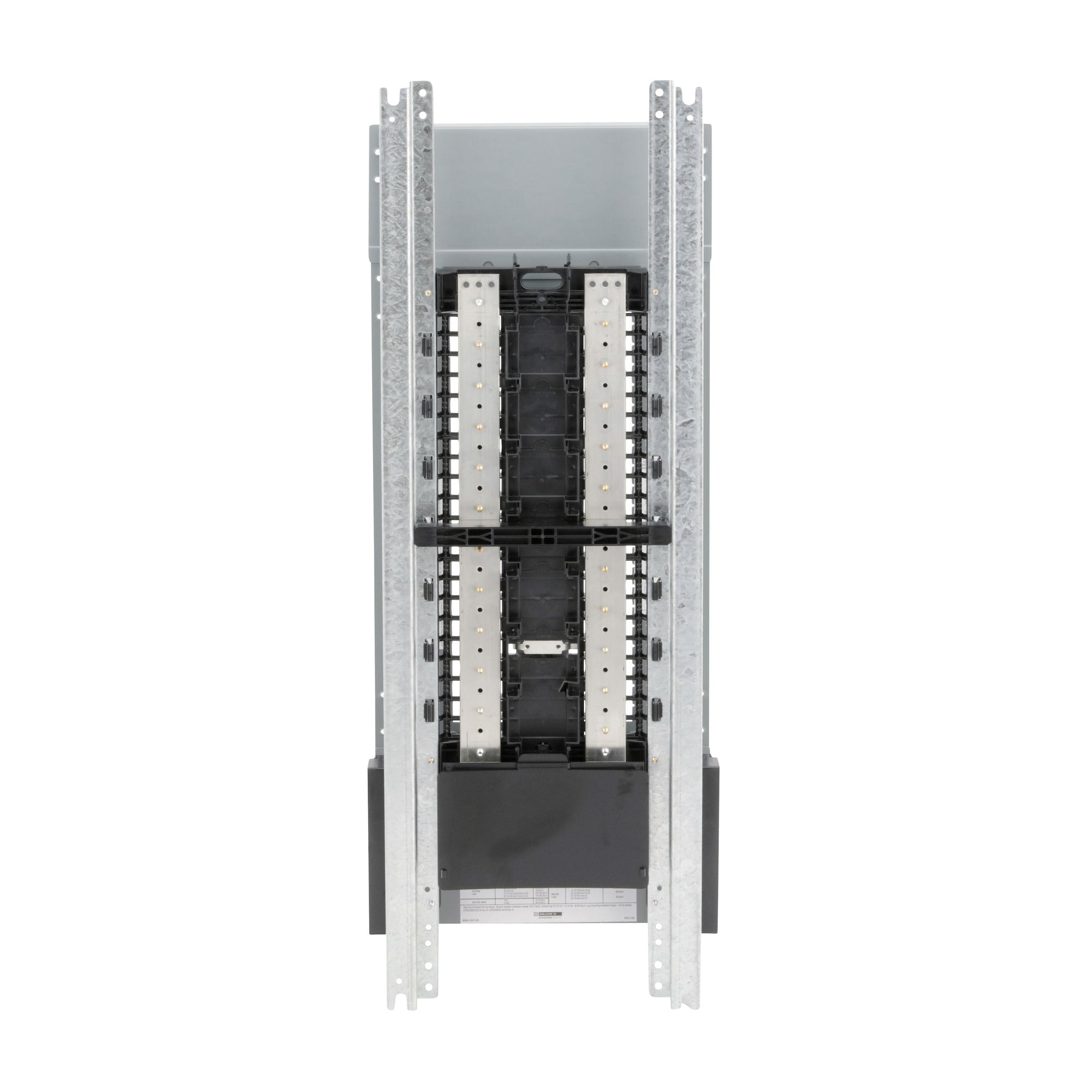

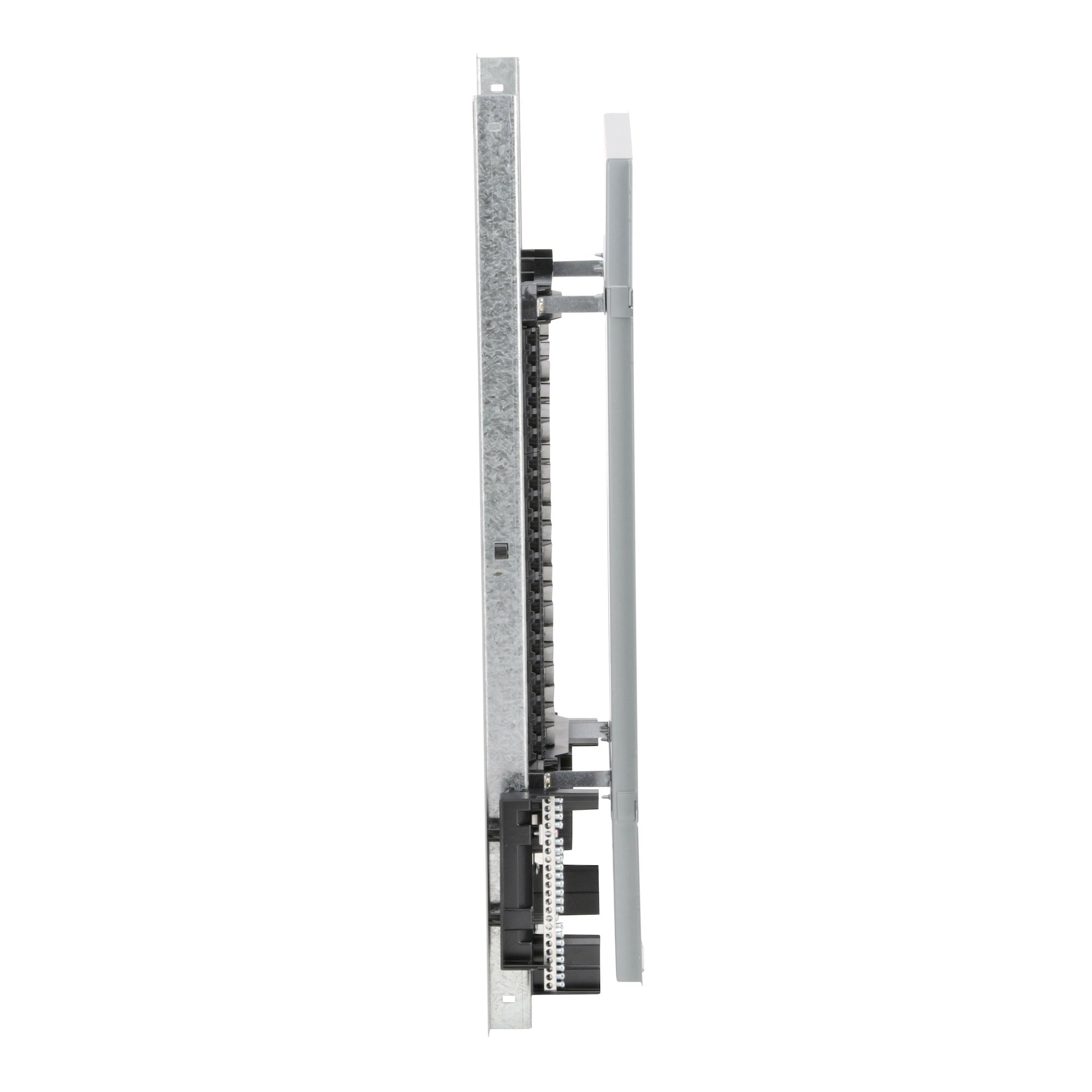

Square D NQ42L2 240VAC 48VDC 225A 1-Phase 3-Wire 42-Circuit Panelboard Interior

Product Description

The Square D NQ42L2 is a panelboard interior with a voltage rating of 240 VAC and 48 VDC. This unit has a main lug and is rated for 225 A with a single-phase operation. It features a total of 42 circuits suitable for a three-wire system, employing an aluminum bus for effective power distribution. The panelboard is designed to handle non-linear loads efficiently with a 200% rated neutral. Its configuration allows for a field conversion between main lug and main breaker formats, making it adaptable to various installation needs.

• Supports 42 circuit configurations.
• Rated for 225 A, 240 VAC and 48 VDC.
• Field convertible from main lug to main breaker.

Product Highlights

This panelboard interior is UL listed and CSA certified, ensuring compliance with necessary safety standards. It is engineered for durability and versatility, well-suited for commercial and industrial applications such as buildings, offices, and stadiums.

Product Information

Standard Information

• Catalog Number: NQ42L2
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage Rating: 240 Volt AC, 48 Volt DC
• Amperage Rating: 225 Amp
• Material: Aluminum
• Phase Configuration: 1 Phase
• Height: 33 inches
• Width: 10.44 inches
