Square D NQ30L4C 240 VAC 48 VDC 400 Amp 1-Phase 3-Wire 30-Circuit Panelboard Interior

Product Description

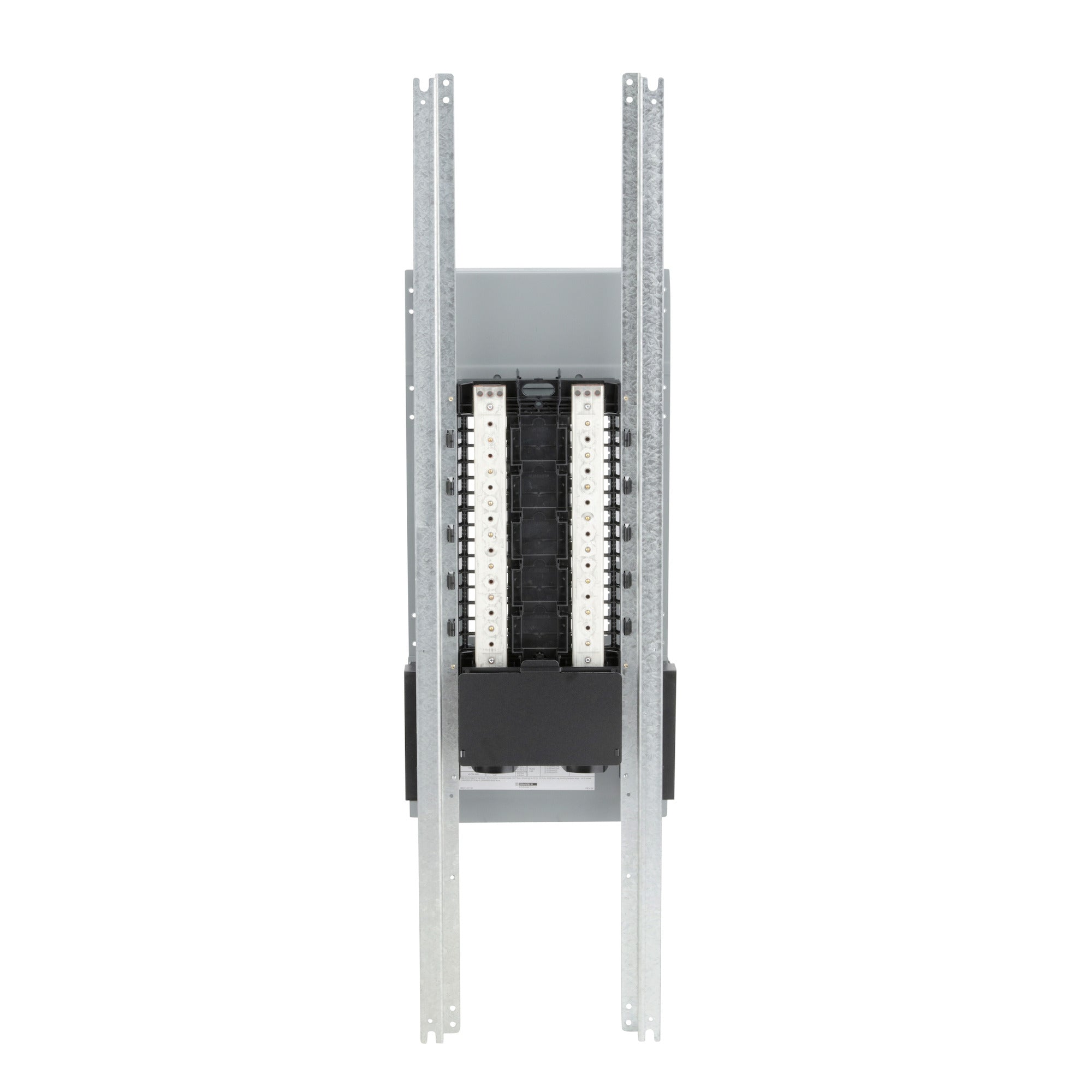

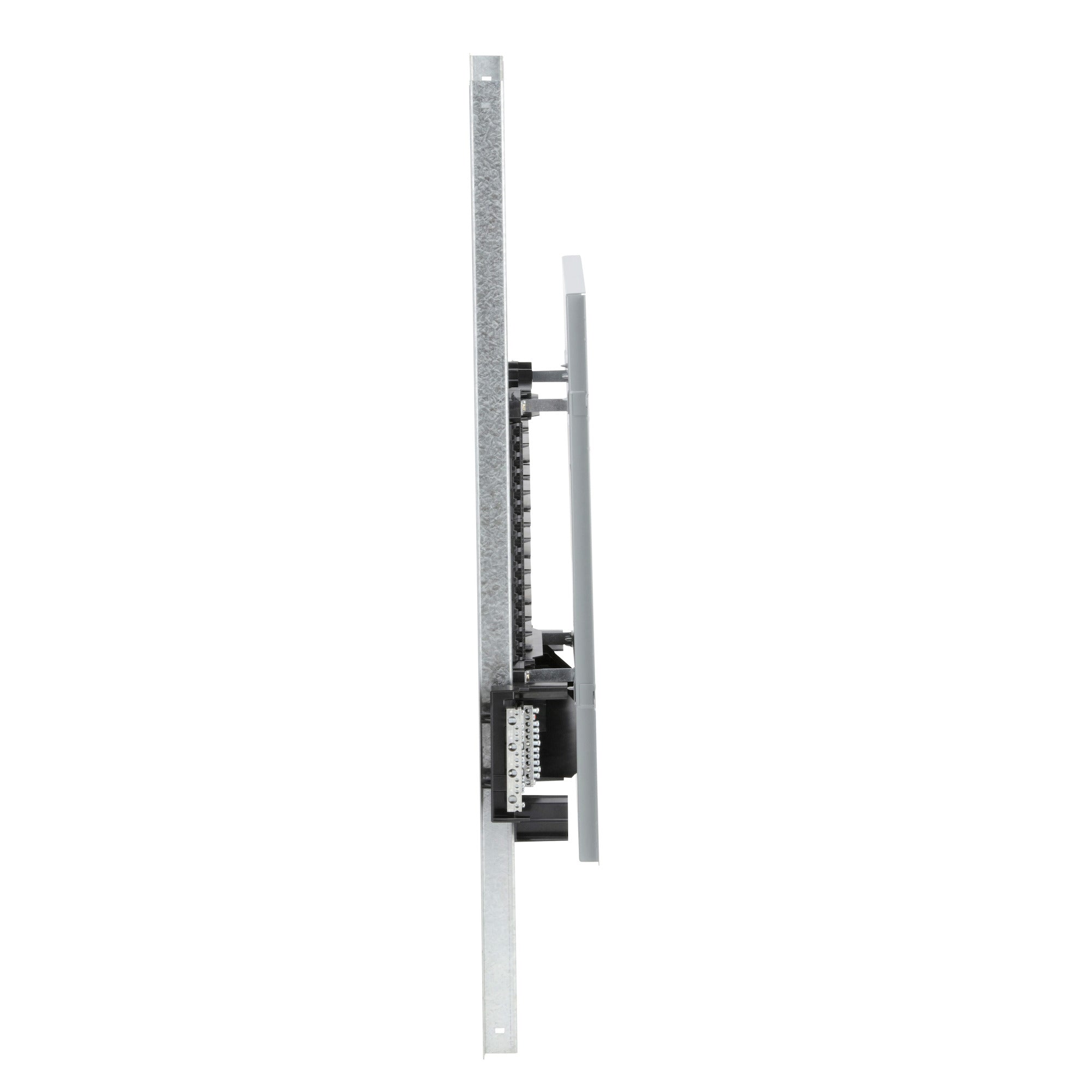

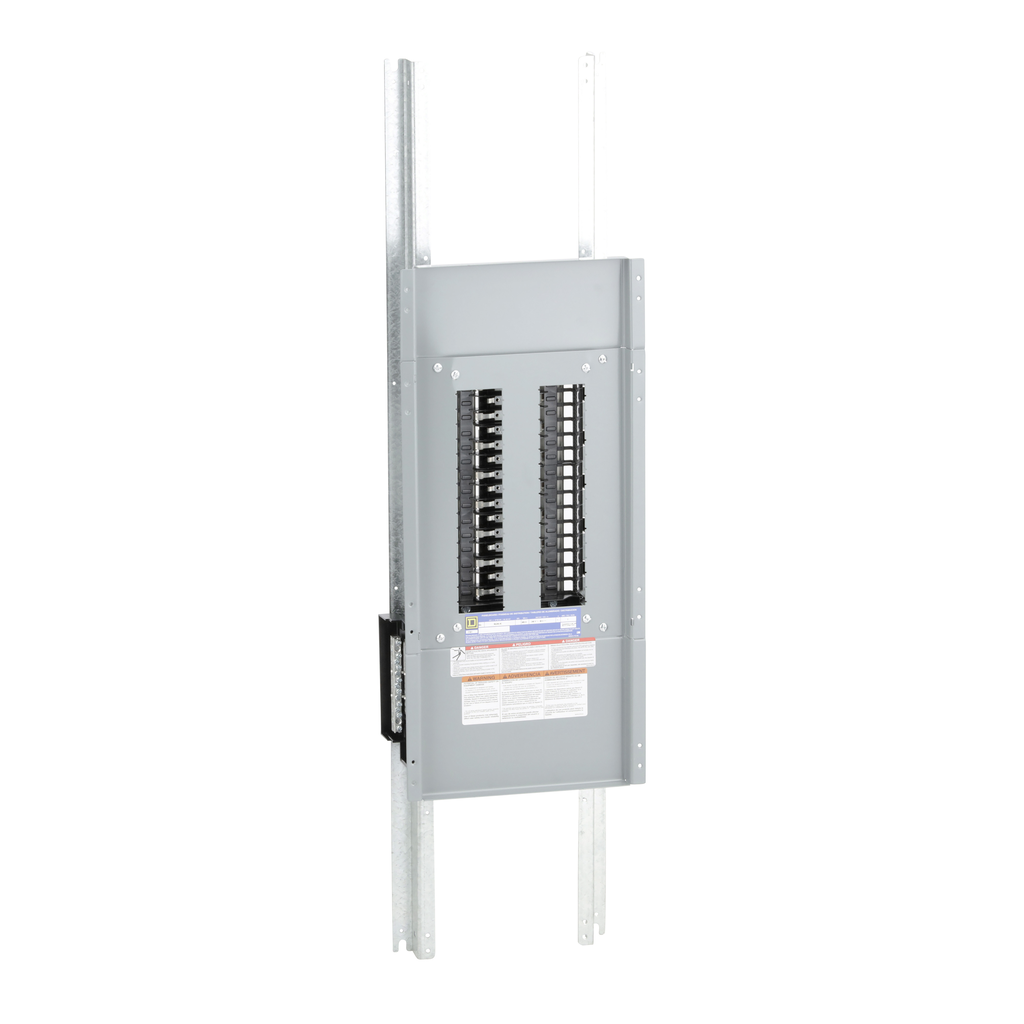

The Square D NQ30L4C is a panelboard interior designed for a three-wire system. It features a main lug configuration, rated for four hundred amps, suitable for both 240 VAC and 48 VDC applications. This versatile panelboard supports up to thirty circuits and includes a copper bus bar. It can easily convert from main lug to main breaker, making it adaptable for various installation needs.

• 400 Amp rating for efficient power distribution.
• Supports 240 VAC and 48 VDC voltage ratings.
• Field convertible to top or bottom feed.

Product Highlights

Ideal for commercial and industrial applications, the NQ Panelboard is UL listed and CSA certified, ensuring compliance with safety standards. It features factory-installed options and can accommodate several branch circuit breakers, providing flexibility in your installations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: NQ30L4C
• Type: Panelboard Interior
• Voltage Rating: 240 VAC / 48 VDC
• Amperage: 400 A
• Height: 45 inches
• Width: 10.44 inches
• Material: Copper
• Phase: 1
• Warranty Length: 18 months
• Country of Origin: Mexico
• GTIN: 00785901502050
