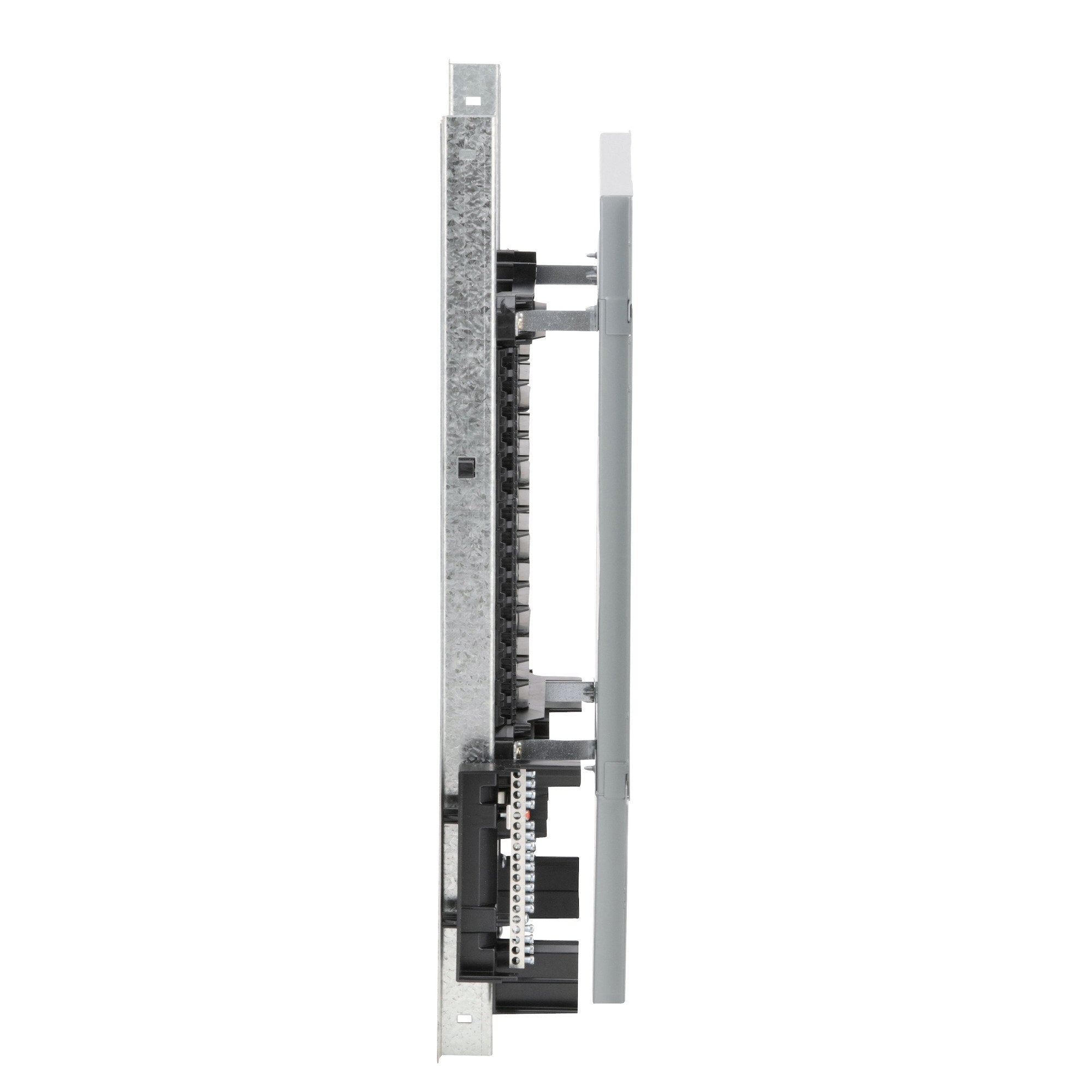

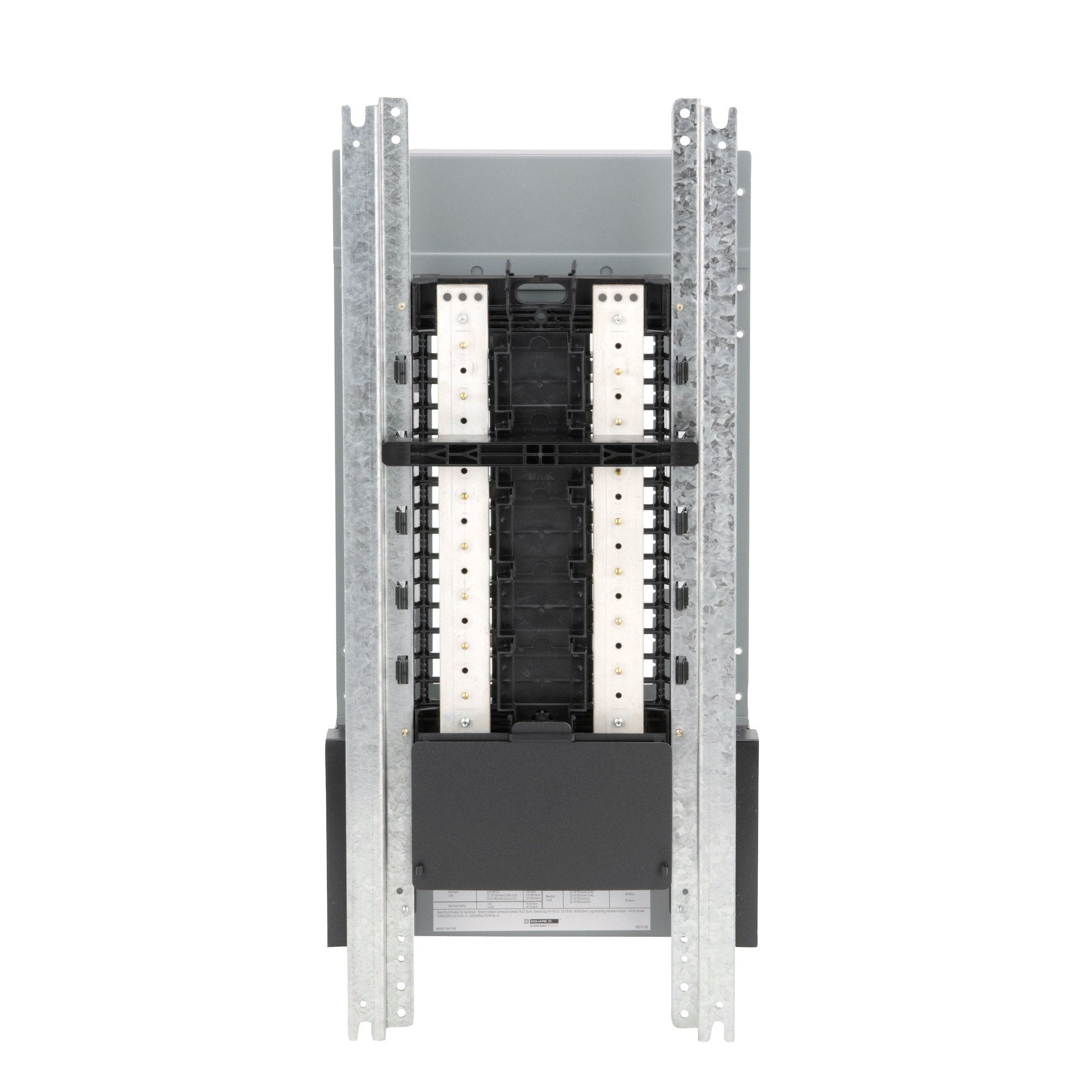

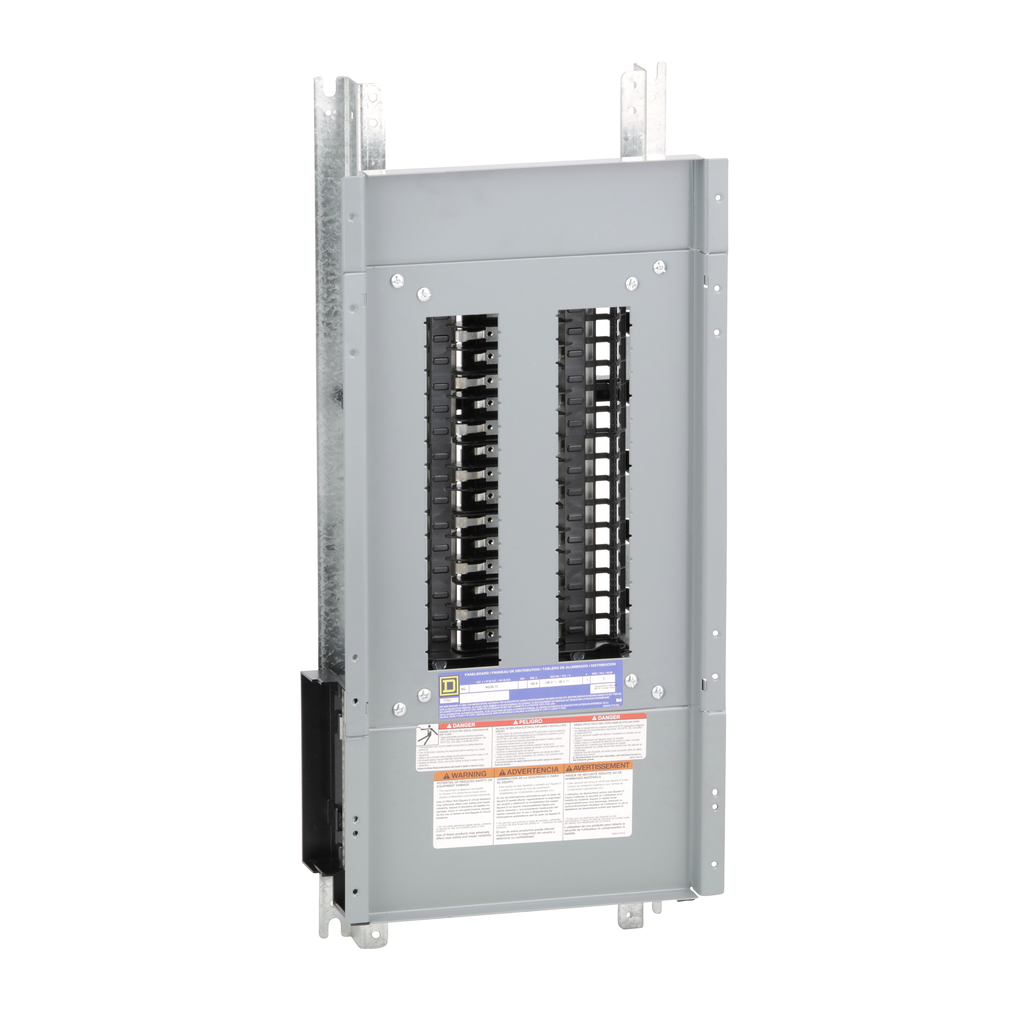

Square D NQ30L1C Panelboard Interior 100 Amp 3-Wire 240 VAC 48 VDC

Product Description

Square D NQ30L1C is a panelboard interior rated for 100 amps, designed for 240 VAC and 48 VDC applications. This panelboard supports a 3-wire configuration with 30 circuits and includes a copper bus bar. Key features include:

• Field-convertible from main lug to main breaker
• Supports QOB, QOBVH, and QHB branch circuit breakers
• UL listed and CSA certified for commercial and industrial use

Product Highlights

The NQ30L1C panelboard interior is built for versatility in power distribution. It offers robust structural integrity with a maximum interrupt current rating of 65 kA and a compact design measuring twenty-seven inches in height and ten point forty-four inches in width. It is an ideal solution for use in commercial buildings, offices, and industrial facilities.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: NQ30L1C

Technical Specifications

• Voltage: 240 VAC, 48 VDC
• Amperage: 100 Amp
• Material: Copper
• Height: 27 inches
• Width: 10.44 inches
• Phase: 1
• Warranty: 18 months
• Country of Origin: United States
