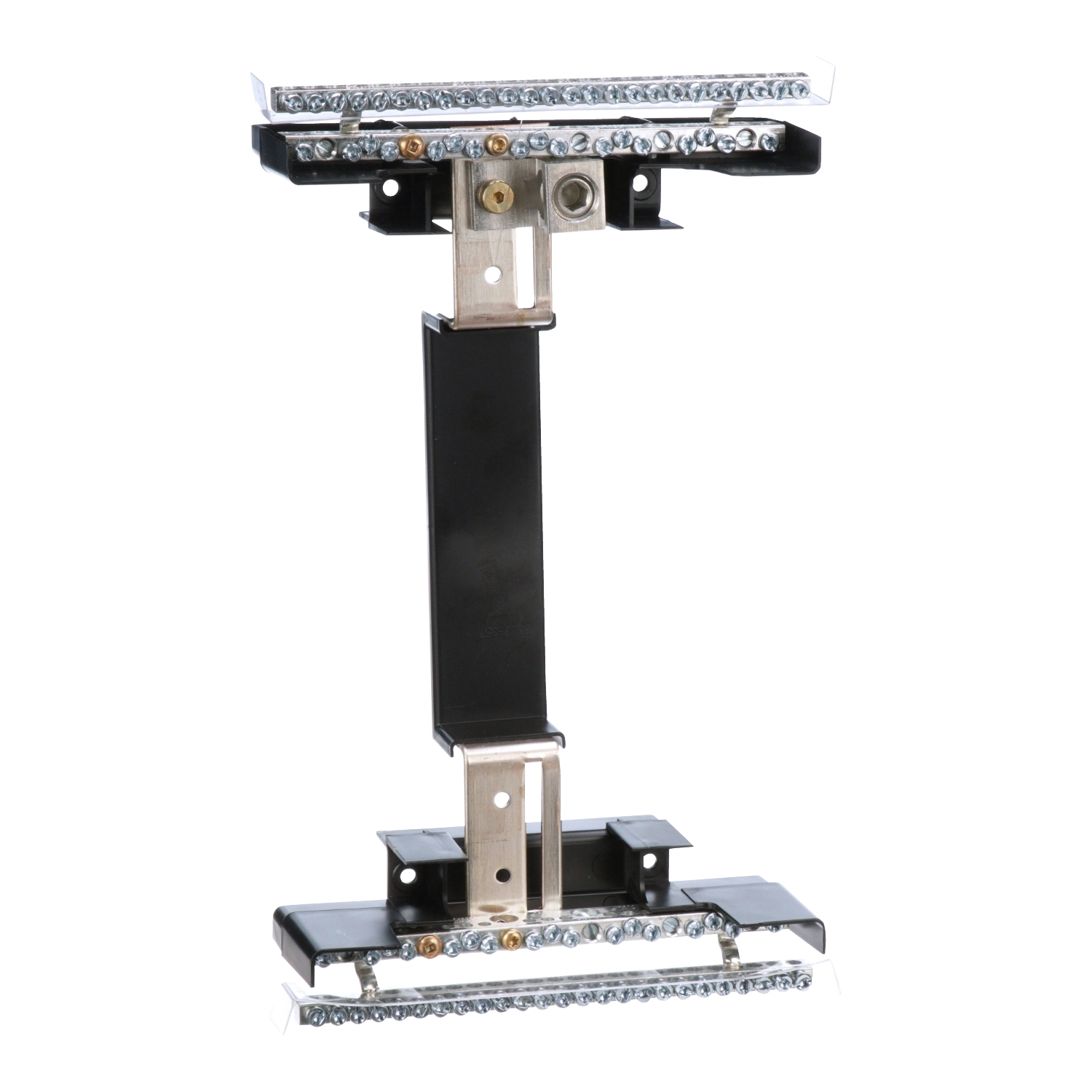

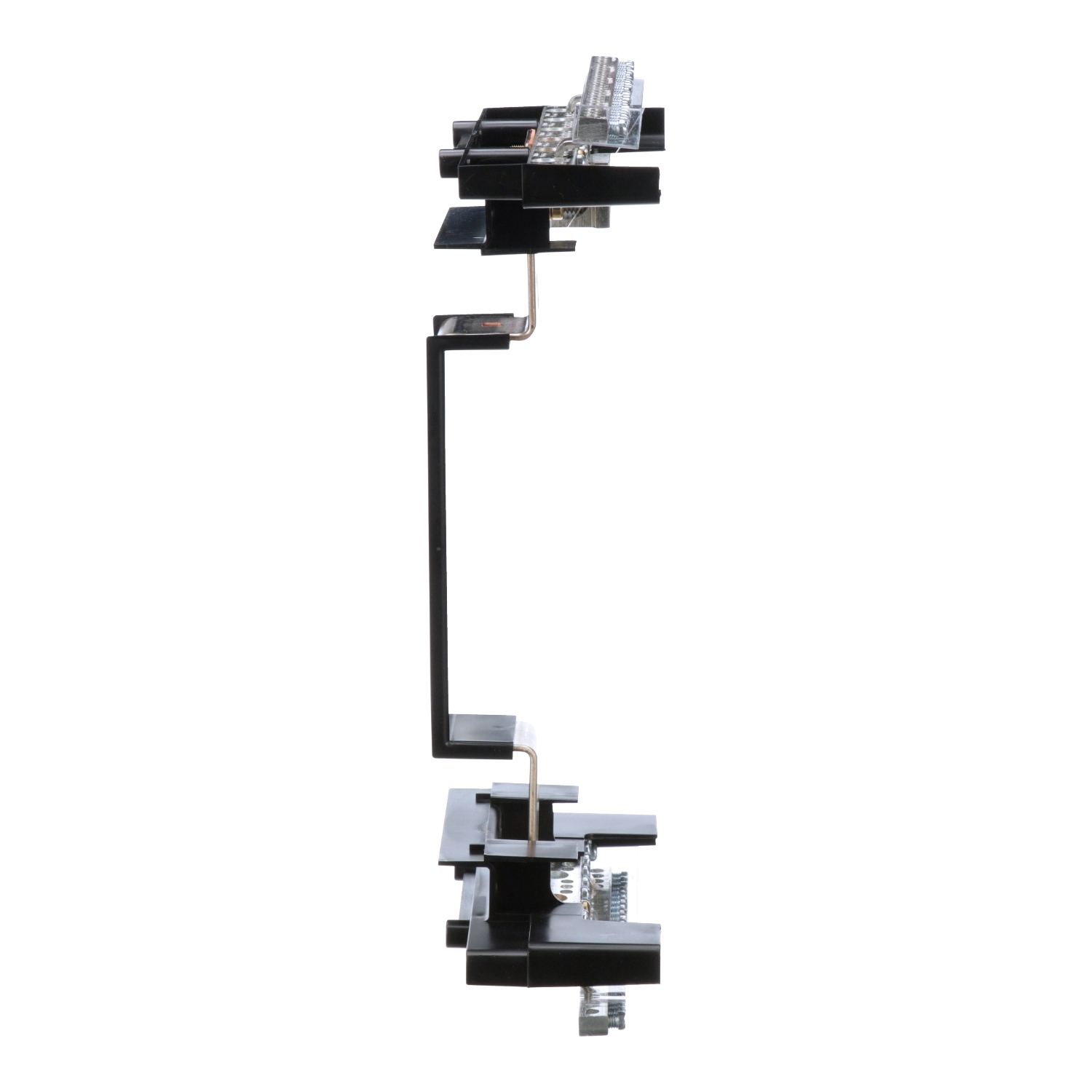

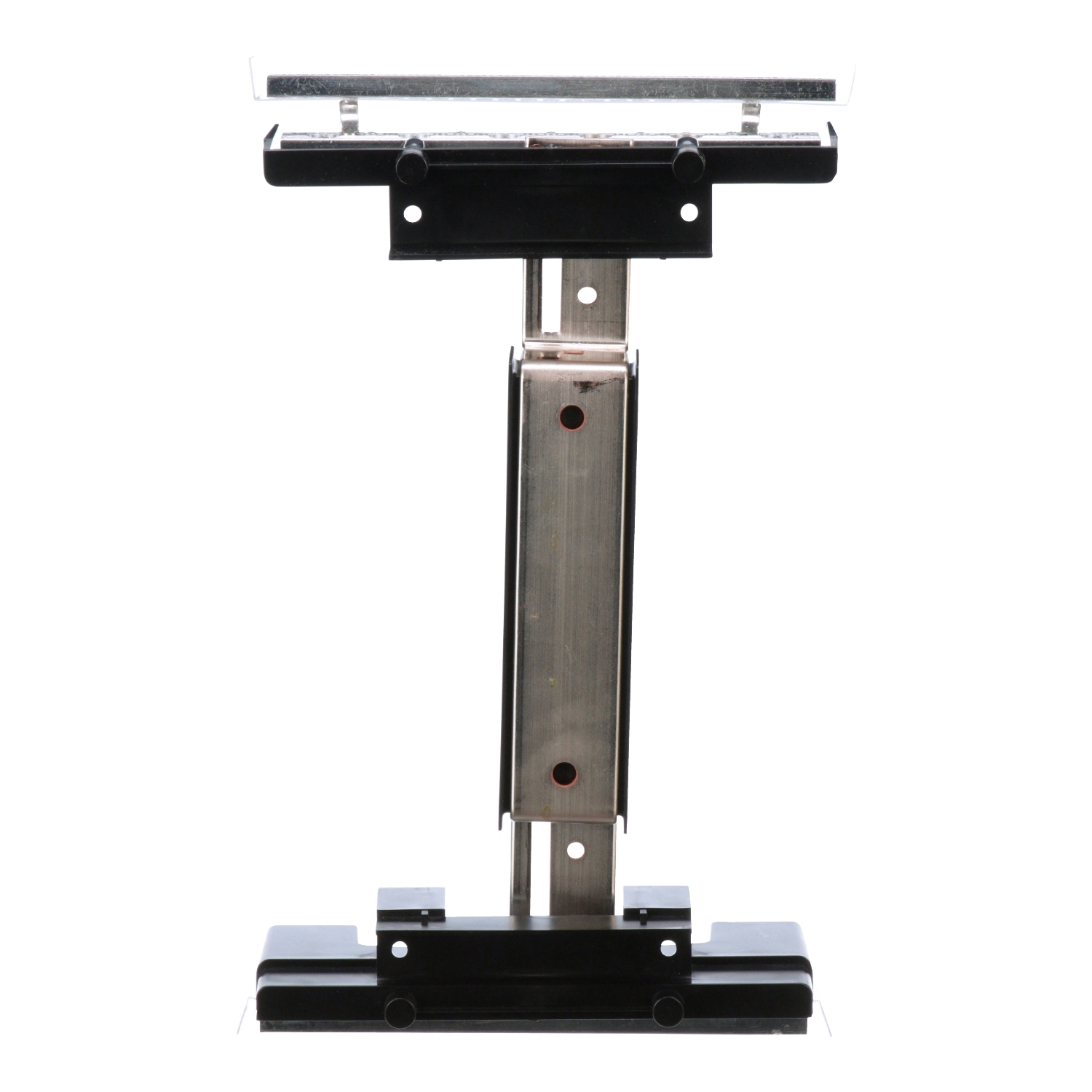

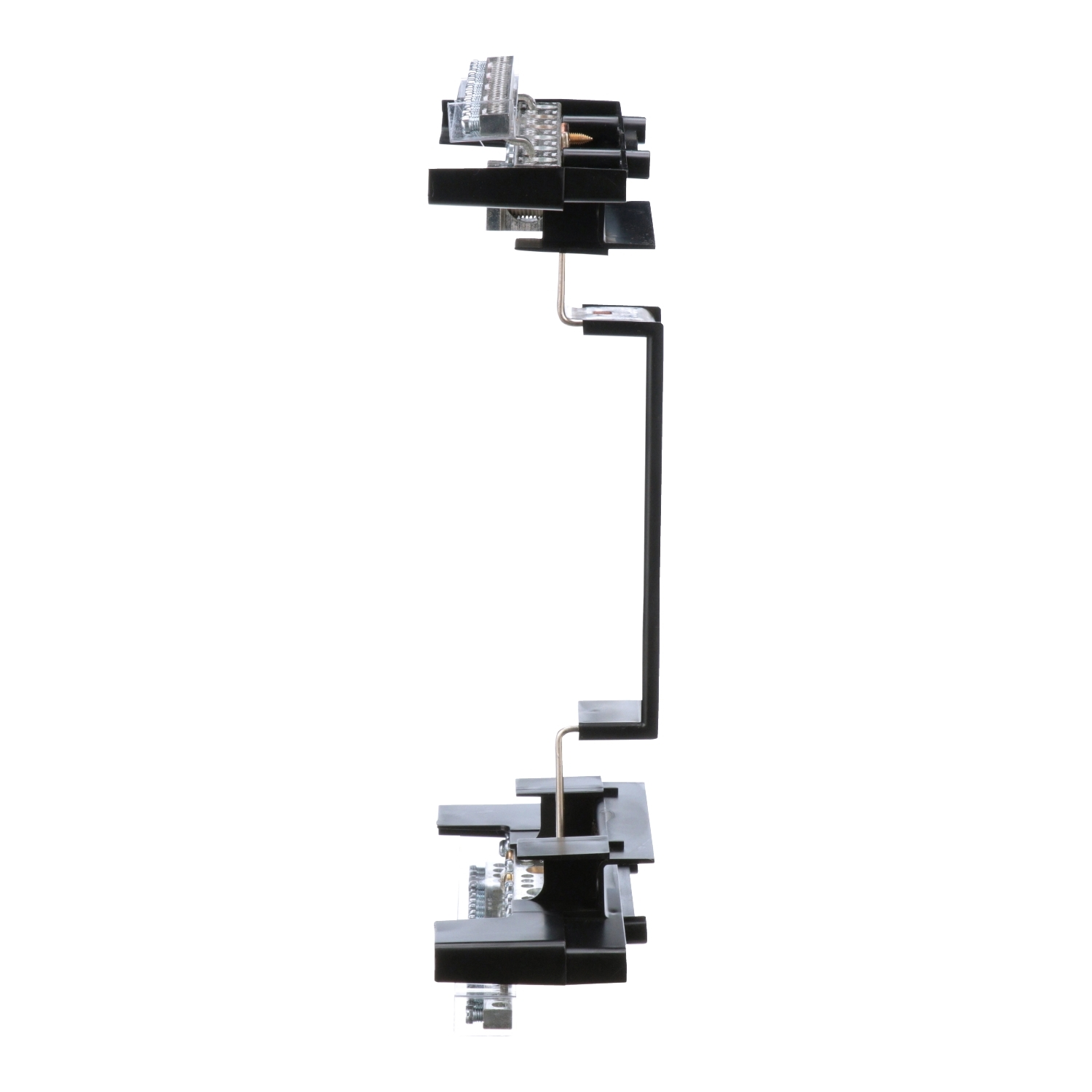

Square D NFN2CU NF Panelboard Neutral Kit 250 Amp

Product Description

The Square D NFN2CU is an NF panelboard neutral kit. This copper neutral bar kit consists of one conductor and is rated at 250A. It is designed for panelboards with sub-feed or thru-feed lugs and the neutrals are 100% rated. The kit is compatible with JLL, KI, JGL, JDL, and JJL circuit breakers and can be used in commercial buildings, industrial buildings, stadiums, and offices.

• 100% Copper
• 250A
• UL listed

Product Highlights

This Square D neutral kit provides a reliable grounding solution for NF panelboards, ensuring safety and optimal performance in diverse applications.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: NFN2CU
• Country of Origin: Mexico

Technical Specifications

• Type: Neutral bar
• Brand: Square D
• Amperage: 250 Amp
• Material: Copper
• Sub Brand: NF
• Product UPC: 78590174915
• 12-Digit UPC: 785901749158
• Applications: PANELBOARDS
• Certifications: CULus
• Country of Origin: USA
• Line Rated Current: 250 A
• Circuit Breaker Type: JDL,JGL,JJL,JLL,KI
• Number of Conductors: 1
• Manufacturer: Schneider Electric
• Made in USA: No
• Used On: NF Panelboard
• Kit Contents: Neutral Assembly, (4) #10-32 TPI x 5/16 Inch Tapping Screw
• Rating: 100%
• Range Of Product: Square D
• Product Or Component Type: neutral bar
• Product Destination: NF panelboard
• Product Certifications: cULus
• ECCN: EAR99
• UNSPSC: 39121112
• Rated Current: 250A
