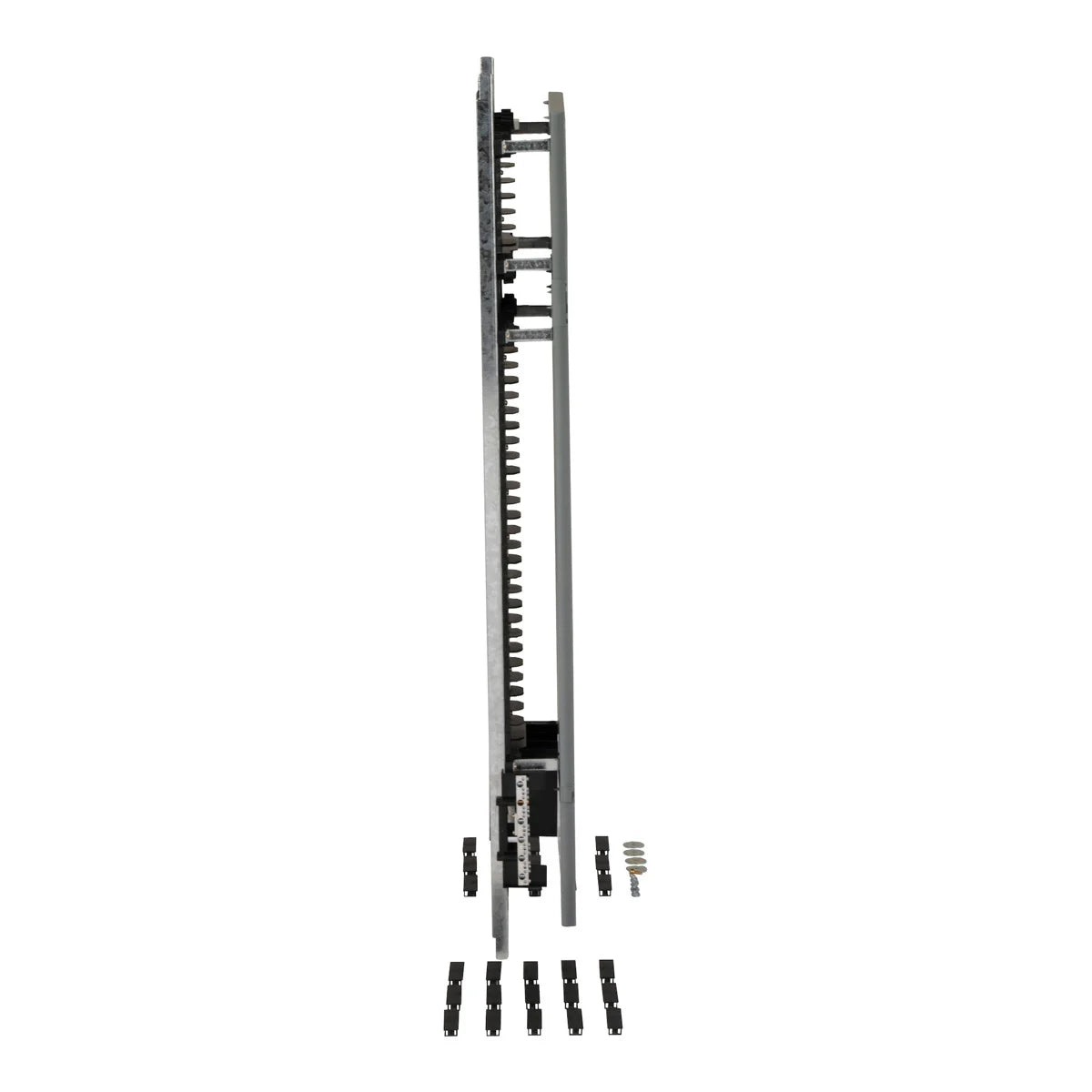

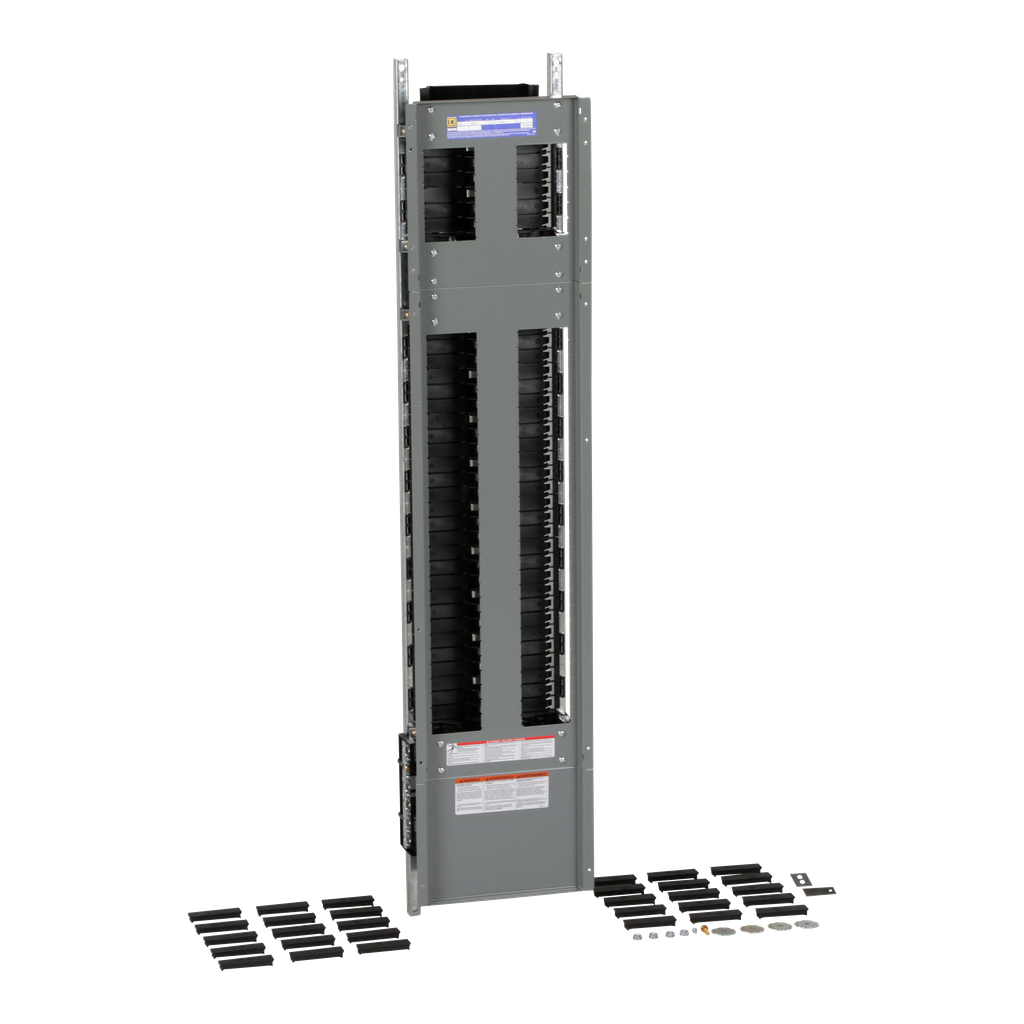

Square D NF442L6C 480 Star/277 VAC 600 Amp 3-Phase 4-Wire 42-Circuit Panelboard Interior

Product Description

The Square D NF442L6C is a panelboard interior designed for efficient power distribution in commercial and industrial settings. This 600 Amp, 480Y/277 VAC, 3-phase, 4-wire unit features 42 circuit spaces, accommodating various applications, including buildings and stadiums. It includes a copper bus bar and is compatible with EDB, EDG, and EDJ circuit breakers. The interior is UL Listed and CSA certified, ensuring reliability and safety in electrical installations.

• Rated for 600 Amps, 480Y/277 VAC.
• Includes 42 circuit spaces for flexible installation.
• Compatible with multiple branch circuit breakers.

Product Highlights

This panelboard interior is field convertible for top or bottom feed and can switch from main lug to main breaker setup. It supports 200% rated neutrals suitable for non-linear loads, making it versatile for various electrical systems.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: NF442L6C
• Voltage: 480Y/277 VAC
• Amperage: 600 Amp
• Material: Copper
• Phase: 3
• Height: 52 inches
• Width: 10.44 inches
• Country of Origin: Mexico
