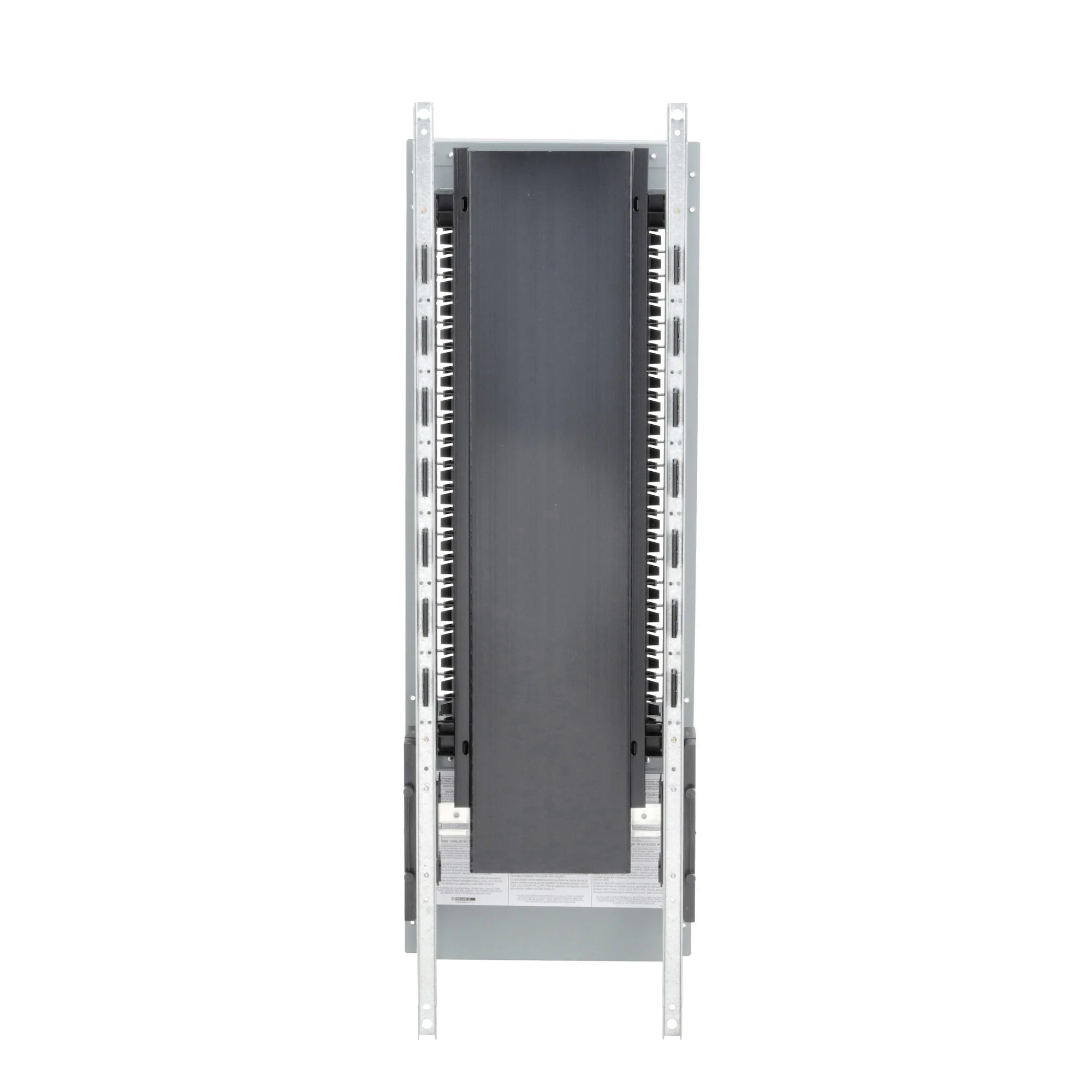

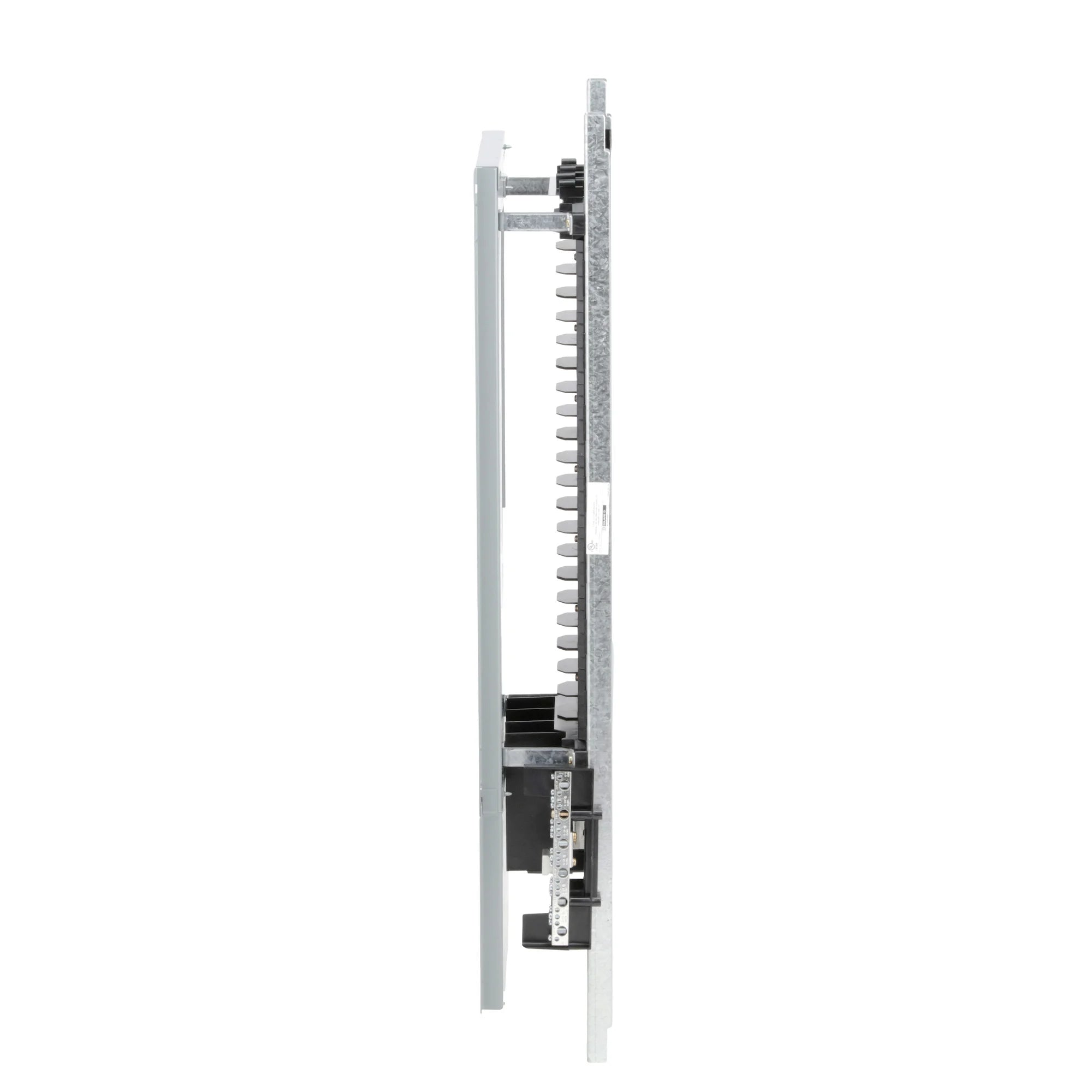

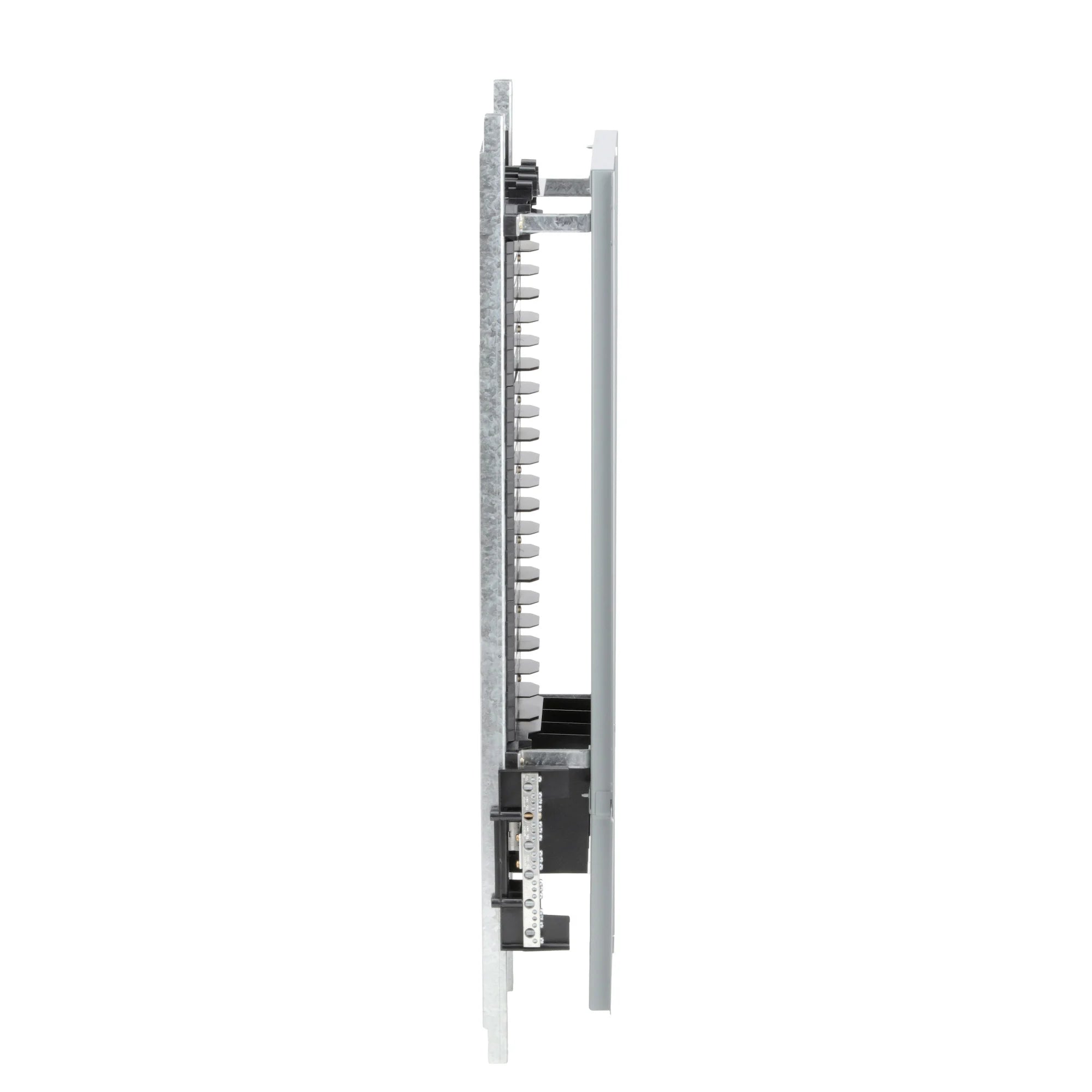

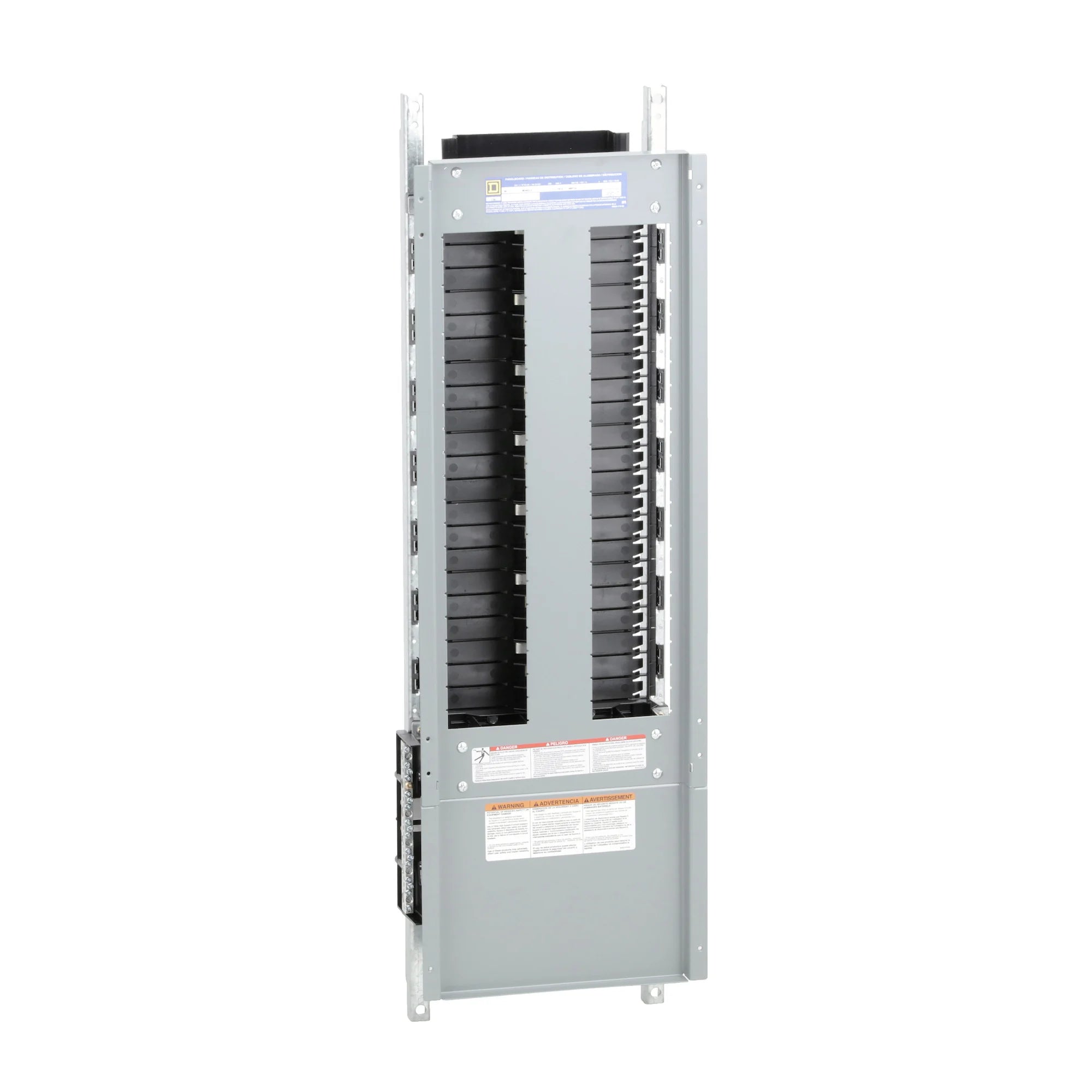

Square D NF442L2C 480 Star/277 VAC 250 Amp 3-Phase 4-Wire 42-Circuit Panelboard Interior

Product Description

The Square D NF442L2C is a panelboard interior designed for commercial and industrial electrical systems. It operates at 480Y/277 VAC with a capacity of two hundred fifty amps. This model includes a copper bus and accommodates up to forty-two circuit spaces. The NF442L2C panelboard is suitable for three-phase systems and can effectively manage nonlinear loads with a rated neutral capacity of two hundred percent.

• Field convertible to top or bottom feed
• Rated for an interrupting current of sixty-five kiloamperes
• UL listed and CSA certified for safety

Product Highlights

Ideal for use in commercial buildings, industrial spaces, and stadiums, this panelboard interior provides reliable circuit protection and flexibility in configuration. The main lugs are compatible with wire sizes from six AWG to three hundred fifty kcmil aluminum, ensuring versatility for various installations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: NF442L2C
• Voltage: 480Y/277 VAC
• Amperage: 250 A
• Height: 39 inches
• Width: 10.44 inches
• Weight: 39.99 lb
• Material: Copper
• Country of Origin: Mexico
• Warranty Length: 18 months
• Phase: 3 Phase
• Interrupting Current Rating: 65 kA
