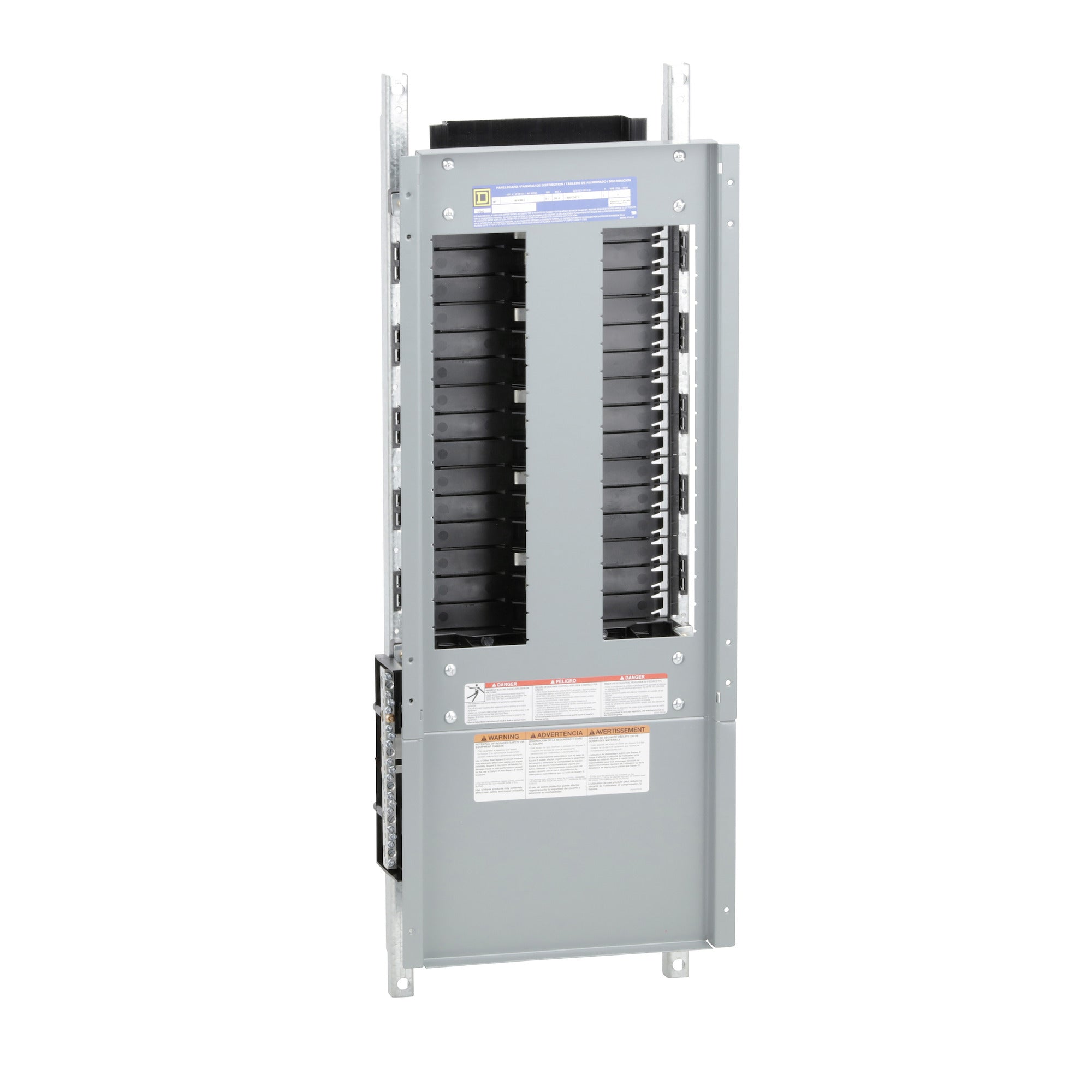

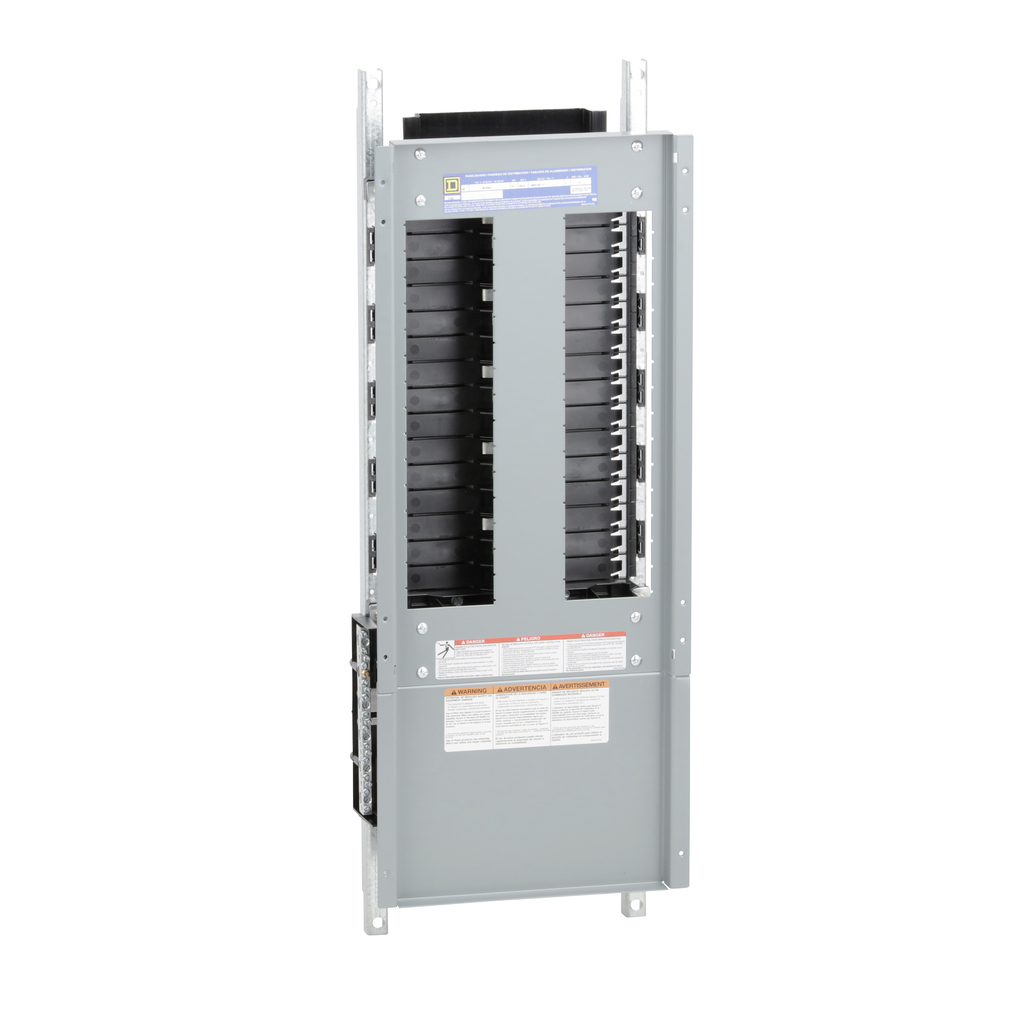

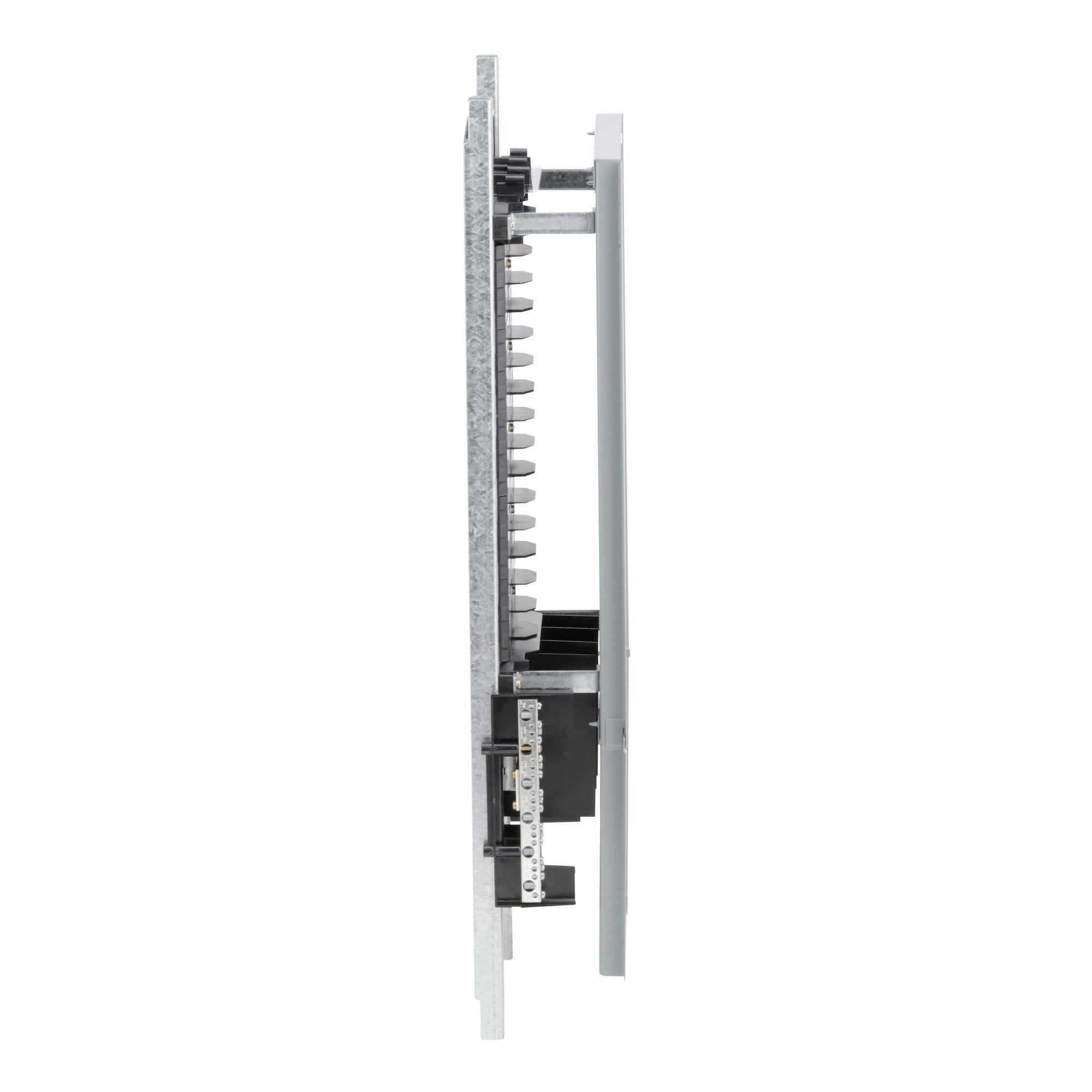

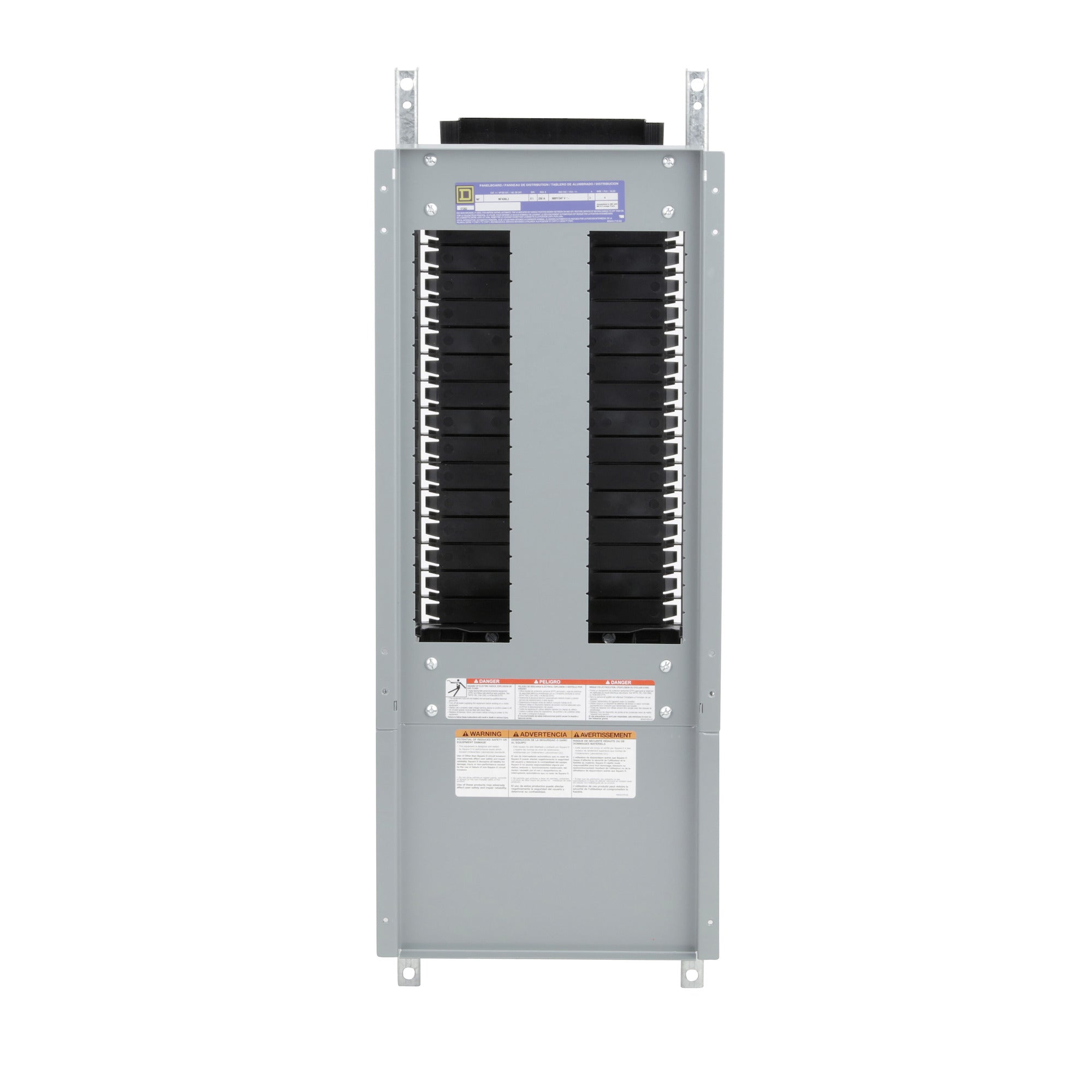

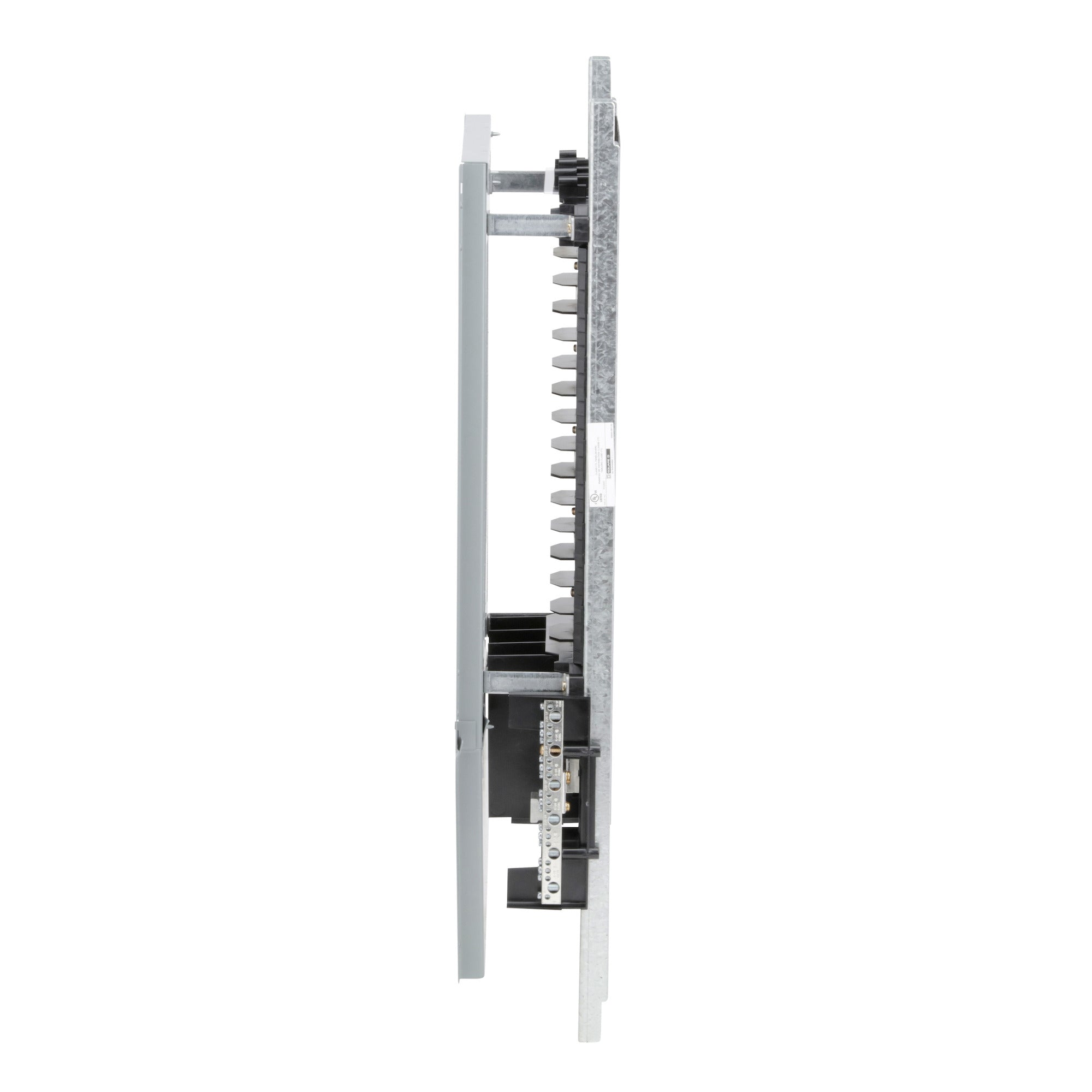

Square D NF430L2 480 Star/277 VAC 250 Amp 3-Phase 4-Wire 30-Circuit Panelboard Interior

Product Description

The Square D NF430L2 is a panelboard interior designed for 480Y/277 VAC applications. This unit features a capacity of two hundred fifty amps and is built for three-phase electrical systems. It is suitable for various environments such as commercial buildings, data centers, and stadiums.

• Rated for 250 amps with a voltage of 480Y/277 VAC.
• Thirty circuit spaces with a four-wire system configuration.
• UL listed and CSA certified for safety.

Product Highlights

This panelboard interior supports both top and bottom feed installations. It allows for easy conversion from main lugs to main circuit breakers, making it flexible for different installation requirements. The unit has an interrupt current rating of up to sixty-five kA, accommodating various circuit breaker types, including EDB, EDG, and EDJ.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: NF430L2
• Material: Aluminum
• Phase Type: 3 Phase
• Height: 33 inches
• Width: 10.44 inches
• Weight: 24.01 pounds
• Voltage: 480Y/277 VAC
• Number of Circuit Spaces: 30
• Country of Origin: Mexico
