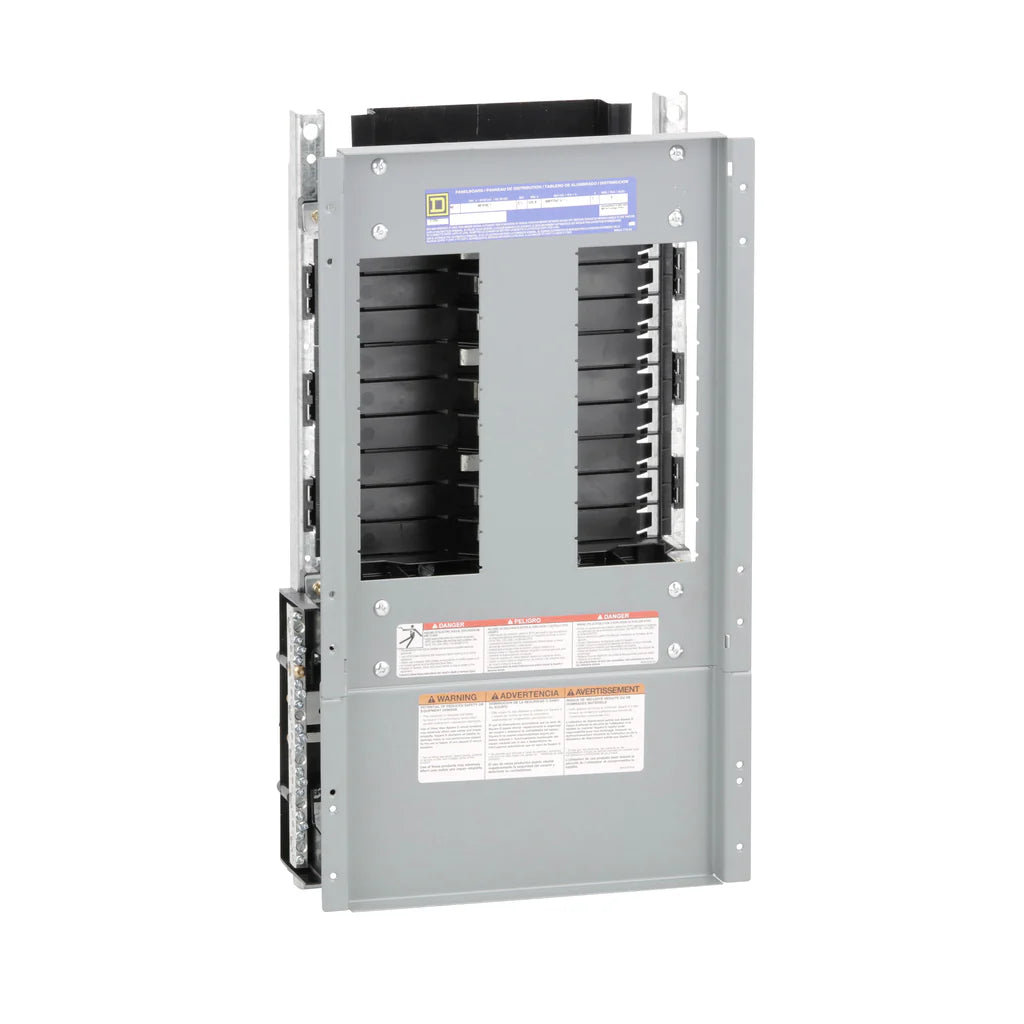

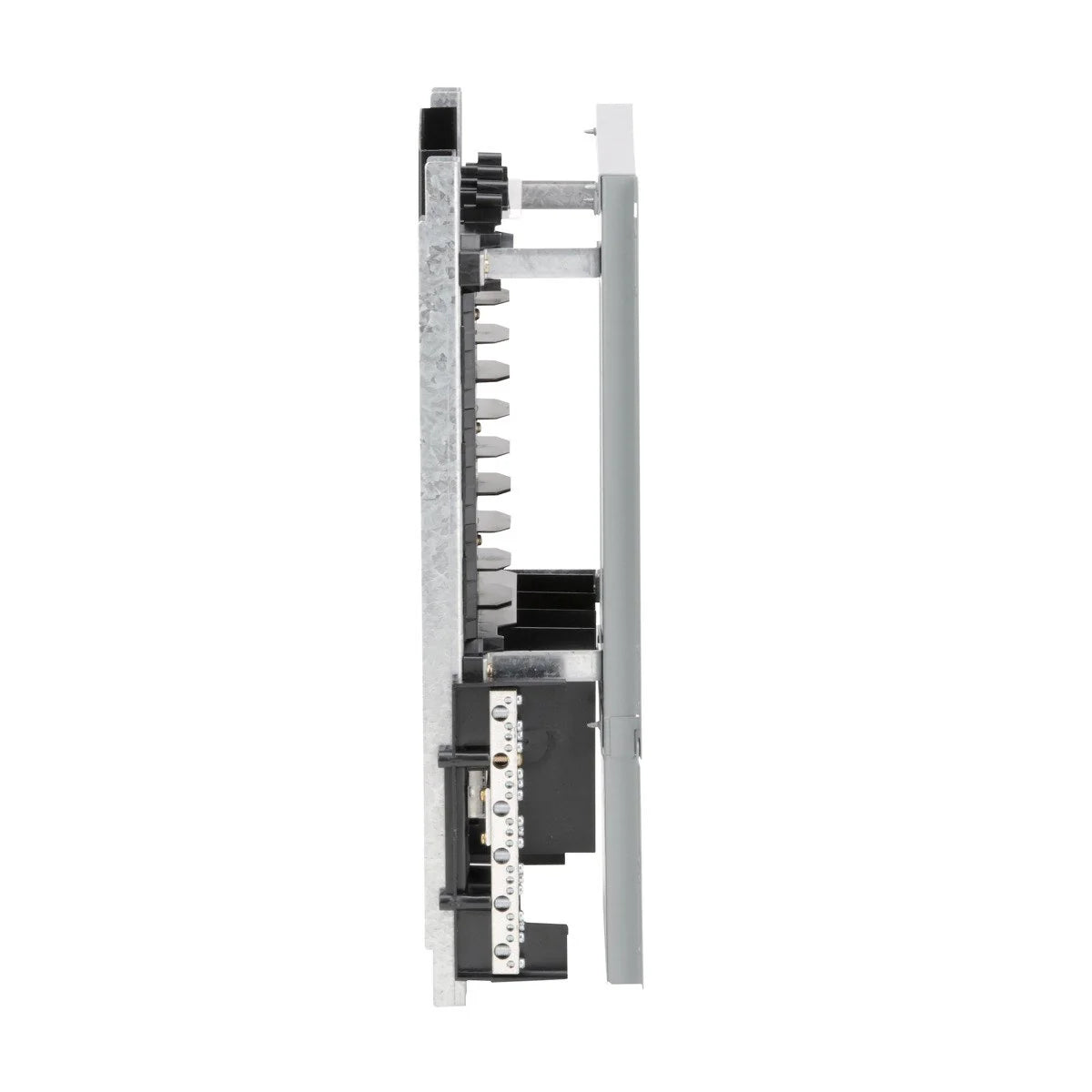

Square D NF418L1 480 Star/277 VAC 100/110/125 Amp 3-Phase 4-Wire 18-Circuit Panelboard Interior

Product Description

The Square D NF418L1 is a panelboard interior designed for standard commercial and industrial applications. It is suitable for use in various settings, including commercial buildings, industrial facilities, and offices. The NF418L1 supports a range of circuit breakers and comes with main lugs rated for 125 amps at a voltage of 480Y/277 VAC in a three-phase configuration.

• Suitable for 4-wire systems with 18 circuit spaces
• Constructed with an aluminum bus bar for improved conductivity
• UL listed and CSA certified for safety and performance

Product Highlights

This panelboard interior allows for flexibility by being convertible from main lug to main breaker. Its design enables connection of wire sizes from six AWG to two-aught AWG copper or aluminum.

Product Information

Standard Information

• Catalog Number: NF418L1
• Manufacturer: Square D
• Country of Origin: Mexico

Technical Specifications

• Panelboard Type: Interior
• Voltage: 600Y/347 VAC
• Amperage: 125 Amp
• Material: Aluminum
• Height: 21 inches
• Width: 10.44 inches
• Number of Spaces: 18
• Rated Interrupt Current: 65 kA
