Product Description
The Square D NF250FTL is a 250 Amp panelboard feed-through lug kit suitable for NF panelboards used in commercial and industrial buildings, stadiums, and offices. This panelboard accessory provides protection and accepts field-installable accessories and conversion kits. The sub feed lug kit is rated at 250A and made of aluminum.
- Rated at 250A
- Made of aluminum
- UL listed
- CSA certified by UL
Product Highlights
This Square D NF250FTL feed-through lug kit is designed for NF panelboards, offering a 250A current rating and aluminum construction. It is UL listed and CSA certified.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: NF250FTL
-
Country of Origin: Mexico
Technical Specifications
-
Type: Feed-Through
-
Brand: Square D
-
Current: 250 Amp
-
Amperage: 250 Amp
-
Material: Aluminum
-
Sub Brand: NF
-
Applications: NF PANELBOARDS
-
Certifications: CULus
-
Catalog Number: NF250FTL
-
Manufacturer: Schneider Electric
-
Country of Origin: Mexico
-
Made in USA: No
-
Panelboard Type: Main Lug Kit
-
Item Type: Lug kit
-
Amps: 250 A
-
Item: Ftl Kit 250A Al Mech
-
Features: Mercury Free
-
Standards: cULus
-
Bus Material: aluminium
-
Accessory Type: Ftl Kit 250A Al Mech
-
Wire Size: (1) 6 AWG to 350 KCMIL (Aluminum/Copper)
-
Used On: NF Circuit Breaker Panelboard
-
Model / MPN: NF250FTL
-
Number of Items: 1.0
-
Product Group: Home Improvement
-
Product Type: ELECTRICAL_DISTRIBUTION_BOARD
-
IGCC: 4370
-
Vendor: 590100
-
Family group: DISTRIBUTION EQUIPMENT
-
WES Product code: 2610223740
-
Tightening Torque: 6.8-7.3 N.m 13.3-177.3 mm (AWG 6...350 kcmil);2.8-3.4 N.m
-

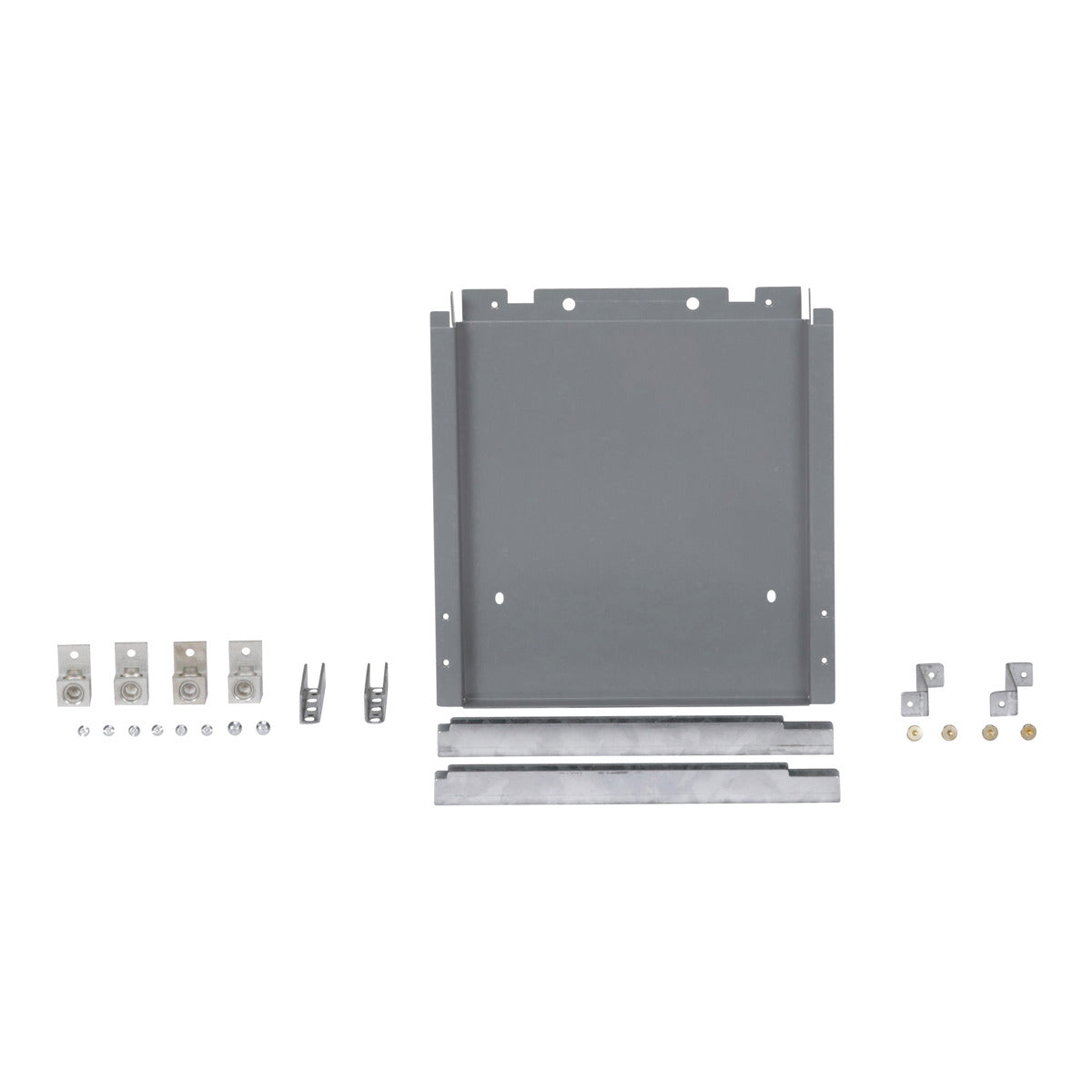

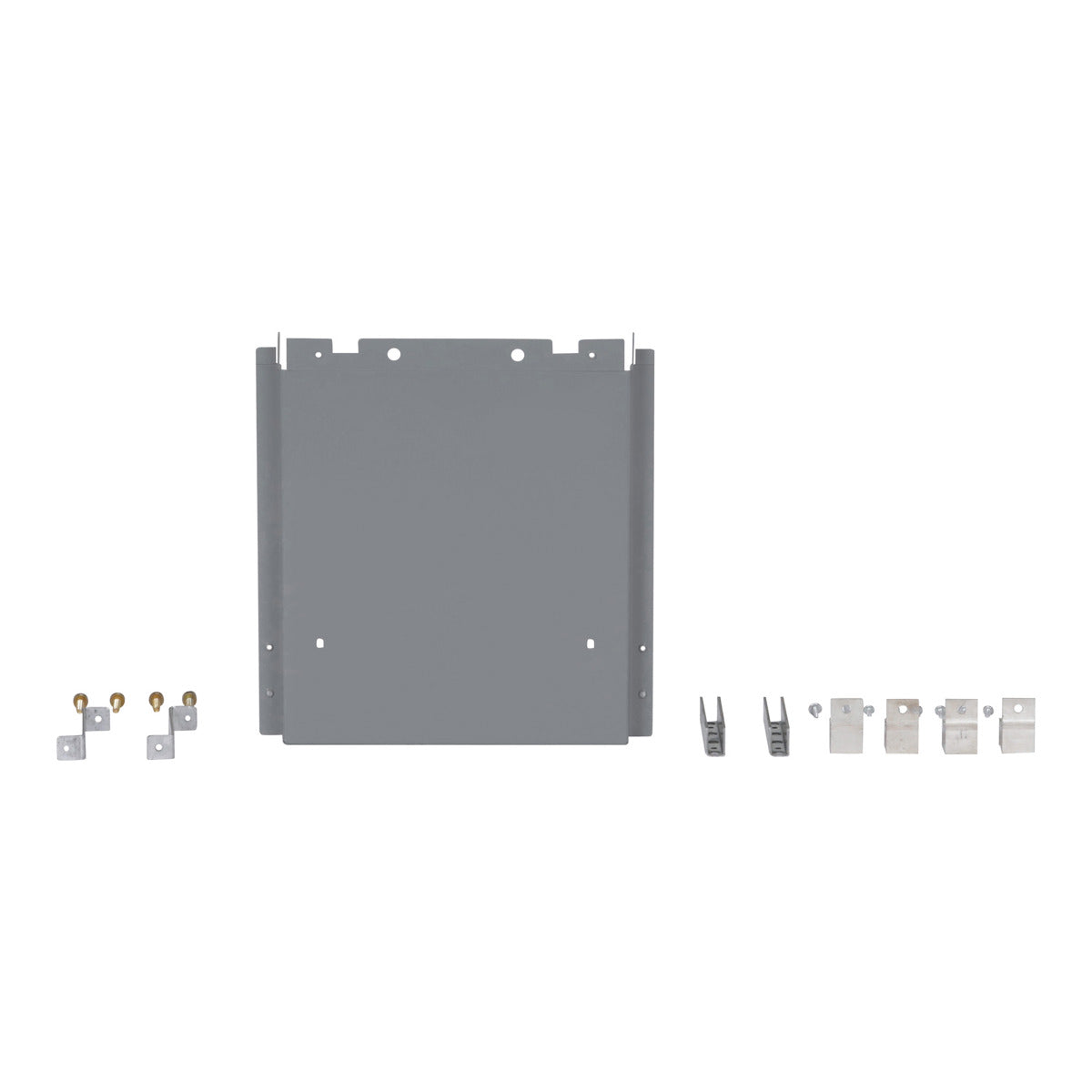

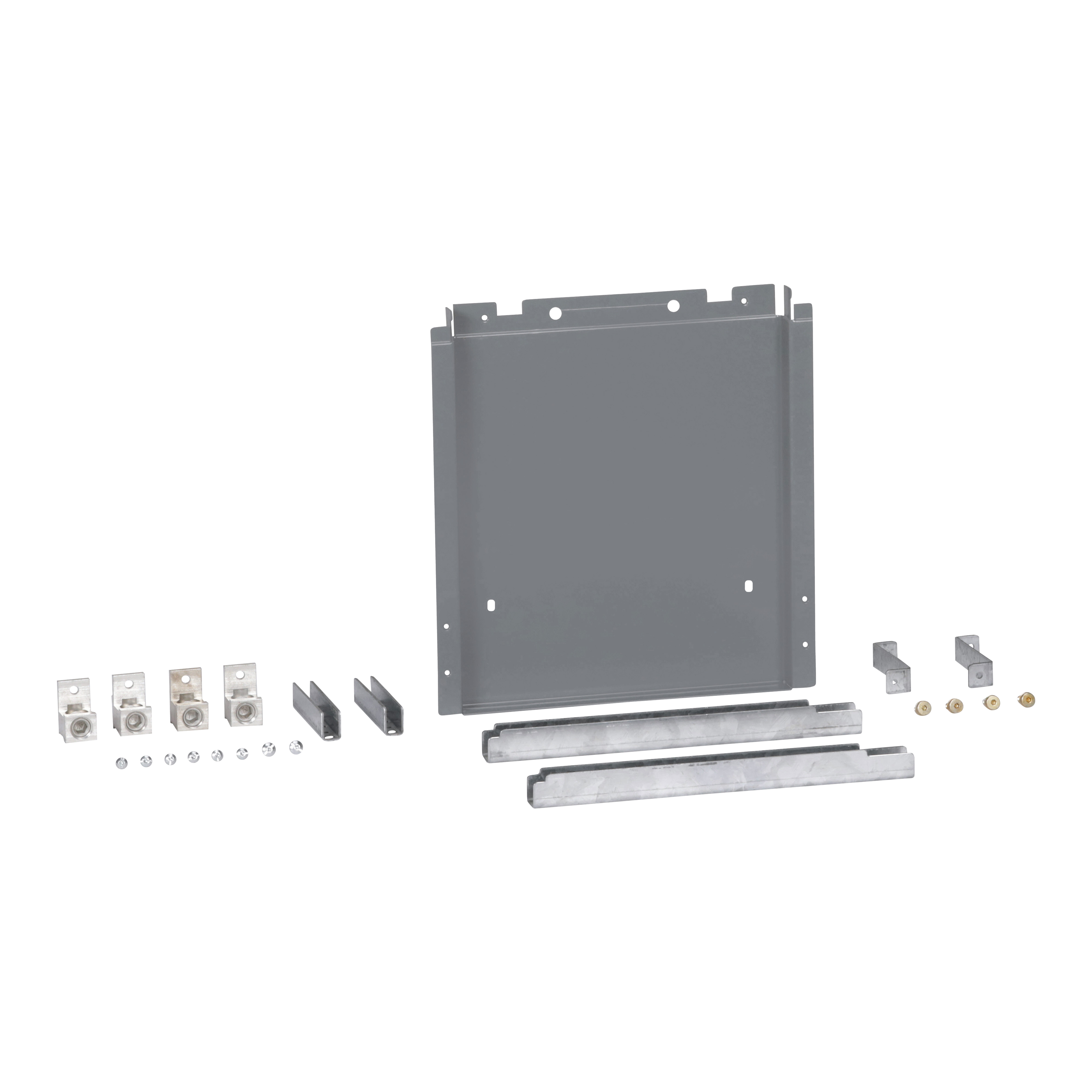

Provided Equipment: Screw set 1 ;lug 4
-
Line Rated Current - Metric: 250 A
-
Alternate Catalog Number: NF250FTL
-
Amperage Rating: 250 A
-
Application: NF PANELBOARDS
-
ARRA Compliant: N
-
Buy American Compliant: N
-
Conductor Range: 6 AWG to 350 kcmil
-
EU RoHS Indicator: Y
-
Height: 6.1000 in
-
Item Group: 08350
-
Length: 52.8000 in
-
Mounting: DIRECT
-
Mounting Type: Surface
-
Series: NF Series
-
Standard: UL 67
-
Suitable For Use With: NF Series Merchandised Panelboard
-
UNSPSC: 39121112
-
Electrical Ratings: 250 A
-
Sub-Brand: Square D
-
ECCN: EAR99
-
Rated Current: 250A
-
Torque: 6.8-7.3 N.m
