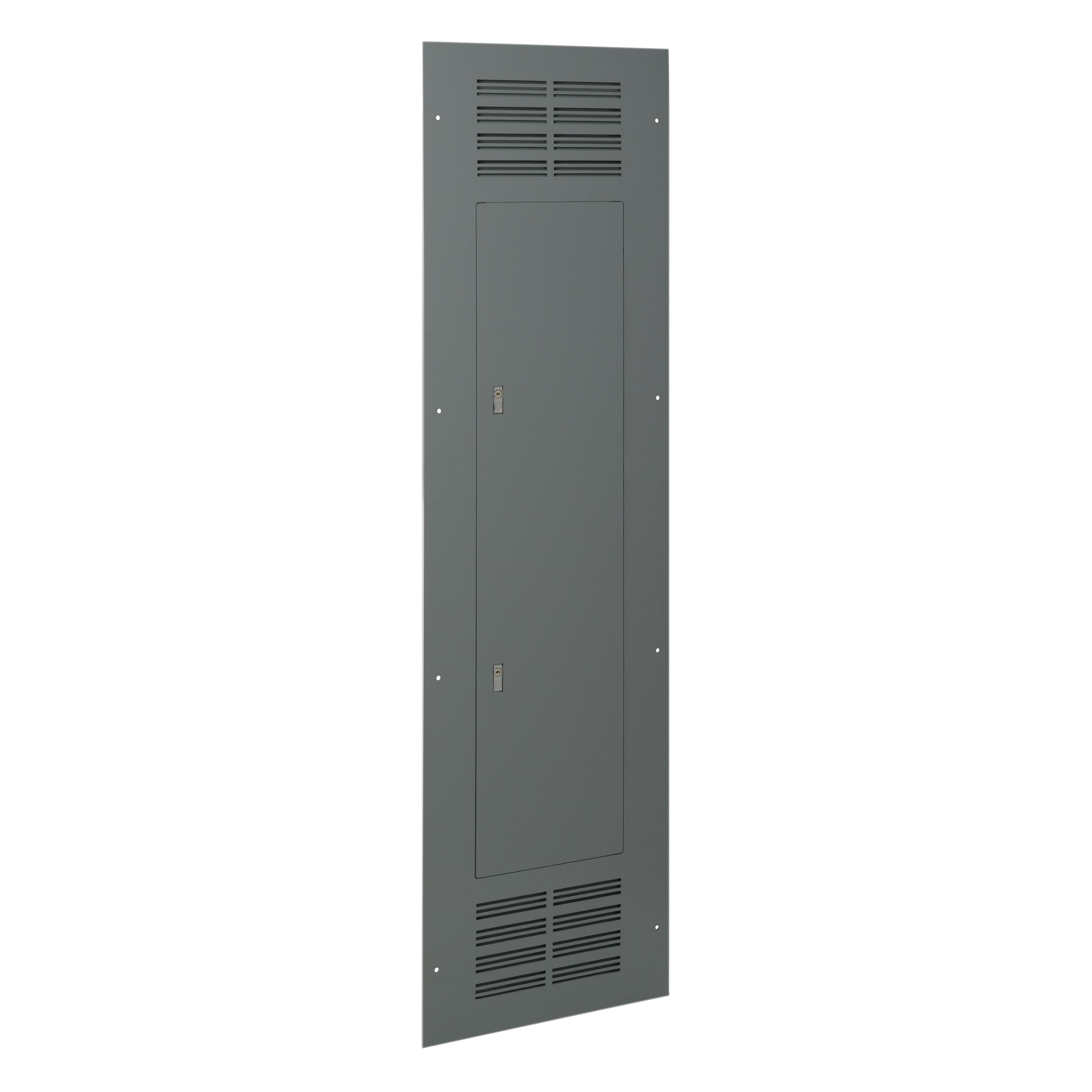

Square D NC86VF 20 x 86 Inch Flush Mount Panelboard Trim

Product Description

The Square D NC86VF is a steel NEMA 1 rated cover for NF and NQ panelboards. It is designed for applications such as commercial buildings, industrial buildings, stadiums, and offices. This grey flush cover is ventilated and measures 86 inches in height and 20 inches in width, providing protection for commercial and industrial applications.

• Steel NEMA 1 rated cover
• For NF and NQ panelboards
• Grey flush cover
• Ventilated

Product Highlights

This Square D panelboard cover is UL Listed and CSA certified, ensuring quality and safety. It is suitable for use with NF Main Lug, Main Circuit Breaker and NQ Panelboard.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: NC86VF
• Country of Origin: USA

Technical Specifications

• Type: Ventilated;Flush cover
• Brand: Square D
• Width: 20 in
• Material: Steel
• Enclosure: 1
• NEMA Size: 1
• Sub Brand: MONO-FLAT
• Product UPC: 78590129437
• 12-Digit UPC: 785901294375
• Applications: PANELBOARD COMPONENT
• Certifications: CULus
• Country of Origin: USA
• Enclosure Material: Steel
• Catalog Number: NC86VF
• Manufacturer: Schneider Electric
• Made in USA: Yes
• Panelboard Type: Panelboard Trim
• UPC: 785901294375
• GTIN: 00785901294375
• Mounting: Flush
• Used On: 400/600 Ampere NF/NQ Series Merchandised Main Lug/Main Breaker Panelboard
• Includes: Vented Trim
• Product Or Component Type: flush cover
• Cover Type: Flush Cover
• Nema Degree Of Protection: NEMA 1
• Product Certifications: cULus
• Rohs Exemption Information: Yes
• Packaging Made With Recycled Cardboard: No
• Toxic Heavy Metal Free: Yes
• Packaging Without Single Use Plastic: No
• Eu Rohs Directive: Compliant
• IGCC: 4370
• Vendor: 590100
• Family group: DISTRIBUTION EQUIPMENT
• WES Product code: 2610223723
• Item: Pnlbd Cover/Trim Nf T1 F 86H 20W
• Features: Mercury Free
• Standards: cULus
• Product Type: Pnlbd Cover/Trim Nf T1 F 86H 20W
• Accessory Type: Pnlbd Cover/Trim Nf T1 F 86H 20W
• ECCN: EAR99
• NEMA Rating: 1
• Color Family: Gray
• Mounting Type: Surface
• Suitable For Use With: NF Main Lug, Main Circuit Breaker and NQ Panelboard
• Length: 86 in
