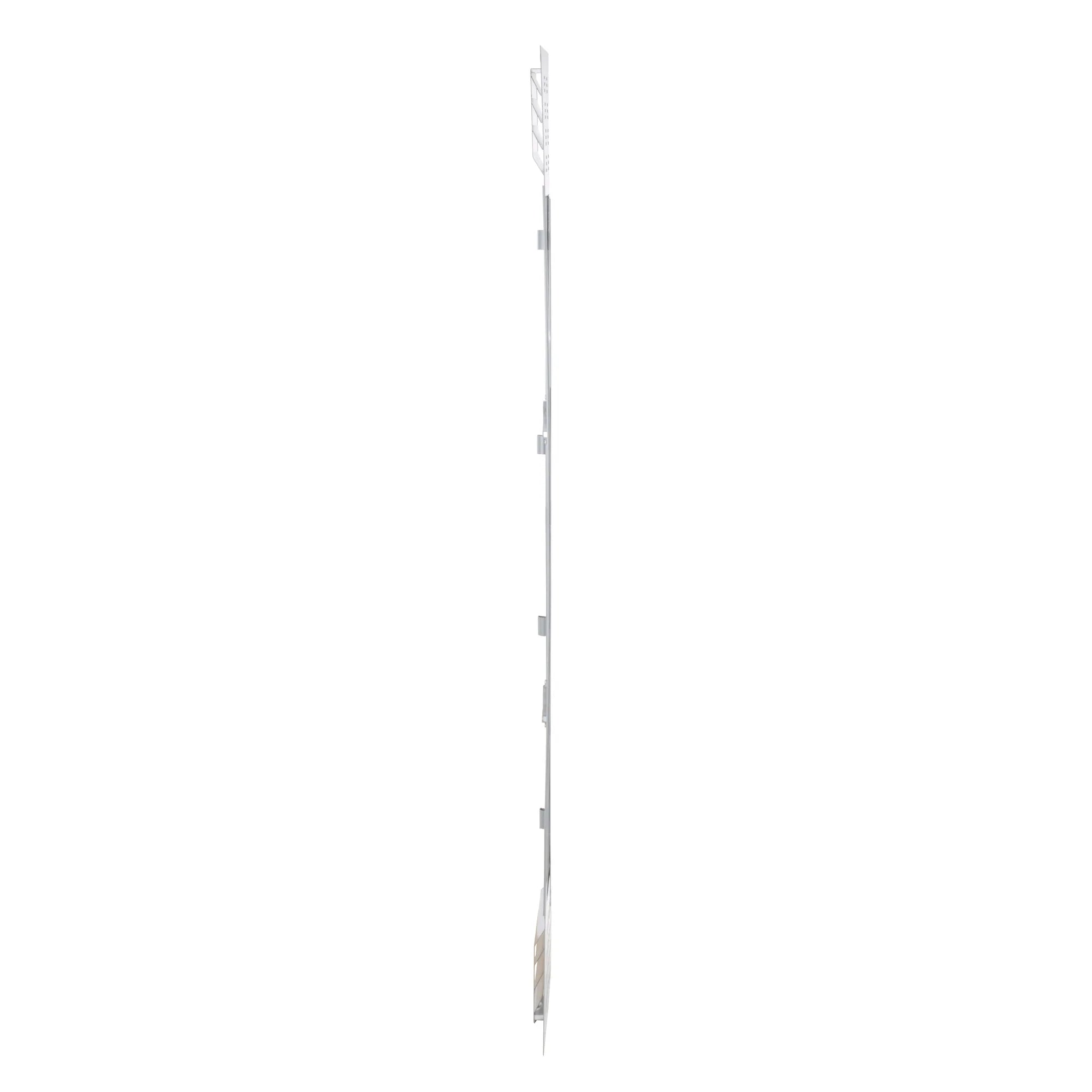

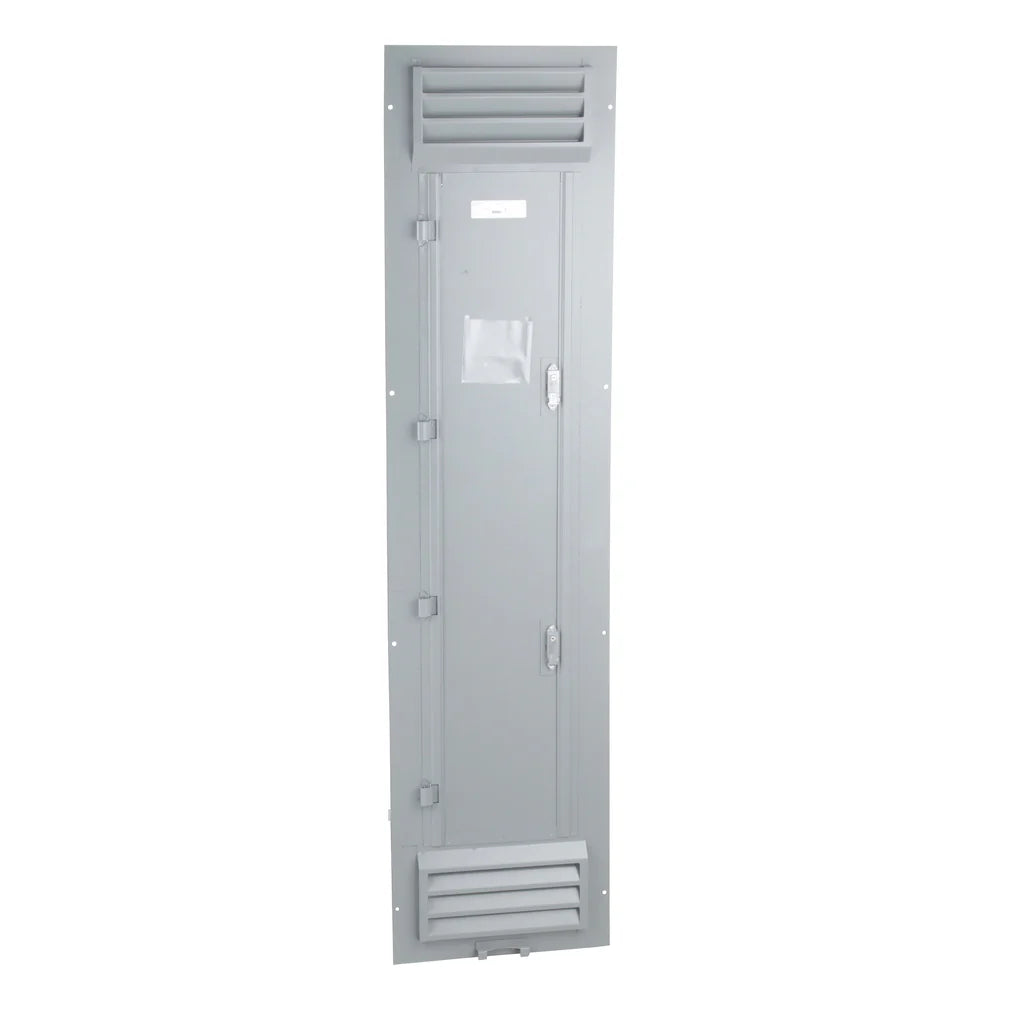

Square D NC80VS 20 x 80 Inch Surface Mount Panelboard Trim

Product Description

Square D NC80VS is a surface mount panelboard trim with dimensions of 20 inches by 80 inches. This trim is designed for NQ and NF panelboards, suitable for use as service equipment. It supports a range of circuit breakers, accessories, and ready-to-install kits. The panelboard provides 200% rated neutrals for non-linear loads and can be converted from main lug to main breaker. This ventilated cover is rated for surface type 1 enclosures. Its design allows for field conversion to top or bottom feed.

• Dimensions: 20 inches by 80 inches
• Material: Steel
• Amperage: 400 Amp

Product Highlights

The NC80VS panelboard trim is versatile, durable, and provides easy installation options for various setups in electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: NC80VS
• Color: Gray
• Enclosure: Surface cover; Steel
• NEMA Size: 1
• UPC: 785901003991
• Country of Origin: United States
• Warranty Length: 18 months
