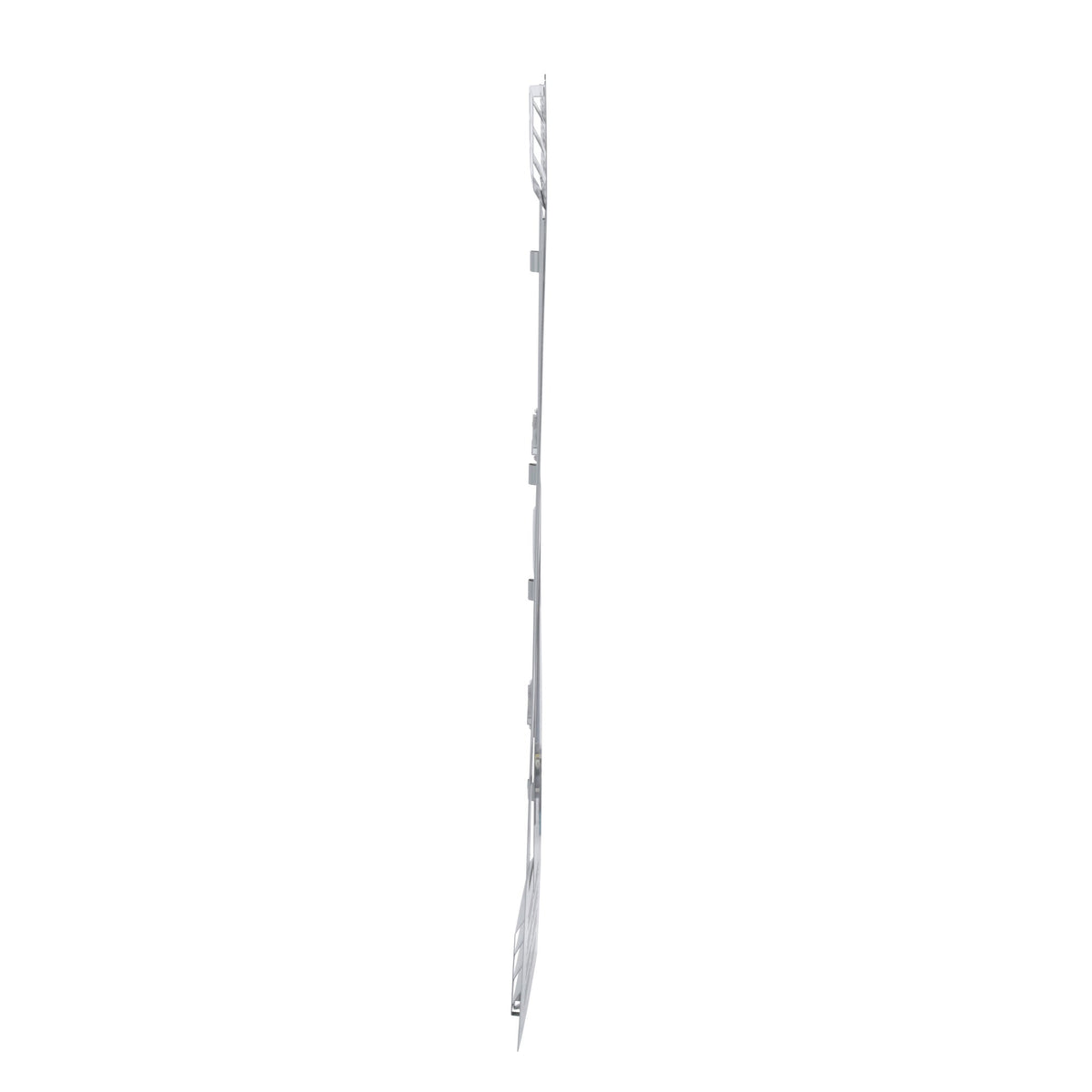

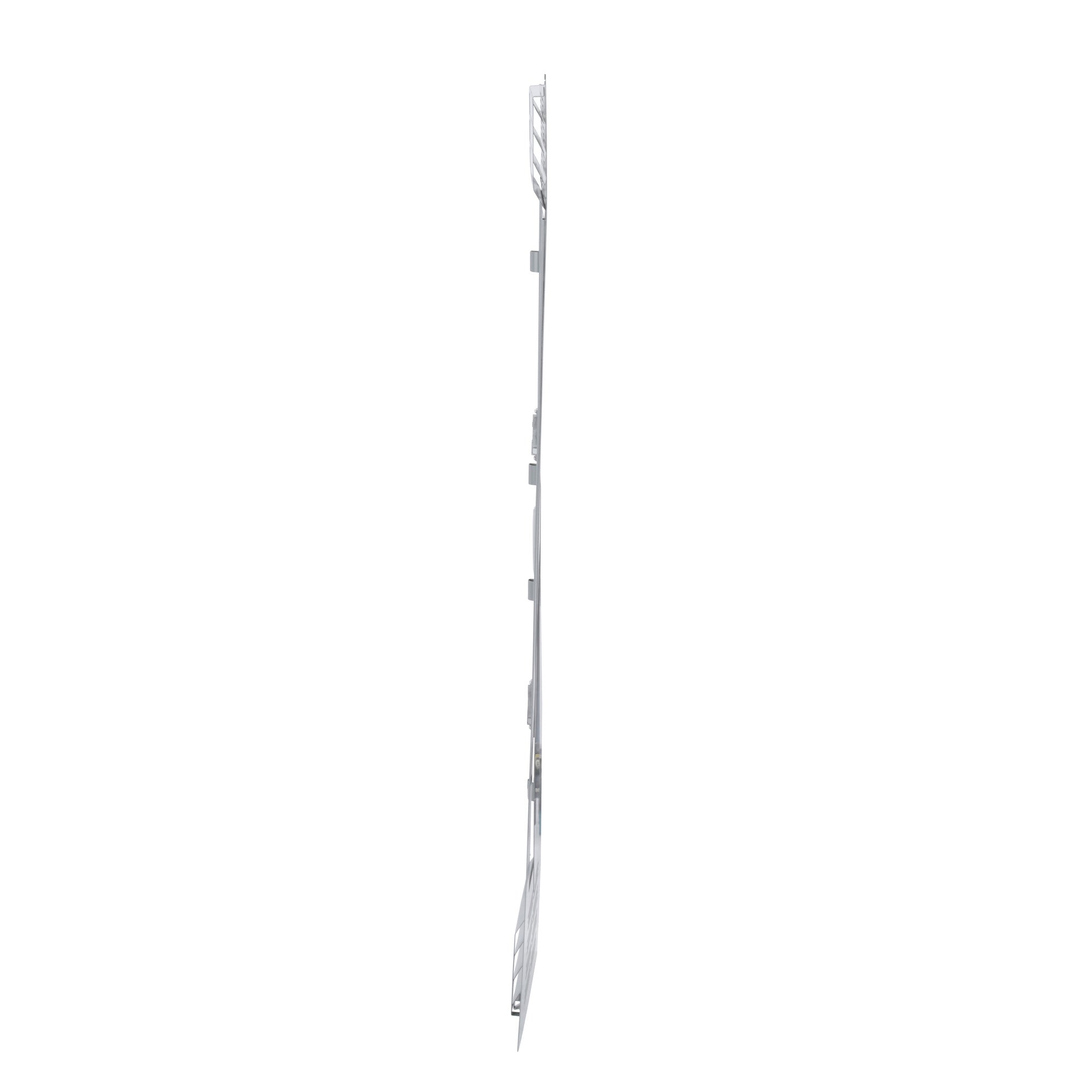

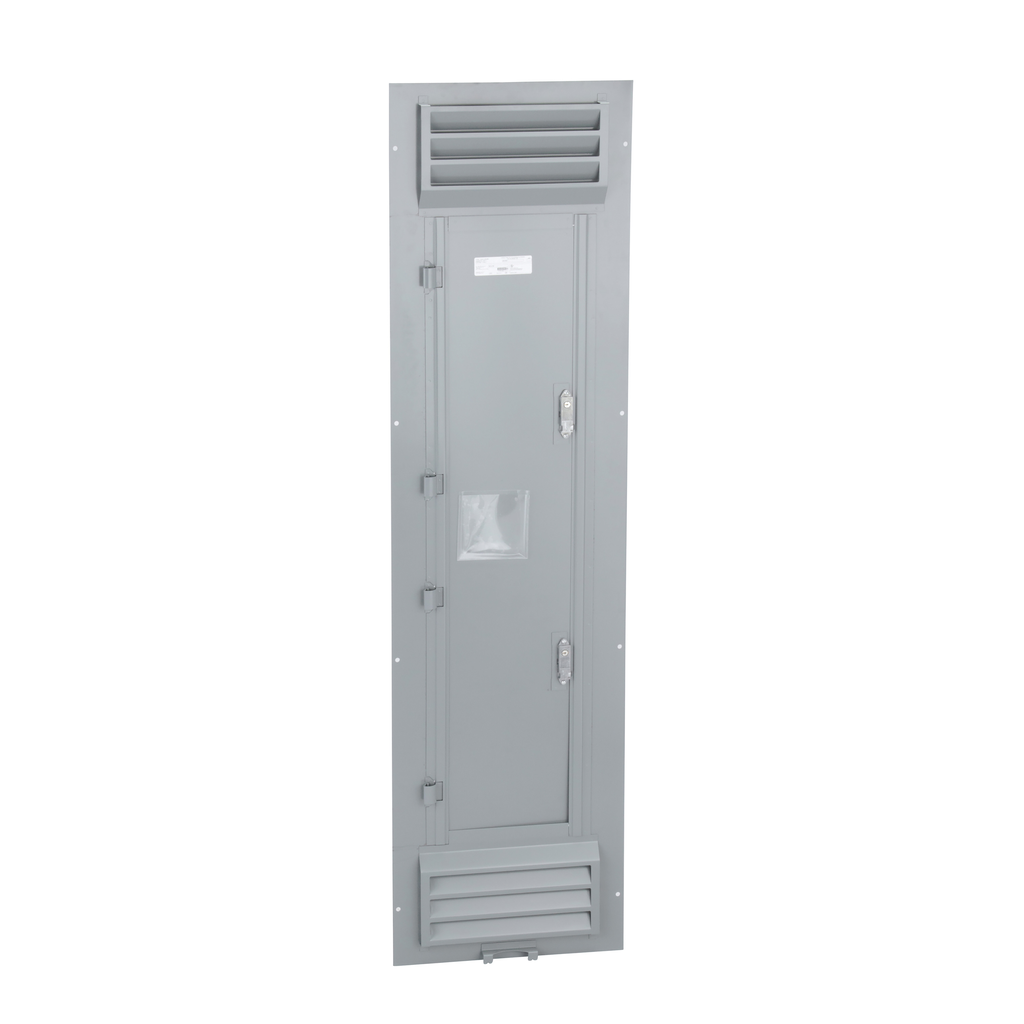

Square D NC74VS Surface Mount Panelboard Trim 20 x 74 Inch

Product Description

The Square D NC74VS is a surface mount panelboard trim featuring dimensions of twenty inches by seventy-four inches. This trim is compatible with NQ and NF Panelboards, offering flexibility in circuit breaker configurations. Its design allows conversion from main lug to main breaker setups and supports various enclosure cover options for enhanced installation versatility.

• Surface mount design suitable for NQ and NF Panelboards
• Dimensions: 20 inches wide by 74 inches high
• Constructed from durable steel material

Product Highlights

This product supports a maximum rating of six hundred amps. It accommodates ventilated applications and meets NEMA size one standards. Additionally, it is designed for both top and bottom feed configurations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: NC74VS
• Height: 74 inches
• Width: 20 inches
• Material: Steel
• Enclosure Type: Surface cover
• GTIN: 00785901799085
• UPC: 785901799085
• Country of Origin: United States
• Warranty: 18 months
• Applications: Panelboard component
