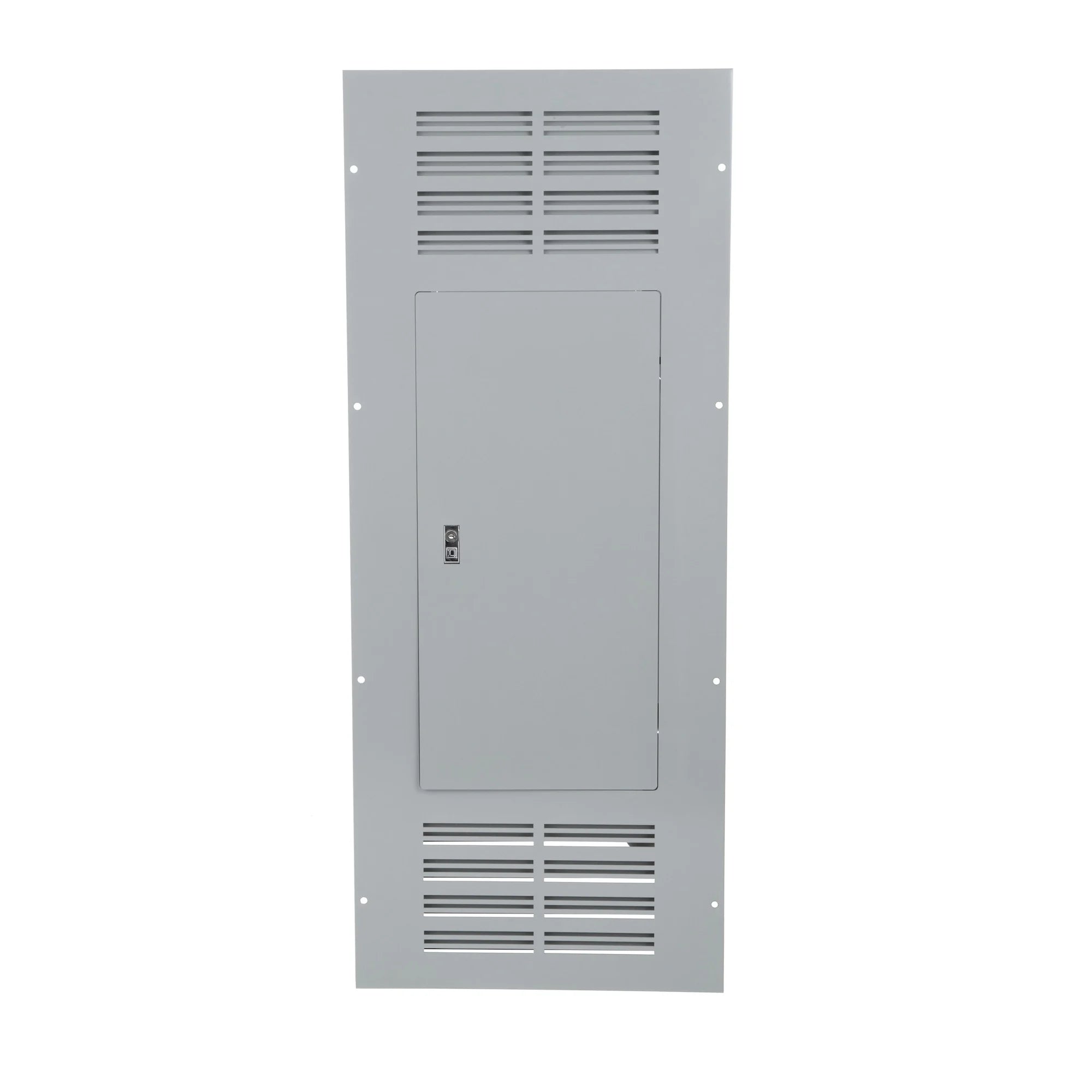

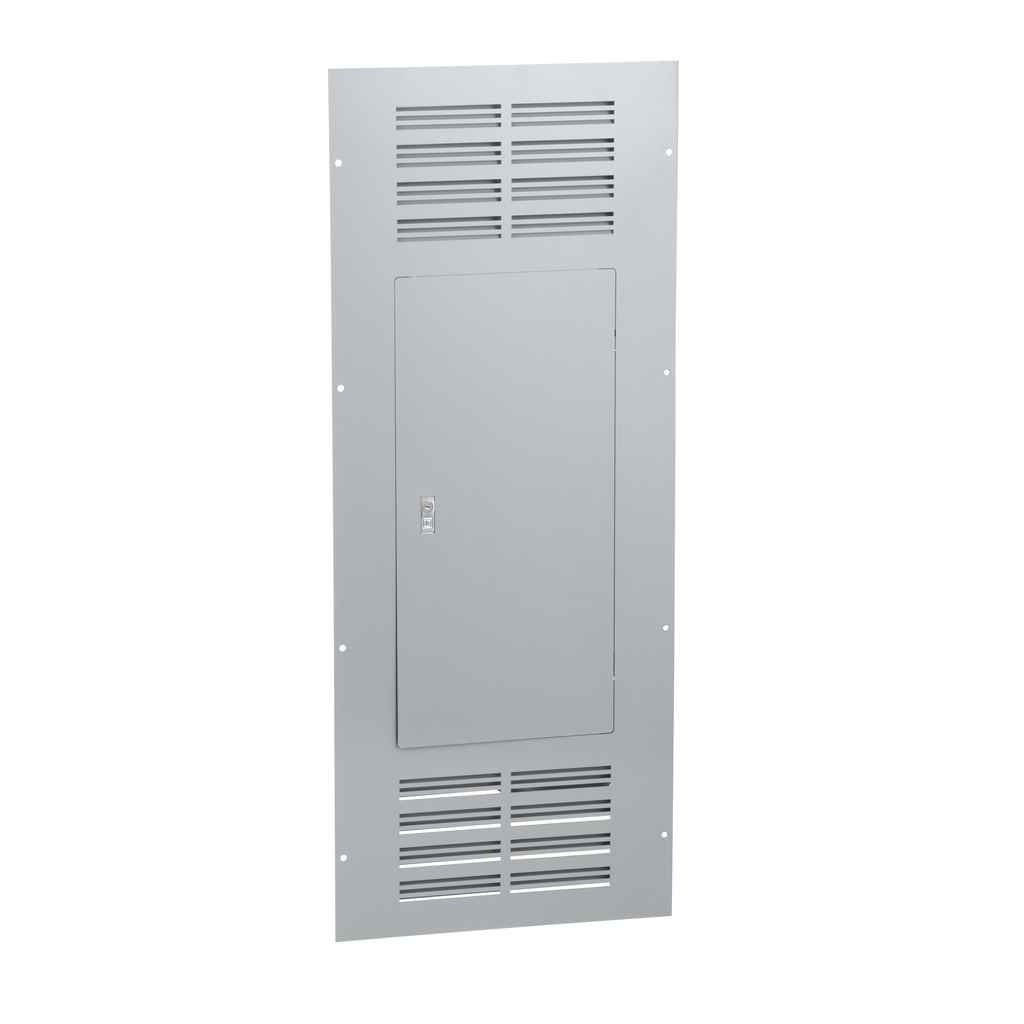

Square D NC50VS 20 x 50 Inch Surface Mount Panelboard Trim

Product Description

The Square D NC50VS is a surface mount panelboard trim designed for use with NQ and NF panelboards. It measures 20 inches in width and 50 inches in height. This product is ventilated and made of steel. It is compliant with NEMA size 1 standards and is suitable for a variety of applications. This trim enhances the functionality of the panelboard by providing access and protection to the components inside.

• Compatible with NQ and NF panelboards.
• Made from durable steel material.
• Dimensions are 20 inches wide by 50 inches tall.

Product Highlights

Designed for service equipment applications, this trim allows for top or bottom feed conversions. It meets a 200% rated neutral standard for non-linear loads.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: NC50VS
• Size: 20 inches (width) x 50 inches (height)
• Material: Steel
• Amperage: 400 Amp - 600 Amp
• Enclosure Type: Surface cover; Ventilated
• Country of Origin: USA
• Warranty Duration: 18 months
• UPC: 785901798927
