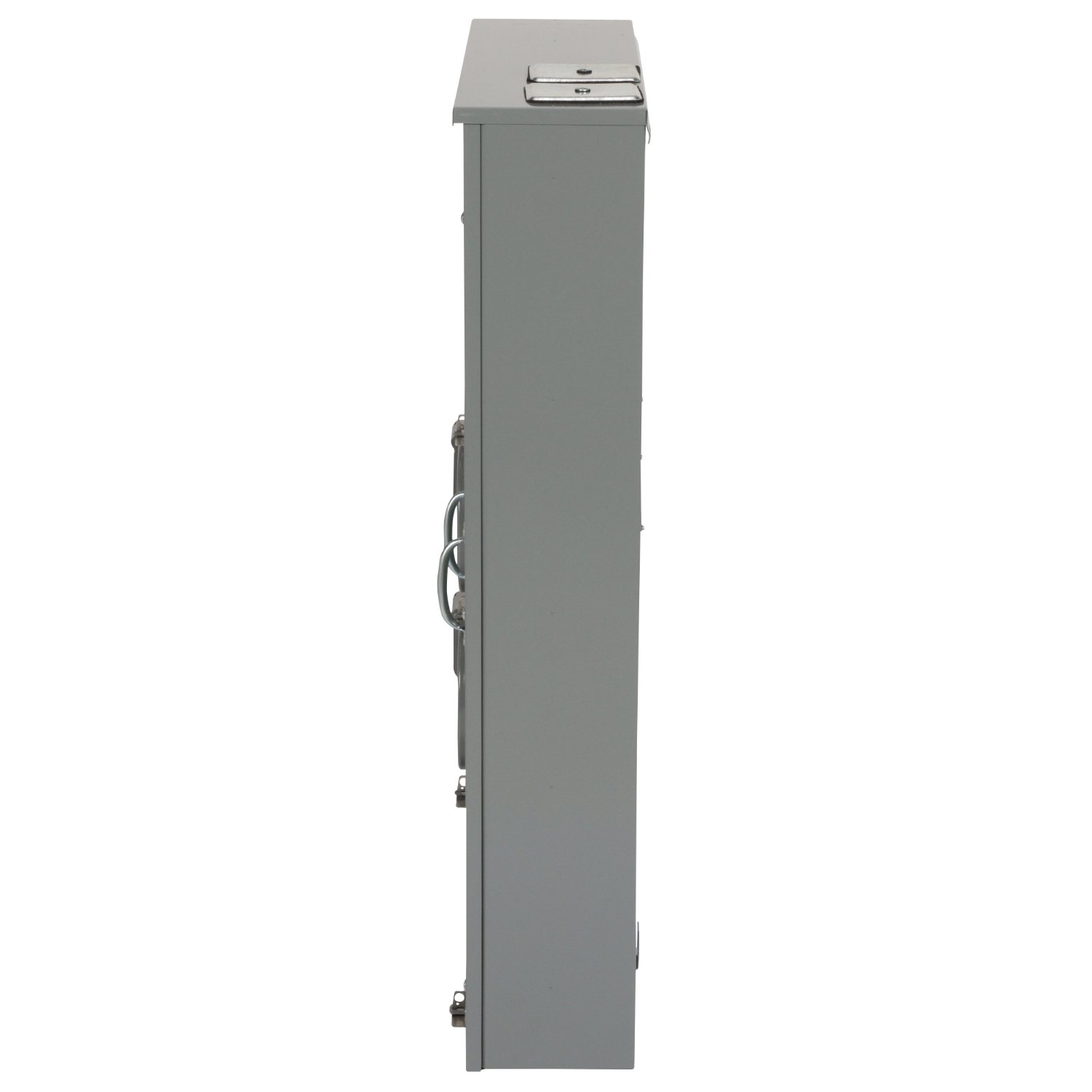

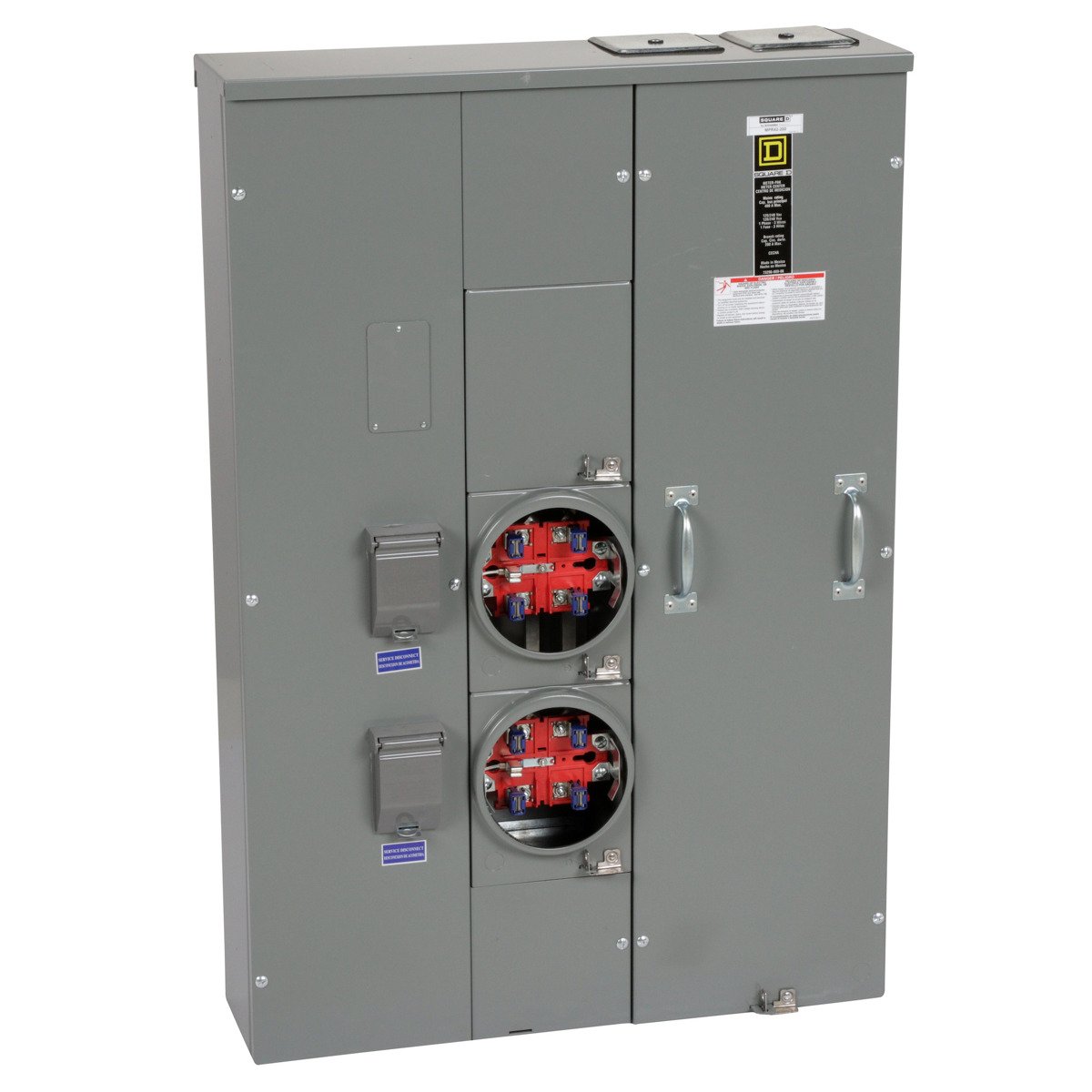

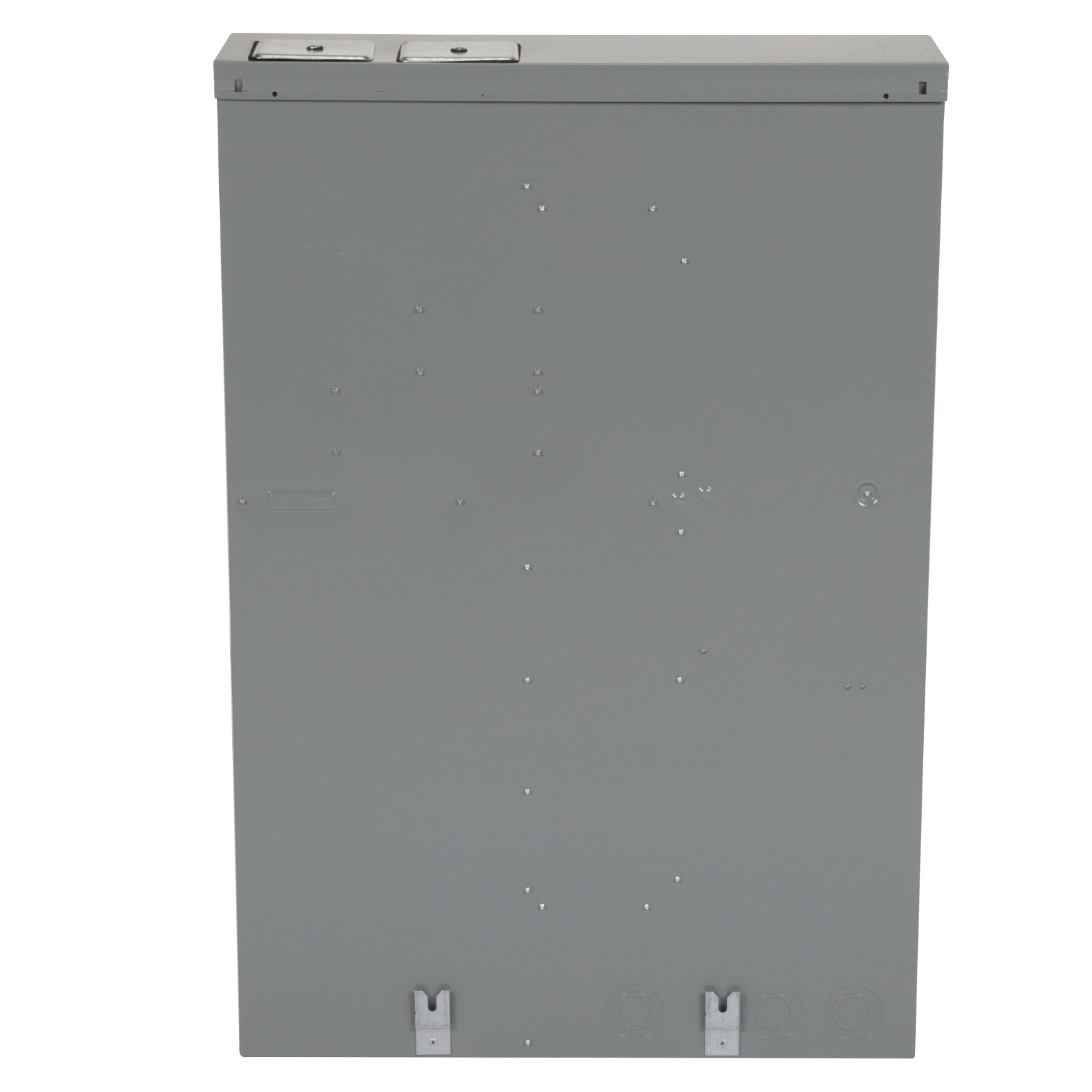

Square D MPR42200 mp meter pak meter center 200 amp 2-position

Product Description

The Square D MPR42200 MP Meter Pak meter centers offer solutions for multi metering applications. UL Listed NEMA Type 3R construction meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This MP meter pak is rated at 200 A with 2 positions, no bypass, and a 400 A main bus. This system is a ringless type.

• UL Listed
• NEMA Type 3R construction
• Meets EUSERC standards

Product Highlights

The Square D MP Meter Pak is a 200A, 2-position meter center with NEMA 3R construction and a ringless type socket.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: MPR42200
• Country of Origin: Mexico

Technical Specifications

• Type: 2-Position 3-Wire
• Brand: Square D
• Depth: 8.28 Inch
• Width: 29.44 in
• Height: 43.41 Inch
• Voltage: 240 Volt
• Amperage: 200 Amp
• Material: Aluminium: Busbar
• Enclosure: 3R
• Sub Brand: METER-PAK
• Wire Size: AWG 1/0...600 kcmil 1 aluminium;AWG 1/0...600 kcmil 1 copper
• Bus Rating: 400 A
• Cable Entry: UG-OH
• Product UPC: 78590141045
• 12-Digit UPC: 785901410454
• Certifications: UL
• Conductor Size: 1/0 AWG-600 kcmil
• Enclosure Rating: 3R
• Number of Phases: 1 Phase
• Enclosure Material: Steel
• Bypass Type: No Bypass
• Mounting: Surface
• Phase: 1
• Special Features: Main Lugs;Aluminium: busbar
• Standard: UL Listed
• UPC: 785901410454
• GTIN: 00785901410454
• Item Type: Meter Center;Ringless
• Voltage Rating: 120/240 VAC
• Circuit Configuration: 1-Phase 3 Wire
• Bus Current Rating: 400 Ampere
• Number of Sockets: 2
• Socket Current Rating: 200 Ampere
• Socket Cover Style: Ringless
• Number of Jaws: 5
• Service Type: Overhead/Underground
• Main Type: Main Lugs
• Meter Socket Rated Current: 200 A
• Number Of Meter Sockets: 2
• Product Or Component Type: Meter Center
• [Ue] Rated Operational Voltage: 120/240 V AC
• Bus Rated Current: 400 A
• Main Rated Current: 400 A
• Nema Degree Of Protection: NEMA 3R
• Product Mounting: surface
• Awg Gauge: AWG 1/0...600 kcmil 1 aluminium || AWG 1/0...600 kcmil 1 copper
• Wiring Configuration: 3-wire
• NEMA Rating: 3R
• No. of Wires: 3
• Rated Current: 400A
• Rated Voltage: 120/240V ac
• Amperage Rating: 200 A
• Cover Type: Ringless
• Feed Type: Overhead/Underground
• Hub Size: (2) A-L
• Mounting Type: Surface
• Series: MP Series
• Terminal Type: Bus Bar/Main Lug
