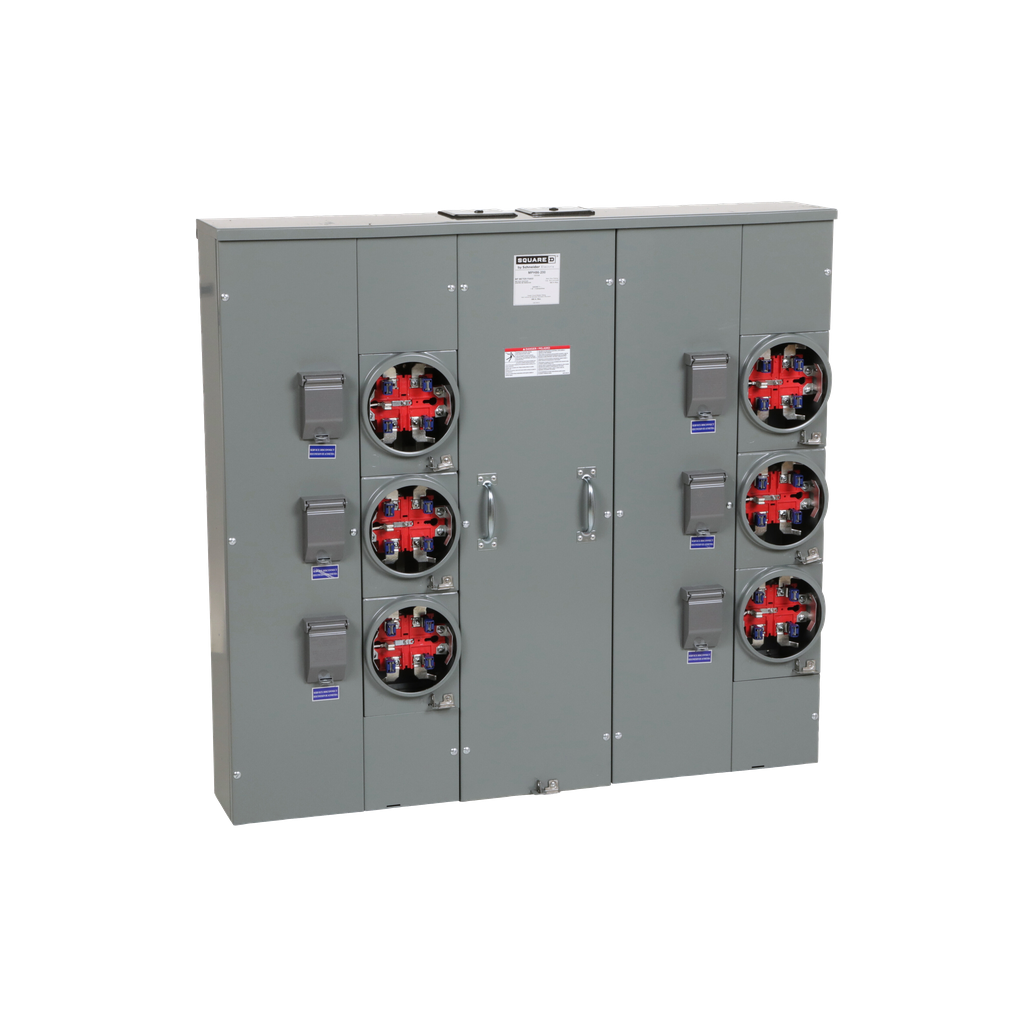

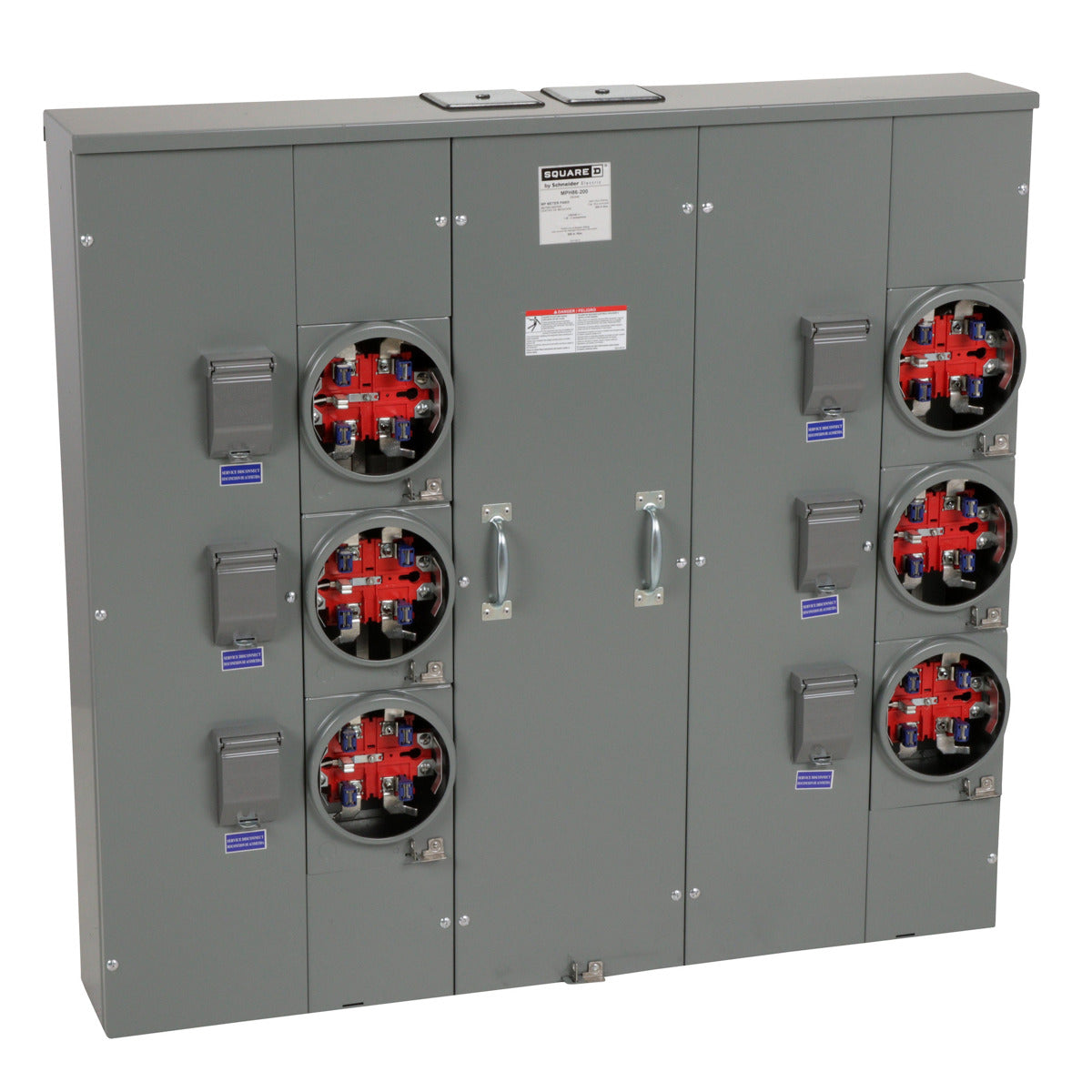

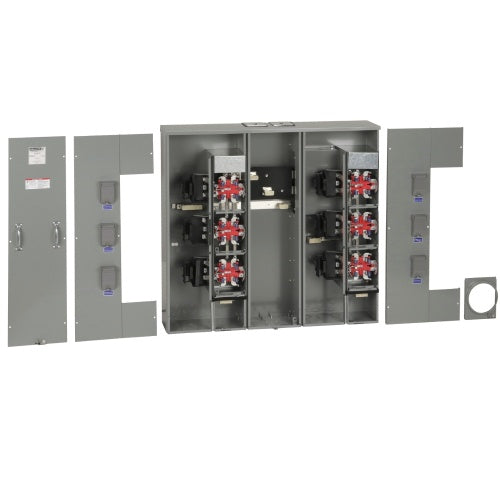

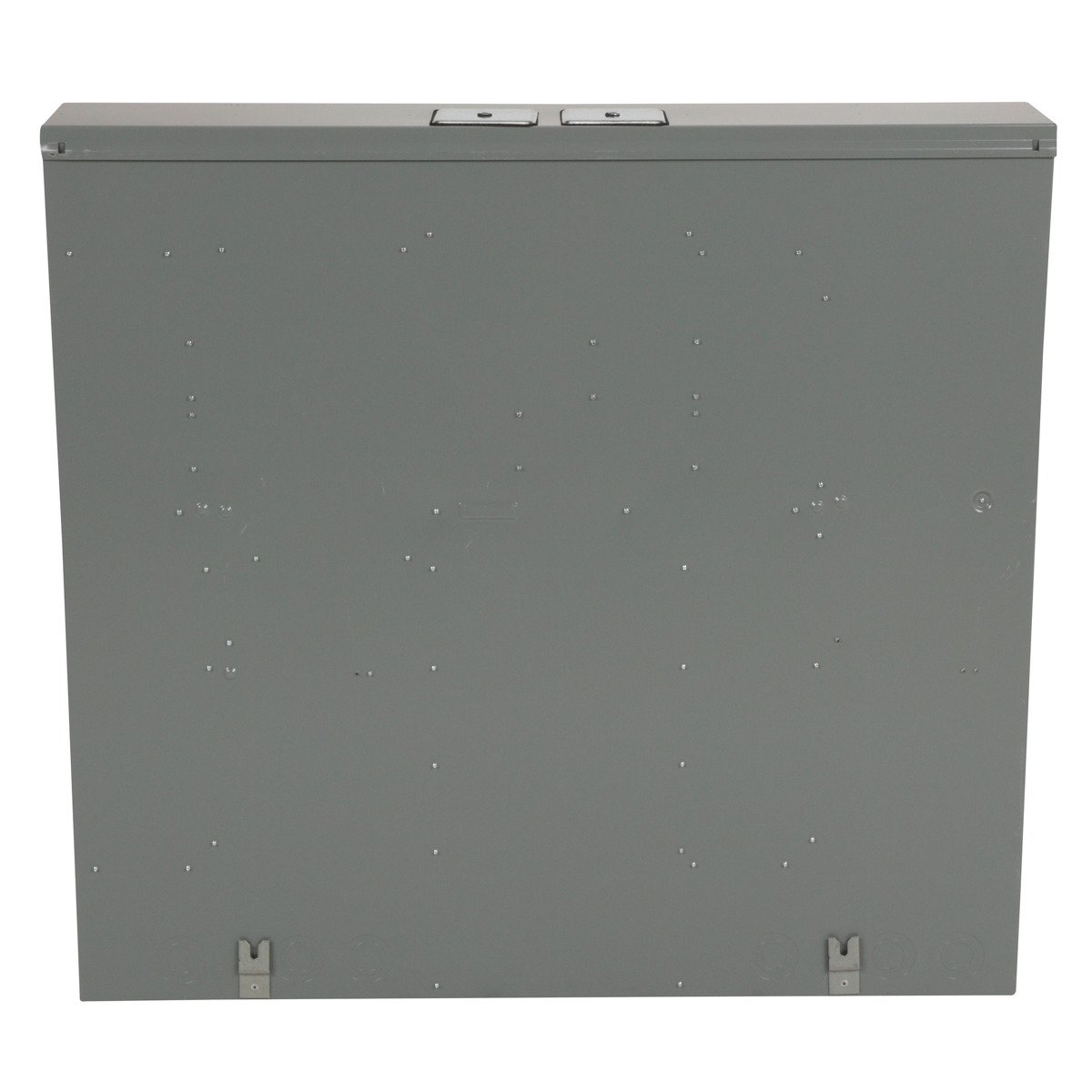

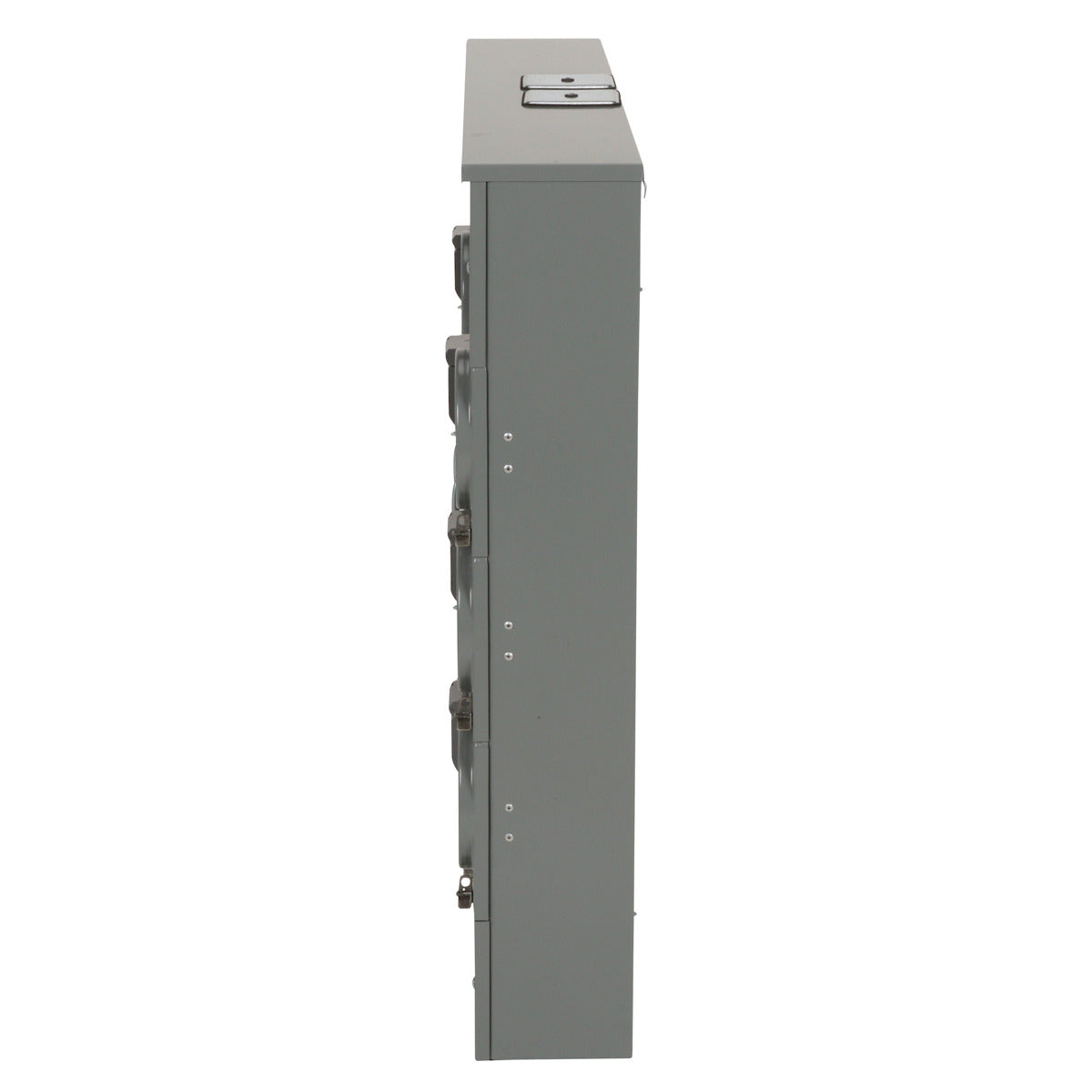

Square D MPH86200 MP Meter Pak Meter Center 200 Amp 6-Position

Product Description

The Square D MPH86200 MP Meter Pak meter center offers solutions for multi metering applications. Constructed to NEMA Type 3R and UL Listed, it meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This meter center is rated at 200 A with 6 positions, features a horn bypass, and an 800 A main bus. This system is a ringless type.

• UL Listed
• NEMA Type 3R construction
• Meets EUSERC standards

Product Highlights

The Square D MP Meter Pak is a 200A, 6-position meter center with a ringless socket, horn bypass, and an 800A main bus. It is suitable for multi-metering applications.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: MPH86200
• Country of Origin: Mexico

Technical Specifications

• Type: Ringless;Meter Center
• Brand: Square D
• Voltage: 240 Volt
• Amperage: 200 Amp
• Material: Aluminium: Busbar
• Enclosure: 3R
• NEMA Size: 3R
• Sub Brand: METER-PAK
• Wire Size: AWG 3/0...500 kcmil 2 aluminium;AWG 3/0...500 kcmil 2 copper
• Bus Rating: 800 A
• Cable Entry: UG-OH
• Product UPC: 78590141054
• 12-Digit UPC: 785901410546
• Certifications: UL
• Conductor Size: 3/0 AWG-500 kcmil
• Enclosure Rating: 3R
• Number of Phases: 1 Phase
• CA Prop65 Warning: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Country of Origin: Mexico
• Enclosure Material: Steel
• Manufacturer: Schneider Electric
• Mounting: Surface
• Phase: 1
• Special Features: Main Lugs;Aluminium: busbar
• Standard: UL Listed
• Bypass Type: Horn
• Number of Sockets: 6
• Socket Current Rating: 200 Ampere
• Socket Cover Style: Ringless with Horn Bypass
• Number of Jaws: 5
• Circuit Configuration: 1-Phase 3 Wire
• Bus Material: Aluminum
• Voltage Rating: 120/240 VAC
• Feed Type: Overhead/Underground
• Mounting Type: Surface
• Rated Current: 800A
• Rated Voltage: 120/240V ac
• Service Type: Overhead, Underground
• Wiring Configuration: 3-Wire
• Maximum Voltage: 120/240 VAC
