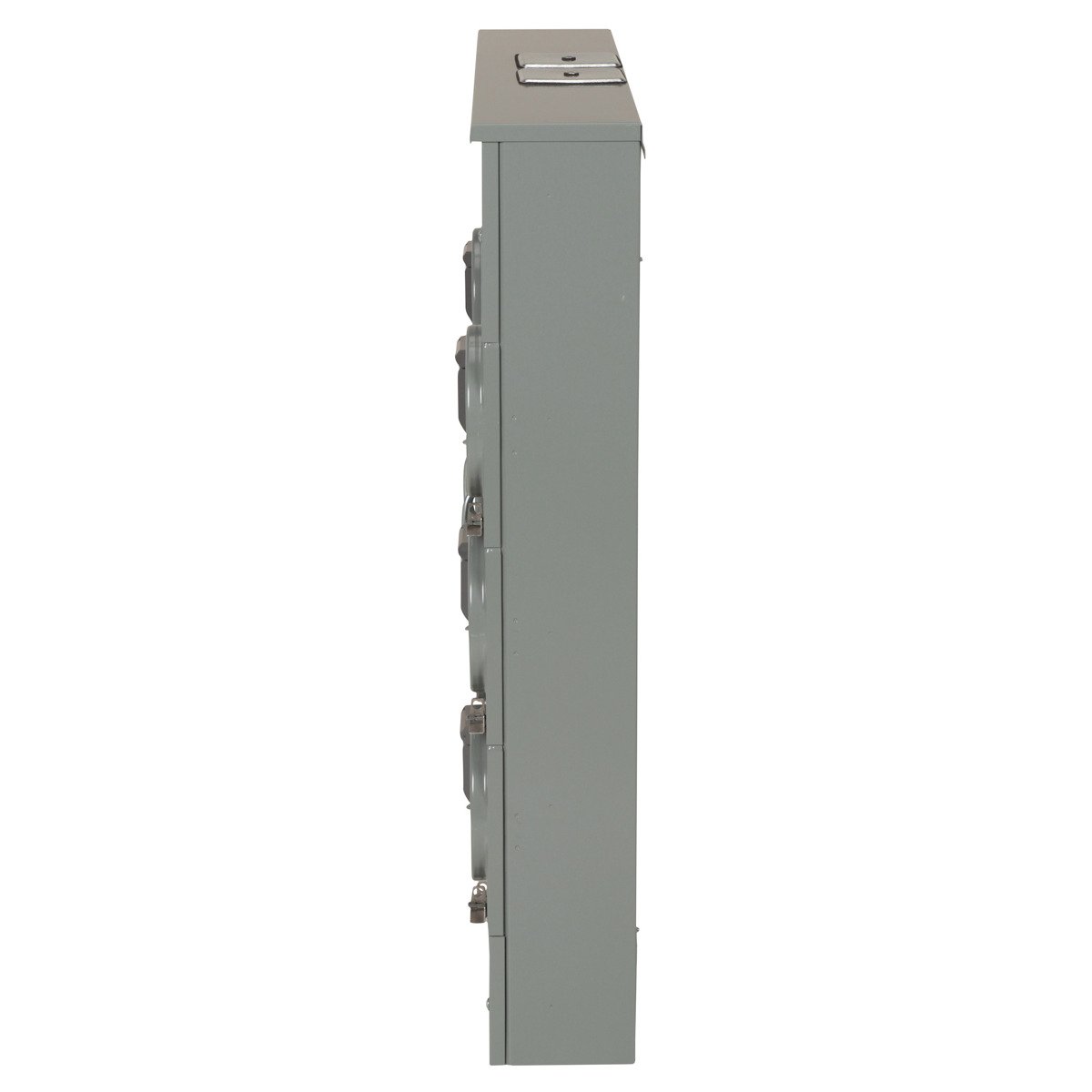

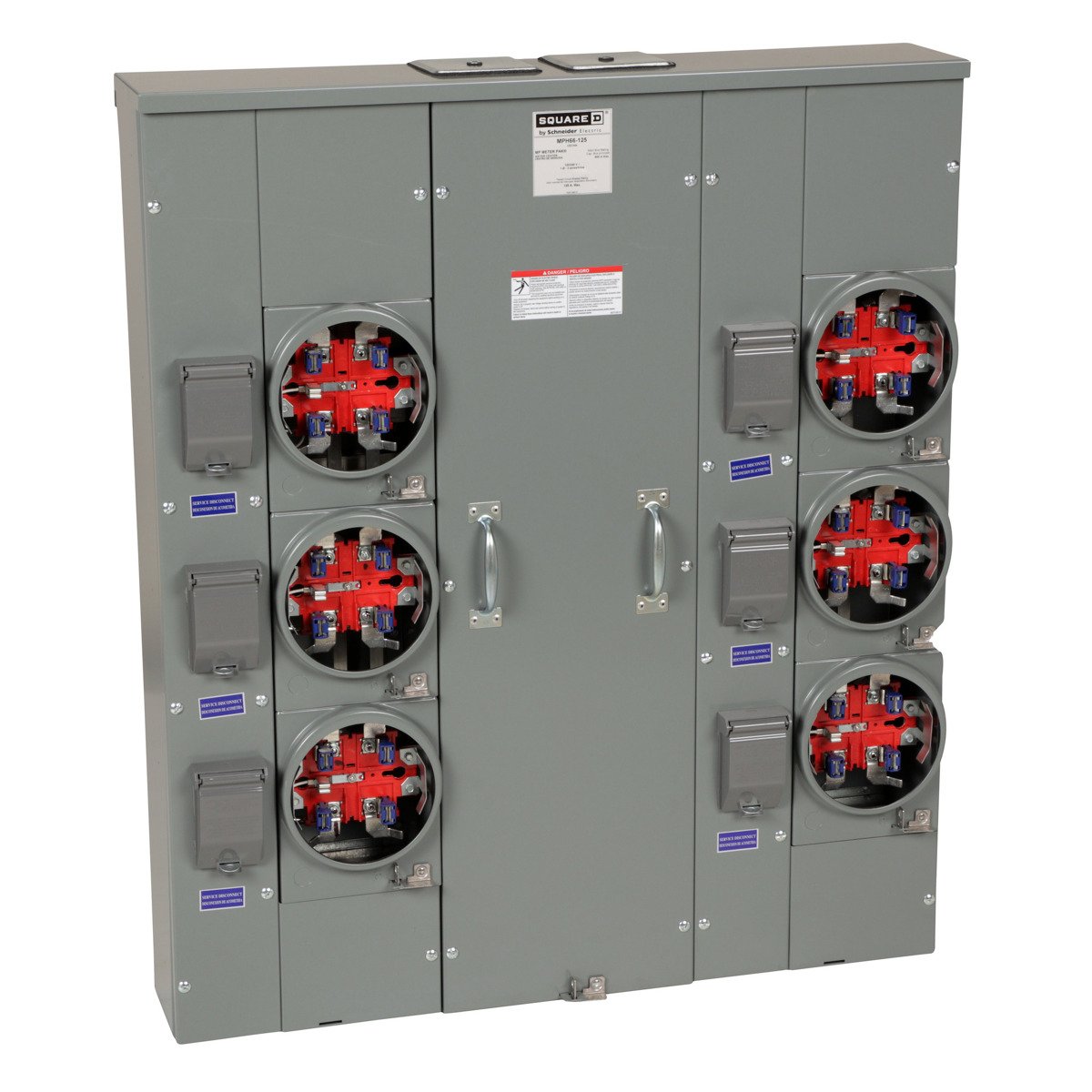

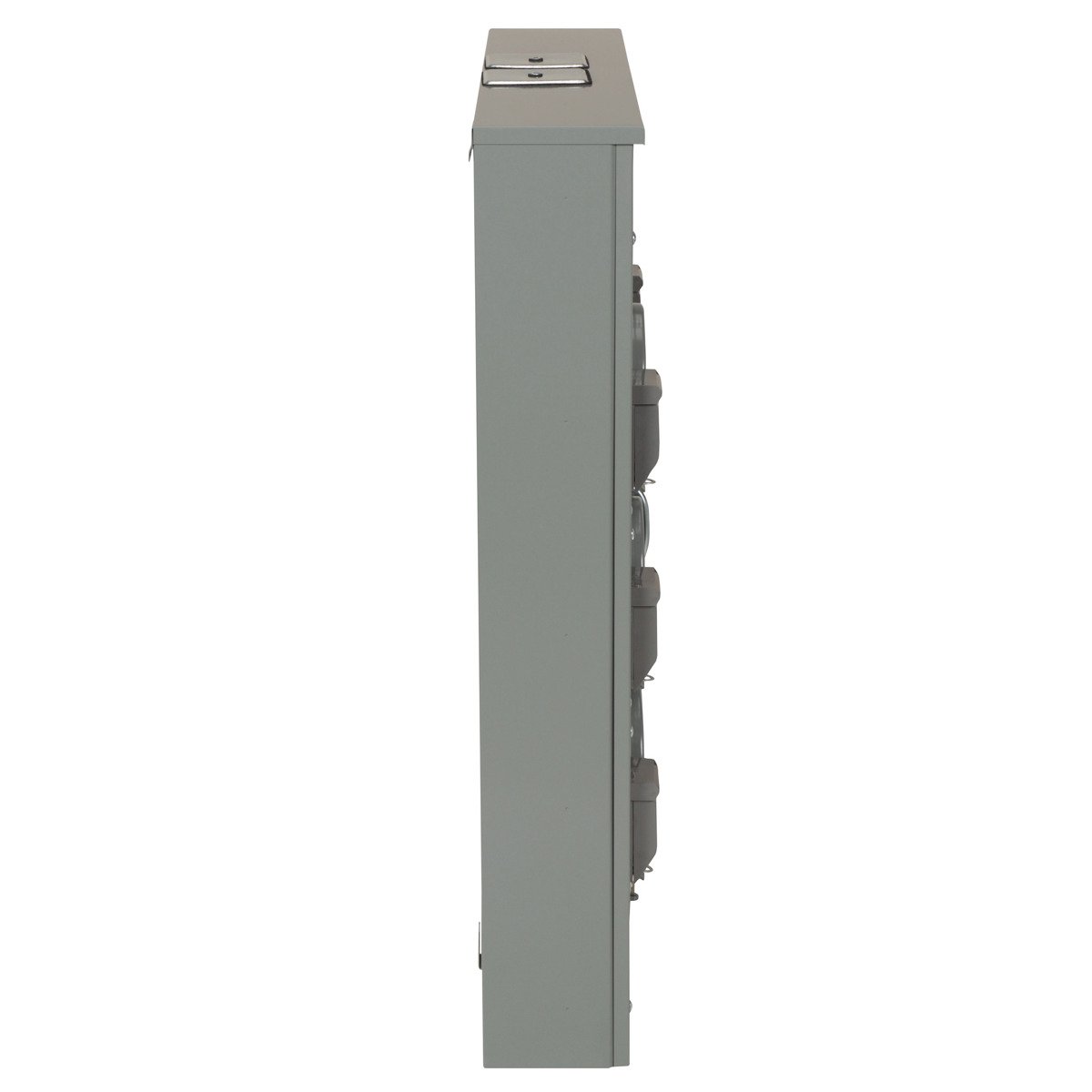

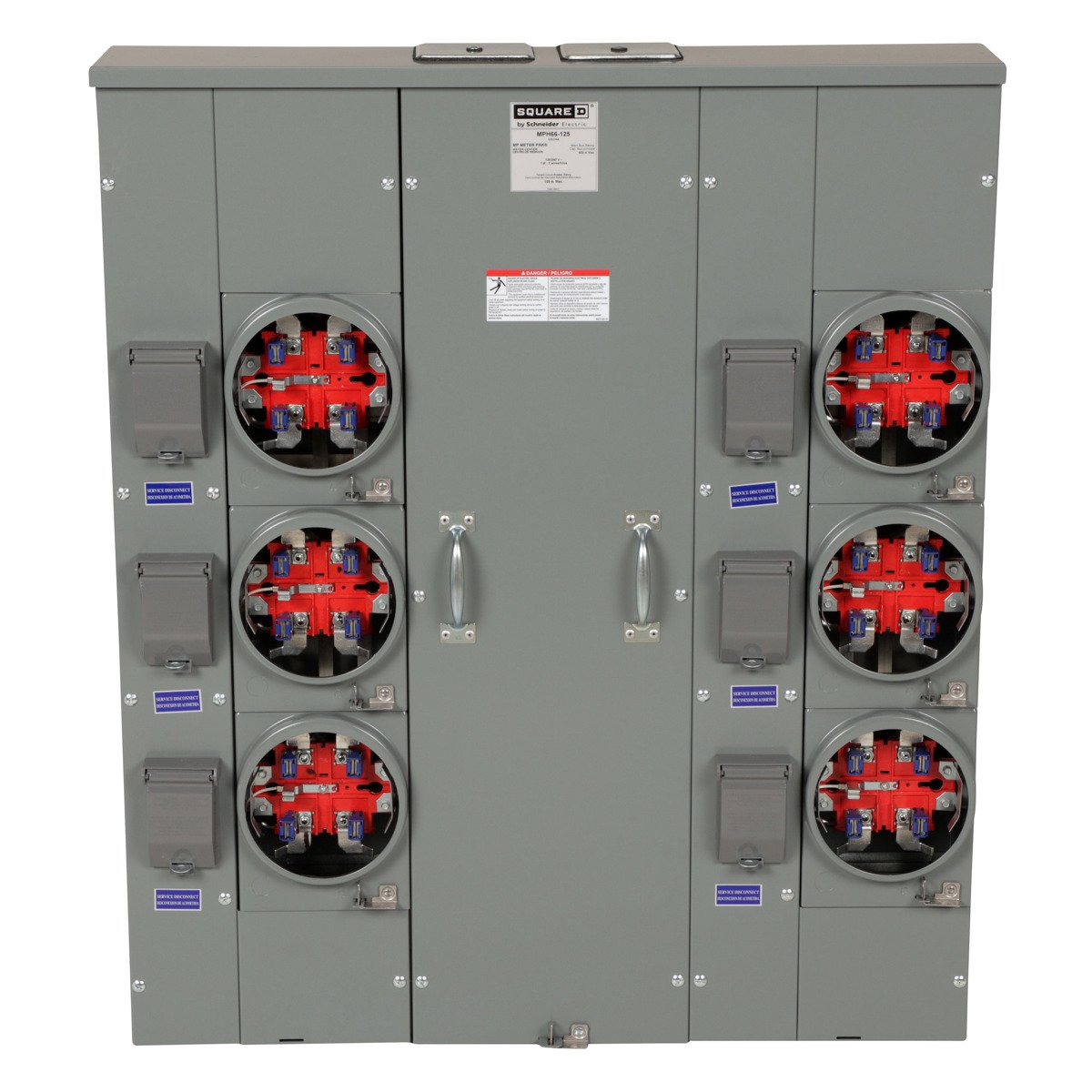

Square D MPH66125 120/240 VAC 125 Amp 1-Phase 3-Wire 6-Position NEMA 3R Ringless Meter Center

Product Description

The Square D MPH66125 is a meter center designed for multimetering applications. It features a UL Listed construction that is indoor rainproof with NEMA Type 3R standards. This model supports up to six meter sockets with configurations that include both ring and ringless options. The meter center uses a spacing of nine inches, allowing for increased socket capacity.

• UL Listed indoor rainproof NEMA Type 3R construction
• Maximum amperage of 125 Amps at 240 VAC
• Supports wire sizes from 1/0 AWG to 600 kcmil

Product Highlights

The MPH66125 is suitable for various multimetering needs, with a lightweight design due to compact branch enclosures.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: MPH66125
• Voltage: 240 Volt
• Amperage: 125 Amp
• Material: Aluminium Busbar
• Enclosure: Steel
• Bus Rating: 600 A
• Phases: 1 Phase
• Warranty Length: 18 months
