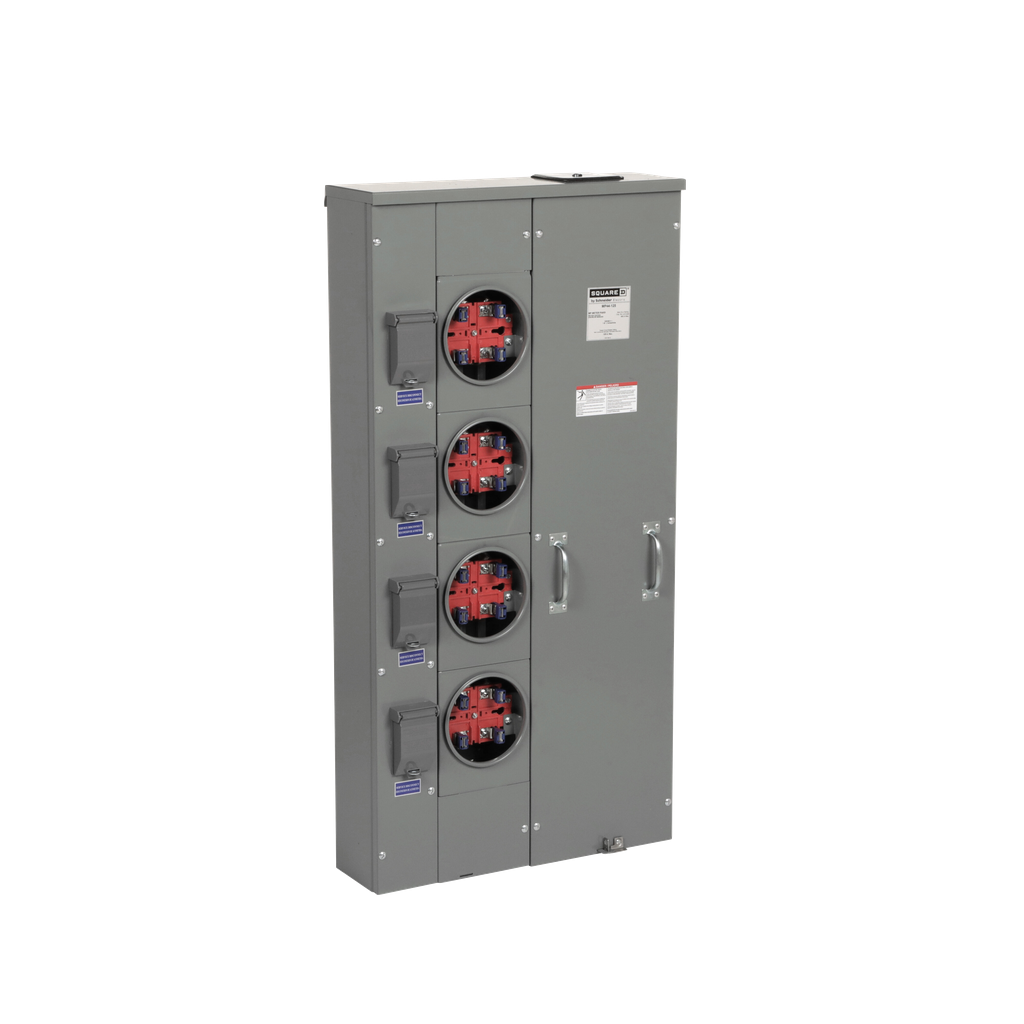

Square D MP44125 Meter Pak Meter Center 125 Amp NEMA 3R 4-Position No Bypass

Product Description

The Square D MP44125 Meter Pak Meter Center is engineered to cater to a wide variety of multi-metering applications. Suitable for both indoor and outdoor use, this UL-listed product adheres to EUSERC standards with a sturdy NEMA Type 3R construction. Featuring a 9-inch meter center spacing, the device allows the incorporation of more sockets, thus optimizing space and reducing the overall bulk of branch enclosures. Specifically, this model is equipped with four ringed meter sockets, no bypass, and a 4 jaw design capable of accommodating either overhead or underground service connections. A robust 400 ampere main bus complements the design, ensuring reliable energy distribution. At 48.12 inches tall, 24.34 inches wide, and 7.28 inches deep, the unit’s aluminum construction promises long-term durability.

• UL Listed with NEMA Type 3R rating for enhanced protection against environmental factors.
• Four meter sockets configuration suitable for varied setup preferences in electrical metering projects.
• Capable of supporting wire sizes from 1/0 AWG to 600 kcmil for both copper and aluminum connections.

Product Highlights

This Meter Center is not only practical in its application but also flexible regarding installation options, supporting both overhead and underground feed. Engineered for efficiency, it streamlines the setup of multiple electrical metering installations.

Product Information

Standard Information

• Brand: Square D
• Type: Meter Pak Meter Center

Technical Specifications

• Material: Aluminum Busbar, Steel Enclosure
• Depth: 7.28 inches
• Width: 24.34 inches
• Height: 48.12 inches
• Voltage: 240 Volt
• Amperage: 125 Amp
• Bus Rating: 400 Amp
• Cable Entry Type: Overhead (OH), Underground (UG)
