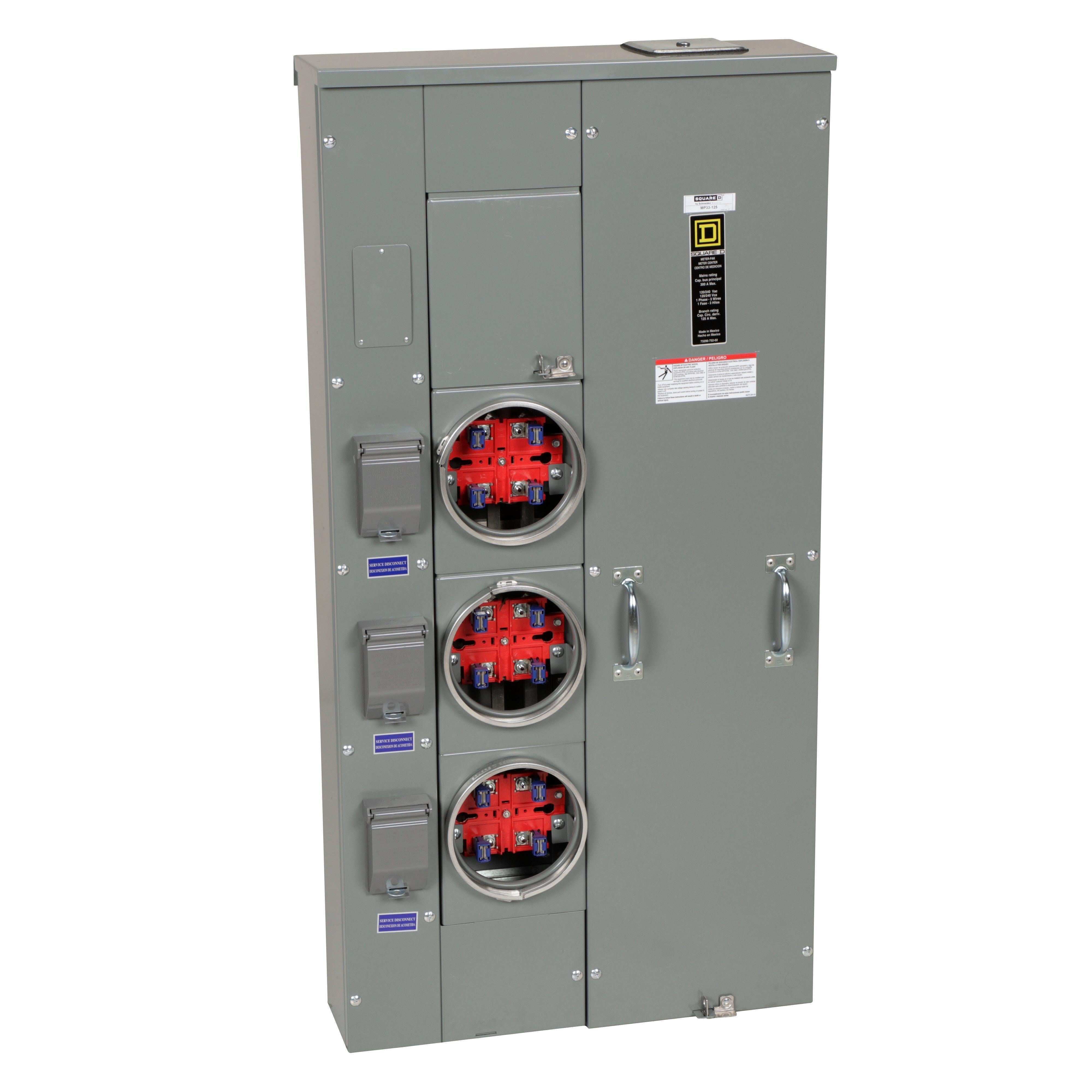

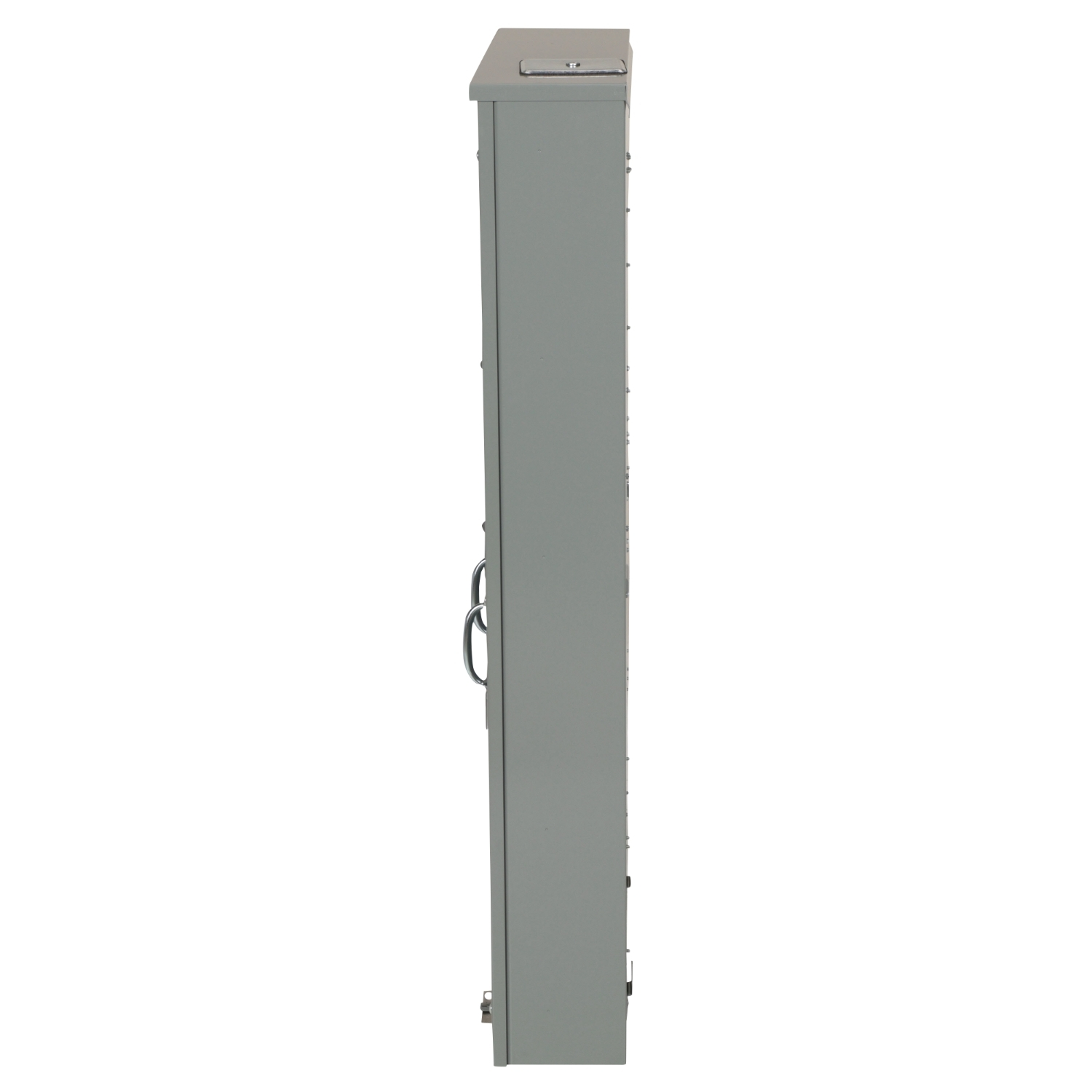

Square D MP33125 Meter Pak 125 Amp 3-Position

Product Description

The Square D MP33125 meter center offers a wide range of multimetering applications. This ring-type meter center features NEMA Type 3R construction and meets EUSERC standards. Rated at 125A, it includes 3 positions and a 300A main bus. It accommodates 1/0 AWG to 600 kcmil copper or aluminum wire.

• NEMA Type 3R enclosure for outdoor and indoor use.
• Features a 300A aluminum bus bar.
• UL Listed to meet safety standards.

Product Highlights

The Square D MP33125 meter center is ideal for multi-metering applications, providing a reliable and compact solution for service equipment.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: MP33125
• Country of Origin: Mexico

Technical Specifications

• Type: Ringed;Meter Center
• Brand: Square D
• Depth: 7.28 Inch
• Width: 24.34 in
• Height: 48.12 Inch
• Voltage: 240 Volt
• Amperage: 125 Amp
• Material: Aluminium: Busbar
• Enclosure: 3R
• NEMA Size: 3R
• Sub Brand: METER-PAK
• Wire Size: (1) 1/0 AWG to 600 KCMIL/(2) 1/0 AWG to 250 KCMIL (Aluminum/Copper, Phase/Neutral)
• Bus Rating: 300 A
• Cable Entry: UG-OH
• Product UPC: 78590100179
• 12-Digit UPC: 785901001799
• Certifications: UL
• Conductor Size: 1/0 AWG-600 kcmil
• Enclosure Rating: 3R
• Number of Phases: 1 Phase
• Country of Origin: Mexico
• Enclosure Material: Steel
• Catalog Number: MP33125
• Manufacturer: Schneider Electric
• Made in USA: No
• Bypass Type: No Bypass
• Mounting: Surface
• Number of Jaws: 4
• Phase: 1
• Special Features: Main Lugs;Aluminium: busbar
• Standard: UL Listed
• UPC: 785901001799
• GTIN: 00785901001799
• Item Type: Meter Center;Ringed
• Voltage Rating: 120/240 VAC
• Circuit Configuration: 1-Phase 3 Wire
• Bus Current Rating: 300 Ampere
• Bus Material: Aluminum
• Number of Sockets: 3
• Socket Current Rating: 125 Ampere
• Socket Cover Style: Ring
• Enclosure Type: NEMA 3R
• Approval: UL
• Service Type: Overhead/Underground
• Size: 24.34 Inch W x 7.28 Inch D x 48.12 Inch H
• Main Type: Main Lugs
• Meter Socket Rated Current: 125 A
• Number Of Meter Sockets: 3
• Product Or Component Type: Meter Center
• Meter Socket Type: ringed
• Product Certifications: UL Listed
• Service Feed Location: UG || OH
• Range Of Product: Meter-Pak
• [Ue] Rated Operational Voltage: 120/240 V AC
• Bus Rated Current: 300 A
• Main Rated Current: 300 A
• Nema Degree Of Protection: NEMA 3R
• Product Mounting: surface
• Awg Gauge: AWG 1/0...600 kcmil 1 aluminium || AWG 1/0...600 kcmil 1 copper
• Wiring Configuration: 3-wire
• Number of Gangs: 3
• Maximum Amperage: 300 A
• Item Length: 7.28
• Suitable For: Exterior, Wall
• Model: MP33125
• Features: Waterproof
• Box Shape: Rectangular
• Application: Metering
• Room: Indoor/Outdoor
• Item Width: 24.34
• Part Number #: MP33125
• Series: MP Series
• Terminal Type: Bus Bar/Main Lug
• Rated current: 125A (main rated current)
• Rated voltage (AC): 240Vac
• Mounting mode: Surface mounting
• Degree of protection: NEMA 3R
• Compliant with standard(s): UL listed
