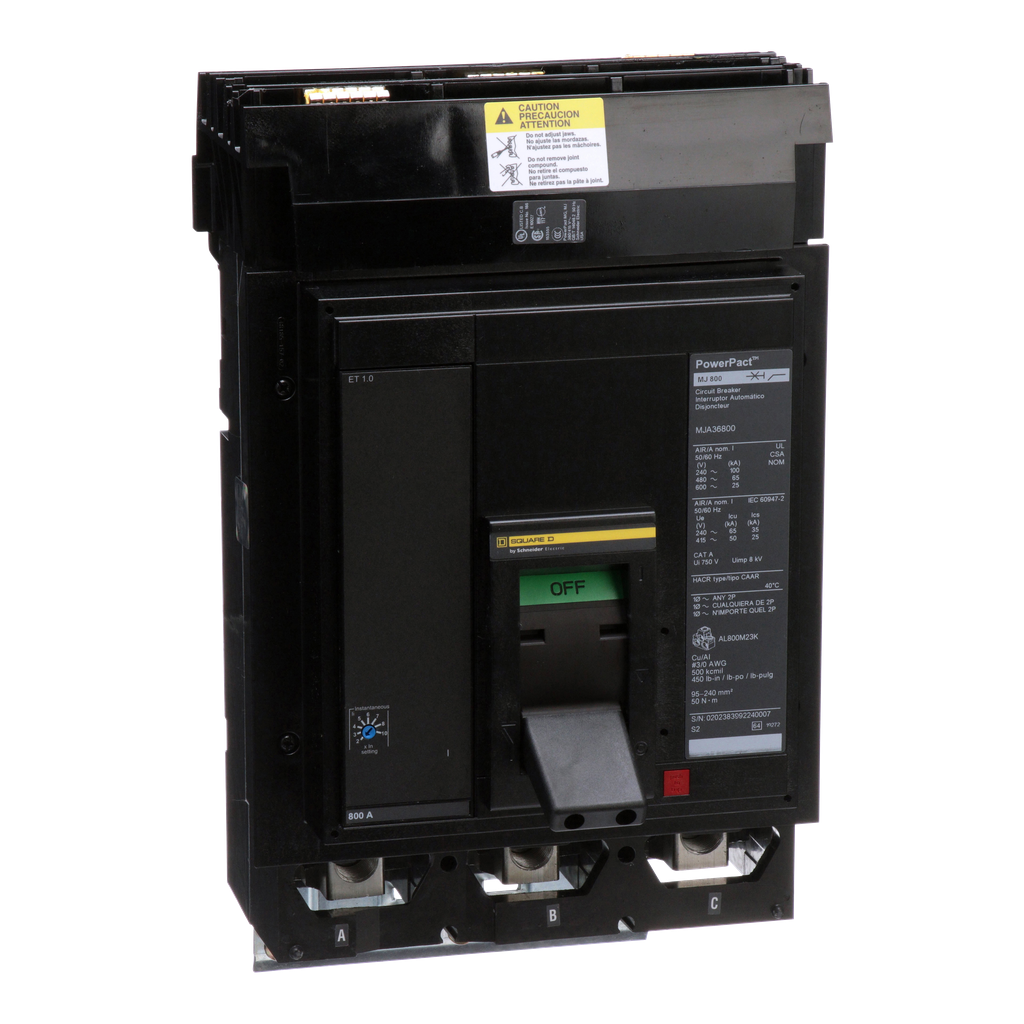

Square D MJA36800 600 Volt 800 Amp Molded Case Circuit Breaker

Product Description

The Square D MJA36800 is a molded case circuit breaker designed for 600 Volt applications. This unit has an 800 Amp capacity and features an electronic trip unit, ET 1.0. It is ideal for protecting electrical systems from overloads and short circuits.

• Interrupting rating of 25kA at 600VAC
• Integral push-to-trip button for manual operation
• Compliance with UL, CSA, NOM, and IEC standards

Product Highlights

This circuit breaker is part of the PowerPact M Frame series, providing reliable protection for your electrical systems. It is suitable for various applications including industrial and commercial use.

Product Information

Standard Information

• Brand: Square D
• MPN: MJA36800

Technical Specifications

• Type: Electronic trip circuit breaker
• Current: 800 Amp
• Voltage: 600 Volt
• Number of Poles: 3 Pole
• Dimensions: Width - 8.27 in, Height - 12.86 in, Depth - 8.05 in
• Weight: 29 lb
• Trip Type: Basic (ET1.0)
• Country of Origin: USA
